Setup and hold time constraints

WHAT are we constraining?

WHY these exist: a real flip-flop is built from feedback loops (cross-coupled gates). The loop needs time to acquire the input and regenerate it into a stable state. Violate the window → the loop can hang half-way between 0 and 1 = metastability.

The pipeline picture (deriving the constraints)

Consider two flip-flops in a pipeline separated by combinational logic:

FF1 --Q--> [ combinational logic ] --D--> FF2
  ^                                          ^
  |------------------ CLK --------------------|

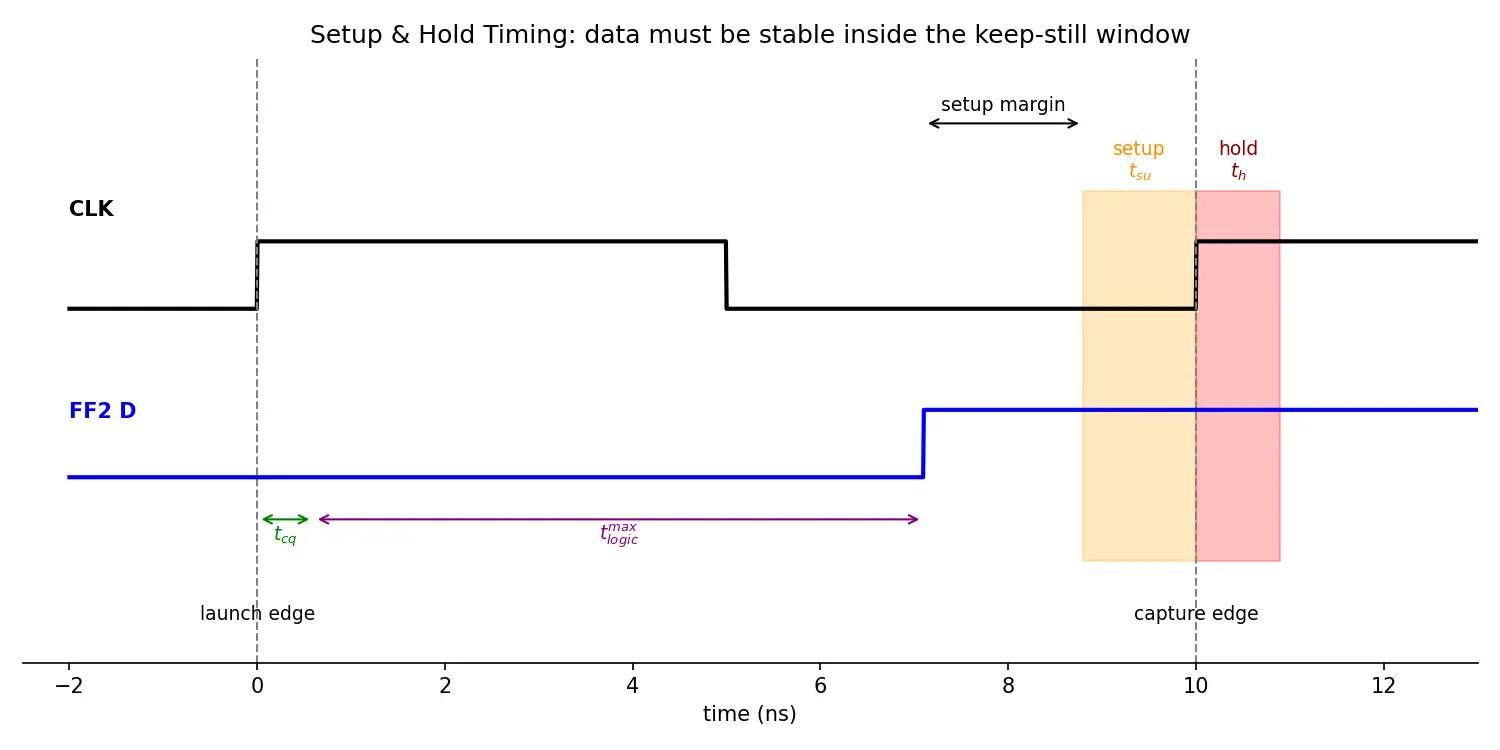

Figure — Setup and hold time constraints

Data leaves FF1 on a clock edge, travels through logic, and must arrive at FF2 in time for the next edge (setup) but not too early to disturb the current edge (hold).

Deriving the SETUP constraint (from first principles)

HOW: Track the arrival time of the new data at FF2's D, relative to the next clock edge.

Let the clock period be $T$ . Assume the launching edge is at time $0$ ; the capturing edge at FF2 is at time $T$ (ignore clock skew for now).

Data becomes valid at FF1's Q at time = $t_{cq}$ (worst case $t_{cq}^{max}$ ).
It passes through logic taking $t_{logic}^{max}$ . It arrives at FF2's D at: $t_{arrive} = t_{cq}^{max} + t_{logic}^{max}$
FF2 requires D stable $t_{su}$ before its edge at $T$ , i.e. arrival must be $\le T - t_{su}$ .

WHY the subtraction? We must reserve the last $t_{su}$ seconds of the period for FF2's "keep-still" window, so nothing may still be arriving there.

$\boxed{\,t_{cq}^{max} + t_{logic}^{max} + t_{su} \le T\,}$

Deriving the HOLD constraint (from first principles)

WHY a second constraint? Setup worries about data arriving too late for the next edge. Hold worries about new data arriving too early and corrupting the value FF2 is trying to latch on this same edge.

Same edge at time $0$ launches from FF1 and captures at FF2:

Fastest possible change at FF1's Q after the edge: $t_{cq}^{min}$ .
Fastest path through logic: $t_{logic}^{min}$ (contamination delay).
So FF2's D could start changing as early as $t_{cq}^{min} + t_{logic}^{min}$ after the edge.
FF2 needs D held stable until $t_h$ after the edge. So the earliest change must be $\ge t_h$ :

$\boxed{\,t_{cq}^{min} + t_{logic}^{min} \ge t_h\,}$

Adding clock skew

Let the capturing clock arrive at FF2 later than the launching clock by skew $t_{skew}$ (positive = capture clock delayed).

Setup gets easier (more time before the delayed capture edge): $T + t_{skew} \ge t_{cq}^{max} + t_{logic}^{max} + t_{su}$
Hold gets harder (the delayed edge extends the keep-still window into the fast data): $t_{cq}^{min} + t_{logic}^{min} \ge t_h + t_{skew}$

Worked Examples

Recall Feynman: explain to a 12-year-old

Imagine you're passing a note to a friend right when the teacher claps. If you shove the note too late, your friend hasn't grabbed it before the clap — they read garbage (setup problem: give them the note earlier or clap slower). If you snatch the note back too fast right after the clap, your friend never finished reading it (hold problem: hold the note a moment longer — clapping slower doesn't help, you just have to hold it). The tiny "please don't move the note" moment around each clap is the flip-flop's keep-still window.

Flashcards

Setup time definition

Minimum time data must be stable BEFORE the active clock edge for correct sampling.

Hold time definition

Minimum time data must remain stable AFTER the active clock edge.

Setup constraint formula

T \ge t_{cq}^{max} + t_{logic}^{max} + t_{su}

Hold constraint formula

t_{cq}^{min} + t_{logic}^{min} \ge t_h

Which constraint limits max clock frequency?

Setup (it contains

T

);

f_{max}=1/(t_{cq}^{max}+t_{logic}^{max}+t_{su})

Why can't slowing the clock fix a hold violation?

Hold constraint has no

T

term; it's a same-edge race, so period cancels. Fix by adding delay/buffers.

Setup uses which delays?

Maximum (worst-case) delays:

t_{cq}^{max}

t_{logic}^{max}

Hold uses which delays?

Minimum (contamination/fastest) delays:

t_{cq}^{min}

t_{logic}^{min}

Effect of positive capture-clock skew on setup?

Relaxes it:

T + t_{skew} \ge t_{cq}^{max}+t_{logic}^{max}+t_{su}

Effect of positive capture-clock skew on hold?

Tightens it:

t_{cq}^{min}+t_{logic}^{min} \ge t_h + t_{skew}

What happens if the keep-still window is violated?

Metastability — the output may hover between 0 and 1 unpredictably.

What is

t_{cq}

Clock-to-Q delay: time from clock edge until Q outputs the new value.

How to fix a hold violation?

Add buffer/delay elements on the fast (min-delay) combinational path.

Connections

Flip-Flops and Latches — the storage element these constraints describe.
Metastability — the failure mode when the window is violated.
Clock Skew and Jitter — how clock timing shifts the constraints.
Static Timing Analysis (STA) — the systematic checking of setup/hold across all paths.
Pipelining — where setup sets $f_{max}$ per stage.
Combinational Logic Delay — source of $t_{logic}^{max}$ and $t_{logic}^{min}$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek flip-flop basically clock edge par apne D input ka "photo" leta hai. Agar photo lete waqt data hil raha hai, toh photo blur ho jaata hai — isko metastability bolte hain. Isse bachne ke liye data ko clock edge se thoda pehle stable hona chahiye (yeh setup time $t_{su}$ hai) aur edge ke thoda baad tak bhi stable rehna chahiye (yeh hold time $t_h$ hai). Matlab har clock edge ke around ek chhota "hilna mana hai" window hota hai.

Ab do flip-flops ke beech combinational logic hoti hai. Data FF1 se nikalta hai ( $t_{cq}$ ke baad), logic se guzarta hai ( $t_{logic}$ ), aur FF2 tak pahuchta hai. Setup constraint kehti hai ki data agle edge se pehle pahunch jaaye: $T \ge t_{cq}^{max}+t_{logic}^{max}+t_{su}$ . Isse tumhara maximum clock frequency decide hota hai — agar setup fail ho raha hai, toh clock slow kar do, kaam ban jaata hai.

Hold constraint thodi tricky hai: $t_{cq}^{min}+t_{logic}^{min} \ge t_h$ . Isme dekho $T$ hai hi nahi! Kyunki hold same edge ke andar ka race hai — naya fast data purane value ko corrupt na kar de. Isliye hold violation ko clock slow karke kabhi theek nahi kar sakte. Fix karna hai toh fast path par buffers/delay add karo. Yaad rakho: Setup = MAX delays, Hold = MIN delays.

Ek important baat — clock skew. Agar capture clock late aaye (positive skew), toh setup easy ho jaata hai par hold aur mushkil ho jaata hai. Isliye "skew badhao aur speed lo" wali soch dangerous hai; woh hold violations create kar deta hai jinko koi frequency change theek nahi karega. Balance zaroori hai.
