Flip-flops — SR, D, JK — storing one bit

1,868 words8 min readdifficulty · medium6 backlinks

WHAT is a flip-flop?


HOW feedback creates memory (derive from scratch)

Start with two NOR gates. Recall NOR: output is 1 only when both inputs are 0.

NOR(a,b)=a+b\text{NOR}(a,b) = \overline{a + b}

Cross-couple them: feed each gate's output into the other's input. This is the SR latch.

  • Inputs: SS (Set), RR (Reset).
  • Outputs: QQ and Qˉ\bar{Q}.

Q=R+Qˉ,Qˉ=S+QQ = \overline{R + \bar Q}, \qquad \bar Q = \overline{S + Q}

Why does this remember? Suppose S=0,R=0S=0, R=0. Plug into the equations: QQ depends on Qˉ\bar Q, and Qˉ\bar Q depends on QQ. If Q=1Q=1 then Qˉ=0+1=0\bar Q = \overline{0+1}=0, and Q=0+0=1Q=\overline{0+0}=1 ✓ — consistent. If Q=0Q=0 then Qˉ=1\bar Q=1 and Q=0+1=0Q=\overline{0+1}=0 ✓ — also consistent. Both are stable, so the circuit holds whatever it had. That holding is the memory.

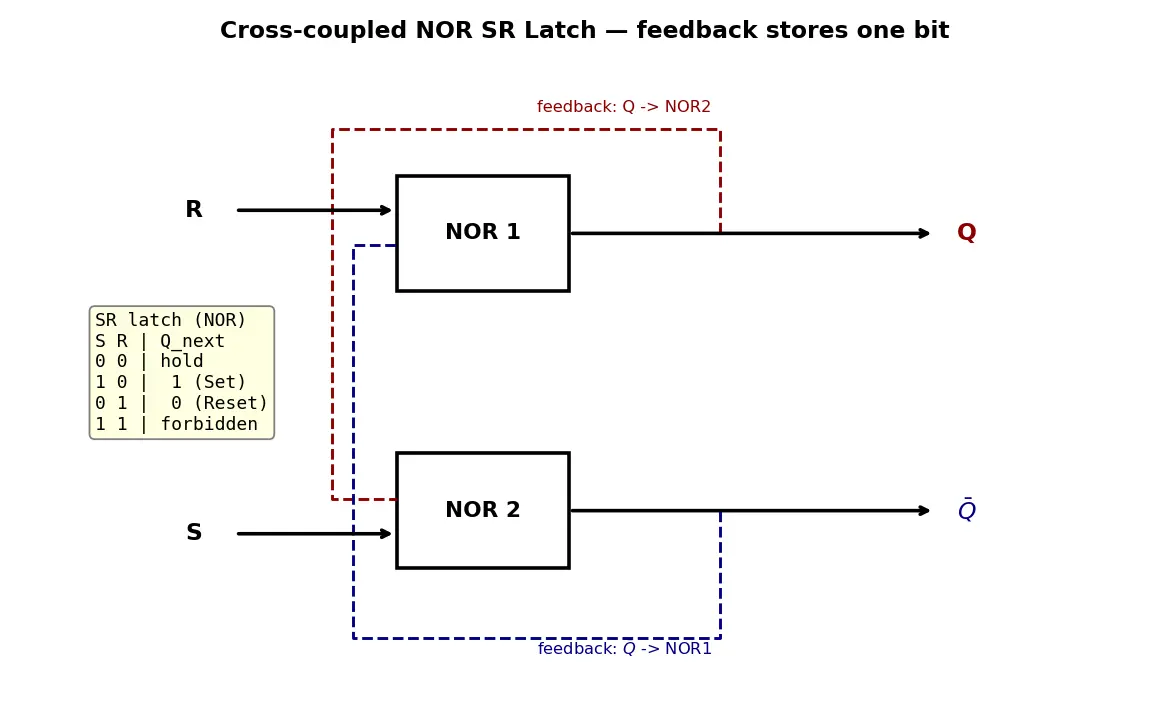

Figure — Flip-flops — SR, D, JK — storing one bit

Truth table of the NOR SR latch

SS RR QnextQ_{next} meaning
0 0 QQ (hold) remember
1 0 1 Set to 1
0 1 0 Reset to 0
1 1 forbidden both outputs 0, breaks Q=QˉˉQ=\bar{\bar Q}

D flip-flop — fixing the forbidden state

HOW: force R=SˉR = \bar S by tying S=DS=D and R=DR=\overline{D}. Now you can never have S=R=1S=R=1.

Qnext=DQ_{next} = D

Add a clock: only sample DD on the rising edge. Between edges the value is frozen.

DD QnextQ_{next}
0 0
1 1

JK flip-flop — making the forbidden case useful

We engineer this by gating S and R with the current state: S=JQˉ,R=KQS = J\bar Q, \qquad R = KQ

Why? JJ can only set when QQ is already 0 (Qˉ=1\bar Q=1); KK can only reset when QQ is already 1. So SS and RR are never both 1 — the forbidden state is structurally impossible.

JJ KK QnextQ_{next} meaning
0 0 QQ hold
0 1 0 reset
1 0 1 set
1 1 Qˉ\bar Q toggle
