Ring and Johnson counters
Two special shift-register counters built by feeding the output of a shift register back to its input. They trade off "wasted" states for glitch-free, self-decoding counting.
[!intuition] The core picture
A shift register is just a chain of flip-flops passing a bit along like a bucket-brigade of people passing a ball. A counter normally needs an adder or complex logic. But what if we just take a shift register and loop its last output back into its first input? The pattern of 1s and 0s circulates forever — and that circulating pattern IS the count.
- Ring counter = feed straight back to . One "hot" bit circulates.
- Johnson counter (a.k.a. twisted-ring / switch-tail) = feed the complement back. This twist doubles the number of states.
WHY care? No decoding logic is needed to know the state — you read it directly. And each transition changes only one flip-flop at a time, so there are no decoding glitches (unlike a binary counter where multiple bits flip at once).
[!definition] Definitions
- Ring counter: an -flip-flop shift register with (or ) wired to ; exactly one flip-flop is high, and the 1 rotates. Has ==== valid states.
- Johnson counter: same shift register but the inverted last output feeds the first input; produces ==== valid states.
- A valid/used state is one the counter actually visits in its normal cycle; all others are unused (lock-out) states.
[!formula] Number of states — derived, not memorised
WHY does a ring counter give states? Load a single 1 into cells. Each clock shifts it one position. After shifts the 1 has visited every cell and returned home. So the cycle length = number of cells:
WHY does Johnson give ? Trace the fill/empty process. Start all 0. Feedback is , so a 1 enters. Each clock the 1s fill from the left until the register is all 1s — that's steps. Now , so 0s enter and empty the register from the left — another steps to reach all 0s again.
Efficiency (the 80/20 fact). With flip-flops you could count to . So: Johnson is twice as efficient as ring but both are hugely wasteful vs a binary counter. You pay silicon for simplicity + no glitches.

[!example] Worked: 4-bit Ring counter ()

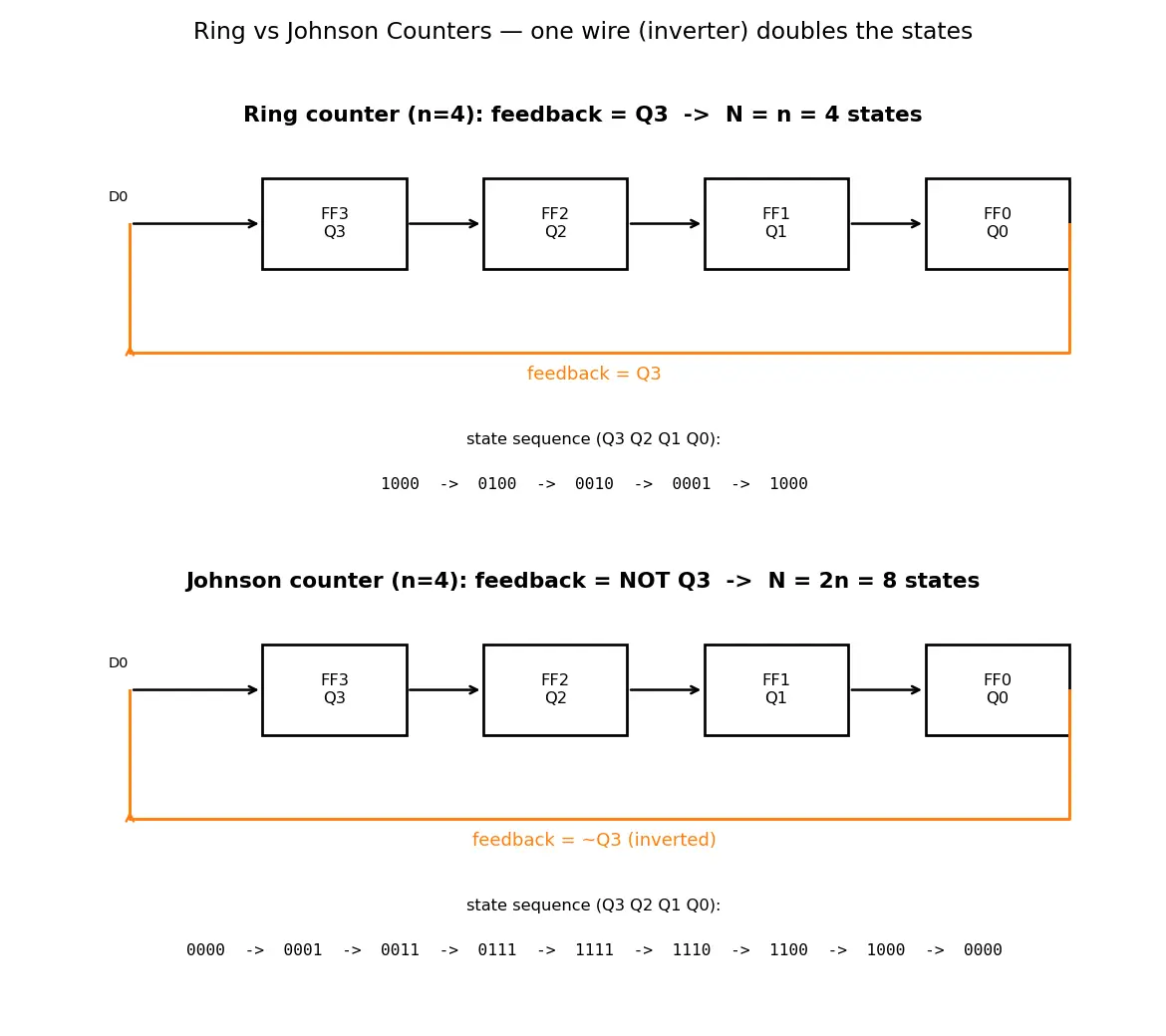

Wiring: . Preset with .
| Clock | |
|---|---|
| init | 1000 |
| 1 | 0100 |
| 2 | 0010 |
| 3 | 0001 |
| 4 | 1000 (repeat) |
- Why start at 1000? The ring counter cannot generate its own starting 1 — feedback just copies. You must inject one 1 (preset/clear). Why this step? Because : if all cells were 0, forever → stuck at 0000.
- Why only 4 states? One 1 in 4 positions → 4 arrangements. Why this step? The number of hot positions equals the register length.
[!example] Worked: 4-bit Johnson counter ( states)
Wiring identical except . Start at .
| Clock | ||
|---|---|---|
| 0 | 0000 | 1 |
| 1 | 0001 | 1 |
| 2 | 0011 | 1 |
| 3 | 0111 | 1 |
| 4 | 1111 | 0 |
| 5 | 1110 | 0 |
| 6 | 1100 | 0 |
| 7 | 1000 | 0 |
| 8 | 0000 (repeat) | — |
- Why does it fill then empty? Once , feedback starts injecting 0s. Why this step? The twist (complement) is what flips the incoming bit and doubles the cycle.
- Decoding a state uniquely with a 2-input AND. Notice each state has exactly one "0→1 boundary" or "1→0 boundary". E.g. state is the only one with . So decode it with . Why this step? Adjacent-bit patterns are unique per Johnson state → each output needs just a 2-input gate, cheap and glitch-free.
[!example] Self-starting fix (mini-derivation)
Problem: what if a Johnson counter powers up in an unused state like ? Trace it: , shift → … it oscillates in a dead loop, never joining the main cycle.
- Fix: modify the feedback so style correction (a common trick: variants) forcing illegal states back into the valid cycle. Why this step? A self-correcting counter must have every unused state eventually map into a used one, guaranteeing recovery after noise/power-up.
[!mistake] Common mistakes (steel-manned)
"A ring counter with flip-flops counts to ." Why it feels right: every other counter you learned (binary ripple/sync) does . The fix: ring counters encode the count as position of a single 1, giving only states. The whole point is trading count-range for zero decode logic.
"Ring and Johnson are the same, one just has an inverter — no big deal." Why it feels right: the circuits differ by one wire. The fix: that inverter twists the ring and doubles states () and enables 2-gate self-decoding. One wire changes the fundamental state count.
"They start counting by themselves." Why it feels right: other counters just power on and go. The fix: both need initialisation (preset a 1 into a ring; clear a Johnson) or must be made self-starting, else they can lock into dead loops.
"Johnson state then — did we skip?" Why it feels right: looks like a jump. The fix: at feedback is , so a 0 shifts in giving , not . The all-0 state comes only after all 1s are shifted out.
[!recall]- Explain it to a 12-year-old
Imagine a line of 4 kids passing a single glowing ball to the right; the last kid throws it back to the first. Wherever the ball is = the "count" — that's a ring counter, 4 possible spots. Now the twist: the last kid, instead of passing the same ball, passes the opposite — if he has a lit ball he passes a dark one, and vice-versa. Now the whole line lights up one-by-one, then goes dark one-by-one. Twice as many patterns from the same kids! That's a Johnson counter. You never need a scoreboard — just look at the lights.
[!mnemonic]
- Ring = one 1 Runs in a Ring → states.
- Johnson = Just add iNverter → doubles → (J for "twisted / double").
- "Ring: n. Johnson: 2n. Binary: 2ⁿ." — increasing count, increasing decode-cost.
Flashcards
How many states does an -bit ring counter have?
How many states does an -bit Johnson counter have?
What single hardware change turns a ring counter into a Johnson counter?
Why do ring/Johnson counters need no decoding logic (no glitches)?
Why must a ring counter be preset with exactly one 1?
State utilisation of a Johnson counter vs binary counter?
What is a "lock-out"/dead loop and how is it fixed?
In a 4-bit Johnson counter, what follows state ?
Decode gate for Johnson state (4-bit)?
