Synchronous vs asynchronous counters

A counter is a chain of flip-flops (usually T or JK) that cycles through a sequence of binary states, one step per clock. The ONLY difference between the two families is how each flip-flop gets its clock.

WHY does a ripple counter even count?

Let's derive it from a single flip-flop. Use a T flip-flop with $T=1$ (toggle every clock edge). Call its output $Q$ .

If $Q$ toggles on every falling edge of its clock, then $Q$ produces a wave at half the frequency of its clock. This is the key fact:

$f_{\text{out}} = \frac{f_{\text{clk}}}{2}$

Why? One full output cycle (0→1→0) needs two toggles, and each toggle needs one clock edge. So two clock edges = one output cycle ⇒ frequency halves.

Now chain them: feed $Q_0$ into the clock of FF1, feed $Q_1$ into the clock of FF2…

$f_0=\frac{f}{2},\quad f_1=\frac{f}{4},\quad f_2=\frac{f}{8},\dots,\quad f_k=\frac{f}{2^{\,k+1}}$

Read $Q_2Q_1Q_0$ as a binary number and it counts up $0,1,2,\dots$ — this is a divide-by- $2^n$ ripple counter (for $n$ flip-flops).

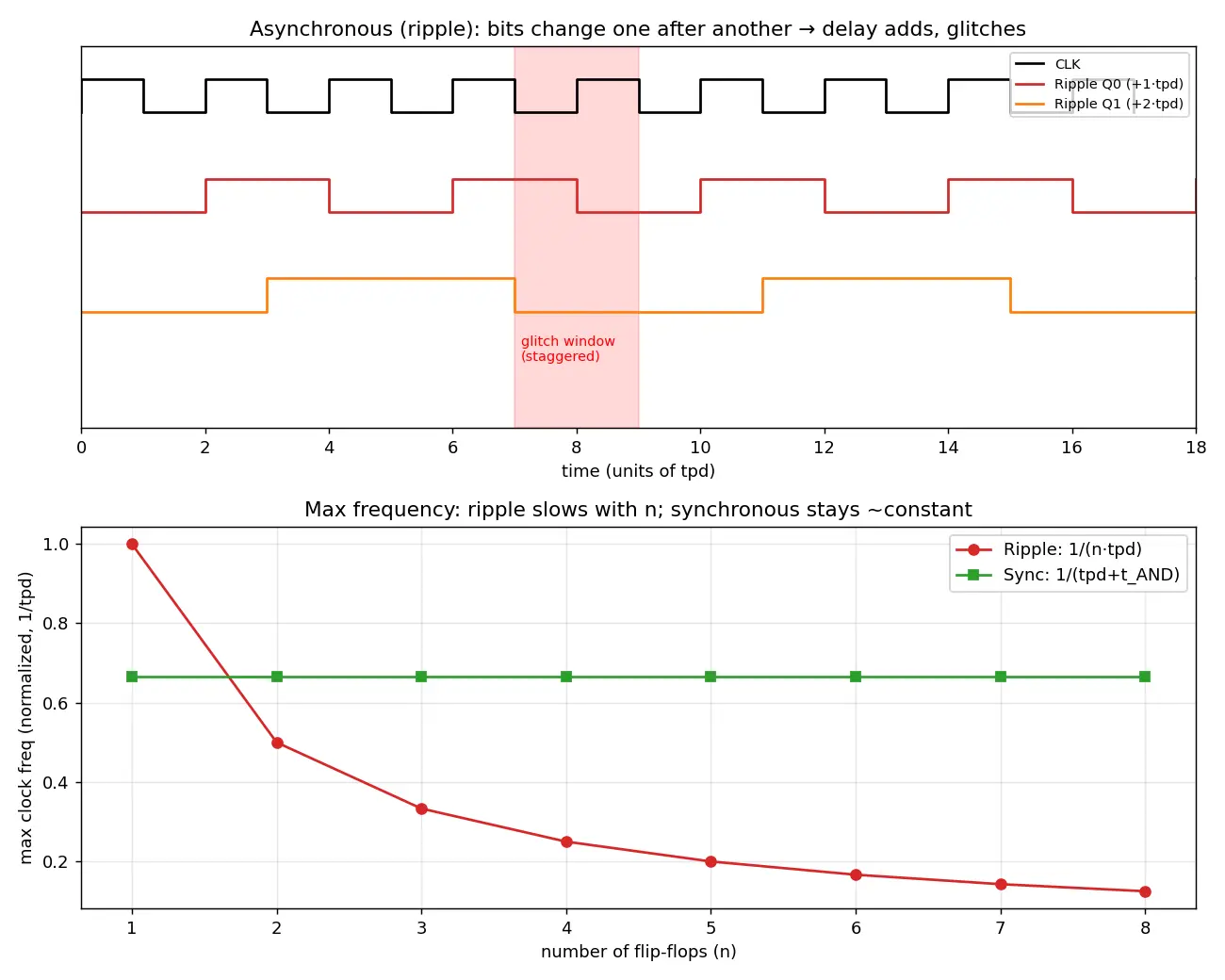

Figure — Synchronous vs asynchronous counters

WHY ripple counters are slow (the propagation problem)

Each flip-flop has a delay $t_{pd}$ between a clock edge arriving and its output settling. In a ripple counter the edges arrive in sequence, so delays add up.

WHY synchronous counters are fast

Feed the same clock to every flip-flop. Now every FF settles in parallel, so total delay is one $t_{pd}$ (plus the AND-gate delay that computes when each FF should toggle).

But if all clocks fire together, how does each bit know when to toggle? We derive the toggle condition.

Feature	Asynchronous (ripple)	Synchronous
Clock source	cascaded ( $Q_{k-1}$ )	common master clock
Settle delay	$n\,t_{pd}$	$\approx t_{pd}$
Glitches	yes (transient wrong states)	no
Hardware	simplest (no AND gates)	more gates
Max freq	$1/(n t_{pd})$	$1/(t_{pd}+t_{AND})$

Imagine kids in a line each holding a light. In the ripple version, kid #1 flips his light, and then pokes kid #2, who flips and pokes kid #3… The last light changes way late — for a moment the row shows a wrong pattern. In the synchronous version, a teacher yells "NOW!" and everyone flips at once, but each kid follows a rule "flip only if all the kids on my right are ON." Same counting, no wrong flicker, and much faster.

Connections

T flip-flop and JK flip-flop — the toggling building block
Propagation delay — why ripple is slow
Frequency division — ripple counter as $\div 2^n$
Carry lookahead — the AND-tree that makes sync counters fast
Modulo-N counters — resetting a counter early
Clock skew — the real-world enemy of true synchronicity

#flashcards/hardware

What is the single defining difference between sync and async counters?

How each flip-flop is clocked — shared master clock (sync) vs clocked by previous FF's output (async/ripple).

In a ripple counter, what clocks flip-flop

k

The output

Q_{k-1}

(or

\overline{Q_{k-1}}

) of the previous flip-flop.

Worst-case settle time of an n-bit ripple counter?

n \cdot t_{pd}

(delays add in series).

Max clock frequency of an n-bit ripple counter?

f_{\max}=1/(n\,t_{pd})

Why do ripple counters show transient wrong values?

Bits change one after another (staggered delays), so intermediate real-but-wrong states appear = decoding glitches.

Toggle logic for bit

k

in a synchronous up-counter?

T_k = Q_0 Q_1 \cdots Q_{k-1}

(AND of all lower bits — the carry condition).

Why is a synchronous counter's max frequency independent of n?

All FFs clock simultaneously, so total delay is one

t_{pd}

plus gate delay, not

n\,t_{pd}

A single T flip-flop with T=1 outputs what frequency?

Half its clock frequency,

f/2

(two edges per output cycle).

How many flip-flops divide a clock by 8?

3, since

2^3=8

Which counter needs extra AND gates and why?

Synchronous — to compute each bit's toggle condition from all lower bits.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, counter basically flip-flops ki ek chain hai jo binary mein count karti hai — har clock pe number badhta hai. Sabse bada difference sirf ek cheez hai: clock kis ko milta hai? Asynchronous (ripple) counter mein sirf pehle flip-flop ko master clock milta hai, aur baaki har flip-flop ko pichhle wale ka output clock karta hai. Isliye bits ek-ek karke change hote hain, jaise dominoes girte hain — thoda time lag jaata hai.

Iska side-effect ye hai ki agar tumhare paas $n$ flip-flops hain aur har ek ka delay $t_{pd}$ hai, to poora count settle hone mein $n \times t_{pd}$ lagta hai. Aur is beech display pe kuch galat numbers bhi flash ho jaate hain — usko glitch kehte hain. Bade counters mein ripple version dheere ho jaata hai, ye counter-intuitive lagta hai par formula $f_{max}=1/(n\,t_{pd})$ saaf bata deta hai.

Synchronous counter mein saare flip-flops ko ek hi clock milta hai, sab ek saath toggle karte hain. Lekin phir har bit ko pata kaise chale ki usko flip karna hai ya nahi? Simple: bit $k$ tabhi flip karega jab uske neeche ke saare bits 1 ho — yani $T_k = Q_0 Q_1 \cdots Q_{k-1}$ , ye carry ka condition hai. Iske liye AND gates lagte hain, thoda extra hardware, par speed bahut zyada aur koi glitch nahi. Exam trick: Asynchronous = After one another, Synchronous = Simultaneous.
