Edge-triggered D flip-flop

1,954 words9 min readdifficulty · medium6 backlinks

WHAT is it?

The subscript matters: Qn+1Q_{n+1} is the state after the edge, computed from DD sampled at the edge.


WHY do we need the edge?


HOW is it built? (Derivation from scratch)

We build it in three layers, each solving a flaw in the previous.

Layer 1 — the SR latch (feedback = memory)

Cross-couple two NOR gates:

Q=R+Q,Q=S+QQ = \overline{R + \overline{Q}}, \qquad \overline{Q} = \overline{S + Q}

  • S=1,R=0Q=1S=1,R=0 \Rightarrow Q=1 (Set)
  • S=0,R=1Q=0S=0,R=1 \Rightarrow Q=0 (Reset)
  • S=R=0S=R=0 \Rightarrow hold (feedback keeps last value) → this is the memory.
  • S=R=1S=R=1 \Rightarrow forbidden.

Layer 2 — gated D latch (remove the forbidden state)

Force SS and RR to be opposites and gate them with an Enable: S=DE,R=DES = D\cdot E,\qquad R=\overline{D}\cdot E When E=1E=1: S=D, R=DS=D,\ R=\overline{D}Q=DQ=D (transparent). When E=0E=0: S=R=0S=R=0 → hold. The forbidden state can never occur because S,RS,R are complementary. But it is still level-triggered.

Layer 3 — master–slave = edge behaviour

Chain two D latches with opposite enables:

  • Master latch enabled by CLK\overline{CLK}
  • Slave latch enabled by CLKCLK

Trace a rising edge:

  1. While CLK=0CLK=0: master is transparent (tracks DD), slave is closed (holds old QQ).
  2. At the rising edge CLK:01CLK:0\to1: master freezes the value it had just before the edge; slave opens and copies that frozen value to QQ.
  3. While CLK=1CLK=1: master closed (ignores new DD), slave transparent but its input (master output) is frozen → QQ stable.

Result: QQ changes once, at the edge, to whatever DD was just before the edge. That is exactly edge-triggering. 🎉

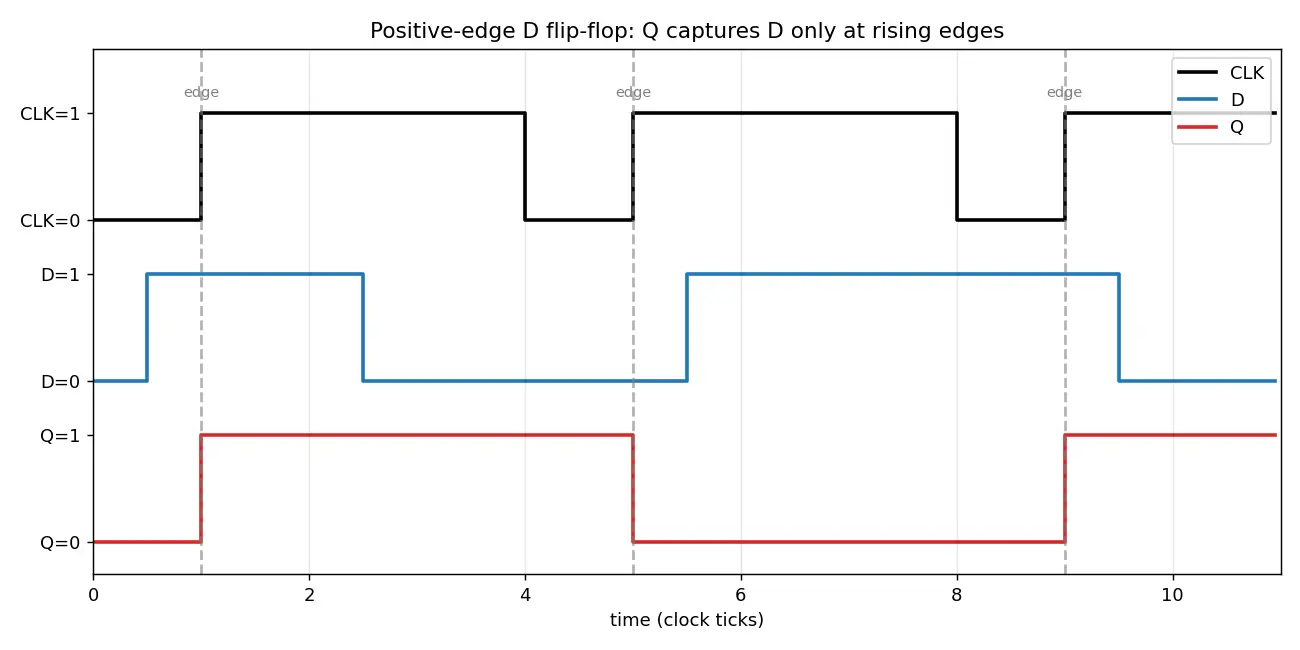

Figure — Edge-triggered D flip-flop

Timing: the numbers that make it real


Worked examples


Flashcards

What distinguishes edge-triggered from level-triggered storage?
Edge-triggered (flip-flop) updates output only at a clock edge; level-triggered (latch) is transparent for a whole clock level.
Characteristic equation of a D flip-flop
Qn+1=DQ_{n+1}=D (next state = sampled input, independent of QnQ_n).
Why chain two latches with opposite enables (master–slave)?
So exactly one is open at a time; the value is frozen at the edge, giving edge-triggered (non-transparent) behaviour.
Define setup time.
Minimum time D must be stable before the active clock edge to be captured reliably.
Define hold time.
Minimum time D must remain stable after the edge.
What is metastability?
An unstable state where Q hovers between 0 and 1, caused by violating setup/hold; resolves after unpredictable delay.
Formula for max clock frequency of a FF→logic→FF path
fmax=1/(tcq+tcomb+tsu)f_{max}=1/(t_{cq}+t_{comb}+t_{su}).
How to make a D flip-flop toggle (÷2)?
Connect Q\overline{Q} back to DD; each edge inverts Q.
Why does edge-triggering enable safe shift registers?
The edge closes the input almost instantly, so data hops exactly one stage per clock instead of racing through.
What clock event triggers a positive-edge FF?
The rising (0→1) transition of the clock.

Recall Feynman: explain to a 12-year-old

Imagine a mailbox with a flap that snaps shut. A postman (the clock) walks past once every tick. At the exact moment he passes, whatever letter (D) is in your hand goes into the box — and the flap slams. For the rest of the time the box is locked: you can wave any letter around, nothing changes. When the postman comes again, the box swaps to your new letter. That "snap at the passing moment" is the edge. That's why the whole computer stays neat: everyone's mailbox updates together, once per tick.

Connections

Concept Map

adds Enable and complement S,R

feedback loop

two chained, opposite enables

produces

samples D at

output rule

holds value between edges

is only

contrast

causes transparency problem

solved by edge

building block of

SR latch NOR pair

Gated D latch

Bistable memory

Master-slave

Edge-triggered D flip-flop

Clock edge

Q_n+1 = D

Frozen output

Level-triggered

Data races through stages

Registers, counters, CPU

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, D flip-flop ek chhota sa 1-bit memory cell hai. Iska kaam simple hai: jab clock ka edge aata hai (positive-edge device me rising edge, yaani 0 se 1), tab wo input DD ki value ko copy karke QQ me daal deta hai — Qn+1=DQ_{n+1}=D. Baaki poore time, chahe clock high rahe ya low, DD bhale hi hilta rahe, output freeze rehta hai. Isiliye ise "edge-triggered" bolte hain — sirf edge ke instant pe photo click hoti hai, bas.

Ab confusion yahin hoti hai: latch aur flip-flop same nahi hain. Latch level-triggered hota hai — jab tak enable high hai, QQ transparently DD ko follow karta rehta hai. Flip-flop edge pe lock kar deta hai. Yeh farak bahut important hai, kyunki agar shift register me sab latch transparent ho jayein toh data ek hi clock phase me saare stages ko cross kar jayega (race condition). Edge-triggering "ek tick me ek hop" guarantee karta hai. Isliye pura synchronous computer ek hi heartbeat pe chalta hai.

Banane ka tareeka: pehle SR latch (feedback = memory), phir gated D latch (forbidden state hata do, S=D,R=DS=D,R=\overline D), phir do latch ulta enable ke saath jodo — master-slave. Master CLK\overline{CLK} pe khulta, slave CLKCLK pe. Edge ke waqt master freeze, slave open — bas edge behaviour mil gaya. Yaad rakho "master sote hai jab slave kaam karta hai".

Timing bhi dhyaan rakho: DD ko edge se pehle setup time aur baad me hold time tak stable rehna chahiye, warna FF metastable ho jayega (0 aur 1 ke beech latak jayega). Aur max frequency nikalti hai fmax=1/(tcq+tcomb+tsu)f_{max}=1/(t_{cq}+t_{comb}+t_{su}) se — kyunki ek clock period me data ko ek FF se nikalna, logic paar karna, aur agle FF ka setup satisfy karna, sab hona chahiye.
