Metastability and synchronizers

1. WHAT is metastability?

2. HOW long does it stay stuck? — Derive the resolution law

We derive the probability of still being metastable after a time $t$ from first principles.

Step 1 — Model the resolving loop. A flip-flop's output stage is a cross-coupled pair of inverters: a loop with gain $A>1$ and a node capacitance $C$ / resistance $R$ , giving time constant $\tau = RC/(A-1)$ . Why this step? The regenerative loop amplifies any tiny imbalance $v$ away from the metastable point exponentially — this is what eventually resolves the state.

Step 2 — Exponential departure. Near the balance point the voltage deviation grows as $v(t) = v_0\, e^{t/\tau}.$ Why this step? Positive feedback ⇒ growth is exponential, and $\tau$ sets the speed. To reach a valid logic level $V_L$ we need $v(t)\ge V_L$ , i.e. resolution time $t = \tau \ln(V_L/v_0)$ .

Step 3 — How likely is a small $v_0$ ? The initial imbalance $v_0$ depends on how close the data edge landed to the sampling instant. Landing within a tiny window $\Delta t$ is uniformly likely, and $v_0 \propto \Delta t$ . The chance of the flip-flop entering the metastable window per clock is $P_{enter} = T_0 \cdot f_{clk} \cdot f_{data},$ where $T_0$ is a device "susceptibility window" constant. Why this step? Both a clock edge (rate $f_{clk}$ ) and a data change (rate $f_{data}$ ) must nearly coincide; probability of near-coincidence scales with both rates and the window width $T_0$ .

Step 4 — Combine: probability still metastable after slack $t$ . $\boxed{P(\text{fail}) = T_0\, f_{clk}\, f_{data}\; e^{-t/\tau}}$ Why this step? Enter with probability $\propto T_0 f_{clk} f_{data}$ ; survive to time $t$ with probability $e^{-t/\tau}$ (from Step 2, more resolving time ⇒ exponentially less likely to still be stuck).

3. WHY / HOW a synchronizer works

$t_r = T_{clk} - t_{su} - t_{pd}$

Why it works: If FF1 goes metastable, it has almost a full clock period to settle before FF2 looks. Plugging a larger $t_r$ into the exponential $e^{t_r/\tau}$ blows MTBF up to years/centuries. Adding a third FF adds another whole period → another exponential factor.

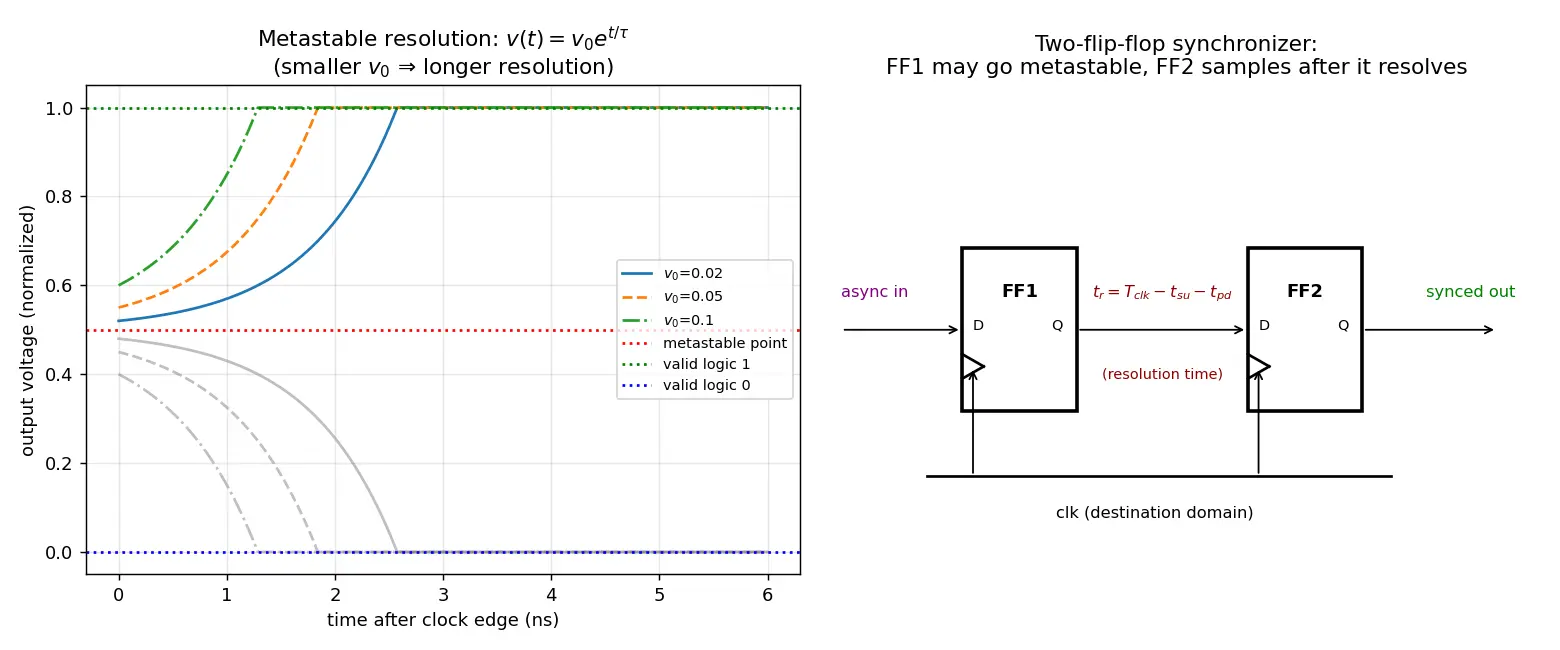

Figure — Metastability and synchronizers

Worked example Worked MTBF calculation

Given $f_{clk}=100\text{ MHz}$ ( $T_{clk}=10$ ns), $f_{data}=1\text{ MHz}$ , $\tau=0.2$ ns, $T_0=0.1$ ns, and $t_r=10 - 0.5 - 1 = 8.5$ ns. Step 1: failure rate prefactor $= T_0 f_{clk} f_{data} = 0.1\text{ns}\cdot10^8\cdot10^6 = 10^{-10}\cdot10^{14}=10^{4}$ /s. Why? multiply the window by both event rates. Step 2: exponent $t_r/\tau = 8.5/0.2 = 42.5$ . So $e^{42.5}\approx 2.9\times10^{18}$ . Why? this is the exponential "safety multiplier". Step 3: $\text{MTBF} = e^{42.5}/10^{4} = 2.9\times10^{14}$ s $\approx 9$ million years. Why this matters: one extra ns of $t_r$ multiplies MTBF by $e^{1/0.2}=e^{5}\approx148\times$ — cheap insurance.

4. Common mistakes (Steel-man + fix)

Recall Feynman: explain to a 12-year-old

Imagine a light switch that can be flicked to ON or OFF. If you tap it super gently at the exact middle, it can get stuck halfway — the light flickers weirdly and you can't tell if it's on or off. That "stuck in the middle" is metastability. We can't stop the halfway-tap from happening when someone flips it at a random time. So instead we wait: put a second switch right after that only copies the first one a moment later. By then the first switch has almost always fallen fully ON or OFF, so the second switch copies a clean answer. Wait longer (more switches) = almost never wrong.

Connections

D Flip-Flop — the bistable element that goes metastable
Setup and Hold Time — the violated constraint that triggers it
Clock Domain Crossing (CDC) — the main real-world cause
FIFO Design — uses synchronized Gray-code pointers across domains
Positive Feedback and Regeneration — the physics of exponential resolution
Timing Analysis — where slack $t_r$ is computed

Flashcards

What is metastability?

A temporary knife-edge state where a flip-flop output sits between valid logic levels with an unbounded (probabilistic) resolution time, caused by setup/hold violation.

What causes a flip-flop to enter metastability?

A data change inside the setup/hold window around the clock edge, typically from an asynchronous / cross-clock-domain signal.

Write the MTBF formula.

\text{MTBF} = \dfrac{e^{t_r/\tau}}{T_0\,f_{clk}\,f_{data}}

Why does MTBF grow exponentially with resolution time

t_r

The regenerative loop drives imbalance as

e^{t/\tau}

, so probability of still being metastable falls as

e^{-t_r/\tau}

; the reciprocal (MTBF) rises as

e^{t_r/\tau}

What is

\tau

physically?

The flip-flop's regeneration time constant

\tau=RC/(A-1)

from the cross-coupled inverter loop; smaller

\tau

resolves faster.

How does a two-FF synchronizer help?

It gives FF1 nearly a full clock period (

t_r=T_{clk}-t_{su}-t_{pd}

) to resolve before FF2 samples, making propagated failures astronomically rare.

Does a synchronizer eliminate metastability?

No — FF1 can still go metastable; it only makes the probability of it reaching downstream logic negligibly small (huge MTBF).

Why do faster clocks worsen metastability?

Higher

f_{clk}

raises the failure prefactor AND shrinks

t_r

, and MTBF

\propto e^{t_r/\tau}

collapses rapidly.

Why synchronize a signal only once before fan-out?

Two separate synchronizers on the same async edge may resolve to different values, creating inconsistent state.

Give the resolution-time expression for a 2-FF synchronizer.

t_r = T_{clk} - t_{su} - t_{pd}

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek flip-flop hamesha do stable states chahta hai: 0 ya 1. Bilkul waise jaise pahaadi ke do valleys mein rakha marble. Lekin agar aap data ko exactly clock edge ke time change karo (setup/hold window ke andar), to flip-flop ko pahaadi ke bilkul upar balance mila do — na 0, na 1. Isi ko metastability kehte hain. Yeh tab hota hai jab signal asynchronous ho, jaise button press ya do alag clock domains ke beech ka data.

Ab important baat: metastability ko hum rok nahi sakte — physics hai. Par hum time de sakte hain taaki marble apne aap kisi ek valley mein gir jaaye. Regeneration loop ki wajah se imbalance $e^{t/\tau}$ ke hisaab se exponentially badhta hai, isliye jitna zyada time do, utni chance kam ki wo abhi bhi atka ho. Yahi se MTBF formula aata hai: $\text{MTBF}=e^{t_r/\tau}/(T_0 f_{clk} f_{data})$ . Note karo — $t_r$ exponent mein hai, matlab thoda sa extra time bhi MTBF ko years se centuries bana deta hai.

Practical solution: two-flip-flop synchronizer. FF1 async signal ko sample karta hai (yeh metastable ho sakta hai), aur FF2 poora ek clock period baad usse copy karta hai. Us time tak FF1 lagbhag hamesha settle ho chuka hota hai, to FF2 ko clean value milti hai. Fast clock = kam $t_r$ = MTBF exponentially girta hai, isliye high-speed designs mein 3-FF synchronizer use karte hain. Yaad rakho — synchronize ek hi baar karo, phir fan-out; warna do FFs alag-alag answer de sakte hain.
