Edge-triggered D flip-flop: Visual walkthrough — Hardware deep dive

Before we begin, two words we will lean on constantly:

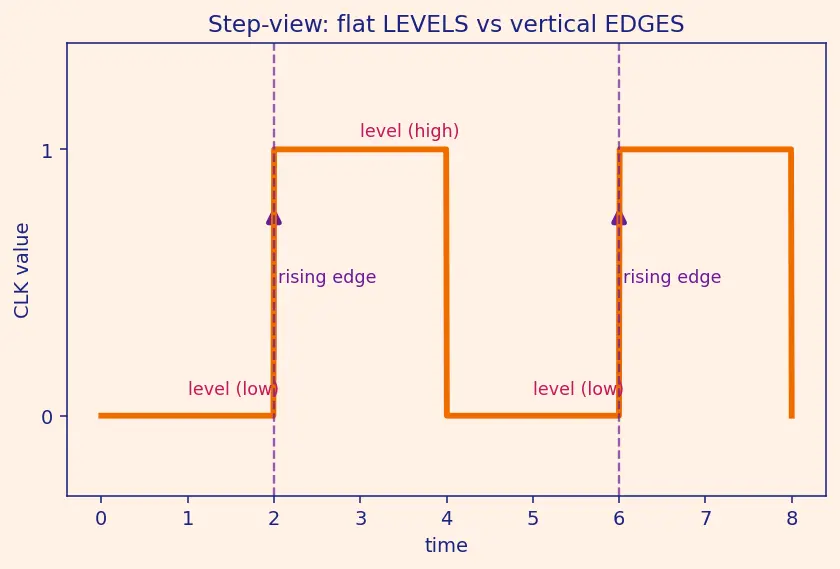

Look at the figure: the orange line is a clock. The flat magenta stretches are levels; the two violet arrows mark the rising edges — the only moments we want our device to "listen".

Step 1 — A wire that remembers: the feedback loop

WHAT we do: take two NOR gates and feed each one's output back into the other's input. This is called cross-coupling.

WHY: a single gate has no memory — its output is a fresh function of its inputs. But if the output loops back to become an input, the circuit can settle into a state and stay there with no outside push. That self-sustaining loop is memory.

PICTURE: In the figure, follow the red wire from the top gate's output down into the bottom gate's input, and the blue wire back up. The loop is the whole point.

Step 2 — Giving the loop controls: the SR latch

WHAT we do: add two external inputs, $S$ (Set) and $R$ (Reset), one into each NOR gate. Now we can push the loop into a chosen state.

$Q = \overline{R + \overline{Q}}, \overline{Q} = \overline{S + Q}$

Term by term for the first equation:

$\overline{Q}$ is the other output feeding back in.
$R + \overline{Q}$ asks "is Reset high OR is the fed-back line high?"
the outer bar flips it, producing $Q$ .

WHY: we need a way to write the memory, not just watch it hold. $S$ forces a $1$ , $R$ forces a $0$ .

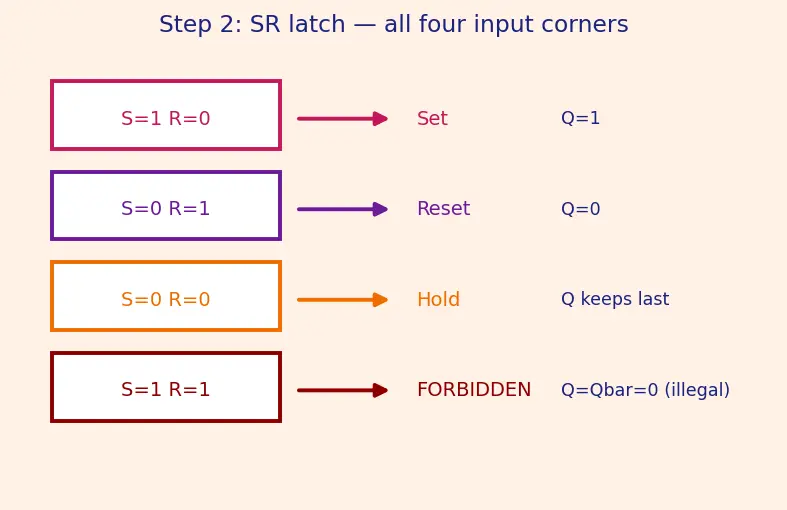

PICTURE: the figure lists all four input combinations with the resulting $Q$ drawn beside each.

$S$	$R$	meaning	$Q$
$1$	$0$	Set	$1$
$0$	$1$	Reset	$0$
$0$	$0$	Hold	stays put
$1$	$1$	forbidden	both outputs $0$ — breaks the " $Q, \overline{Q}$ opposite" promise

See SR latch for the full case-by-case treatment.

Step 3 — Killing the forbidden state: the gated D latch

WHAT we do: stop letting $S$ and $R$ be set independently. Instead, derive both from a single data input $D$ and an enable $E$ :

$S = D \cdot E, R = \overline{D} \cdot E$

Term by term:

$D$ is our one data bit.
$\overline{D}$ is its opposite — so $S$ and $R$ can never both be $1$ (a bit and its complement can't both be true). The forbidden corner is now unreachable.
$E$ (enable) gates them: when $E = 0$ , both $S = R = 0$ → hold.

WHY: one input ( $D$ ) instead of two removes the illegal state entirely, and $E$ gives us an on/off switch for writing.

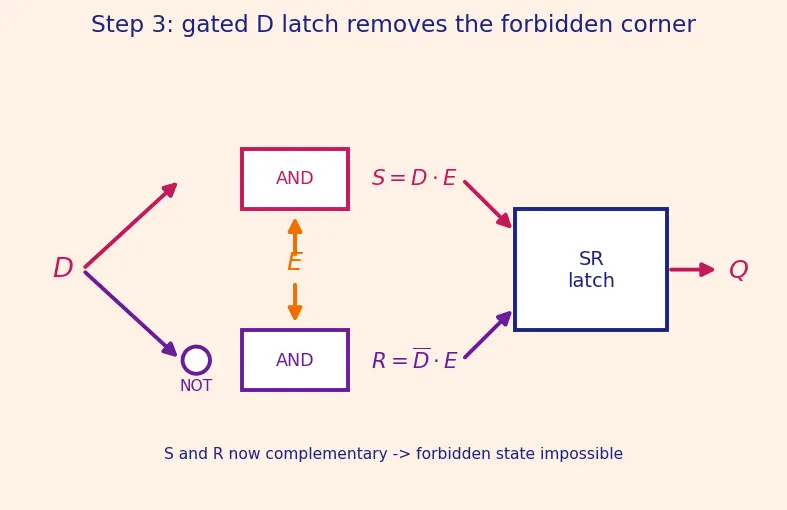

PICTURE: the figure shows $D$ splitting — straight into the $S$ -branch, inverted into the $R$ -branch — both throttled by $E$ .

Step 4 — The transparency problem, drawn

WHAT we do: pause and see why "transparent while high" is a problem, so the next step feels necessary.

WHY: if we don't feel the pain, the master–slave trick looks arbitrary. Picture two latches in a row (a baby shift register), both enabled by the same high clock.

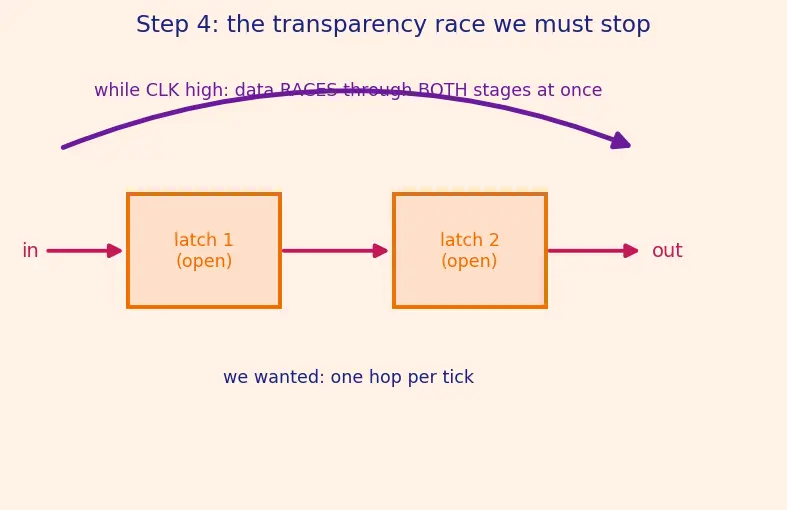

PICTURE: while the clock is high, a new value on the first latch's input flows through latch 1 → through latch 2 in the same clock phase. It "runs away" through every stage at once, instead of moving one stage per tick.

Step 5 — Master–slave: manufacturing the edge

WHAT we do: chain two gated D latches and drive their enables with opposite clock phases:

Master latch enabled by $\overline{C L K}$ (open when clock is low)
Slave latch enabled by $C L K$ (open when clock is high)

WHY opposite enables: they can never be transparent together. When one door is open, the other is shut. Data can only move across the boundary at the moment the two swap — and that moment is the clock edge.

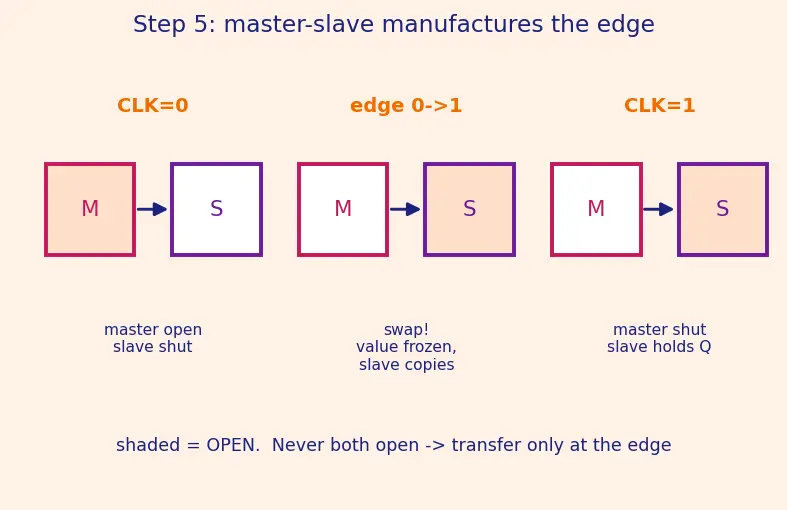

PICTURE: the figure freezes three phases; trace the shaded ("open") latch in each.

Term by term through a rising edge $C L K : 0 \to 1$ :

$C L K = 0$ — master open (tracks $D$ ), slave shut (holds old $Q$ ). The master's internal value $Q_{M}$ follows $D$ .
the edge $0 \to 1$ — master slams shut, freezing whatever $D$ was just before the edge; slave opens and copies that frozen $Q_{M}$ to the output $Q$ .
$C L K = 1$ — master shut (ignores any new $D$ ), slave open but fed by the frozen $Q_{M}$ → output $Q$ sits perfectly still.

$Q_{n + 1} = D — sampled at the edge, then held.$

Here $Q_{n + 1}$ is the output after this edge; $D$ is the value present at the edge. Notice $Q_{n}$ (the old output) does not appear on the right — a D flip-flop simply loads $D$ . That single instant of transfer is edge-triggering. See Master-slave configuration.

Step 6 — Reading it on a waveform (the whole point, verified visually)

WHAT we do: apply a wiggling $D$ and a clock, and mark exactly where $Q$ changes.

WHY: to prove the device ignores everything except the edge — including $D$ changes during the high level (the classic misconception from the parent note).

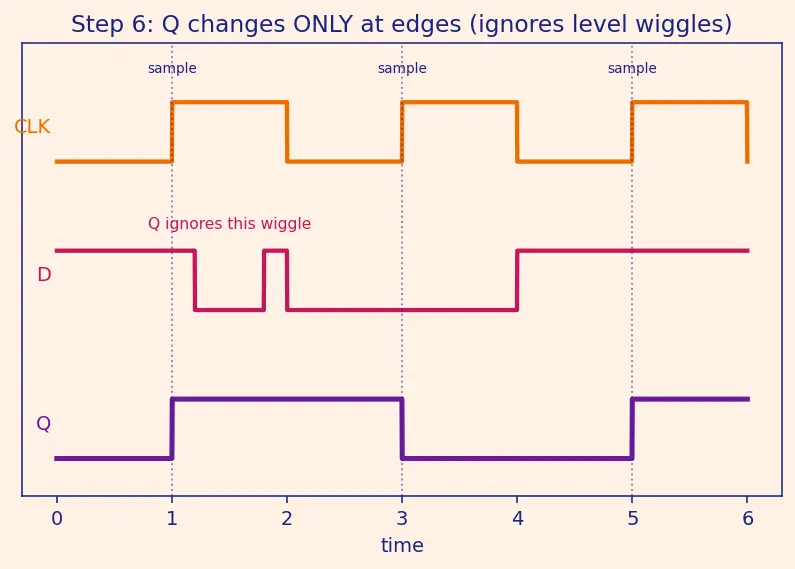

PICTURE: edges at $t = 1, 3, 5$ . Sampled values $D = 1, 0, 1$ . Between edges $D$ wiggles — and $Q$ does not care.

$t = 1$ ↑: sample $D = 1 \Rightarrow Q = 1$ .
$t = 1 \to 3$ : $D$ wiggles, $Q$ frozen at $1$ .
$t = 3$ ↑: sample $D = 0 \Rightarrow Q = 0$ .
$t = 5$ ↑: sample $D = 1 \Rightarrow Q = 1$ .

$Q$ trace across the tick points: $0, 1, 1, 0, 0, 1$ .

Step 7 — The degenerate & edge cases (so nothing surprises you)

WHAT we do: walk the corners the happy path skipped.

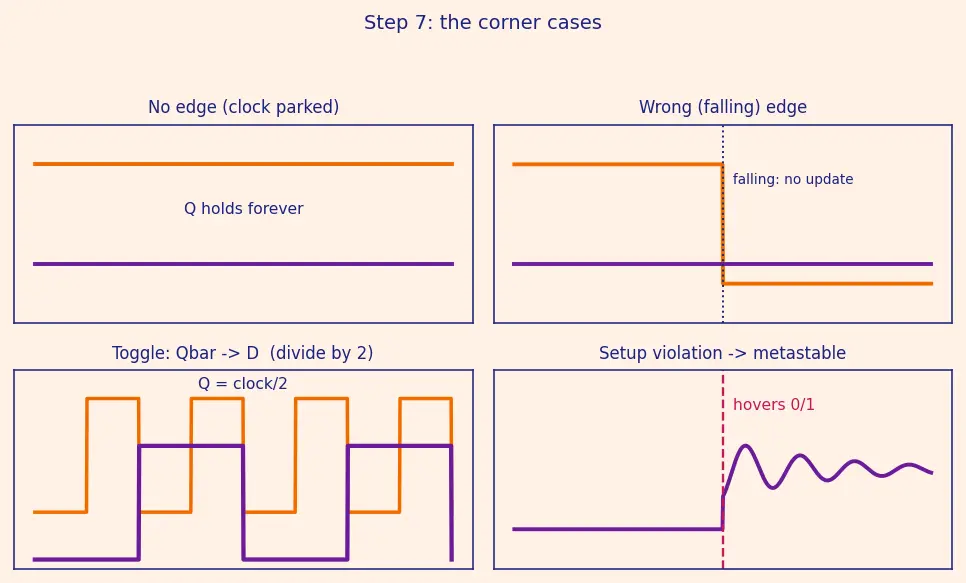

PICTURE: four mini-panels — no-edge, wrong-edge, toggle feedback, and a setup violation.

No edge at all (clock stuck high or low). No transfer moment exists → $Q$ holds forever. Memory with the clock parked.
Falling edge on a positive-edge device. The master–slave swap runs the wrong direction (slave shuts, master opens) → no update to $Q$ . Only the rising edge is "active".
Toggle case ( $\overline{Q} \to D$ ). Since $D = \overline{Q_{n}}$ is sampled each edge, $Q_{n + 1} = \overline{Q_{n}}$ : the output flips every rising edge. From $Q = 0$ : edge → $1$ → edge → $0$ … Output frequency is half the clock. This is the ÷2 cell of Synchronous counters and T flip-flop.
Setup violation. If $D$ changes inside the tiny keep-out window around the edge, the master latches a half-formed value and $Q$ can hover between $0$ and $1$ — metastability (see Metastability). This is why the timing rules in the parent note exist.

Recall Check yourself

On a positive-edge FF, does a falling clock edge ever change $Q$ ? ::: No — only the rising ( $0 \to 1$ ) edge is active; the master–slave swap runs the wrong way on a falling edge. In the toggle wiring, what is $Q_{n + 1}$ in terms of $Q_{n}$ ? ::: $Q_{n + 1} = \overline{Q_{n}}$ — it flips every rising edge, giving output frequency = clock/2. What happens if $D$ changes during the setup window? ::: The device may go metastable — $Q$ hovers between 0 and 1 for an unpredictable time.

The one-picture summary

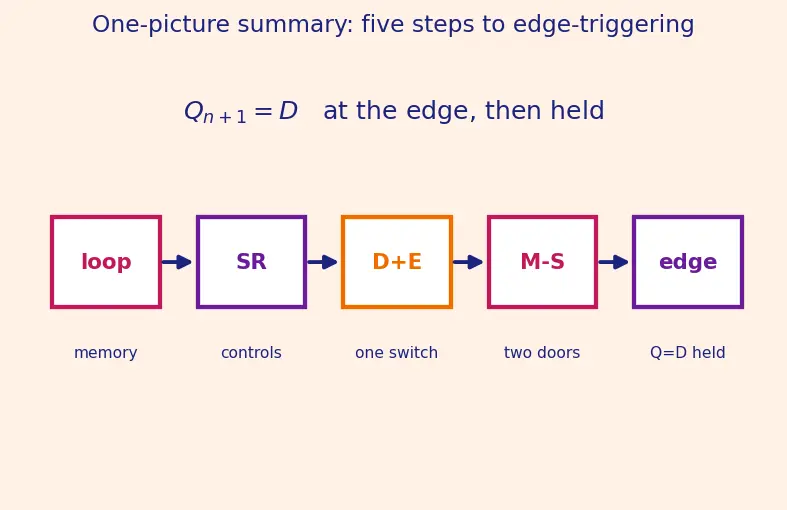

Everything above compressed into a single flow: loop → controls → single input → double latch → edge → held output.

Recall Feynman retelling of the whole walkthrough

We started with a single wire looped back on itself — like an echo that never fades, that echo is one bit of memory (Step 1–2). But our first memory had a broken button combination ( $S = R = 1$ ), so we rewired the buttons to come from one switch $D$ and its opposite, making the bad combo impossible (Step 3). That gadget worked but was a wide-open window: while the enable was high, data poured straight through — and in a chain it stampeded through every stage at once (Step 4). So we put two windows back-to-back with a rule: they're never open together. Now data can only sneak across the gap at the exact moment they swap — and that moment is the clock's jump, the edge (Step 5). We watched a waveform to confirm the output ignores everything except that jump (Step 6), then toured the weird corners — clock parked, wrong-direction edge, self-flipping toggle wiring, and the danger zone where changing $D$ too close to the edge makes the output dither (Step 7). The finished machine says one calm sentence: "at the edge, become $D$ ; then hold."
