Dynamic voltage and frequency scaling (DVFS)

What is DVFS?

WHY is this valuable?

Energy savings: Mobile devices last2-3× longer on battery
Thermal management: Prevents overheating without throttling to emergency levels
Performance flexibility: Boost for demanding tasks, coast for light work
Reliability: Lower temperatures → longer component lifetime

The Physics: Power Laws

Let's derive from first principles why DVFS is so effective.

Formula Dynamic Power Derivation

Step 1: Capacitive Load Charging Every time a CMOS gate switches, it charges/discharges a capacitance C. The energy to charge C to voltage V: $E_{\text{switch}} = \frac{1}{2} C V^2$

WHY this formula? Energy stored in a capacitor is $\int_0^V V \cdot dQ = \int_0^V V \cdot C \, dV = \frac{1}{2}CV^2$ . When the gate switches, this energy is drawn from the supply, then dissipated as heat whencharging.

Step 2: Switching Rate If the clock frequency is $f$ , and on average fraction $\alpha$ (activity factor) of gates switch per cycle: $N_{\text{switches}} = \alpha \cdot f$ Step 3: Total Dynamic Power Power = Energy per second: $P_{\text{dynamic}} = E_{\text{switch}} \times N_{\text{switches}} = \frac{1}{2} C V^2 \cdot \alpha f$

Simplified form: $\boxed{P_{\text{dynamic}} = C_{\text{eff}} \cdot V^2 \cdot f}$ where $C_{\text{eff}} = \frac{1}{2} \alpha C$ combines all constants.

KEY INSIGHT: Power is linear in frequency but quadratic in voltage. This asymetry is why DVFS pairs them together.

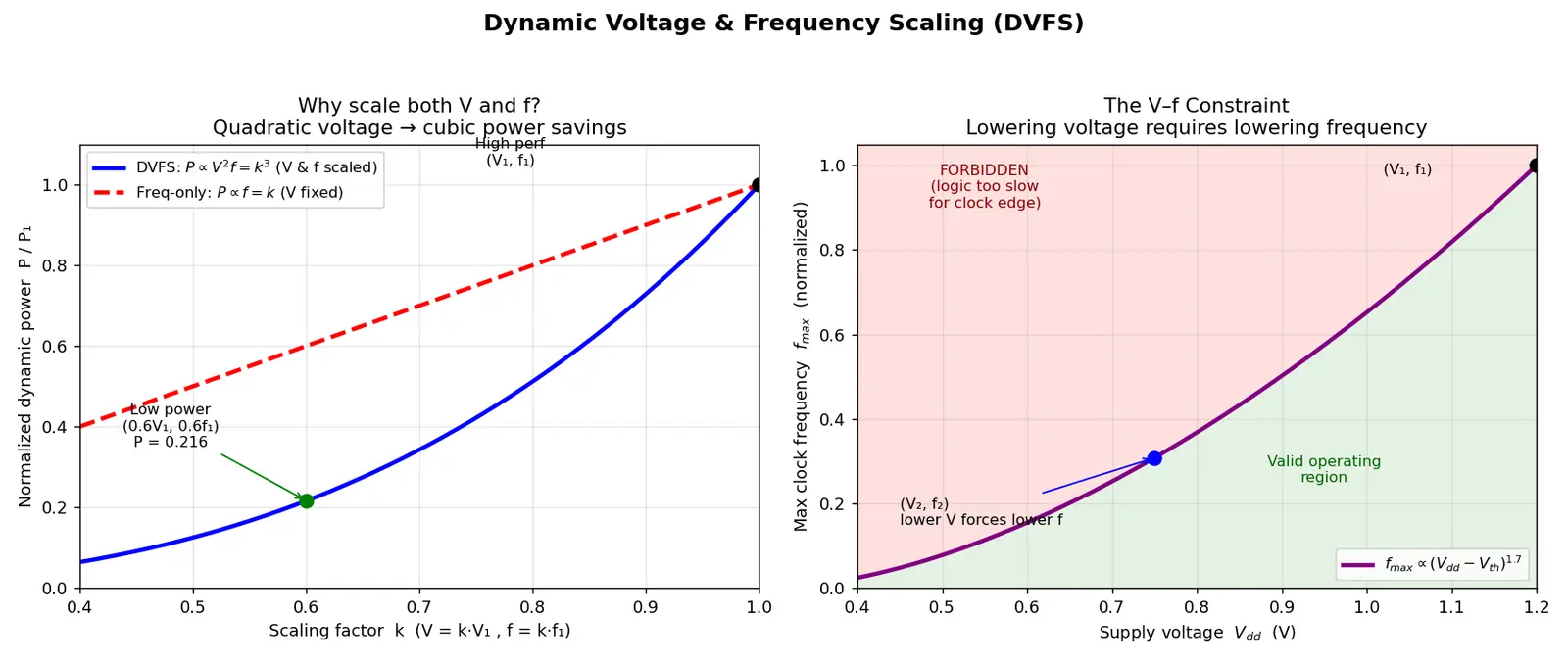

Formula The Voltage-Frequency Constraint

WHY can't we reduce voltage arbitrarily while keeping frequency high?

Transistor switching delay depends on how fast we can charge/discharge gates: $t_{\text{delay}} \propto \frac{C \cdot V}{I_{\text{drive}}}$

For a MOSFET in saturation, drive current: $I_{\text{drive}} \propto (V_{dd} - V_{th})^2$

where $V_{th}$ is the threshold voltage. Thus: $t_{\text{delay}} \propto \frac{V_{dd}}{(V_{dd} - V_{th})^2}$ Consequence: Lower $V_{dd}$ → higher delay → must reduce frequency to ensure logic completes before next clock edge.

Empirically, the relationship is approximately: $\boxed{f_{\max} \propto (V_{dd} - V_{th})^{\alpha}}$

where $\alpha \approx 1.5$ to 2 for modern processes.

This is the fundamental constraint: voltage and frequency must scale together to maintain correct operation.

Formula Energy Savings from DVFS

Suppose a task requires $N$ clock cycles. At operating point $(V_1, f_1)$ : $\text{Time} = \frac{N}{f_1}, \quad \text{Energy} = P_1 \cdot t_1 = C V_1^2 f_1 \cdot \frac{N}{f_1} = C V_1^2 N$

At lower operating point $(V_2, f_2)$ where $V_2 = k V_1$ and $f_2 = k f_1$ (proportional scaling): $\text{Energy} = C V_2^2 N = C (kV_1)^2 N = k^2 \cdot C V_1^2 N$

Energy savings: $\boxed{\text{Energy ratio} = k^2}$

Example: Reducing voltage/frequency by 20% ( $k = 0.8$ ) saves $1 - 0.64 = 36\%$ energy! The task takes 25% longer, but uses 36% less energy.

How DVFS Works: Operating Points

HOW does the system choose?

Monitor: CPU utilization, instruction throughput, temperature sensors
Predict: Estimate workload over next 10-100ms window
Decide: Select P-state that meets performance target with minimum power
Execute: Command voltage regulator and PLL to transition (~10-100μs latency)

Worked example Example 2: Video Encoding Task

Situation: Encoding a 1-hour video. Task requires 10¹² cycles total.

Option A (Fast: P0):

Frequency: 4.0 GHz
Time: $\frac{10^{12}}{4 \times 10^9} = 250s$
Power: 95W
Energy: $95 \times 250 = 23,750J$ Option B (Slow: P2):
Frequency: 2.8 GHz
Time: $\frac{10^{12}}{2.8 \times 10^9} = 357s$
Power: 40W
Energy: $40 \times 357 = 14,280J$
Savings: $\frac{23750 - 14280}{23750} = 40\%$ energy, 43% more time

WHY this step? For compute-bound batch tasks where completion time is flexible, running slower saves significant energy. This is the race-to-idle debate: sometimes slower is more efficient!

Common Mistakes and Misconceptions

Common mistake Mistake 1: "Just reduce frequency, voltage doesn't matter"

Why this feels right: Frequency directly controls execution time, so reducing it clearly saves power.

Why it's wrong: Dynamic power is $P = C V^2 f$ . Reducing only frequency gives linear savings. But if you can reduce voltage (by also reducing frequency), you get quadratic savings from V².

The math:

Frequency only: $f' = 0.5f \Rightarrow P' = 0.5P$ (50% savings)
Voltage + frequency: $V' = 0.7V, f' = 0.5f \Rightarrow P' = 0.49\times 0.5 P = 0.245P$ (75.5% savings!)

The fix: Always pair voltage reduction with frequency reduction when possible. This is why it's called DVFS, not just DFS.

Common mistake Mistake 2: "DVFS eliminates all power waste"

Why this feels right: If we perfectly match frequency to workload, we never run faster than needed.

Why it's wrong: Two power components exist: $P_{\text{total}} = \underbrace{C V^2 f}_{\text{dynamic}} + \underbrace{V \cdot I_{\text{leak}}}_{\text{static}}$

Static leakage power flows continuously when transistors are powered, regardless of switching. In modern deep-submicron processes (7nm, 5nm), leakage can be 20-40% of total power!

WHY this matters: At very low frequencies, static power dominates and DVFS efficiency drops. Sometimes it's better to "race-to-idle" (run fast, finish sleep) than to crawl slowly while leaking power.

The fix: Use DVFS in combination with power gating (completely shuting off unused cores/blocks) for maximum savings.

DVFS Control Policies

HOW to decide when to scale?

Example pseudocode (on-demand):

def dvfs_controller(current_pstate, utilization):
    if utilization > 0.8 and current_pstate > 0:
        # Scale up
        return current_pstate - 1
    elif utilization < 0.3 and current_pstate < MAX_PSTATE:
        # Scale down
        return current_pstate + 1
    else:
        # Hold steady
        return current_pstate

WHY these thresholds? Tuned empirically. Too aggressive (80%→90%) wastes power; too conservative (80%→50%) mises opportunities.

Practical Considerations

Modern extensions:

Per-core DVFS: Different cores at different P-states (big.LITTLE architectures)
Turbo boost: Temporarily exceed nominal P0 if thermal headroom allows
Package-level coordination: Balance power across CPU + GPU + memory

Connections

Power consumption models: DVFS targets dynamic power component
Clock generation and PLs: Frequency scaling implemented via PLL control
Voltage regulators: Supply the adjustable Vdd for DVFS
Thermal management: DVFS is a key thermal control mechanism
CPU scheduling: OS scheduler must understand P-state transitions
Real-time systems: DVFS complicates WCET analysis
Race-to-idle vs race-to-dark: Energy efficiency strategy debates
Power gating: Complementary technique for static power
Processor performance counters: Provide utilization data for DVFS policies

Recall Feynman Technique: Explain to a 12-year-old

Okay, imagine you have a super-fast remote control car. When you're racing it at top speed, the motor gets really hot and drains the battery super fast. But most of the time, you're just slowly driving it around the room, right?

What if your car was smart enough to know: "Hey, I'm just cruising slowly now, I don't need full power!" So it turns down the motor speed AND reduces the battery voltage feeding it. The car goes a bit slower, but it uses WAY less battery (because less voltage = less power, squared!) and stays much cooler.

Then, when you want to race again, it cranks everything back up instantly!

That's exactly what your phone or laptop does with DVFS. When you're just reading an article, it runs slow and cool, saving battery. When you open a game, it speeds up to full power. The "voltage and frequency" are like the battery voltage and motor speed of the car—they adjust together to match what you're doing. This makes your battery last 2-3 times longer!

Flashcards

#flashcards/hardware

What is Dynamic Voltage and Frequency Scaling (DVFS)? :: A power management technique that dynamically adjusts a processor's supply voltage (V) and clock frequency (f) at runtime based on workload demand to balance performance and power consumption.

Why must voltage and frequency scale together in DVFS?

Lower voltage increases transistor switching delay (t_delay ∝ V/(V-Vth)²), so frequency must be reduced to ensure logic completes before the next clock edge. Otherwise, timing violations occur.

What is the formula for dynamic power in CMOS circuits?

P_dynamic = C·V²·f, where C is effective capacitance, V is supply voltage, and f is clock frequency. Power is linear in frequency but quadratic in voltage.

Why is reducing voltage more effective than reducing frequency alone for power savings?

Power∝ V²·f. Reducing voltage by factor k gives k² power reduction, while reducing frequency by k gives only k reduction. The quadratic dependence on voltage provides greater savings.

If voltage and frequency are both reduced by 30% (k=0.7), what is the energy savings?

Energy per task = V²·N (for N cycles). New energy = (0.7V)²·N = 0.49·V²·N. Savings = 1- 0.49 = 51%. Task takes 43% longer but uses 51% less energy.

What are P-states in DVFS?

Discrete operating points (voltage, frequency pairs) that define validated stable configurations. P0 is maximum performance, higher P-numbers are progressively lower power states.

What is the activity factor (α) in dynamic power equations?

The fraction of transistors that switch in a given clock cycle. Dynamic power = ½·α·C·V²·f. Typical α ranges from 0.1 to 0.3 depending on workload.

What is static (leakage) power and why does it matter for DVFS?

P_static = V·I_leak, power consumed by leakage currents even when transistors aren't switching. At very low frequencies, static power dominates and DVFS efficiency drops. In modern processes, leakage can be 20-40% of total power.

What is the race-to-idle vs. race-to-dark debate?

Race-to-idle: run at high frequency, finish quickly, then sleep (power gate). Race-to-dark: run slowly at low power continuously. Which is better depends on static vs. dynamic power ratio and sleep/wake overhead.

What is the typical latency for a DVFS transition?

10-100 microseconds to stabilize the voltage regulator and PLL. During transition, the CPU may stall, and the transition itself consumes energy, so frequent switching can negate savings.

Why can't DVFS be used agressively in hard real-time systems?

Real-time systems have deadlines requiring minimum frequency. If f_min to meet deadline > f_max available, or if DVFS transition latency breaks timing guarantees, DVFS cannot be applied without violating real-time constraints.

What is hysteresis in DVFS policies?

Waiting for sustained high or low utilization before changing P-states (e.g., 1-10ms stability window). Prevents jittery oscillation between states and ensures transition overhead is amortized.

What is per-core DVFS?

Modern capability where each CPU core can operate at different P-states independently. Enables heterogeneous computing (e.g., big.LITTLE: high-power cores at high P-state, efficient cores at low P-state).

How does DVFS help with thermal management?

When temperature exceeds threshold, DVFS immediately drops to lower P-state, reducing power dissipation and heat generation. This provides graceful performance degradation instead of emergency throttling.

What is the on-demand DVFS policy? :: Reactive policy that scales frequency up if CPU utilization exceds a threshold (e.g., 80%) and scales down if utilization drops below another threshold (e.g., 30%). Fast response but can be jittery without hysteresis.
