Thermal throttling mechanisms

WHY does throttling exist at all?

The heat source we can control is dynamic power. Recall the CMOS dynamic power law (derived below), which is the lever throttling pulls.

Deriving the power lever (first principles)

WHY $\tfrac12 CV^2$ ? Energy on a capacitor is $\int_0^{V} q\,dv = \int_0^V (Cv)\,dv = \tfrac12 CV^2$ . Charging and discharging over a full cycle dissipates $CV^2$ total, but the standard per-node-transition switching energy is written $\tfrac12 CV^2$ .

Now multiply energy per switch by how often we switch. If the clock runs at frequency $f$ and a fraction $\alpha$ (activity factor) of nodes toggle each cycle:

This quadratic-in- $V$ is the whole game. To run faster (higher $f$ ) a transistor needs higher $V$ to switch reliably, so $f$ and $V$ rise together. That makes power grow roughly with $V^3$ — dropping voltage a little cuts power a lot. That's why throttling drops both frequency and voltage (DVFS).

The thermal side: why temperature rises

WHY this form? Steady-state heat flow $Q$ through a barrier obeys $Q = \Delta T / R_\theta$ , exactly like $I = \Delta V / R$ . Rearranged: $\Delta T = Q\,R_\theta$ . So higher power ⇒ hotter junction, linearly, for a fixed cooler.

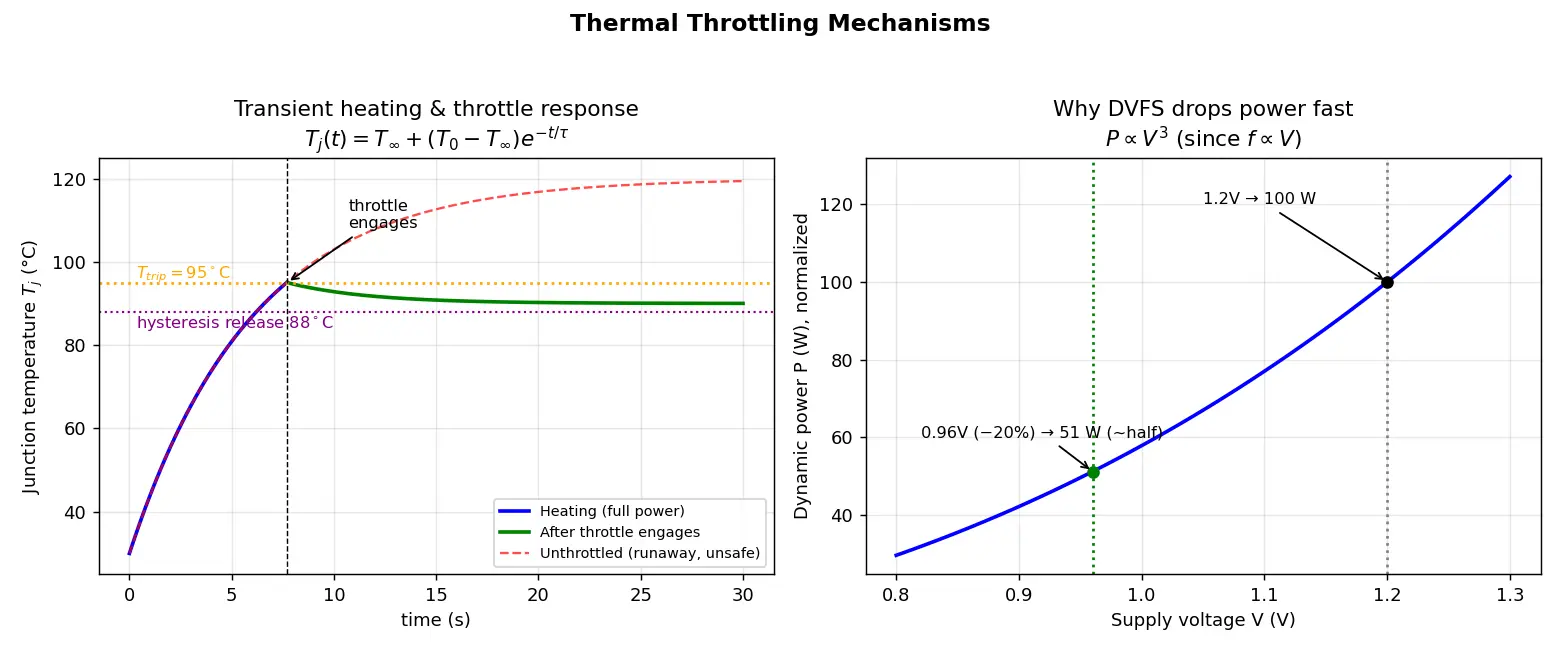

But temperature doesn't jump instantly — there's thermal mass (capacitance):

The throttling control loop (HOW it actually works)

Mechanisms, from gentle to brutal:

Mechanism	What it does	Why used
DVFS (P-states)	Lower $V$ and $f$ together	Best perf/watt (drops power ~ $V^3$ )
Clock gating	Stop clock to idle blocks	Kills switching in unused units
Clock throttling / duty cycling (T-states)	Insert idle clock cycles, e.g. run 50% duty	Coarse, fast, always available
Core parking	Shut whole cores off	Big heat cut on multicore
Emergency shutdown (THERMTRIP)	Hard power-off at $T_{j,max}$	Last-resort survival

Worked examples

Common mistakes (steel-manned)

Active recall

Recall Cover the answers first

What quantity does throttling directly reduce, and via which two knobs? ⟶ Dynamic power, via voltage and frequency (DVFS).
Why is voltage the more powerful lever than frequency? ⟶ Power $\propto V^2 f$ and $f\propto V$ , giving == $\sim V^3$ == scaling.
What equation relates junction temp to power? ⟶ $T_j = T_a + P R_\theta$ .
Why can a chip briefly exceed its TDP? ⟶ Thermal mass / time constant == $\tau=R_\theta C_\theta$ == delays heating.
What is hysteresis for? ⟶ To prevent on/off chatter around the trip point.

Recall Feynman: explain to a 12-year-old

Imagine you're running so hard you're getting super hot and might faint. Your body makes you slow down and jog instead of sprint, so you don't overheat. A computer chip does the same: when its little thermometer says "too hot!", it stops sprinting (slows its clock and lowers its power) until it cools off. It's not broken — it's being smart so it doesn't burn out. If it had a better fan (a good cooler), it could sprint longer before slowing.

Connections

Dynamic vs Static Power — throttling only attacks the dynamic term.
DVFS Dynamic Voltage and Frequency Scaling — the primary throttling mechanism.
Thermal Resistance and Heatsinks — the $R_\theta$ that sets sustainable power.
TDP Thermal Design Power — the cooling target throttling defends.
Clock Gating and Power Gating — finer-grain heat-cutting cousins.
Reliability and Electromigration — why $T_{j,max}$ exists at all.

Thermal throttling is fundamentally a trade of what for what?

Performance for thermal safety/reliability (a slower live chip over a fast dead one).

The dynamic power equation is?

P_{dyn} = \alpha C V^2 f

Why is voltage a stronger lever than frequency for reducing power?

Power goes as

V^2

and speed needs

f\propto V

, so total

\propto V^3

— small

V

cut, big power drop.

Junction temperature from power and thermal resistance?

T_j = T_{ambient} + P\,R_\theta

What is the thermal time constant and why does it matter?

\tau = R_\theta C_\theta

; it lets chips boost above TDP briefly before heat builds up.

Why does throttling use hysteresis (two thresholds)?

To avoid rapid on/off oscillation (chatter) at the trip point.

List throttling mechanisms from gentle to severe.

DVFS (P-states) → clock gating → clock/duty throttling (T-states) → core parking → THERMTRIP shutdown.

Is TDP a hard power cap?

No — it's a sustained cooling design target; boost can exceed it transiently.

A 20% voltage reduction cuts dynamic power by roughly how much?

~50% (since

0.8^3 \approx 0.51

What sensor drives throttling and how is it used?

An on-die thermal diode/DTS reads

T_j

; a controller compares to trip points and acts.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek chip basically ek chhota heater hai jo saath-saath calculation bhi karta hai. Jitna tez chalega, utna zyada heat banayega. Agar heat banne ki speed cooling ki speed se zyada ho gayi, toh temperature upar chadhta rahega aur silicon damage ho jayega. Isliye chip khud hi apne aap ko slow kar leta hai — isko thermal throttling kehte hain. Yaad rakho: slow chip zinda chip hai, fast chip mara hua chip. Throttling koi kharabi nahi, balki protection sahi kaam kar rahi hai.

Ab main lever kya hai? Dynamic power ka formula hai $P = \alpha C V^2 f$ . Yahan sabse important baat: power voltage ke square pe depend karti hai, aur tez chalne ke liye voltage bhi badhana padta hai ( $f \propto V$ ), toh effectively power ~ $V^3$ ke saath badhti hai. Matlab agar voltage sirf 20% kam kar do, toh power lagbhag aadhi ho jaati hai! Isiliye DVFS (voltage aur frequency dono ek saath girana) sabse best throttling method hai — thoda sa performance kho ke bahut sara heat bachta hai.

Temperature ka rule simple hai: $T_j = T_{ambient} + P \times R_\theta$ . Yeh bilkul Ohm's law jaisa hai — power current jaisa, temperature difference voltage jaisa, aur $R_\theta$ (thermal resistance) resistance jaisa. Achha cooler matlab kam $R_\theta$ , matlab same power pe kam temperature. Aur ek cheez — chip turant garam nahi hota, thermal mass ki wajah se time lagta hai ( $\tau = R_\theta C_\theta$ ). Isi wajah se "turbo boost" kuch seconds ke liye TDP se upar ja sakta hai, jab tak heatsink garam nahi hota.

Exam mein galti mat karna: TDP koi hard limit nahi hai, woh cooling ka design target hai. Aur throttling ka matlab yeh nahi ki chip kharab hai — asli problem cooling hoti hai (dust, sukha thermal paste, ya high $R_\theta$ ). Hysteresis (do alag thresholds — engage 95°C pe, release 88°C pe) isliye rakhte hain taaki chip trip point pe baar-baar on/off na kare. Ho gaya!
