Step 1 — A chip is a heater made of tiny switches

WHAT. A processor is millions of little on/off switches called transistors. Each switch, when it flips, has to fill up a tiny bucket of electric charge and then empty it. Filling and emptying buckets makes heat. That is the entire source of the heat we care about.

WHY start here. Everything downstream — the power formula, the temperature rise, the throttling — is just accounting for how much heat these flips make and where it goes. If we don't understand the flip, no symbol later is earned.

PICTURE. Look at figure below. One switch feeds a "bucket" (the small circle marked $C$ ). When the switch connects to the top rail, charge flows in and the bucket fills to the rail's height $V$ . When it connects to the bottom, the bucket empties. Each full fill-then-empty is one switching event, and it costs energy — the little flame.

Step 2 — How much energy does ONE flip cost?

WHAT. We compute the energy stored in the bucket when it is filled to voltage $V$ . The answer is $E = \frac{1}{2} C V^{2}$ .

WHY this tool — an integral, and why $\frac{1}{2}$ . You might guess the energy is just "charge times voltage", $Q \cdot V$ . But that's wrong, and here is the reason in one picture: the first drop of charge falls in when the bucket is empty (voltage $\approx 0$ , cheap), and the last drop falls in when the bucket is nearly full (voltage $\approx V$ , expensive). The cost per drop grows as the bucket fills. To add up a cost that changes as we go, we need the tool that sums infinitely many tiny changing pieces — that is the integral $\int$ . It answers exactly the question "what's the total when the price per unit keeps changing?"

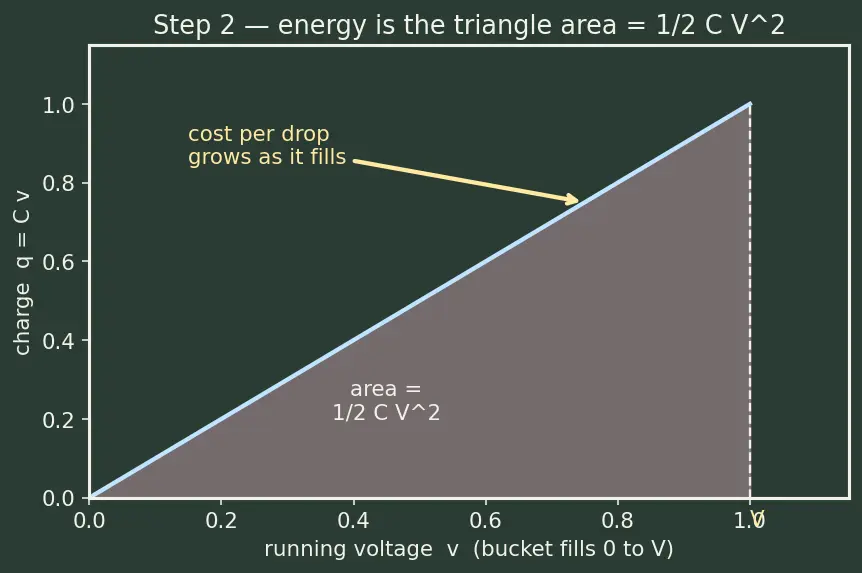

PICTURE. In the figure, voltage $v$ runs along the bottom, charge $q = C v$ runs up the side (a straight line, because a bigger bucket holds proportionally more charge). Energy is the area under that line — a triangle. A triangle's area is $\frac{1}{2} \times base \times height$ , and here base $= V$ , height $= Q = C V$ .

Step 3 — From one flip to total power

WHAT. Multiply the energy of one flip by how many flips happen per second. That gives power — energy per second, measured in watts.

WHY multiply. Energy is a one-time cost; power is a rate. A chip that flips more often, or has more switches flipping, burns more watts. So we scale $E$ by two counters: the clock frequency $f$ (cycles per second) and the activity factor $α$ (the fraction of switches that actually flip on a given cycle — most stay still).

PICTURE. The figure stacks it as a pipeline: one flip costs $\frac{1}{2} C V^{2}$ joules → $f$ cycles happen each second → only a fraction $α$ of nodes flip → out the end comes watts. (The conventional formula absorbs the $\frac{1}{2}$ into the definition, writing $P_{d y n} = α C V^{2} f$ ; the shape is what matters.)

Step 4 — The hidden multiplier: why voltage rules everything

WHAT. Voltage and frequency are not independent. To flip faster (raise $f$ ) you must raise $V$ to shove the charge in quicker. Near the operating region, $f \propto V$ . Substituting that into the power law turns $V^{2} \cdot f$ into $V^{2} \cdot V = V^{3}$ .

WHY this matters. This is the reason DVFS exists and why the parent note calls voltage "the whole game". A small voltage cut is a cubic win.

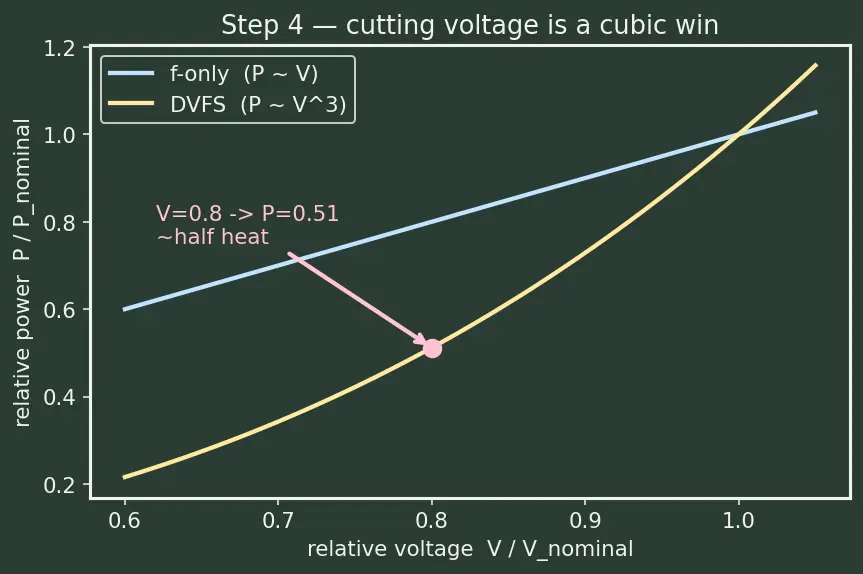

PICTURE. The figure plots relative power versus relative voltage. The linear line ( $f$ -only, power $\propto V$ ) is gentle. The cubic curve ( $V^{3}$ ) plunges. The pink marker shows: cut voltage to $0.8$ of nominal and power falls to $0. 8^{3} \approx 0.51$ — roughly half — for only a modest speed loss.

Step 5 — Where the heat goes: temperature as "heat pressure"

WHAT. The watts we just computed must escape to the air. How hot the chip gets depends on how hard it is for heat to flow out. We model this exactly like an electric circuit: heat flow is like current, temperature difference is like voltage, and the difficulty of escape is a thermal resistance $R_{θ}$ .

WHY this tool — the electrical analogy. Heat flowing through a solid barrier obeys the same shape of law as current through a resistor: steady heat flow $=$ (temperature difference) $\div$ (resistance). This lets us reuse Ohm's law, which we already trust, instead of inventing new physics.

PICTURE. The figure draws the analogy side by side. Left: a battery $Δ V$ pushes current $I$ through resistor $R$ . Right: the chip's power $P$ pushes heat through thermal resistance $R_{θ}$ from the hot junction down to the cool ambient air. The subscript $θ$ just means "thermal" — it is not an angle here.

Step 6 — Temperature doesn't jump: the thermal delay

WHAT. If you suddenly increase power, the junction does not snap to its new temperature instantly. It coasts toward it, following a smooth curve set by a time constant $τ = R_{θ} C_{θ}$ .

WHY this tool — the exponential and $C_{θ}$ . The heatsink has thermal mass $C_{θ}$ : it takes energy to warm the metal up, just as it takes charge to fill the bucket in Step 1. A resistance feeding a capacitance always produces the same smooth "charging" shape — the exponential $e^{- t / τ}$ . We use the exponential precisely because it is the unique curve whose approach-rate is proportional to how far it still has to go, which is exactly how a warming object behaves.

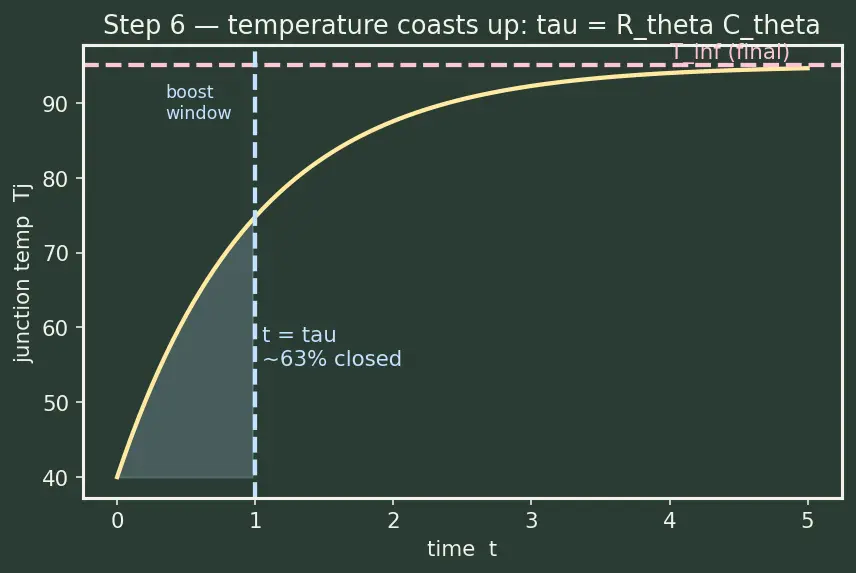

PICTURE. The figure shows temperature vs time rising from $T_{0}$ and curving to level off at the final $T_{\infty}$ . It rises fast at first, then flattens. The dashed line at one $τ$ marks where it has closed ~63% of the gap. The shaded early window is the turbo/boost region: the chip can legally exceed its sustained TDP here because the metal hasn't warmed yet.

Step 7 — The two laws collide: the throttle trigger

WHAT. Now we put Step 3 and Step 5 together. The chip has a trip temperature $T_{t r i p}$ just below the safe maximum $T_{j, ma x}$ . Setting $T_{j} = T_{t r i p}$ and solving for power gives the maximum sustainable power $P_{ma x}$ . Whenever the workload demands more than $P_{ma x}$ , the junction would cross the trip line — so the controller cuts $V$ and $f$ (Step 4's lever) to pull $P$ back down.

WHY this is the punchline. Throttling is nothing more than keeping the Step-5 line from crossing the trip line. The lever is Step 4 (cut $V$ hardest). The delay in Step 6 is why it can wait a few seconds before acting.

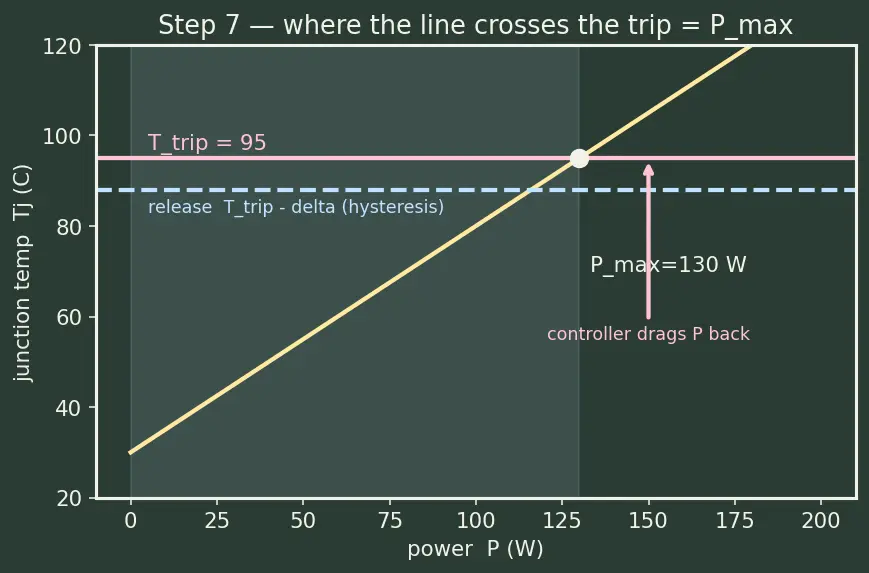

PICTURE. The figure plots junction temperature versus power as a straight rising line (slope $R_{θ}$ , from Step 5). Where it crosses the red trip line sits $P_{ma x}$ . To the left = safe (blue zone). To the right = the controller drags $P$ back left, shown by the pink arrow. A lower dashed line shows the hysteresis release point $T_{t r i p} - Δ$ : it re-enables full speed only after cooling past there, so it doesn't chatter on/off.

Step 8 — Every edge case, so nothing surprises you

WHAT. We sweep the degenerate and boundary situations so the reader never meets an unshown scenario.

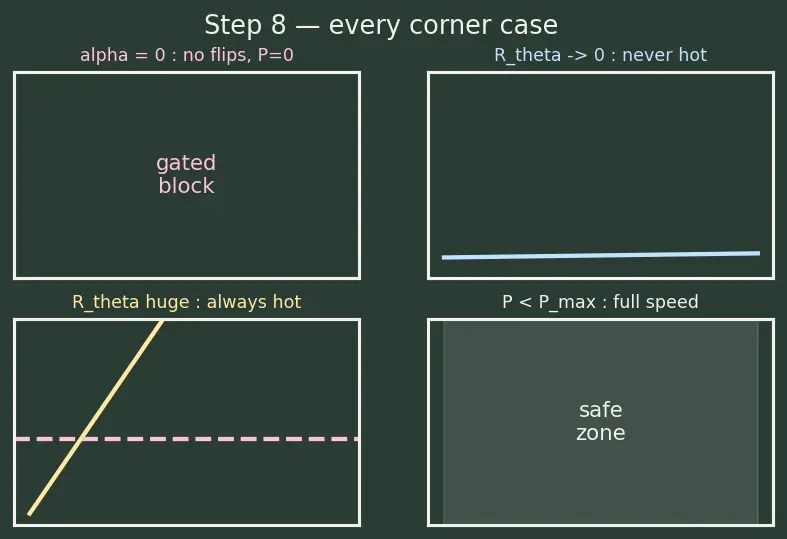

PICTURE. Four mini-panels, one per case.

The one-picture summary

This final figure compresses all eight steps: a flip fills a bucket (energy $\frac{1}{2} C V^{2}$ ) → many flips per second give power $α C V^{2} f$ → that power drives heat through $R_{θ}$ to set $T_{j} = T_{a} + P R_{θ}$ → when $T_{j}$ hits the trip line the controller yanks the cubic $V^{3}$ lever back down.

Recall Feynman retelling — the whole walk in plain words

A computer chip is a giant crowd of tiny switches. Every time a switch flips, it fills and empties a little bucket of electricity, and that costs energy — and energy leaks out as heat. Filling the bucket costs more the fuller it gets, so the total per flip is $\frac{1}{2}$ (bucket size) times (rail height) squared. That "squared" is the key villain: the rail height is the voltage, and voltage hurts twice.

Multiply one flip's cost by how many flips happen per second (the clock speed) and by how many switches actually move, and you get the chip's power in watts.

Here's the trap: to flip faster you must raise the voltage too. So speeding up doesn't just multiply power a bit — it multiplies it like voltage-cubed. That's why, when a chip needs to cool down, dropping the voltage a little is worth far more than dropping the clock a lot.

Now, where does the heat go? It has to crawl out through the heatsink to the air, and that crawl has a "difficulty" number, $R_{θ}$ . More watts times more difficulty means a hotter chip: $T_{j} = T_{a} + P R_{θ}$ . And the metal takes time to warm up, so the chip can briefly sprint hotter than it could sustain — that's turbo boost.

The chip has a thermometer inside and a "too hot" trip line. Set the temperature equal to that line and solve, and you learn the biggest power you can run forever. Ask for more, and the chip pulls the voltage-and-frequency lever down until the heat matches what the cooler can remove. It waits a beat below the line before speeding back up so it doesn't flicker. That careful self-slowing — not a malfunction, a bodyguard — is thermal throttling.

Recall Check yourself

Where does the $\frac{1}{2}$ in $\frac{1}{2} C V^{2}$ come from? ::: The triangular area under the charge-vs-voltage line — cost per drop grows as the bucket fills. Why does power scale like $V^{3}$ , not $V^{2}$ ? ::: Because reaching higher frequency requires higher voltage ( $f \propto V$ ), so $V^{2} f$ becomes $V^{3}$ . What is $P_{ma x}$ in terms of temperatures and $R_{θ}$ ? ::: $P_{ma x} = (T_{t r i p} - T_{a}) / R_{θ}$ . Why can a chip exceed its TDP for a few seconds? ::: The heatsink's thermal mass $C_{θ}$ gives a time constant $τ = R_{θ} C_{θ}$ , so the junction warms slowly. What does hysteresis prevent? ::: On/off chatter around the exact trip point.
