Thermal design power (TDP)

Overview

Thermal Design Power (TDP) is the maximum amount of heat a processor or component is designed to dissipate under realistic workloads, measured in watts (W). It tells cooling system designers: "Your heatsink and fan must handle at least this much heat."

Core Concepts

What TDP Actually Means

Key Points:

Not peak power: TDP ≠ maximum instantaneous power draw. Modern CPUs can briefly exceed TDP (Intel's "Turbo Boost" can pull 1.5× TDP for seconds), but TDP represents the thermal steady-state.
Realistic, not synthetic: Calculated from workloads the manufacturer expects (e.g., mixed compute tasks), not artificial stress tests like Prime95.
Cooling requirement: Your heatsink must have thermal resistance $R_{\theta} \leq \dfrac{T_{\text{j,max}} - T_{\text{ambient}}}{\text{TDP}}$ to prevent throttling.

The Physics: From Power to Heat

Why does electrical power become heat?

Every transistor in a CPU acts like a tiny switch. When it switches, it:

Charges/discharges capacitance → dynamic power: $P_{\text{dyn}} = \alpha C V^2 f$ $P_{dyn} = α C V^{2} f$
- $\alpha$ = activity factor (fraction of transistors switching)
- $C$ = total capacitance
- $V$ = supply voltage
- $f$ = clock frequency
Leaks current even when "off" → static power: $P_{\text{static}} = I_{\text{leak}} V$

Total power: $P_{\text{total}} = P_{\text{dyn}} + P_{\text{static}}$

Conservation of energy: All this electrical power becomes heat (no mechanical work is done). The chip junction temperature rises until heat removal balances heat generation:

\text{TDP} = \frac{T_{\text{j}} - T_{\text{ambient}}}{R_{\theta,\text{total}}}

Where:

$T_{\text{j}}$ = junction (chip die) temperature
$T_{\text{ambient}}$ = surrounding air temperature
$R_{\theta,\text{total}}$ = total thermal resistance (chip → heatsink → air, in °C/W or K/W)

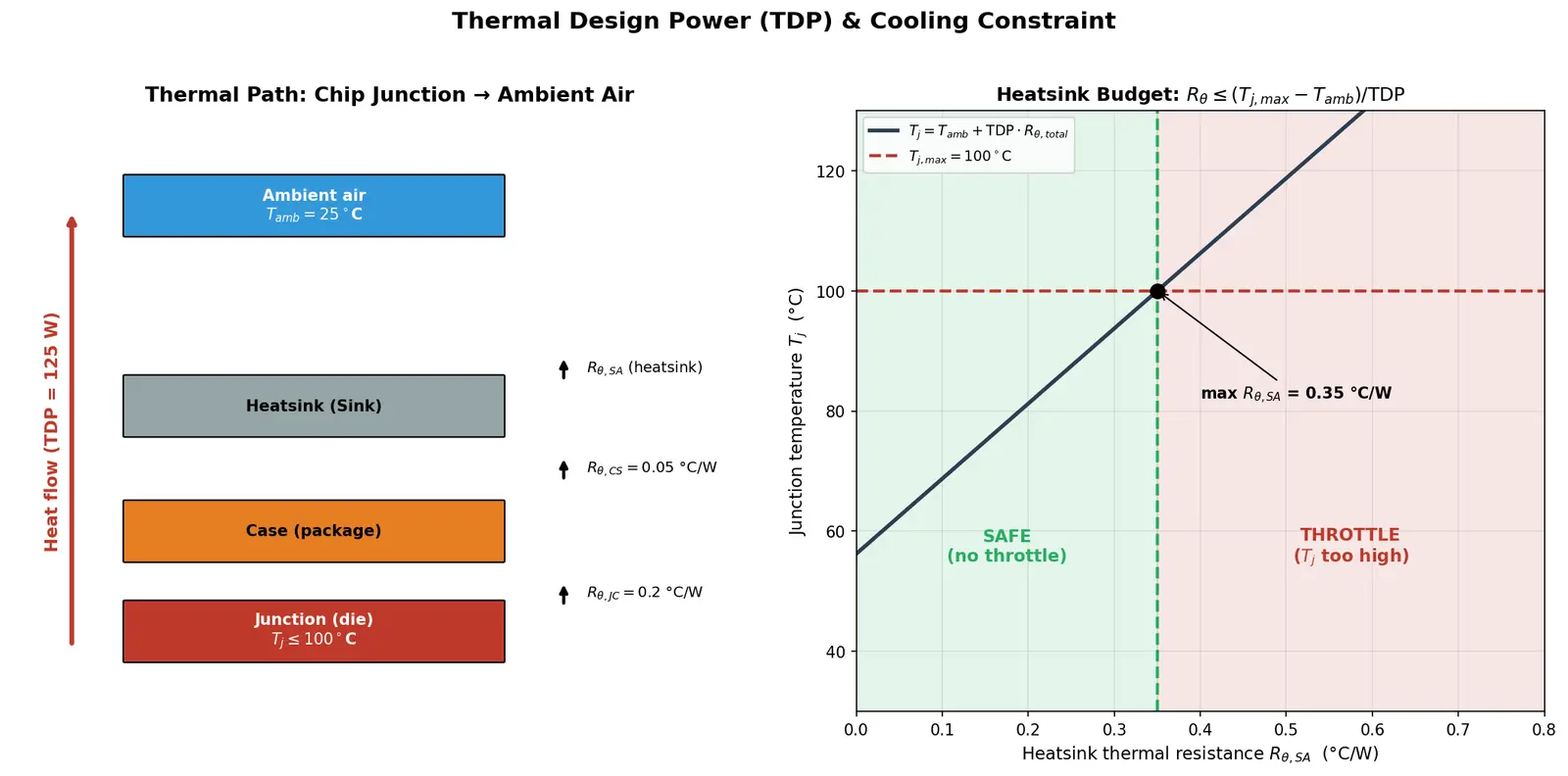

Formula Thermal Resistance and Cooling Design

$R_{\theta,\text{total}} = R_{\theta,\text{JC}} + R_{\theta,\text{CS}} + R_{\theta,\text{SA}}$

$R_{\theta,\text{JC}}$ : Junction-to-Case (inside chip package)
$R_{\theta,\text{CS}}$ : Case-to-Sink (thermal paste interface)
$R_{\theta,\text{SA}}$ : Sink-to-Ambient (heatsink + airflow)

Total budget constraint: To keep $T_{\text{j}} \leq T_{\text{j,max}}$ (typically 90–105°C): $R_{\theta,\text{total}} \leq \frac{T_{\text{j,max}} - T_{\text{ambient}}}{\text{TDP}}$ Heatsink design constraint (solving for the sink-to-ambient term): $R_{\theta,\text{SA}} \leq \frac{T_{\text{j,max}} - T_{\text{ambient}}}{\text{TDP}} - R_{\theta,\text{JC}} - R_{\theta,\text{CS}}$

Why this matters: If your heatsink's $R_{\theta,\text{SA}}$ is too high, the chip hits $T_{\text{j,max}}$ and thermal throttling kicks in—the CPU reduces frequency to lower TDP, sacrificing performance.

Worked Examples

Worked example Example 1: Heatsink Selection

Problem: An Intel Core i7 has TDP = 125 W, $T_{\text{j,max}} = 100°C$ . Room temperature is 25°C. The chip package has $R_{\theta,\text{JC}} = 0.2 °C/W$ , thermal paste gives $R_{\theta,\text{CS}} = 0.05 °C/W$ . What's the maximum heatsink thermal resistance?

Solution:

Total temperature rise budget:
$\Delta T_{\text{max}} = T_{\text{j,max}} - T_{\text{ambient}} = 100 - 25 = 75°C$ Why? This is the temperature "room" we have before throttling.
Required total thermal resistance:
$R_{\theta,\text{total}} = \dfrac{\Delta T_{\text{max}}}{\text{TDP}} = \dfrac{75}{125} = 0.6 \text{ °C/W}$

Why? Ohm's Law analog: $\Delta T = P \times R_{\theta}$ , so $R_{\theta} = \Delta T / P$ .
Budget for heatsink:
$R_{\theta,\text{SA}} = R_{\theta,\text{total}} - R_{\theta,\text{JC}} - R_{\theta,\text{CS}}$
$R_{\theta,\text{SA}} = 0.6 - 0.2 - 0.05 = 0.35 \text{ °C/W}$

Why subtract? Resistances in series add: $R_{\theta,\text{total}} = R_{\theta,\text{JC}} + R_{\theta,\text{CS}} + R_{\theta,\text{SA}}$ .

Answer: You need a heatsink with $R_{\theta,\text{SA}} \leq 0.35 °C/W$ (a decent tower cooler or AIO liquid cooler).

Worked example Example 2: Overclocking and TDP

Problem: You overclock the same i7 from 3.5 GHz to 4.2 GHz and raise voltage from 1.2 V to 1.35 V. Estimate new power consumption (assume dynamic power dominates, activity unchanged).

Solution:

Dynamic power formula:
$P_{\text{dyn}} = \alpha C V^2 f$ (proportional to $V^2 f$ )
Ratio of new to old power:
$\dfrac{P_{\text{new}}}{P_{\text{old}}} = \dfrac{V_{\text{new}}^2 f_{\text{new}}}{V_{\text{old}}^2 f_{\text{old}}} = \dfrac{(1.35)^2 \times 4.2}{(1.2)^2 \times 3.5}$

Why? Power scales as $V^2 f$ ; capacitance and activity factor stay constant.
Calculate:
$\dfrac{P_{\text{new}}}{P_{\text{old}}} = \dfrac{1.8225 \times 4.2}{1.44 \times 3.5} = \dfrac{7.6545}{5.04} \approx 1.52$

$P_{\text{new}} \approx 1.52 \times 125 = 190 \text{ W}$ Why this step? Multiply the baseline TDP by the scaling factor.

Answer: New power ≈ 190 W. Your original cooler (rated for 125 W) is now inadequate—you'd see thermal throttling or need a beefier cooler.

Common Mistakes

Active Recall

Recall Explain TDP to a 12-year-old

Imagine your laptop's brain (the CPU) is like a little heater inside the computer. When it's working hard—playing a game or editing a video—it gets really hot, just like how your phone heats up.

The TDP is like a warning label that says: "Hey, this brain can get as hot as a 100-watt lightbulb when it's working full-speed!" So the computer's cooling system (the fan and metal fins) has to be strong enough to blow away that much heat, or else the brain will overheat and slow down to protect itself.

It's not saying the brain always uses 100 watts—sometimes it's just chilling and barely warm. But when it's working hard, the fan needs to handle that 100 watts of heat. If the fan is too weak, the brain gets too hot and says, "Okay, I'm going to slow down until I cool off," and your game starts lagging. That's why gaming laptops have big, loud fans—bigger TDP needs bigger cooling!

Connections

Power consumption in CMOS circuits — Where TDP comes from (dynamic + static power)
Thermal throttling — What happens when cooling can't keep up with TDP
Overclocking and voltage scaling — How changing V and f affects power (and TDP)
Heatsink design and thermal resistance — Engineering cooling solution to meet TDP
Process node scaling — Why newer chips have lower TDP for same performance (lower C, lower V)
Turbo Boost and power states — How CPUs briefly exceed TDP during burst workloads
Data center cooling — TDP × (thousands of servers) = massive HVAC requirements
Laptop thermal design — Why thin laptops throttle: limited cooling for given TDP

Flashcards

#flashcards/hardware

What does TDP stand for and what does it measure?

Thermal Design Power; the maximum sustained heat output (in watts) a processor generates under realistic high-intensity workloads, used as the design target for cooling systems.

TDP is the chip's average power consumption—true or false?

False. TDP is the thermal load (heat) the cooler must handle under sustained load, not the average power draw across all usage scenarios.

What is the relationship between TDP and thermal resistance?

\text{TDP} = \dfrac{T_{\text{j}} - T_{\text{ambient}}}{R_{\theta,\text{total}}}

. The chip's temperature rise equals TDP times the total thermal resistance from junction to ambient air.

If a CPU has TDP = 100 W,

T_{\text{j,max}} = 100°C

, ambient = 25°C, and package

R_{\theta,\text{JC}} = 0.2 °C/W

, what's the max heatsink

R_{\theta,\text{SA}}

if thermal paste is negligible?

Total budget:

R_{\theta,\text{total}} = (100-25)/100 = 0.75 °C/W

. So

R_{\theta,\text{SA}} \leq 0.75 - 0.2 = 0.55 °C/W

Why does overclocking increase TDP?

Dynamic power

P_{\text{dyn}} \propto V^2 f

. Raising voltage (V) and frequency (f) increases power (and thus heat) quadratically with voltage and linearly with frequency.

A laptop CPU has 15 W TDP but the system draws 50 W from the wall. Explain.

TDP is the CPU's thermal output only. Total system power includes GPU, display, SSD, motherboard, and PSU inefficiency—all add up beyond the CPU's TDP.

What happens if a heatsink's thermal resistance is too high for a given TDP?

The chip's junction temperature exceeds

T_{\text{j,max}}

, triggering thermal throttling: the CPU reduces clock speed to lower power and heat, sacrificing performance to prevent damage.

Why can modern CPUs briefly exceed their TDP rating?

Technologies like Intel Turbo Boost allow short bursts above TDP (e.g., 1.5× for seconds) because the chip's thermal mass can absorb transient heat spikes before reaching steady-state temperature.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

TDP ka matlab samajhna bahut simple hai agar tum ise ek garmi ki problem ki tarah socho. Jab bhi CPU ya koi bhi chip kaam karti hai, woh electrical power ko computation mein convert karti hai, lekin ye process 100% efficient nahi hota. Jo energy "waste" hoti hai woh heat ban jaati hai. TDP basically ek design target hai jo batata hai ki tumhare cooling system (heatsink aur fan) ko kitni maximum heat handle karni padegi, jab chip realistic heavy workload pe chal rahi ho. Yaad rakho, ye peak power nahi hai—chip thodi der ke liye TDP se zyada bhi jaa sakti hai (jaise Turbo Boost), par TDP steady-state worst-case thermal load ko represent karta hai.

Ab core physics ye hai ki har transistor ek chhota switch hai, aur jab woh switch karta hai toh dynamic power banti hai ( $P_{dyn} = \alpha C V^2 f$ ), aur thoda leakage se static power bhi aati hai. Conservation of energy ke hisaab se ye saari electrical power heat ban jaati hai kyunki koi mechanical work nahi ho raha. Chip ka junction temperature tab tak badhta rehta hai jab tak heat nikalna heat banne ke barabar na ho jaaye. Isko ek equation se samajh sakte ho: TDP = temperature difference / thermal resistance. Yahan thermal resistance ( $R_\theta$ ) ek "rukawat" ki tarah hai jo heat ko chip se bahar air tak jaane mein aati hai—jitni kam resistance, utni acchi cooling.

Ye topic isliye important hai kyunki agar tumhara heatsink ki thermal resistance zyada ho gayi, toh chip apne maximum junction temperature ( $T_{j,max}$ , jo usually 90-105°C hoti hai) ko hit kar legi aur phir thermal throttling shuru ho jaayegi—yaani CPU apni speed kam kar degi taaki heat kam ho, jisse performance suffer karti hai. Isliye engineers formula use karte hain heatsink select karne ke liye taaki $R_\theta$ itni kam rahe ki chip safe temperature pe kaam karti rahe. Jab tum future mein PC build karoge ya hardware design samjhoge, ye concept tumhe batayega ki kaunsa cooler kaunse processor ke saath sahi rahega—ye sirf theory nahi, real-world practical knowledge hai.
