Thermal design power (TDP): Question bank — Hardware deep dive

This is a rapid-fire conceptual workout for Thermal design power (TDP). No heavy arithmetic here — every item targets a misconception or a boundary case that the definition of TDP quietly invites. Read the prompt, answer out loud in one breath, then reveal.

Definition The symbols this page uses

$R_{θ}$ = thermal resistance: how strongly a material opposes heat flow, in °C/W (degrees of temperature rise per watt of heat pushed through). Big $R_{θ}$ = heat piles up and things get hot; small $R_{θ}$ = heat escapes easily. The subscript $θ$ (Greek "theta") just flags that it's a thermal resistance, not an electrical one.
$R_{θ, JC}$ = Junction-to-Case resistance: from the silicon die to the outside of the chip's metal lid.
$R_{θ, CS}$ = Case-to-Sink resistance: across the thermal paste layer between the lid and the heatsink.
$R_{θ, SA}$ = Sink-to-Ambient resistance: from the heatsink out into the surrounding air (depends on fins and airflow).
$R_{θ, total}$ = total thermal resistance of the whole heat path added together: $R_{θ, total} = R_{θ, JC} + R_{θ, CS} + R_{θ, SA}$ (see the series-path figure below for why they add).
$T_{j}$ = junction temperature: the actual temperature of the silicon die (the "junction") right now, in °C. This is the thing that rises as the chip works and heat piles up.
$T_{j,max}$ = maximum junction temperature: the hottest $T_{j}$ is allowed to reach before damage or throttling (typically 90–105 °C). So $T_{j}$ is the live reading, $T_{j,max}$ is the red line it must not cross.
$T_{ambient}$ = ambient temperature: the temperature of the surrounding air (a room is often ~25 °C).

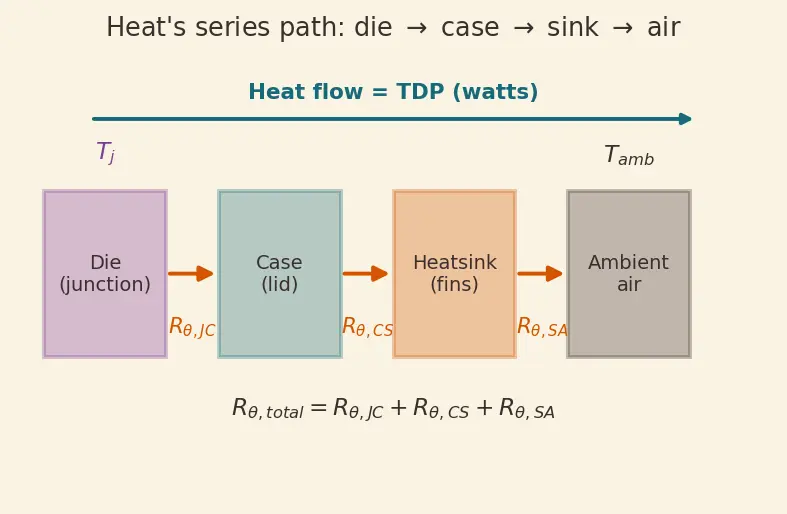

The figure above shows why the three resistances add: heat leaves the die and travels through each layer in sequence — die → case → paste → heatsink → air — like water forced down one pipe with three narrow sections. One path, taken in order, so the resistances add in series, giving $R_{θ, total}$ .

Formula Why the cooling inequality holds — the

$Δ T = P \cdot R_{θ}$ chain First, the Ohm's-law mapping, unpacked term by term. Electricity you already know: a voltage difference pushes a current through a resistance, and Ohm's law says $Δ V = I \times R$ . Heat obeys the exact same shape of law, with a one-to-one swap of characters:

a temperature difference $Δ T$ plays the role of voltage — it is the "pressure" that drives flow (heat only moves when one side is hotter, just as current only flows when one side is at higher voltage);
a heat flow $P$ (in watts) plays the role of current — it is how much is actually moving through per second;
a thermal resistance $R_{θ}$ plays the role of electrical resistance — how strongly the path opposes that flow.

With those swaps, $Δ V = I R$ becomes $Δ T = P \times R_{θ} .$

The figure above draws this as an actual circuit: a heat "source" (the die) pushing power

P

through three series thermal resistors down to the ambient "ground."

Important caveat — this is a steady-state law. $Δ T = P \cdot R_{θ}$ holds only once temperatures have settled and stopped changing (thermal steady state). It ignores thermal capacitance — the fact that the die and heatsink store heat and take time to warm up. During a brief spike, that stored-heat buffer lets $T_{j}$ lag behind, which is exactly why turbo boost can momentarily exceed TDP without instantly overheating. The simple formula is the long-run balance point, not the moment-to-moment truth.

Now the substitution. The temperature the heat must cross is from the die down to the air: $Δ T = T_{j} - T_{ambient}$ . For the heat flow $P$ we plug in TDP — but why is that allowed? Because TDP is defined as the sustained worst-case heat, and "sustained" is precisely the steady-state condition the formula requires: over the long run, the watts flowing out must equal the watts being generated, and that generation is TDP. Substituting both: $T_{j} - T_{ambient} = TDP \times R_{θ, total} .$ To keep the die safe we demand $T_{j} \leq T_{j,max}$ . Rearranging for the resistance the cooler is allowed to have: $R_{θ, total} \leq \frac{T _{j,max} - T _{ambient}}{TDP} .$ This is an upper bound: any cooler with lower resistance keeps the die cooler than the limit, which is fine.

Prerequisite ideas worth having fresh: Power consumption in CMOS circuits, Heatsink design and thermal resistance, Thermal throttling, and Turbo Boost and power states.

True or false — justify

TDP equals the CPU's average power draw over a day.

False. TDP is a sustained worst-case thermal target for the cooler; real usage swings from ~10 W idle to short turbo spikes above TDP, so the day's average is usually well below TDP.

A chip can never, even briefly, draw more power than its TDP.

False. Modern CPUs deliberately exceed TDP for seconds via Turbo Boost; the die's thermal mass absorbs the extra heat before the sustained average settles back near TDP.

Two CPUs with identical TDP dissipate identical heat at every instant.

False. Identical TDP only means their coolers face the same maximum sustained load; instant-to-instant heat depends on workload, clocks, and boost behaviour, which differ.

All the electrical power a CPU consumes eventually becomes heat.

True. A CPU does no mechanical work, so by conservation of energy essentially 100% of the power it draws is converted to heat that must be removed.

Thermal resistances along the path (junction→case→paste→sink→air) add up like resistors in series.

True. Heat flows through one path in sequence, so

R_{θ, total} = R_{θ, JC} + R_{θ, CS} + R_{θ, SA}

, exactly like series electrical resistance.

A 65 W CPU is always slower than a 125 W CPU.

False. Speed is IPC × frequency × cores; a newer, efficient 65 W part can beat an older 125 W one. TDP measures heat, not performance.

Lowering supply voltage barely affects power because power is mostly leakage.

False. Dynamic power scales as

V^{2} f

(where

V

is supply voltage and

f

is clock frequency), so voltage has an outsized (squared) effect — undervolting is one of the strongest levers on heat.

TDP tells you the total wall-plug power of a laptop.

False. TDP is the CPU's thermal figure only; display, GPU, storage, and PSU inefficiency all add wall power beyond the CPU's TDP.

If your heatsink is rated at exactly the TDP requirement, thermal paste and package resistance don't matter.

False.

R_{θ, JC}

(die-to-case) and

R_{θ, CS}

(paste layer) eat into the same total budget; ignoring them can push

R_{θ, total}

over the limit and cause throttling.

Raising ambient temperature makes a fixed heatsink able to handle less TDP.

True. The usable budget is

T_{j,max} - T_{ambient}

; a hotter room shrinks the numerator, so the same

R_{θ}

supports a smaller safe TDP.

Spot the error

"My chip has 95 W TDP, so my power bill reflects 95 W of continuous CPU use."

The error is treating a cooling design target as a continuous consumption figure; actual draw is usually far lower at idle/light load, so the bill is much less.

"I need a heatsink with exactly

R_{θ} = 0.6

°C/W because a 75 °C budget divided by 125 W gives 0.6 °C/W."

The '75' is the allowed temperature rise

T_{j,max} - T_{ambient} = 100 - 25 = 75

°C, and 0.6 °C/W is the total path budget; the heatsink alone must be lower since

R_{θ, JC}

and

R_{θ, CS}

already consume part of it.

"I overclocked frequency by 20% so power rises by 20%."

Overclocking usually needs more voltage too, and dynamic power goes as

V^{2} f

; the squared voltage term makes the real rise far more than 20%.

"Turbo pushing 1.5× TDP means my 125 W cooler is instantly overwhelmed."

Turbo is transient; the die's heat capacity buffers short spikes, and the cooler only needs to handle the sustained TDP, not every millisecond peak.

"TDP is the peak instantaneous power the chip can ever draw."

TDP is a sustained thermal steady-state figure, not an instantaneous ceiling — peaks routinely exceed it briefly.

"Cheap thermal paste is fine; it's the same heatsink either way."

Poor paste inflates

R_{θ, CS}

(the case-to-sink term) by 0.2–0.5 °C/W, which multiplied by TDP adds tens of degrees to

T_{j}

— see Heatsink design and thermal resistance.

"Higher TDP directly means higher clock speed."

TDP reflects heat from architecture, process node, and voltage together; clock is only one factor, and efficient designs get more speed per watt.

Why questions

Why is TDP defined from a realistic workload rather than a synthetic stress test like Prime95?

Because cooling is sized for the heat customers actually generate; a synthetic power-virus load would inflate the spec and force needlessly expensive coolers.

Why does the cooling constraint use

R_{θ} \leq (T_{j,max} - T_{ambient}) / TDP

rather than an equals sign?

We need

T_{j}

to stay at or below the limit; any lower resistance keeps the chip cooler, so the requirement is an upper bound on

R_{θ}

Why does the thermal equation

Δ T = P \times R_{θ}

hold only at steady state?

Because it ignores thermal capacitance — the heat stored in the die and heatsink. Only once temperatures stop changing do heat generated and heat removed balance, which is when the formula is exact.

Why is it valid to put

P = TDP

into the steady-state formula?

Because TDP is by definition the sustained heat load, and "sustained" is exactly the settled, steady-state condition the formula requires.

Why does undervolting reduce heat more than reducing clock speed by the same percentage?

Dynamic power depends on voltage squared but frequency only linearly, so voltage cuts attack the dominant

V^{2}

term — see Overclocking and voltage scaling.

Why do newer process nodes often let a CPU do more work at lower TDP?

Smaller transistors switch at lower voltage and capacitance, cutting

α C V^{2} f

— where

α

is the activity factor (fraction of transistors switching each cycle) and

C

is the total switched capacitance — so more computation fits inside the same heat budget.

Why does a chip throttle instead of simply failing when cooling is inadequate?

Throttling lowers frequency (and often voltage), which drops dynamic power and thus heat, protecting the die by trading performance for safety.

Why must data-center designers care about ambient temperature more than desktop users?

Dense server rooms run warmer and pack many chips, shrinking the

T_{j,max} - T_{ambient}

budget and multiplying the heat that must be extracted.

Edge cases

What happens to the safe-TDP budget as

T_{ambient} \to T_{j,max}

The numerator

T_{j,max} - T_{ambient} \to 0

, so no finite heat can be removed without exceeding the junction limit — cooling becomes impossible however good the heatsink.

If a workload draws essentially zero power (deep idle), what does TDP tell us?

Nothing about that moment — TDP is a maximum sustained design figure, so at near-zero load the actual heat is far below TDP and irrelevant to the instantaneous state.

Could a chip's instantaneous power ever be negative (heat flowing back in)?

No — a CPU always dissipates, never generates cold; heat only flows out toward ambient because

T_{j} > T_{ambient}

under operation.

For a fanless passively-cooled laptop, what limits usable TDP most?

The sink-to-ambient resistance

R_{θ, SA}

is very high with no forced airflow, forcing a low sustained TDP and heavy reliance on brief turbo plus throttling.

R_{θ, JC}

alone already exceeds the total budget

(T_{j,max} - T_{ambient}) / TDP

, what can any external cooler do?

Nothing — the heat is trapped inside the package before it reaches the sink, so no external heatsink, however perfect, can keep

T_{j}

in spec.

What does it mean if measured sustained power sits below the rated TDP under full load?

The chip is either power-limited by a lower configured limit, thermally throttled, or simply efficient at that workload — TDP is a ceiling for cooling, not a guarantee the chip hits it.

At exactly

R_{θ, total} = (T_{j,max} - T_{ambient}) / TDP

, what is the operating margin?

Zero —

T_{j}

lands precisely at

T_{j,max}

, so any hotter room, dust, or degraded paste immediately triggers throttling.

Recall Quick self-test

Give the one-sentence distinction this whole page trains. Answer ::: TDP is the sustained heat a cooler must remove (a thermal design target), not the energy the chip draws from the wall (a fluctuating power measurement).
