Dynamic vs static power consumption

What is Power Consumption?

Power consumption in digital circuits is the rate at which electrical energy is converted to heat. For CMOS (Complementary Metal-Oxide-Semiconductor) circuits—the foundation of modern CPUs, GPUs, and SoCs—power splits into two categories:

Dynamic Power: Energy consumed during switching activity (transistors changing state0→1 or 1→0)
Static Power: Energy consumed when the circuit is idle (leakage currents)

Why it matters: Power directly translates to heat. Too much heat degrades performance (thermal throttling), shortens chip lifespan, and drains batteries. Understanding the split helps engineers optimize for performance vs. battery life vs. cooling.

Dynamic Power: The Cost of Switching

Derivation from First Principles (Switching Component)

Step 1: Energy to Charge a Capacitor

A CMOS gate is modeled as a capacitor $C$ connected to a voltage source $V_{dd}$ through a transistor. When the output switches from 0 to $V_{dd}$ , the capacitor charges.

The energy drawn from the power supply to charge a capacitor from 0 to $V_{dd}$ is:

$E_{\text{supply}} = \int_0^Q V \, dq = \int_0^{CV_{dd}} V_{dd} \, dq = V_{dd} \cdot Q = C V_{dd}^2$

Why? The supply voltage $V_{dd}$ is constant. To push charge $Q = CV_{dd}$ onto the capacitor, the supply does work $W = V \cdot Q$ .

Step 2: Energy Stored in Capacitor

The energy stored in the capacitor at voltage $V_{dd}$ is:

$E_{\text{stored}} = \frac{1}{2} C V_{dd}^2$

Why? The voltage across the capacitor rises linearly from 0 to $V_{dd}$ as it charges. Average voltage is $V_{dd}/2$ , so $E = \frac{1}{2} Q V_{dd} = \frac{1}{2} C V_{dd}^2$ .

Step 3: Energy Dissipated as Heat

Energy dissipated during charging (lost as heat in the transistor resistance):

$E_{\text{dissipated}} = E_{\text{supply}} - E_{\text{stored}} = C V_{dd}^2 - \frac{1}{2} C V_{dd}^2 = \frac{1}{2} C V_{dd}^2$

When the transistor discharges (1→0), the stored energy $\frac{1}{2} C V_{dd}^2$ is dissipated to ground.

Total energy per switching cycle (0→1→0):

$E_{\text{cycle}} = \frac{1}{2} C V_{dd}^2 + \frac{1}{2} C V_{dd}^2 = C V_{dd}^2$

Why the factor of 2? One half is lost during charging (in the pull-up transistor), one half during discharging (in the pull-down transistor).

Step 4: Power = Energy × Frequency

If the gate switches at frequency $f$ (measured in Hz, cycles per second), and has an activity factor $\alpha$ (fraction of clock cycles where switching occurs):

Physical meaning:

$V_{dd}^2$ : Quadratic voltage dependence—cutting voltage in half reduces switching power by 4×
$f$ : Linear frequency dependence—doubling clock speed doubles power
$\alpha$ : Not every gate switches every cycle; typical CPUs have low activity factors

The Second Component: Short-Circuit Power

Why the standard formula misses this: The $\alpha C V_{dd}^2 f$ derivation only accounts for charge delivered to the load capacitor. The short-circuit current never reaches the capacitor—it flows supply→ground directly during the input transition, so it is a separate term.

Formula Short-Circuit Power

$P_{\text{short-circuit}} = \alpha \cdot f \cdot \int_{\text{transition}} V_{dd} \, I_{sc}(t)\, dt = \alpha \cdot f \cdot Q_{sc} \cdot V_{dd}$

Where $Q_{sc}$ is the charge that flows straight through per transition. A common engineering approximation for an inverter with input transition time $\tau$ : $P_{\text{short-circuit}} \approx \frac{\beta}{12}\,(V_{dd} - 2V_{th})^3\, \tau \, f$ where $\beta$ is the transistor gain factor and $V_{th}$ the threshold voltage.

Key insight: Short-circuit power vanishes if $V_{dd} < 2V_{th}$ (neither transistor's threshold is exceeded together) and shrinks with fast input edges (small $\tau$ ). It is typically 5–15% of total dynamic power in well-designed circuits.

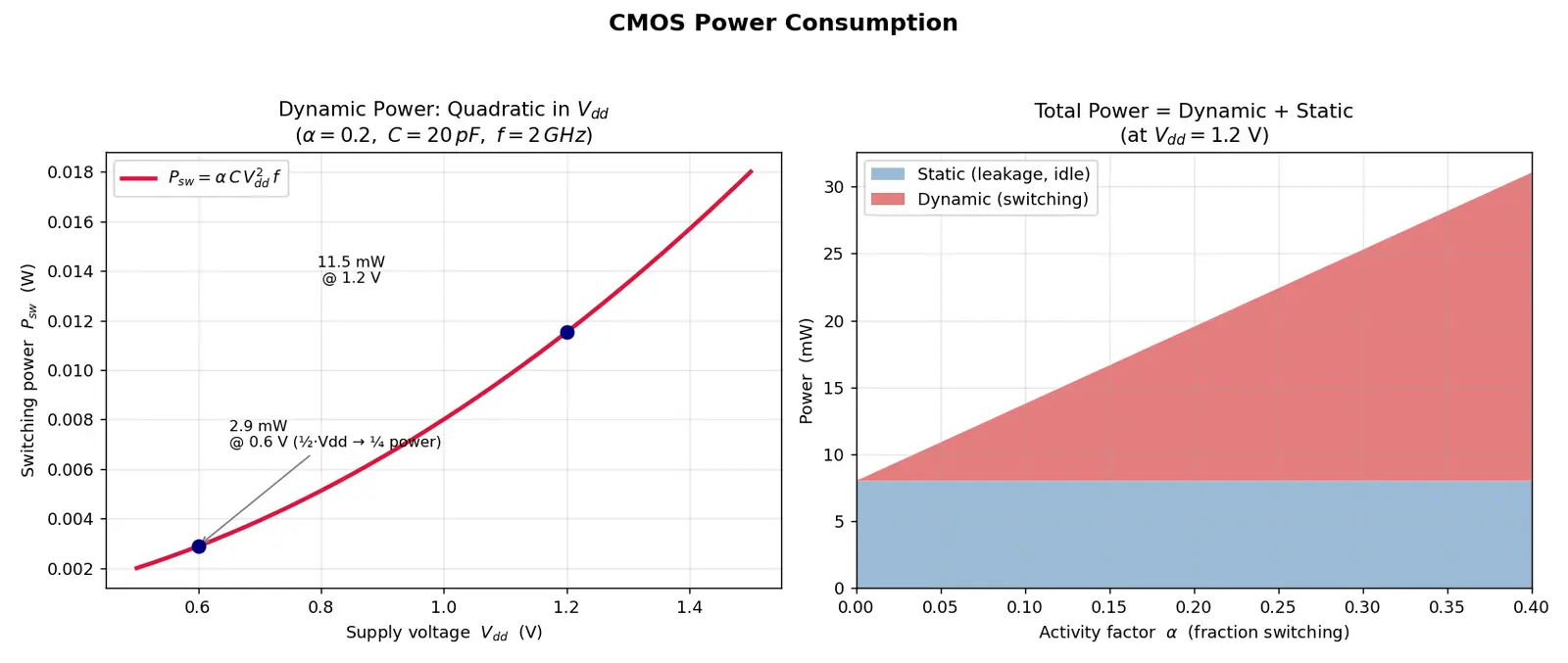

Figure — Dynamic vs static power consumption

Worked example Example 1: CPU Cache Line Switching

A cache line has equivalent capacitance $C = 10$ pF (picofarads). Supply voltage $V_{dd} = 1.0$ V. Clock frequency $f = 3$ GHz. Activity factor $\alpha = 0.2$ (20% of cycles have transitions).

$P_{\text{switching}} = 0.2 \times 10 \times 10^{-12} \times (1.0)^2 \times 3 \times 10^9$ $= 0.2 \times 10 \times 10^{-12} \times 1 \times 3 \times 10^9 = 6 \times 10^{-3} \text{ W} = 6 \text{ mW}$

Why this step? Plugged values directly into the switching formula. The $10^{-12}$ (pico) and $10^9$ (giga) cancel to $10^{-3}$ (milli).

Adding short-circuit: If short-circuit power is ~10% of switching power, add $\approx 0.6$ mW → total dynamic $\approx 6.6$ mW.

Insight: A single cache line is tiny. A modern CPU has billions of switching nodes → total dynamic power in tens to hundreds of watts.

Worked example Example 2: Voltage Scaling for Battery Life

A smartphone SoC runs at $V_{dd} = 1.2$ V, consuming $P_1 = 2.0$ W switching power. To extend battery life, voltage is reduced to $V_{dd} = 0.9$ V (25% reduction). What is the new switching power?

$\frac{P_2}{P_1} = \left(\frac{V_2}{V_1}\right)^2 = \left(\frac{0.9}{1.2}\right)^2 = (0.75)^2 = 0.5625$ $P_2 = 0.5625 \times 2.0 = 1.125 \text{ W}$

Why this step? Switching power is proportional to $V^2$ . Frequency and capacitance don't change, so the ratio is purely voltage squared.

Insight: A 25% voltage drop gives a 44% power reduction! This is why Dynamic Voltage and Frequency Scaling (DVFS) is so effective for power management. Short-circuit power falls even faster (cubic in $V_{dd}-2V_{th}$ ), so low-voltage operation almost eliminates shoot-through. (Lower voltage also requires lower frequency to maintain timing margins, so real savings are less dramatic but still significant.)

Static Power: The Leakage Tax

Sources of Leakage

Subthreshold leakage: Current flows from drain to source even when $V_{gs} < V_{th}$ (gate voltage below threshold). Exponentially dependent on threshold voltage.
Gate oxide tunneling: Electrons tunnel through the thin gate oxide (quantum effect). Worse as oxide thickness shrinks below ~2 nm.
Junction leakage: Reverse-bias current in p-n junctions (drain/source to substrate).

Formula

More detailed (subthreshold dominant):

$I_{\text{leakage}} \propto I_0 \cdot e^{\frac{V_{gs} - V_{th}}{n V_T}} \cdot (1 - e^{-\frac{V_{ds}}{V_T}})$

Where:

$V_{th}$ = threshold voltage
$V_T = kT/q \approx 26$ mV at room temperature (thermal voltage)
$n$ = subthreshold slope factor (~1.3–1.5)

Why exponential? Subthreshold conduction follows the physics of diffusion current in semiconductors, which is exponentially dependent on voltage.

Temperature dependence: Leakage current doubles roughly every 10°C increase. High temperatures are catastrophic for static power.

Worked example Example 3: Idle Core Leakage

A CPU core has 1 billion transistors. Each transistor leaks $I_{\text{leak}} = 10$ nA (nanoamps) on average when off. $V_{dd} = 1.0$ V.

$I_{\text{total}} = 10^9 \times 10 \times 10^{-9} = 10 \text{ A}$

Wait, that can't be right! Common mistake: Not all transistors are off simultaneously. Realistic activity: ~50% of transistors off at any time:

$I_{\text{total}} = 0.5 \times 10^9 \times 10 \times 10^{-9} = 5 \text{ A}$

$P_{\text{static}} = 1.0 \times 5 = 5 \text{ W}$

Why this matters? A 100W CPU might have 30–40 W of static power at idle in older processes. Modern chips use high- $V_{th}$ transistors in non-critical paths to reduce leakage.

Worked example Example 4: Temperature Impact

At 25°C, $I_{\text{leakage}} = 2$ A, giving $P_{\text{static}} = 2$ W at $V_{dd} = 1.0$ V. The chip heats to 75°C (50°C rise).

Leakage roughly doubles every 10°C: $I_{\text{leakage}}(75°C) \approx 2 \times 2^{50/10} = 2 \times 2^5 = 2 \times 32 = 64 \text{ A}$

$P_{\text{static}}(75°C) \approx 64 \text{ W}$

Why this step? Applied the empirical doubling rule. Real exponent varies by process, but this shows the thermal runaway risk: heat increases leakage, leakage increases heat.

Insight: This is why servers have aggressive cooling. Let the chip get too hot, and power consumption spirals.

Total Power Consumption

Design tradeoffs:

Low power (mobile): Reduce $V_{dd}$ (helps switching quadratically, short-circuit cubically, static linearly), reduce $f$ , use high- $V_{th}$ transistors (less leakage but slower), power-gate unused blocks
High performance (datacenter): Accept high power, maximize cooling, use low- $V_{th}$ transistors (fast but leaky)

Dynamic vs Static: The Historical Shift

| Era | Process Node | Dominant Power | Why | |---|----------------|---| | 1990s–2000s | >130 nm | Dynamic | Thick oxides → low leakage, high voltages → high switching energy | | 2000s–2010s | 90–45 nm | Transition | Gate oxide thinning → tunneling increases | | 2010s–now | <22 nm | Both comparable | FinFETs reduce leakage but billions of transistors mean static adds up |

FinFET improvement: 3D gate structure improves electrostatic control → lower leakage for same performance. But as we pack more transistors, total static power still climbs.

Common mistake Common Mistake: "Dynamic Power is ONLY α·C·V²·f"

Wrong intuition: "The famous formula captures all switching power."

Why it feels right: It's the formula in every textbook headline and dominates the total, so it's easy to assume it's complete.

The reality: $\alpha C V_{dd}^2 f$ only counts charge delivered to the load capacitor. During each transition, both PMOS and NMOS conduct briefly, creating a direct $V_{dd}$ →ground short-circuit current that never touches the capacitor. This adds a separate 5–15% term.

The fix: Write $P_{\text{dynamic}} = P_{\text{switching}} + P_{\text{short-circuit}}$ . Minimize short-circuit power with sharp input edges (small transition time $\tau$ ) and by operating near $V_{dd} \lesssim 2V_{th}$ where it vanishes.

Recall Feynman Explanation (Explain to a 12-Year-Old)

Imagine you have a box of light switches. Every time you flip a switch on or off, you have to push it—that takes muscle energy. The faster you flip switches, the more tired you get. That's switching power: the energy to make things change.

Here's a sneaky extra cost: when you flip a switch, for a tiny instant it's neither fully on nor fully off—it's in between. In that instant, electricity takes a shortcut straight from the battery to the ground and gets wasted as heat. That's short-circuit power—a little leak that happens during the flip.

And there's one more: even when a switch is "off," it's not perfectly off. It's like a door that doesn't quite close—light leaks through the crack. All your switches leak a tiny bit even when idle. That's static power.

In old switches (big chunky ones), the leaks were so small you could ignore them. But modern computer switches are super tiny—smaller than a germ. At that size, electricity is so "slippery" it leaks through even when the switch is closed. To save power: flip switches slower, use lower voltage, flip them crisply (less shortcut waste), and unplug switches you're not using. That's how phones last all day and why servers need giant fans.

Connections

CMOS Inverter Design: Foundation of dynamic power derivation and where short-circuit current arises
Capacitance in VLSI: Where $C$ comes from (gate, wire, load)
Thermal Design Power (TDP): How $P_{\text{total}}$ sets cooling requirements
Dynamic Voltage Frequency Scaling (DVFS): Using voltage/frequency knobs to optimize power
Power Gating Techniques: Cutting static power in idle blocks
FinFET Transistors: How 3D gates reduce leakage
Subthreshold Slope: Physics behind why leakage is exponential
Signal Transition Time: Sharp edges minimize short-circuit power
Amdahl's Law: Why you can't just turn everything off (parallelism vs power)

#flashcards/hardware

What are the two categories of power consumption in CMOS circuits? :: Dynamic power (switching + short-circuit) and static power (leakage).

What are the two components of dynamic power?

(1) Switching power from charging/discharging load capacitance (

\alpha C V_{dd}^2 f

), and (2) short-circuit (shoot-through) power from both transistors conducting briefly during a transition.

Switching power formula and what each term means :: $P_{\text{switching}} = \alpha C V_{dd}^2 f$ , where $\alpha$ is activity factor, $C$ is capacitance, $V_{dd}$ is supply voltage, $f$ is frequency.

Why does the

\alpha C V^2 f

formula NOT capture all dynamic power?

It only accounts for charge delivered to the load capacitor. It misses short-circuit current that flows directly from

V_{dd}

to ground when both PMOS and NMOS conduct during a transition.

What causes short-circuit (shoot-through) power?

During a finite-time input transition, both pull-up (PMOS) and pull-down (NMOS) transistors are momentarily ON, creating a direct conducting path from

V_{dd}

to ground.

How do you minimize short-circuit power?

Use sharp input edges (small transition time

\tau

), balance rise/fall times, and operate where

V_{dd} \lesssim 2V_{th}

(short-circuit vanishes since both transistors can't exceed threshold together).

Why does switching power scale with

V_{dd}^2

instead of

V_{dd}

Energy to charge a capacitor is

CV_{dd}^2

(one factor from charge

Q=CV_{dd}

, one from voltage). Half is lost during charge, half during discharge, so per cycle is

CV_{dd}^2

. Power = energy × frequency.

What is the activity factor

\alpha

and typical values?

Fra

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho beta, jab bhi chip ke andar transistor ek switch ki tarah on-off hota hai, tab charge ko push karna padta hai — aur yeh charge move karne mein energy lagti hai. Yahi hai dynamic power — jab circuit actively kaam kar raha hota hai, switching ho rahi hoti hai, tab jo power kharch hoti hai. Lekin ek dusra hissa bhi hai — static power — yeh tab bhi barbaad hoti hai jab chip kuch kaam nahi kar raha, bas idle pada hai. Kyunki transistor kabhi bhi perfectly "off" nahi hota, thoda sa current hamesha leak karta rehta hai, jaise ek purani tap se paani ka slow drip.

Ab core baat samjho — dynamic power ka formula hai $P = \alpha C V_{dd}^2 f$ . Yahaan sabse important cheez hai $V_{dd}^2$ — voltage ka square. Iska matlab agar aap voltage aadha kar do, toh switching power 4 guna kam ho jati hai! Isiliye modern chips voltage ko itna neeche laane ki koshish karte hain. Frequency $f$ linear hai, matlab clock speed double karoge toh power sirf double hogi, but voltage ka effect quadratic hone ki wajah se zyada powerful hai. Activity factor $\alpha$ batata hai ki har cycle mein saare transistors switch nahi karte — real circuits mein sirf 10-30% hi active hote hain.

Yeh why-it-matters isliye hai kyunki power directly heat ban jati hai. Zyada heat matlab thermal throttling (chip apni speed apne aap kam kar deta hai bachne ke liye), chip ki life kam ho jati hai, aur mobile phones ki battery jaldi khatam hoti hai. Isiliye jab engineers laptop, phone ya GPU design karte hain, toh yeh dynamic vs static ka balance samajhna zaroori hota hai — performance zyada chahiye ya battery lambi chalni chahiye ya cooling manage karni hai, sab isi trade-off pe depend karta hai.
