Low-power design techniques (clock - power gating)

WHY does a CMOS chip burn power at all?

Before any technique, we must know what we are fighting. Total power splits into:

$P_{total} = P_{dynamic} + P_{short} + P_{static}$

Dynamic (switching) power — derived from scratch

Derivation (WHY the famous formula holds):

Charge stored on the cap when charged to $V_{dd}$ : $Q = C_L V_{dd}$

Energy drawn from the supply during one charge (supply held at $V_{dd}$ ): $E_{supply} = Q V_{dd} = C_L V_{dd}^2$

Half of that is stored on the cap ( $\tfrac12 C_L V_{dd}^2$ ), half is burned in the pull-up resistance. On the next discharge, the stored half is burned in the pull-down. So one full 0→1→0 cycle dissipates $C_L V_{dd}^2$ .

If the node makes $f$ full cycles per second and only actually switches with probability $\alpha$ (the activity factor), then:

$\boxed{P_{dynamic} = \alpha \, C_L \, V_{dd}^2 \, f}$

Static (leakage) power

Even a transistor that is "off" leaks subthreshold current $I_{leak}$ : $P_{static} = V_{dd}\, I_{leak}$ This dominates in modern nodes and does not depend on switching — an idle block still leaks. This is precisely why we need power gating.

Technique 1: Clock Gating (attacks $\alpha$ and $f$ )

HOW (naive, and why it's wrong): A first instinct is gated_clk = clk AND enable. This is dangerous because if enable changes while clk is high, you get a glitch (a runt pulse) that can falsely trigger flops.

Fix — the Integrated Clock Gating (ICG) cell: latch the enable on the low phase of the clock, so it is stable before the next high edge:

enable ──▶ [ Latch (transparent when clk=0) ] ──▶ en_latched
                                                    │
clk ─────────────────────────────────────────── AND ──▶ gated_clk

Because en_latched only updates while clk=0, the AND gate never sees a mid-cycle change during clk=1 → glitch-free.

WHAT it does NOT help: static leakage. The flops still sit powered; they just don't switch.

Technique 2: Power Gating (attacks $P_{static}$ )

HOW — the sleep transistor:

 Vdd ──[ Header PMOS ]── VVDD ── logic block ── VVSS ──[ Footer NMOS ]── GND
          ▲ sleep_b                                        ▲ sleep

VVDD is a virtual supply. When asleep, header off → VVDD floats down → block starves → leakage ≈ 0.

The costs (WHY it's not free):

Wake-up latency & rush current — restoring $V_{dd}$ recharges all the block's internal caps, drawing a big inrush spike.
State loss — flip-flops lose their contents. Fix with retention registers (a tiny always-on shadow latch keeps state).
Floating outputs — a sleeping block's outputs go undefined and can corrupt awake blocks. Fix with isolation cells that clamp outputs to a known value.
Area/IR-drop — the sleep FET is large and adds series resistance.

Break-even (WHY you don't gate for tiny idles): Power gating pays off only if energy saved during sleep exceeds wake-up energy: $P_{on}\cdot t_{idle} \;>\; E_{wakeup} \;\;\Rightarrow\;\; t_{idle} > t_{break-even}$

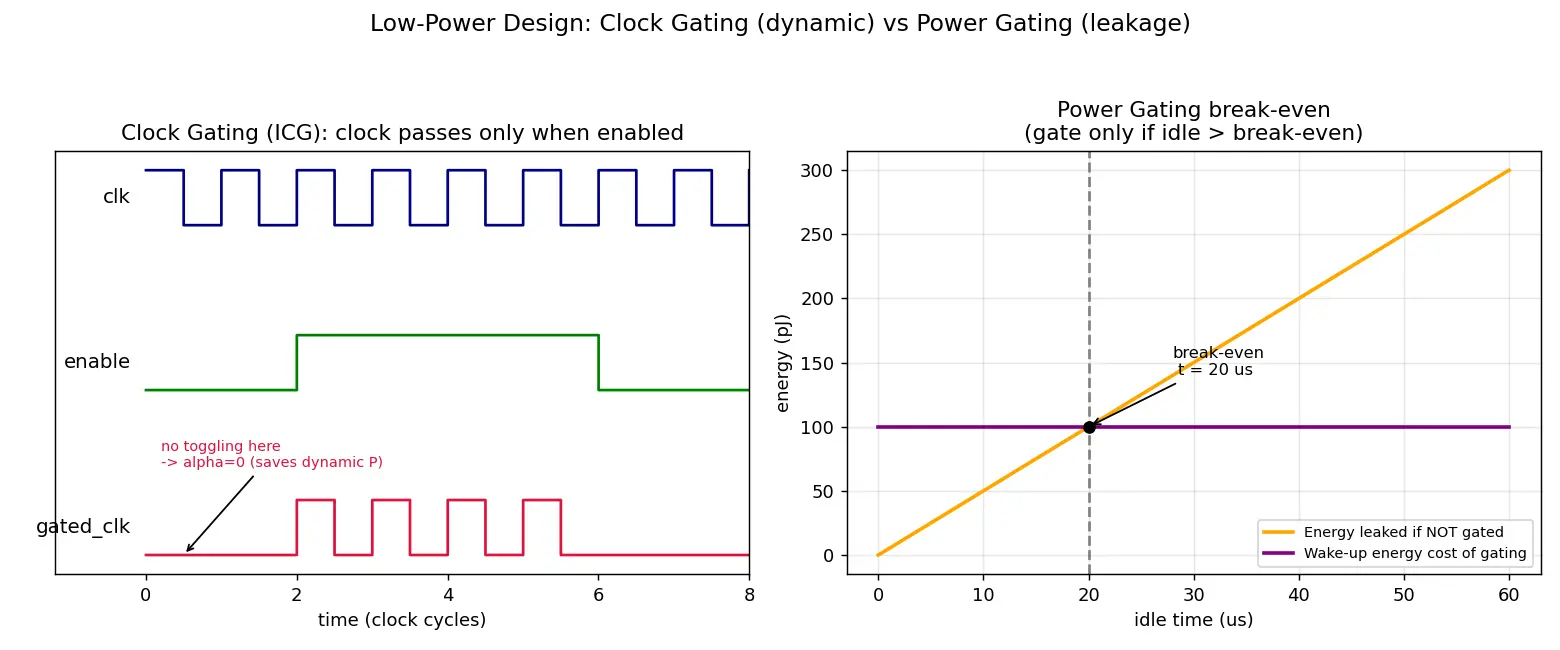

Figure — Low-power design techniques (clock - power gating)

Quick comparison

	Clock gating	Power gating
Targets	Dynamic power	Static (leakage) power
Mechanism	Stop the clock	Cut the supply
State kept?	Yes	No (need retention regs)
Wake latency	~1 cycle	Long (recharge)
Extra cells	ICG latch+AND	Sleep FET, isolation, retention

Worked Examples

Common Mistakes (Steel-manned)

Flashcards

Dynamic power formula and what each term means

P=\alpha C_L V_{dd}^2 f

;

\alpha

=activity factor,

C_L

=switched cap,

V_{dd}

=supply (squared),

f

=frequency.

Why does one full charge/discharge cycle dissipate

C_L V_{dd}^2

Supply delivers

Q V_{dd}=C_L V_{dd}^2

per charge; half burned charging, half discharging → total

C_L V_{dd}^2

per cycle.

What does clock gating reduce?

Dynamic switching power, by setting a register's local activity factor

\alpha

to ~0.

What does power gating reduce?

Static leakage power, by disconnecting the block from

V_{dd}

via a sleep transistor.

Why is clk AND enable a bad clock gate?

enable changing while clk=1 creates glitches/runt pulses that can falsely clock flops.

What is an ICG cell?

Integrated clock gating: a latch (transparent on clk low) feeding an AND, making enable stable during clk high → glitch-free.

What is a retention register?

A flip-flop with an always-on shadow latch that preserves state while the main block is power-gated.

Purpose of isolation cells?

Clamp a sleeping block's outputs to a known value so floating outputs don't corrupt awake logic.

Power-gating break-even condition

Gate only if

t_{idle} > E_{wakeup}/P_{on}

, else wake-up energy exceeds leakage saved.

Which term dominates dynamic-power reduction,

V_{dd}

f

V_{dd}

— it's squared, so scaling voltage helps more (but slows gates).

Header vs footer switch?

Header = PMOS between

V_{dd}

and virtual VDD; footer = NMOS between virtual VSS and GND.

Recall Feynman: explain to a 12-year-old

Imagine a big house full of lights and running taps. Clock gating is like turning off lights in rooms nobody is using — the room is still connected to electricity, but nothing flickers, so you save on the "flickering" bill. Power gating is like flipping the main breaker for the whole empty wing — now even the tiny bit of electricity that leaks through switched-off lights is gone. But when you flip that breaker back on, the lights take a moment to warm up and the clocks reset (you lose state) — so you only do it if the wing will be empty for a long time.
