WHY do we need scan and BIST?

WHAT goes wrong without DfT: sequential logic hides FFs behind many clock cycles of combinational logic, so reaching a specific internal state may need thousands of input vectors — the test-generation problem becomes exponential.

HOW we fix it: convert the hard sequential test problem into an easy combinational one by making all FFs directly loadable/readable.


Scan Chains

Building a scan flip-flop (derivation from scratch)

Start with a normal D flip-flop capturing logic data DD. We want a second mode where instead of DD it captures the previous FF in the chain, SISI (scan-in). Insert a 2:1 MUX before the D input, controlled by Scan Enable (SE):

Dff=SED  +  SESID_{\text{ff}} = \overline{SE}\cdot D \;+\; SE\cdot SI

Why this step? When SE=0SE=0 (normal/functional mode) the FF behaves exactly as before (Dff=DD_{\text{ff}}=D). When SE=1SE=1 (shift mode) the FF takes SISI from its neighbour, so all FFs form a shift register. One control signal switches the whole chip between "compute" and "shift."

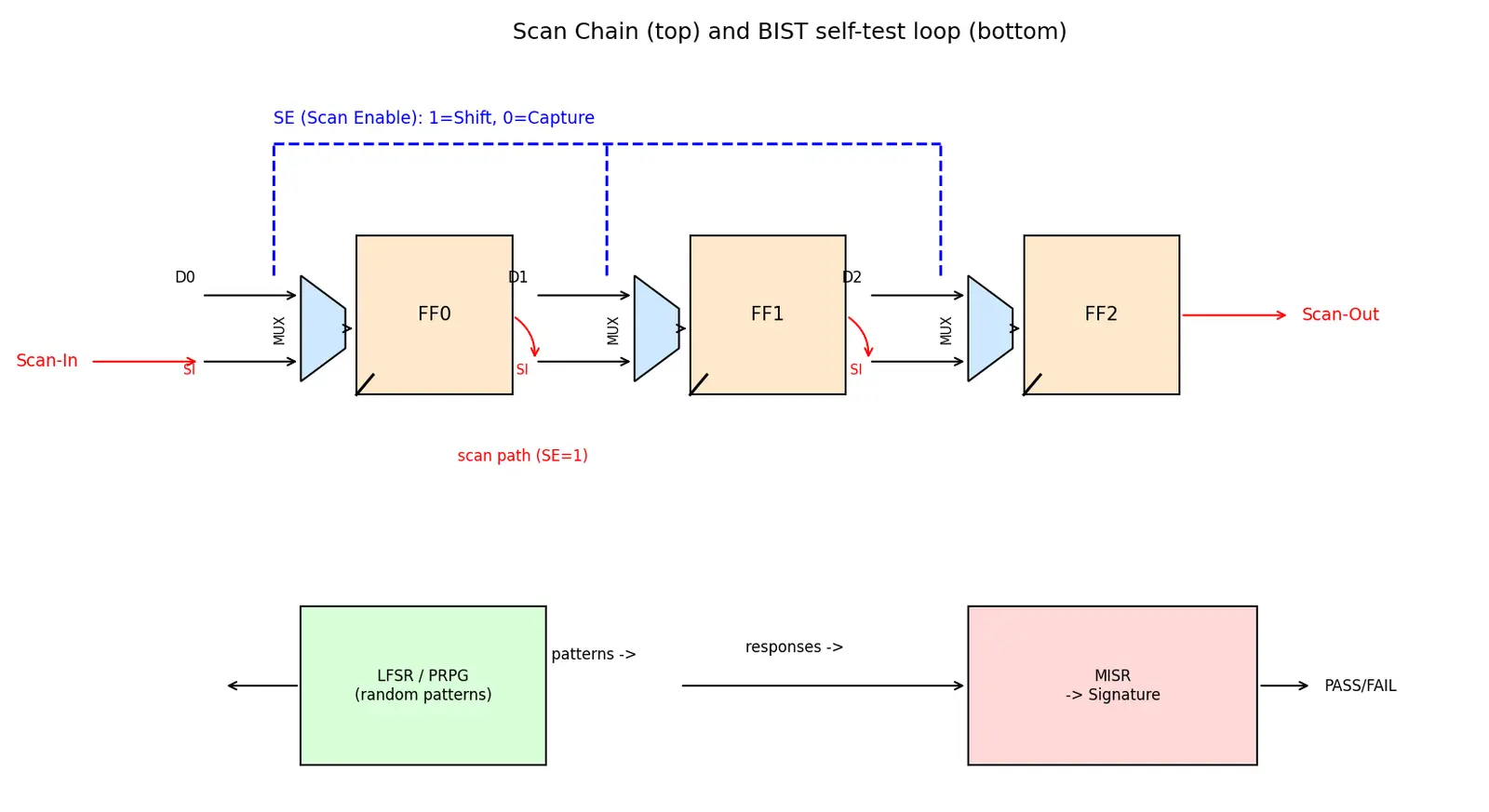

Figure — Scan chains and BIST

The three phases of a scan test

Shift-InSE=1,  N clocks    CaptureSE=0,  1 clock    Shift-OutSE=1,  N clocks\underbrace{\text{Shift-In}}_{SE=1,\; N \text{ clocks}} \;\to\; \underbrace{\text{Capture}}_{SE=0,\; 1 \text{ clock}} \;\to\; \underbrace{\text{Shift-Out}}_{SE=1,\; N \text{ clocks}}
  1. Shift-In: SE=1SE=1; clock NN times to load an NN-bit test pattern into the NN FFs.
  2. Capture: SE=0SE=0; clock once so the combinational logic result is captured back into the FFs.
  3. Shift-Out: SE=1SE=1; shift the captured response out (usually overlapped with shifting in the next pattern).

Built-In Self-Test (BIST)

Why an LFSR gives long sequences (derivation)

An nn-bit LFSR with XOR feedback taps evolves as st+1=Asts_{t+1}=A\,s_t over GF(2)GF(2). If the feedback polynomial is primitive of degree nn, the state cycles through all non-zero states:

Period=2n1\text{Period} = 2^{n}-1

Why 1-1? The all-zeros state is a fixed point (A0=0A\cdot 0 = 0), so it is excluded from the cycle. Why primitive? A primitive polynomial's roots have maximal multiplicative order, guaranteeing every non-zero state is visited exactly once (a maximal-length or m-sequence).

The signature idea

The MISR maps the (very long) response bit-stream to an nn-bit signature. Compare it to the pre-computed golden signature:

  • Match → chip PASS. Mismatch → chip FAIL.

Common Mistakes (Steel-manned)


Flashcards

What two properties must a node have to be testable?
Controllability and observability.
What logic is inserted in front of a scan flip-flop?
A 2:1 MUX selected by Scan Enable (SE), choosing between functional D and scan-in SI.
Write the scan FF input equation.
Dff=SED+SESID_{ff}=\overline{SE}\cdot D + SE\cdot SI.
Name the three phases of a scan test.
Shift-in (SE=1), Capture (SE=0, 1 clock), Shift-out (SE=1).
Why is Capture only one clock cycle?
To latch the combinational logic response back into the same FFs before shifting out.
Why split one long scan chain into M parallel chains?
To reduce shift length to N/M, cutting test time ~M×.
What does an LFSR generate in BIST?
A pseudo-random maximal-length test-pattern sequence (PRPG).
What is the period of a maximal LFSR of n bits and why not 2^n?
2n12^n-1; the all-zeros state is a fixed point and excluded.
What does a MISR do?
Compacts many response bits into one n-bit signature for comparison with the golden signature.
What is aliasing and its probability?
A faulty response producing the golden signature; P2nP\approx 2^{-n}.
Why must the LFSR polynomial be primitive?
Only then does it visit all 2n12^n-1 non-zero states (maximal length).
Why does SE timing matter during capture?
SE must be 0 during capture; else the FF grabs the neighbour, invalidating the test.
