Intuition The one-sentence pictureYou dip a tiny perfect seed crystal into a pool of molten silicon and slowly pull it upward while spinning — the melt freezes onto the seed atom-by-atom , copying its perfect crystal arrangement, so you grow one giant single crystal ("boule") the size of a fire hydrant, which is then sliced into wafers.
Definition The problem being solvedChips need a substrate that is:
single-crystal (one continuous, defect-free atomic lattice — no grain boundaries that would scatter electrons and ruin transistors),ultra-pure (electronic-grade silicon, ~99.9999999% = "nine nines"),precisely doped (a known, uniform amount of impurity to set resistivity).
Ordinary metallurgical silicon is polycrystalline and dirty. The Czochralski process converts purified molten polysilicon into one perfect crystal .
WHY single crystal? Grain boundaries and dislocations trap charge and leak current. Billions of identical transistors demand identical, defect-free atomic terrain.

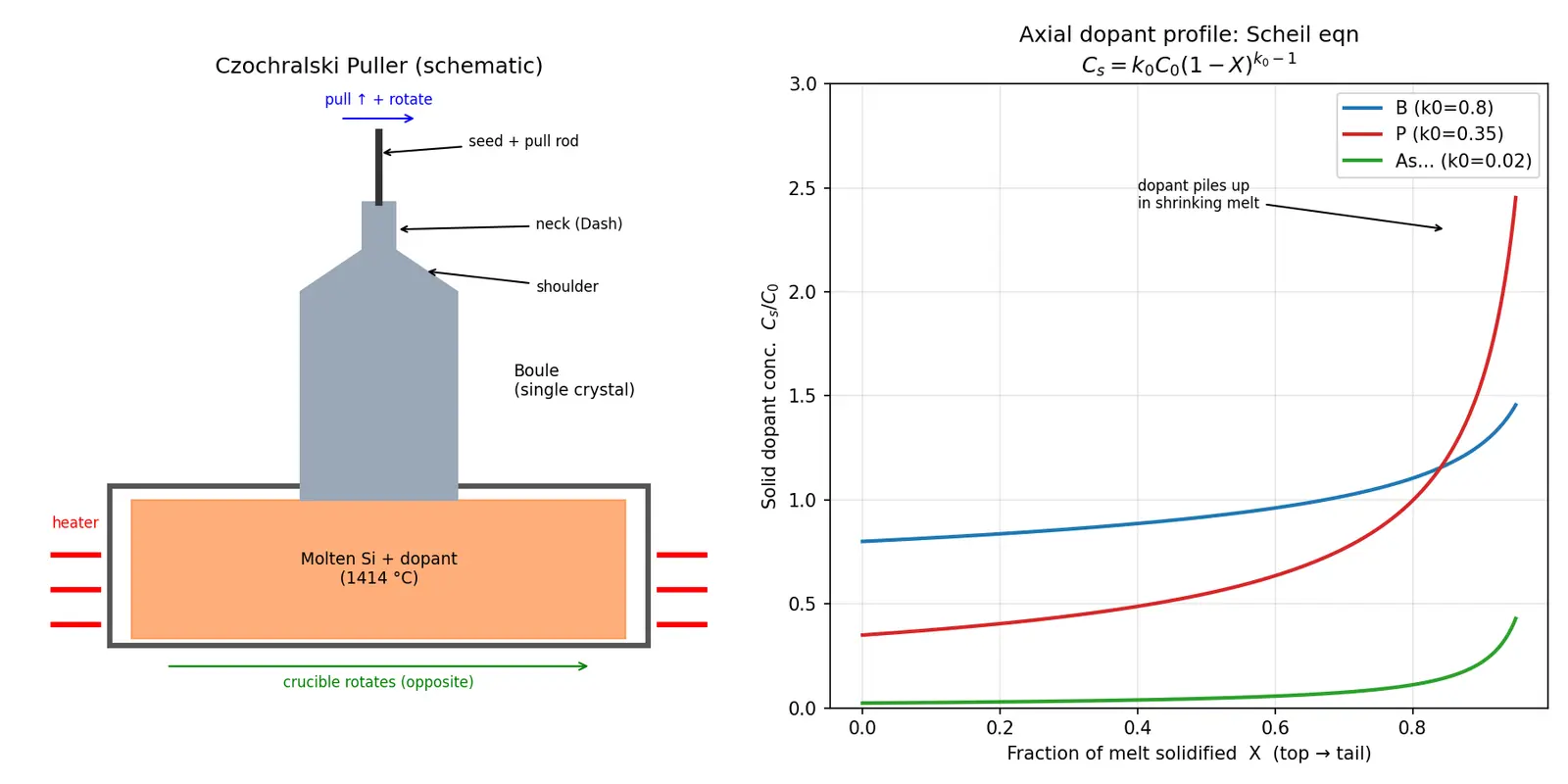

Definition The Czochralski (CZ) apparatus
A crucible (fused quartz, SiO₂) sits in a graphite susceptor, heated by RF/resistance coils to just above silicon's melting point T m = 1414 ∘ C T_m = 1414\ ^\circ\text{C} T m = 1414 ∘ C
The crucible holds molten electronic-grade polysilicon plus a measured amount of dopant (B for p-type, P/As for n-type).
A seed crystal of known orientation (e.g. ⟨100⟩) on a rotating pull-rod is lowered to touch the melt.
Seed and crucible rotate in opposite directions ; the seed is pulled up slowly .
Silicon solidifies onto the seed, replicating its lattice → a growing boule (ingot) .
The growth sequence (WHY each move):
Stage
Action
Why
Seeding
Dip seed, melt back tip
Removes surface defects from the seed
Necking (Dash neck) Pull fast → thin (~3 mm) neck
Starves dislocations out — they glide to the surface and vanish
Shouldering
Slow pull / cool
Diameter flares out to target
Body
Constant pull + rotation
Grow long uniform-diameter cylinder
Tail
Speed up at end
Avoid thermal-shock dislocations
Intuition WHY there's a maximum pull speedThe latent heat released when silicon freezes must be carried away up the crystal (conduction) and radiated off. If you pull too fast, heat can't escape fast enough → the interface won't freeze properly → you lose the single crystal. So the heat balance sets a speed limit.
Worked example Example 1 — Max pull rate for siliconGiven k s = 22 W/m⋅K k_s = 22\ \text{W/m·K} k s = 22 W/m⋅K T m T_m T m L = 1.8 × 10 6 J/kg L = 1.8\times10^6\ \text{J/kg} L = 1.8 × 1 0 6 J/kg ρ = 2.53 × 10 3 kg/m 3 \rho = 2.53\times10^3\ \text{kg/m}^3 ρ = 2.53 × 1 0 3 kg/m 3 d T d x = 1000 K/m \frac{dT}{dx}=1000\ \text{K/m} d x d T = 1000 K/m 10 4 10^4 1 0 4
Step 1: Use v max = k s L ρ d T d x v_{\max}=\dfrac{k_s}{L\rho}\dfrac{dT}{dx} v m a x = L ρ k s d x d T Why this step? It's the heat-balance limit we derived.
Step 2: Plug in with d T d x = 10 4 \frac{dT}{dx}=10^4 d x d T = 1 0 4 v max = 22 ( 1.8 × 10 6 ) ( 2.53 × 10 3 ) × 10 4 v_{\max}=\frac{22}{(1.8\times10^6)(2.53\times10^3)}\times10^4 v m a x = ( 1.8 × 1 0 6 ) ( 2.53 × 1 0 3 ) 22 × 1 0 4 Why? Just arithmetic on SI units → answer in m/s.
Step 3:
v max = 22 × 10 4 4.55 × 10 9 = 4.8 × 10 − 5 m/s ≈ 2.9 mm/min . v_{\max}=\frac{22\times10^4}{4.55\times10^9}=4.8\times10^{-5}\ \text{m/s}\approx 2.9\ \text{mm/min}. v m a x = 4.55 × 1 0 9 22 × 1 0 4 = 4.8 × 1 0 − 5 m/s ≈ 2.9 mm/min . Why this matters: Real CZ pull is ~1–2 mm/min — comfortably below the limit, confirming the model. ✔
Worked example Example 2 — Dopant at start vs end of bouleBoron, k 0 = 0.8 k_0=0.8 k 0 = 0.8 C s C_s C s X = 0 X=0 X = 0 X = 0.9 X=0.9 X = 0.9
Step 1: C s ( X ) = k 0 C 0 ( 1 − X ) k 0 − 1 C_s(X)=k_0 C_0 (1-X)^{k_0-1} C s ( X ) = k 0 C 0 ( 1 − X ) k 0 − 1 Why? Scheil equation just derived.
Step 2, top (X = 0 X=0 X = 0 C s = 0.8 C 0 ( 1 ) − 0.2 = 0.8 C 0 C_s = 0.8\,C_0\,(1)^{-0.2}=0.8\,C_0 C s = 0.8 C 0 ( 1 ) − 0.2 = 0.8 C 0 Why? ( 1 − 0 ) = 1 (1-0)=1 ( 1 − 0 ) = 1
Step 3, tail (X = 0.9 X=0.9 X = 0.9 C s = 0.8 C 0 ( 0.1 ) − 0.2 C_s = 0.8\,C_0\,(0.1)^{-0.2} C s = 0.8 C 0 ( 0.1 ) − 0.2 ( 0.1 ) − 0.2 = 10 0.2 ≈ 1.58 (0.1)^{-0.2}=10^{0.2}\approx1.58 ( 0.1 ) − 0.2 = 1 0 0.2 ≈ 1.58 C s ≈ 0.8 × 1.58 C 0 = 1.27 C 0 . C_s\approx 0.8\times1.58\,C_0 = 1.27\,C_0. C s ≈ 0.8 × 1.58 C 0 = 1.27 C 0 . Why this matters: Tail is ~1.6× more doped than top → lower resistivity → part of boule gets scrapped or graded. This is why k 0 k_0 k 0
Worked example Example 3 — Why the neck removes dislocationsThe seed may carry dislocations. During necking the crystal is thin (~3 mm) and pulled fast.
Why: Dislocations lie on slip planes inclined to the growth axis; in a thin neck they quickly glide out the sides in a short distance, and none can re-nucleate in the pure grown material. Result: a dislocation-free body — this is the Dash necking technique.
Common mistake "The crucible rotates just to stir — direction doesn't matter."Why it feels right: Stirring homogenizes the melt, sure.
The fix: Seed and crucible rotate in opposite directions specifically to make the melt flow and temperature field axisymmetric , giving a flat, symmetric freezing interface and uniform radial doping . Same-direction rotation gives asymmetric, striated crystals.
Common mistake "Doping is uniform along the whole boule."Why it feels right: You put a fixed dopant in one melt.
The fix: Because k 0 ≠ 1 k_0 \ne 1 k 0 = 1 piles up in the shrinking melt as growth proceeds → C s ( X ) = k 0 C 0 ( 1 − X ) k 0 − 1 C_s(X)=k_0C_0(1-X)^{k_0-1} C s ( X ) = k 0 C 0 ( 1 − X ) k 0 − 1
Common mistake "Pull faster to make wafers cheaper."Why it feels right: More cm/min = more crystal/hour.
The fix: Above v max = k s L ρ d T d x v_{\max}=\frac{k_s}{L\rho}\frac{dT}{dx} v m a x = L ρ k s d x d T heat-limited , not ambition-limited.
Common mistake "Oxygen from the quartz crucible is pure contamination — bad."Why it feels right: Impurity = bad, obviously.
The fix: CZ silicon dissolves oxygen from the SiO₂ crucible (~10 18 10^{18} 1 0 18 beneficial — it forms precipitates that getter metal impurities and mechanically strengthen the wafer. Too much causes thermal donors. It's a controlled trade-off, not pure evil.
Recall Feynman: explain to a 12-year-old (click to reveal)Imagine a big pot of melted, super-clean sand-metal (silicon) glowing hot. You dip in a tiny perfect ice-cube-like crystal on a string and slowly pull it up while spinning . The hot liquid freezes onto it and copies its neat pattern exactly, like a growing icicle — but a giant, perfectly ordered one. You keep pulling until you have a big shiny cylinder. Then you slice it like salami into thin round wafers, and each slice becomes the base of a computer chip. You must pull slowly , because the freezing gives off heat that needs time to escape up the string.
Recall Quick self-quiz
Why the thin neck? ::: To glide dislocations out to the surface (Dash necking) → dislocation-free body.
What sets the maximum pull rate? ::: The heat balance: latent heat released must be conducted away → v max = k s L ρ d T d x v_{\max}=\frac{k_s}{L\rho}\frac{dT}{dx} v m a x = L ρ k s d x d T
Why does the tail of the boule have different resistivity? ::: Segregation (k 0 < 1 k_0<1 k 0 < 1 C s = k 0 C 0 ( 1 − X ) k 0 − 1 C_s=k_0C_0(1-X)^{k_0-1} C s = k 0 C 0 ( 1 − X ) k 0 − 1
Mnemonic Remember the stages"Silly Ninjas Should Body Tackle" → S eed, N eck, S houlder, B ody, T ail.
And for the physics: "Cool fast to Pull fast" (v max ∝ d T d x v_{\max}\propto \frac{dT}{dx} v m a x ∝ d x d T
What crystal form must a chip substrate have and why? Single-crystal (monocrystalline) — grain boundaries scatter carriers and leak current, ruining transistors.
In the Czochralski process, what is dipped into the melt? A seed crystal of defined orientation (e.g. ⟨100⟩) on a rotating pull-rod.
What is the boule/ingot? The large single-crystal cylinder grown by pulling the seed from the melt.
State the max pull-rate formula and derive its origin. v max = k s L ρ d T d x v_{\max}=\frac{k_s}{L\rho}\frac{dT}{dx} v m a x = L ρ k s d x d T ; from balancing latent heat generated (
L ρ A v L\rho A v L ρ A v ) against heat conducted away (
k s A d T / d x k_s A\,dT/dx k s A d T / d x ).
What is the segregation coefficient k 0 k_0 k 0 k 0 = C s / C l k_0=C_s/C_l k 0 = C s / C l , ratio of dopant conc. in solid to liquid at the interface (B≈0.8, P≈0.35).
State the Scheil (normal freezing) equation. C s ( X ) = k 0 C 0 ( 1 − X ) k 0 − 1 C_s(X)=k_0 C_0(1-X)^{k_0-1} C s ( X ) = k 0 C 0 ( 1 − X ) k 0 − 1 , X = fraction solidified.
Why does dopant concentration rise along the boule? Since
k 0 < 1 k_0<1 k 0 < 1 the solid rejects dopant into the shrinking melt, enriching later-frozen material.
Purpose of the Dash neck? Thin fast-pulled neck lets dislocations glide out → dislocation-free crystal body.
Why do seed and crucible rotate oppositely? To make the thermal/flow field axisymmetric → flat interface + uniform radial doping.
Silicon melting point? 1414 °C.
Where does oxygen in CZ silicon come from and is it all bad? Dissolved from the fused-quartz (SiO₂) crucible; controlled O gettering metals and strengthens wafers, but excess causes thermal donors.
CZ vs Float-Zone regarding purity? FZ avoids the crucible → less oxygen, purer/higher-resistivity, but CZ is cheaper for large diameters.
Semiconductor Fabrication (parent chapter)Float-Zone crystal growth — the crucible-free alternativeDoping and Resistivity — how C s C_s C s Wafer slicing and polishing — next step after the bouleCrystal defects and dislocations — what necking eliminatesFourier's law of heat conduction — used in the pull-rate derivationPhase diagrams and segregation — origin of k 0 k_0 k 0
Chips need perfect substrate
Grain boundaries leak current
Molten polysilicon plus dopant
Intuition Hinglish mein samjhoDekho, Czochralski process ka funda simple hai: ek badi crucible mein bahut shudh (ultra-pure) silicon ko pighlaya jaata hai — 1414 °C par. Ab is molten silicon mein ek chhota sa perfect seed crystal dubaaya jaata hai, aur usko dheere-dheere upar kheencha jaata hai jabki wo ghoom bhi raha hota hai (rotate). Jaise-jaise seed upar aata hai, liquid silicon uspe jam kar exactly wahi atomic pattern copy karta jaata hai. Result: ek bada single-crystal cylinder banta hai jise boule kehte hain. Baad mein isko salami ki tarah patli slices mein kaat kar wafers banaye jaate hain — yeh hi chip ki base hoti hai.
Do cheezein yaad rakho. Pehla: pull rate ka limit hota hai. Jab silicon freeze hota hai toh latent heat release hoti hai, aur us heat ko crystal ke through upar conduct hokar nikalna padta hai. Agar tum bahut fast kheencho, heat nikal nahi paayegi aur crystal properly jamega nahi — polycrystalline ya defective ho jayega. Isliye formula: v m a x = k s L ρ d T d x v_{max}=\frac{k_s}{L\rho}\frac{dT}{dx} v ma x = L ρ k s d x d T
Doosra: doping uniform nahi hoti . Segregation coefficient k 0 = C s / C l k_0=C_s/C_l k 0 = C s / C l C s = k 0 C 0 ( 1 − X ) k 0 − 1 C_s=k_0C_0(1-X)^{k_0-1} C s = k 0 C 0 ( 1 − X ) k 0 − 1 Dash neck : shuru mein patli neck fast kheech kar saari dislocations bahar nikaal dete hain, taaki main body bilkul defect-free ho. Yeh sab isliye important hai kyunki chip mein billions transistors ek jaise chahiye — thoda bhi defect matlab fail.
