Intuition The big pictureA silicon wafer is the "canvas" on which billions of transistors are painted. But at nanometer scales, a single stray particle, a monolayer of grease, or a few metal atoms can ruin an entire die. So before every critical step (oxidation, deposition, lithography) we remove contaminants without harming the silicon . Wafer cleaning is not one wash — it is a sequence of chemistries , each targeting a different class of dirt.
Definition Three enemies of a clean surface
Particles — dust, lint, silicon debris that block or short features.Organic contamination — photoresist residue, oils, human skin grease.Metallic/ionic contamination — Fe, Cu, Na⁺, K⁺ that create trap states and mobile-charge instabilities in the gate oxide.
WHY these three? Because they attack the device in different ways:
A particle is a mechanical/geometric defect (blocks a line).
Organics are a wetting/adhesion problem (films won't stick) and a carbon source.
Metals are an electrical problem — even 10 10 atoms/cm 2 10^{10}\text{ atoms/cm}^2 1 0 10 atoms/cm 2

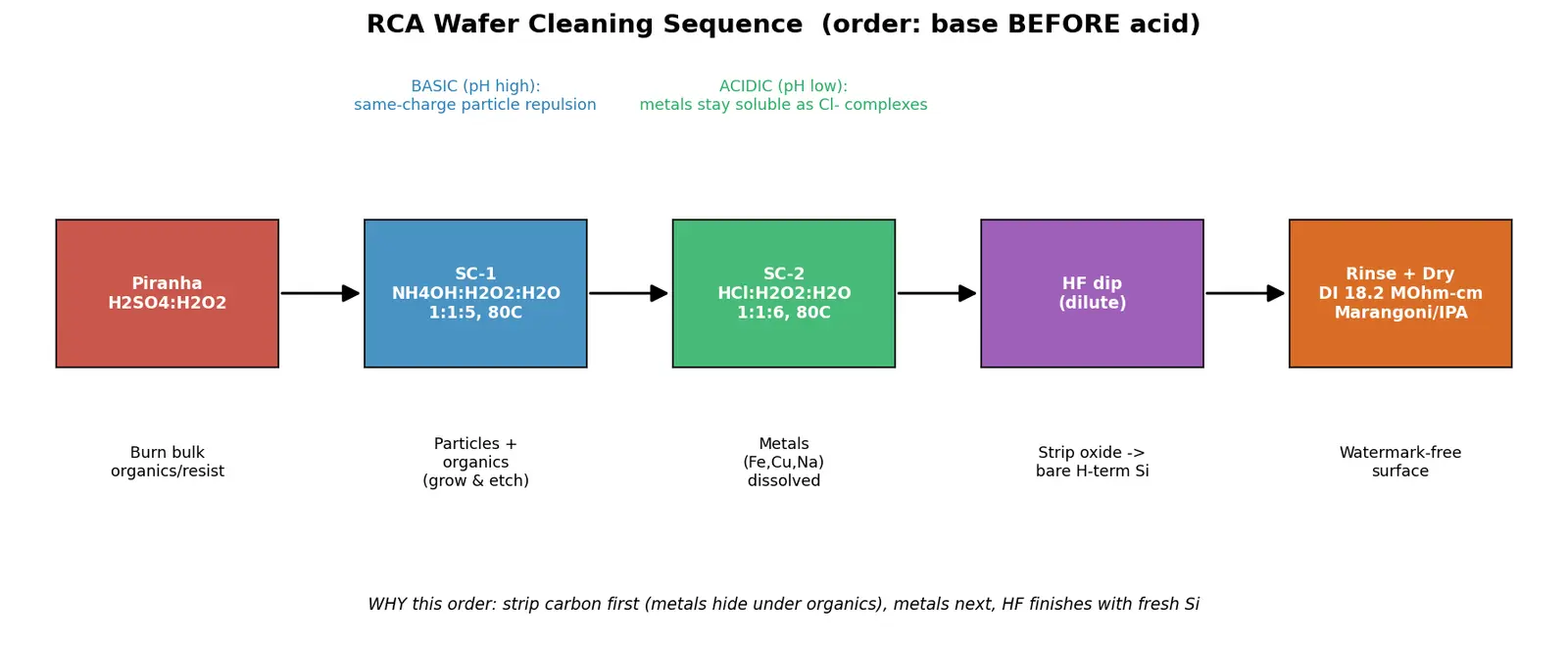

Intuition Why order mattersYou can't remove metals hiding under an organic film. So you strip organics first , then metals. This is exactly why the classic RCA clean has two steps in this order: SC-1 (organics + particles), then SC-2 (metals).
Hot H 2 SO 4 : H 2 O 2 \text{H}_2\text{SO}_4 : \text{H}_2\text{O}_2 H 2 SO 4 : H 2 O 2 CO 2 \text{CO}_2 CO 2
Mixture: ==NH 4 OH : H 2 O 2 : H 2 O \text{NH}_4\text{OH} : \text{H}_2\text{O}_2 : \text{H}_2\text{O} NH 4 OH : H 2 O 2 : H 2 O
Intuition The clever trick of SC-1H 2 O 2 \text{H}_2\text{O}_2 H 2 O 2 oxidizes the silicon surface, growing a thin chemical oxide. NH 4 OH \text{NH}_4\text{OH} NH 4 OH etches that oxide away. This continuous grow-and-strip undercuts particles, lifting them off — like the ground eroding beneath a pebble until it falls. The alkaline surface also gives silica and most particles the same negative charge , so they electrostatically repel and don't re-deposit.
Mixture: ==HCl : H 2 O 2 : H 2 O \text{HCl} : \text{H}_2\text{O}_2 : \text{H}_2\text{O} HCl : H 2 O 2 : H 2 O
Dilute HF removes the thin chemical oxide left by SC-1/SC-2 to expose bare, H-terminated silicon.
Rinse: ultrapure DI water (resistivity ≈ 18.2 MΩ·cm , near-theoretical purity).Dry: Marangoni / IPA-vapor drying — an isopropanol vapor lowers surface tension at the meniscus, pulling water off cleanly so no droplets (and their dissolved residue "watermarks") are left.
Intuition Why drying is a whole scienceAny water that evaporates in place leaves behind whatever it dissolved (a "watermark"). Marangoni drying makes the water flow away rather than evaporate on the surface — physics of surface-tension gradients, not just blowing air.
Before spinning photoresist, the wafer is primed with HMDS (hexamethyldisilazane) vapor. It replaces surface –OH groups (hydrophilic) with –Si(CH₃)₃ groups, making the surface hydrophobic so photoresist adheres.
Fresh oxide is covered in water-loving –OH. Photoresist is oily and won't stick to a wet-loving surface. HMDS "flips" the surface chemistry so resist grips it — like waxing before applying a decal.
Worked example Example 1 — Choosing the sequenceA wafer comes out of a plasma etch with photoresist residue AND iron contamination . What clean order?
Answer: Piranha (burn bulk resist) → SC-1 (lift particles + remaining organics) → SC-2 (strip Fe) → HF dip → rinse/dry.
Why this order? Metals under organics are inaccessible; strip carbon first (piranha + SC-1), then attack metals (SC-2). HF last to leave a fresh surface.
Worked example Example 2 — Metal contamination budgetGate-oxide spec allows max 10 10 10^{10} 1 0 10 200 mm 200\text{ mm} 200 mm
Why this step? Area first: A = π r 2 = π ( 10 cm ) 2 ≈ 314 cm 2 A=\pi r^2 = \pi(10\text{ cm})^2 \approx 314\ \text{cm}^2 A = π r 2 = π ( 10 cm ) 2 ≈ 314 cm 2 = 10 10 × 314 ≈ 3.1 × 10 12 = 10^{10} \times 314 \approx 3.1\times10^{12} = 1 0 10 × 314 ≈ 3.1 × 1 0 12 Interpretation: That is a few picograms of iron over the whole wafer — cleaning must operate at trace-atom sensitivity, which is why SC-2 chemistry is so critical.
Worked example Example 3 — Why dilute SC-1?Old recipe 1:1:5 caused surface roughness of 0.3 nm RMS; a 1:2:70 dilute recipe gives 0.1 nm RMS. Why does less ammonia help?
Answer: Ammonia drives the etch half; less ammonia → less oxide dissolution → less silicon roughening, while H 2 O 2 \text{H}_2\text{O}_2 H 2 O 2 Why care? For sub-nm gate oxides, atomic-scale roughness directly degrades carrier mobility.
Common mistake "SC-2 removes particles."Why it feels right: Both SC-1 and SC-2 are "cleans," so people lump them together.
The fix: SC-1 (basic, NH 4 OH \text{NH}_4\text{OH} NH 4 OH HCl \text{HCl} HCl metals . Different pH, different job.
Common mistake "Do HF first to get bare silicon, then clean."Why it feels right: HF gives a clean bare surface, so why not start there?
The fix: HF-dipped Si is hydrophobic and particle-magnet ; it also can't remove organics/metals. HF is a finishing step, done last, right before the next process — not a general cleaner.
Common mistake "More concentrated ammonia = cleaner wafer."Why it feels right: Stronger chemistry = more cleaning, intuitively.
The fix: Beyond a point, extra NH 4 OH \text{NH}_4\text{OH} NH 4 OH etches and roughens the silicon without helping particle removal. Cleaning is a balance, not a maximization.
Common mistake "Air-dry the wafer after rinse."Why it feels right: It's just water; it'll evaporate.
The fix: Evaporating water leaves watermarks (dissolved silica/ions). Use Marangoni/IPA drying so water flows off instead of evaporating in place.
Recall Feynman: explain to a 12-year-oldImagine you're about to paint a super-tiny, super-detailed picture on a mirror. First you wipe off dust (particles), then greasy fingerprints (organics), then invisible smudges of rust-like metal that would mess up the paint. You use one soapy-basic cleaner that both gently rubs the surface and floats the dust away, then a sour-acid cleaner that grabs the metal bits. Finally you rinse with the cleanest water in the world and dry it so carefully that no tiny water spots are left — because even a water spot would show up as a huge blob on your microscopic painting.
Mnemonic Remember the RCA order"Baking Soda Cleans, Acid Metals, Fluoride Finishes" →
P iranha (burn) → SC-1 (Base = particles/organics) → SC-2 (Acid = metals) → HF (Finish, bare Si) → Rinse/Dry .
Base before Acid, because you strip B efore A (alphabetical!).
#flashcards/hardware
What are the three main classes of wafer contaminants? Particles, organic contamination, and metallic/ionic contamination.
Which RCA step removes particles and organics, and what is its chemistry? SC-1: NH₄OH : H₂O₂ : H₂O (~1:1:5), basic, at ~75–80 °C.
Which RCA step removes metals, and what is its chemistry? SC-2: HCl : H₂O₂ : H₂O (~1:1:6), acidic, at ~75–80 °C.
Why must organics be removed before metals? Metals can hide under organic films; you can't reach them until the organic layer is stripped first.
By what mechanism does SC-1 lift particles? H₂O₂ grows a chemical oxide while NH₄OH etches it — this grow-and-strip undercuts particles; the negatively charged surface also repels particles.
Why is SC-2 acidic rather than basic? In acid, metal ions stay highly soluble and complex with Cl⁻, so they don't re-plate onto the silicon.
What does an HF dip do and when is it performed? Strips the thin chemical/native oxide to leave a hydrogen-terminated bare silicon surface; done last, just before the next process step.
Write the HF etch reaction for SiO₂. SiO₂ + 6HF → H₂SiF₆ + 2H₂O.
What resistivity characterizes ultrapure DI rinse water? About 18.2 MΩ·cm.
Why use Marangoni/IPA drying instead of air drying? IPA vapor lowers surface tension at the meniscus so water flows off rather than evaporating in place, preventing watermarks.
What is HMDS used for? It primes the surface (replaces –OH with –Si(CH₃)₃), making it hydrophobic so photoresist adheres.
What does piranha (H₂SO₄:H₂O₂) do? Aggressively oxidizes/carbonizes bulk organics and photoresist into CO₂ and water.
Why does dilute SC-1 (less NH₄OH) reduce surface roughness? Less ammonia means less oxide etching, so less silicon is dissolved/roughened while oxidation still enables particle lift-off.
Semiconductor Fabrication — parent process flowThermal Oxidation — needs a clean, H-terminated surface (HF dip precedes it)Photolithography — requires HMDS priming after cleaningChemical Vapor Deposition — cleanliness governs film adhesion & qualityMinority Carrier Lifetime — degraded by metallic contamination (why SC-2 exists)Surface Tension & Marangoni Effect — physics of watermark-free dryingNative Oxide — what HF removes and what re-grows in air
Intuition Hinglish mein samjhoDekho, ek silicon wafer ek bahut precious "canvas" hai jisme hum billions transistors banate hain. Lekin nanometer scale par ek chhota sa dust particle, thodi si grease, ya kuch metal atoms bhi poore die ko barbaad kar sakte hain. Isliye har critical step (oxidation, deposition, lithography) se pehle hum wafer ko clean karte hain — lekin ek hi wash se nahi, balki alag-alag chemistry ke steps se, kyunki har contaminant alag type ka hota hai.
Sabse famous method hai RCA clean . Pehle SC-1 (ammonia + hydrogen peroxide) — yeh particles aur organic dirt hataata hai. Trick yeh hai: H₂O₂ silicon par patli oxide grow karta hai aur ammonia usko etch karke hataata hai — is "grow aur strip" se particle neeche se nikal jaata hai. Fir SC-2 (HCl + peroxide) — yeh metals (Fe, Cu, Na) ko dissolve karta hai, kyunki acid mein metal ions ghule rehte hain aur wapas nahi chipakte. Yaad rakho: Base pehle, Acid baad mein — kyunki metals organic film ke neeche chhupe hote hain, pehle carbon hatao.
Iske baad ek HF dip hoti hai jo baaki oxide hata ke ekdum saaf, hydrogen-terminated bare silicon deti hai — yeh hamesha last mein hoti hai, agla process shuru karne se just pehle. Fir ultrapure DI water (18.2 MΩ·cm) se rinse aur Marangoni/IPA drying — taaki pani spot chhode bina beh jaaye, warna watermark ban jaayega. Aakhir mein HMDS priming surface ko hydrophobic banata hai taaki photoresist chipke. Yeh sab isliye important hai kyunki cleaning hi decide karti hai ki tumhare transistors kaam karenge ya nahi — foundation saaf nahi toh building weak.
