Surface tension — origin, Young-Laplace equation

1. WHY does surface tension exist? (the origin)

WHY (molecular origin):

Inside the bulk, each molecule is surrounded on all sides by neighbours. The attractive (cohesive) forces pull equally in every direction → net force zero.
A molecule at the surface has neighbours below and to the sides, but none above. The pull is therefore a net inward force.

Two equivalent definitions, WHY they're the same:

Imagine a film stretched on a wire frame with a sliding bar of length $L$ . Pull the bar a distance $dx$ :

Work done against the film: $dW = F\,dx$ .
New area created (a film has two surfaces, so $dA = 2L\,dx$ ).
Energy stored $= \gamma \, dA$ .

$F\,dx = \gamma\,(2L\,dx) \;\Rightarrow\; F = 2\gamma L \;\Rightarrow\; \gamma = \frac{F}{2L}.$

So "force/length" and "energy/area" are literally the same number $\gamma$ . (For a single surface, drop the factor 2.)

2. Deriving the Young–Laplace equation FROM SCRATCH

WHAT we want: the pressure difference $\Delta P = P_{\text{in}} - P_{\text{out}}$ across a curved surface.

Derivation A — Spherical drop (energy method)

Take a drop of radius $r$ . Grow it by $dr$ .

Work by excess pressure pushing the surface out: $dW_P = \Delta P \cdot dV = \Delta P \cdot (4\pi r^2\,dr)$ $d W_{P} = Δ P \cdot d V = Δ P \cdot (4 π r^{2} d r)$ .
- Why this step? Pressure × area swept = work; $dV = 4\pi r^2 dr$ is the shell volume.
Energy cost of new surface: $dW_S = \gamma\, dA = \gamma\,(8\pi r\,dr)$ $d W_{S} = γ d A = γ (8 π r d r)$ .
- Why this step? $A = 4\pi r^2 \Rightarrow dA = 8\pi r\,dr$ . One surface (liquid–air) for a drop.

At equilibrium the pressure work equals the surface-energy cost: $\Delta P \,(4\pi r^2\,dr) = \gamma\,(8\pi r\,dr)$ $\boxed{\;\Delta P = \frac{2\gamma}{r}\;}\quad\text{(drop, one surface)}$

Derivation B — General surface (the full Young–Laplace)

A general patch curves differently in two perpendicular directions, with principal radii $R_1, R_2$ . Repeating the force/energy balance for each direction gives:

$\boxed{\;\Delta P = \gamma\left(\frac{1}{R_1}+\frac{1}{R_2}\right)\;}$

Formula Special cases — memorise the factors, not the formulas

Object	Surfaces	$\Delta P$
Spherical drop (water in air)	1	$\dfrac{2\gamma}{r}$
Spherical bubble in liquid (gas cavity)	1	$\dfrac{2\gamma}{r}$
Soap bubble (thin film, air both sides)	2	$\dfrac{4\gamma}{r}$
Cylinder (radius $r$ , $R_1=r,R_2=\infty$ )	1	$\dfrac{\gamma}{r}$
Flat surface ( $R_1=R_2=\infty$ )	—	$0$

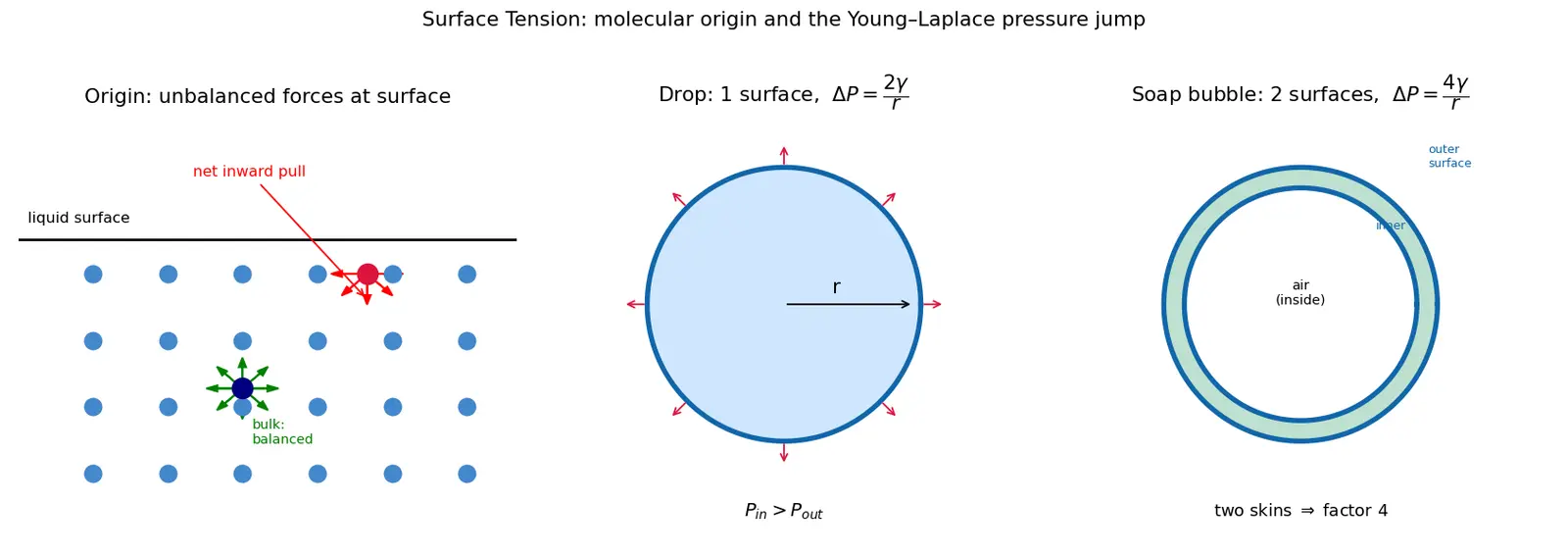

Figure — Surface tension — origin, Young-Laplace equation

4. Common Mistakes (Steel-man + Fix)

5. Active Recall

Recall Quick self-test (cover answers)

WHY do surface molecules have higher energy? → fewer neighbours, broken bonds, net inward pull.
The two definitions of $\gamma$ ? → force/length and energy/area.
Young–Laplace general form? → $\Delta P=\gamma(1/R_1+1/R_2)$ .
Factor for a soap bubble vs a drop? → 4 vs 2 (two surfaces vs one).
Air flows from ___ to ___ bubble? → small to large.

Recall Feynman: explain to a 12-year-old

Water molecules are like kids who love holding hands. A kid in the middle of a crowd holds hands all around and feels balanced. A kid at the edge has no one on the outside, so he gets tugged inward. Because all the edge-kids get tugged in, the water tries to make its "edge" (its surface) as small as possible — that's why drops are round little balls. Now blow a soap bubble. The stretchy skin keeps squeezing inward. To keep the bubble from collapsing, the air inside has to push back harder than the outside air. A tiny bubble has a tighter, more curved skin, so it squeezes harder and needs even more inside push. That extra push is $\frac{4\gamma}{r}$ — and "4" because the soap skin has an inside face and an outside face, two skins doing the squeezing.

6. Connections

Capillary rise & contact angle — Young–Laplace + wetting gives $h=\frac{2\gamma\cos\theta}{\rho g r}$ .
Pressure in fluids & Pascal's law — $\Delta P$ across the meniscus is the same "pressure jump" idea.
Cohesion vs Adhesion — origin of $\gamma$ and of the contact angle.
Minimal surfaces & soap films — area minimisation, Plateau's problem.
Energy methods in mechanics — the derivation is a virtual-work / energy-minimisation argument.

Why do surface molecules experience a net inward force?

They have neighbours only on the inner/side directions (none outside), so cohesive attraction is unbalanced, giving a net pull into the bulk.

State the two equivalent definitions of surface tension.

Force per unit length along the surface (N/m) AND energy required to create unit area of surface (J/m²); numerically equal.

Derive F for a soap film of width L on a frame.

A film has two surfaces; work F·dx = γ·dA = γ·(2L dx) ⇒ F = 2γL.

General Young–Laplace equation?

ΔP = γ(1/R₁ + 1/R₂), with R₁,R₂ the principal radii of curvature.

Excess pressure inside a spherical liquid drop?

ΔP = 2γ/r (one surface).

Excess pressure inside a soap bubble?

ΔP = 4γ/r (two surfaces, inner and outer).

Why is the soap-bubble factor 4 and not 2?

A soap bubble is a thin film with air on both sides → two liquid–air interfaces, each giving 2γ/r.

ΔP across a flat liquid surface?

Zero, since R₁=R₂=∞ ⇒ 1/R₁+1/R₂=0.

If two soap bubbles of different size are connected, which way does air flow?

From the smaller bubble (higher pressure, ΔP∝1/r) into the larger one.

Excess pressure for a long liquid cylinder of radius r?

ΔP = γ/r, since R₁=r, R₂=∞.

SI units of surface tension?

N/m (equivalently J/m²).

Energy method: equate which two works to get ΔP for a drop?

Pressure work ΔP·4πr²dr = surface-energy cost γ·8πr dr ⇒ ΔP=2γ/r.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, surface tension ka asli reason simple hai: liquid ke andar har molecule ko chaaron taraf se padosi (neighbour) molecules kheechte hain, toh net force zero ho jaata hai. Par surface par jo molecule hai, uske upar koi neighbour nahi hota, sirf neeche aur side se kheench hoti hai — isliye uspe ek net inward (andar ki taraf) force lagta hai. Yahi wajah hai ki liquid apni surface ko chhota karna chahta hai, aur drop gol ban jaati hai (gol shape mein area sabse kam hota hai for given volume).

Surface tension $\gamma$ ki do definition hain aur dono barabar hain: force per unit length (N/m) aur energy per unit area (J/m²). Soap film pe agar tum ek slider ko kheencho, toh kaam $F\,dx = \gamma\cdot 2L\,dx$ hota hai — yahaan 2 isliye aaya kyunki film ke do faces hote hain. Isse milta hai $F = 2\gamma L$ .

Ab Young–Laplace: jab surface curved hoti hai, tension ke forces thoda andar ki taraf push karte hain, isliye andar ka pressure bahar se zyada hona chahiye. Energy method se drop ke liye nikalta hai $\Delta P = 2\gamma/r$ (ek surface). Soap bubble ke liye do surface (inside + outside) hote hain, toh $\Delta P = 4\gamma/r$ . Yaad rakho: chhota bubble ka pressure zyada hota hai kyunki $\Delta P \propto 1/r$ — isliye agar do bubbles jodo toh hawa chhote se bade bubble mein jaati hai. Yeh point exam mein bahut aata hai!

Bas itna mantra rakho: interfaces gino (drop = 1, soap bubble = 2), aur petite = pressurised (chhota = zyada pressure). General formula $\Delta P = \gamma(1/R_1 + 1/R_2)$ se saare special cases nikal aate hain — flat surface mein $R\to\infty$ toh $\Delta P=0$ .
