Foundations — Surface tension — origin, Young-Laplace equation

This page is the toolbox. We open every drawer — every symbol the parent note silently assumes — and check it works before we build anything. If a single tool here is rusty, the whole derivation later feels like magic instead of logic.

0. How to read a symbol

A symbol is just a short nickname for a picture. When you see $r$, do not read "arr"; read "the distance from the centre of the drop to its skin." We will attach a picture to every nickname. If you cannot see the picture, you do not yet own the symbol.

1. Length $L$ and distance $dx$ — the most basic ruler

Why the topic needs it: surface tension is defined as a force spread along a line in the surface. To spread anything "along a line" you need to know how long that line is — that length is $L$.

Why we need "tiny": when we slide a bar or grow a drop, we move it by an amount so small that the force stays constant during the move. That lets us multiply force $\times$ distance safely. This is the seed of calculus, and we only ever use it in that plain sense here.

2. Area $A$ and its tiny change $dA$

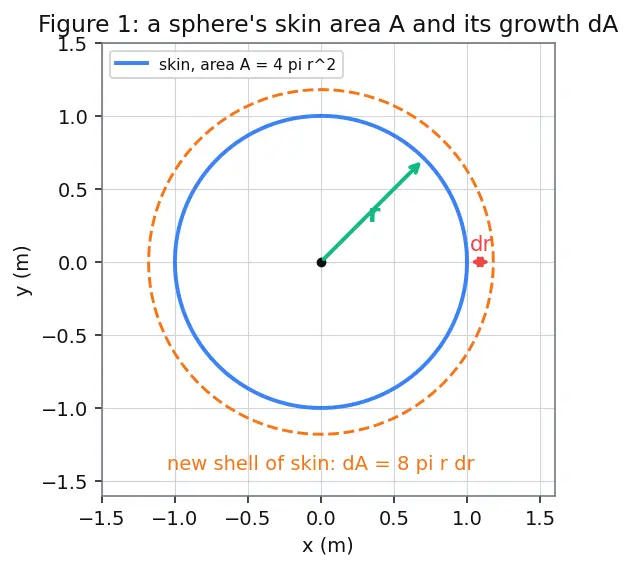

For a sphere of radius $r$ the surface area is $A=4\pi r^2$. Look at Figure 1: the skin of the drop is a curved sheet, and $A$ measures the total amount of that sheet.

Why the topic needs area: the second definition of surface tension is "energy to make new area," so we must be able to say exactly how much new area a small change produces.

3. Force $F$ — a push or a pull

Why the topic needs it: molecules at the surface get pulled inward; the skin pulls itself together. Both are forces. The whole story is drawn with force-arrows.

4. Surface tension $\gamma$ — force per unit length

Why divide force by length? Because the pull is spread out along a line — a long line carries more total pull. Dividing by $L$ gives the pull per metre, a property of the liquid itself that doesn't depend on how long a line you happen to draw. This is why $\gamma$ is a fixed number (water $\approx 0.072\text{N/m}$) no matter the size of your drop.

5. Energy $W$ and the energy view of $\gamma$

Why the topic needs both views: some proofs are easier by balancing forces, others by balancing energy. Owning both lets you pick the easier road for any problem. The parent's drop derivation uses the energy road.

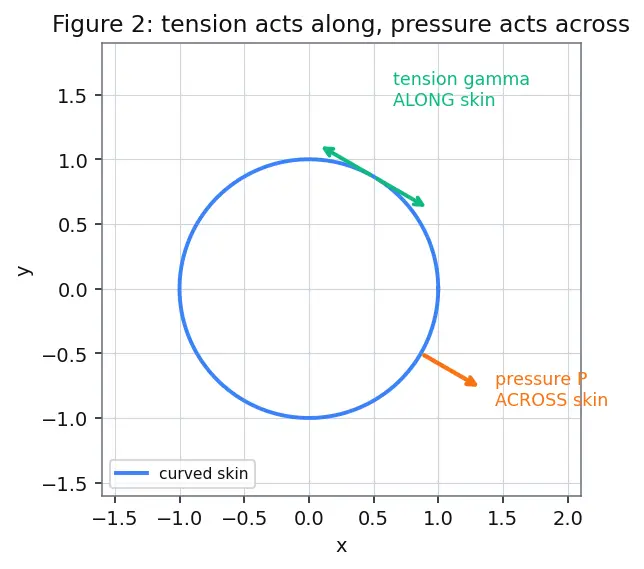

6. Pressure $P$ and the excess $\Delta P$

Why the topic needs it: the Young–Laplace equation is entirely a statement about this one number — how big the jump is, given the tension and the curvature.

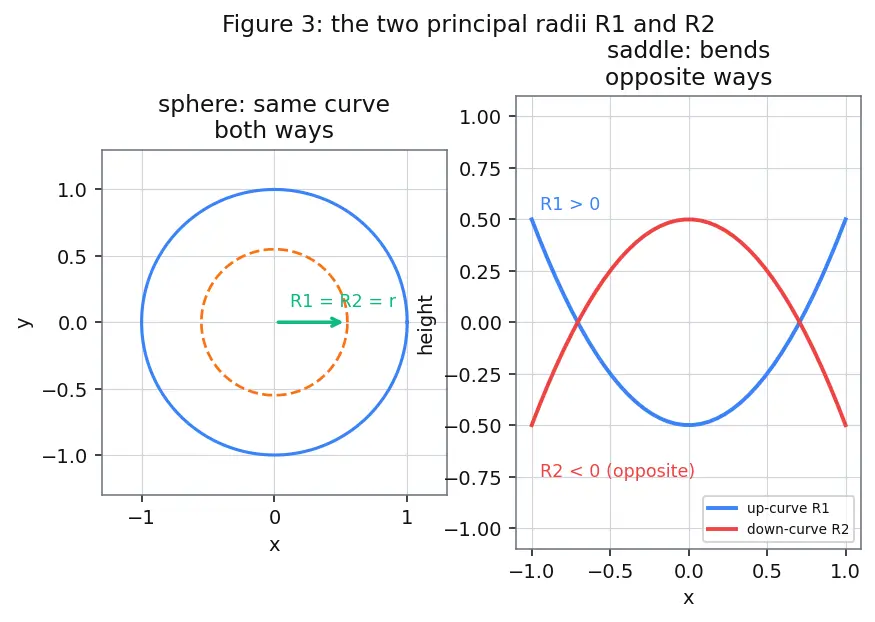

7. Radius $r$ and radius of curvature $R_1,R_2$

Why the topic needs $R_1,R_2$: a sphere has $R_1=R_2=r$ (giving $\frac{1}{r}+\frac{1}{r}=\frac{2}{r}$, hence $2\gamma /r$); a long cylinder is round one way ($R_1=r$) and straight the other ($R_2=\infty$), giving $\gamma /r$; a flat pool gives $0$. One formula, all cases.

8. The factor of 2 for films — counting interfaces

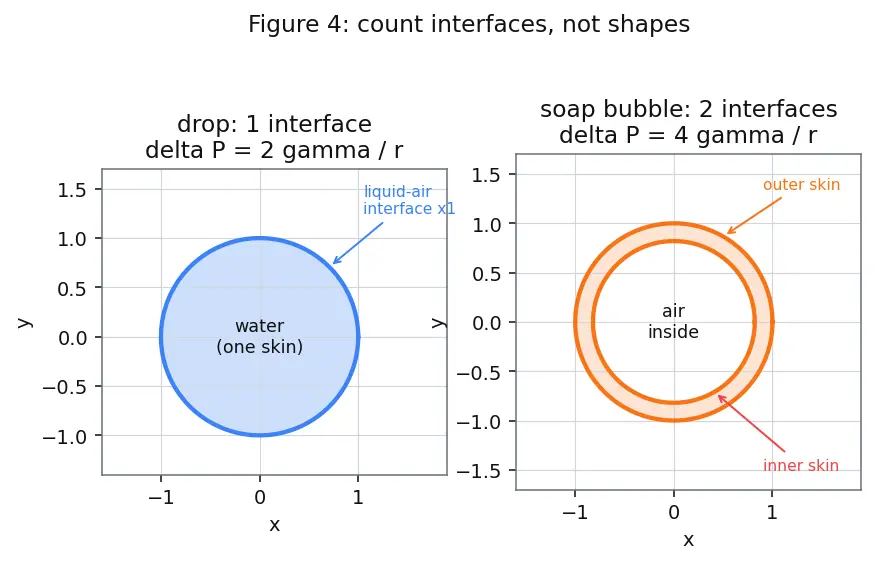

Why it matters: a water drop has ONE such sheet (water inside, air outside). A soap film/bubble is a thin water layer with air on both sides — TWO sheets, an inner and an outer. Figure 4 shows the difference. Every "2 vs 4" or "factor-of-2" trap in the parent note is nothing but counting interfaces.

9. How it all feeds the topic

Read it upward: length + force give $\gamma$; area + work give the energy view; pressure gives $\Delta P$; curvature and interface-count tune the size of that jump — and together they are the Young–Laplace equation.

Equipment checklist

Cover the right side and test yourself. If any fails, re-read its section above before moving to the derivations.

Next: with the toolbox owned, go build the equation itself in the parent note, or see the tools in action in Capillary rise & contact angle, Cohesion vs Adhesion, Minimal surfaces & soap films, and Energy methods in mechanics.
