Chemical vapor deposition (CVD)

WHAT is CVD?

WHY does it matter? CVD gives films that are:

Conformal — coats sidewalls, trenches, and 3D features evenly (because reactant gas reaches every exposed surface). PVD is line-of-sight and coats poorly inside deep holes.
High purity & controllable (composition set by gas flows).
Used everywhere: gate oxides, poly-Si gates, tungsten plugs, dielectric isolation ( $\text{SiO}_2$ , $\text{Si}_3\text{N}_4$ ).

HOW does the film actually form? (7 sequential steps)

Precursor gases diffuse from the bulk flow toward the wafer.
They cross the boundary layer (stagnant gas film hugging the surface).
Adsorption onto the surface.
Surface reaction / decomposition → solid film.
Desorption of gaseous byproducts.
Byproducts diffuse back across the boundary layer.
Byproducts carried away by main gas flow.

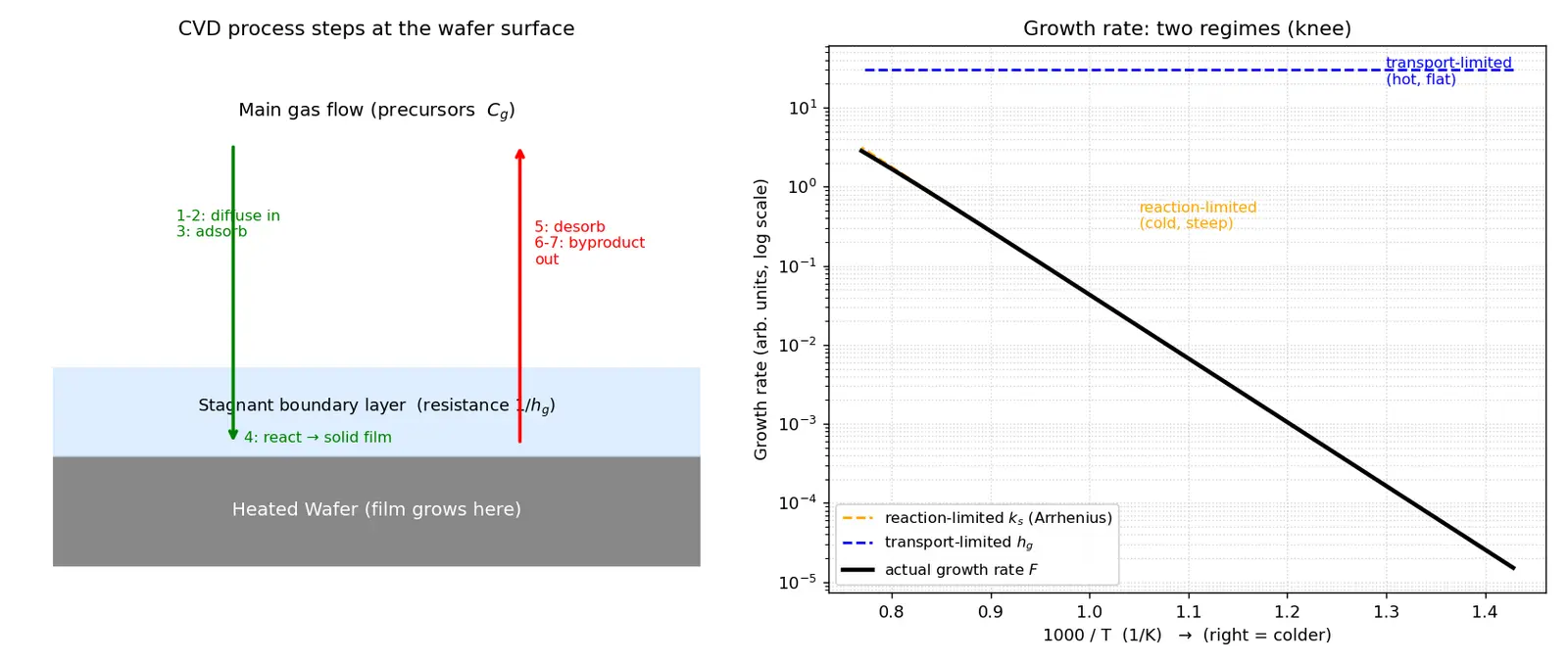

Figure — Chemical vapor deposition (CVD)

DERIVATION: the two rate-limiting regimes

We derive the growth rate from two resistances in series, exactly like electrical resistors.

Let $C_g$ = reactant concentration in the gas bulk, $C_s$ = concentration at the surface.

Flux across boundary layer (mass transport), driven by concentration difference: $F_1 = h_g\,(C_g - C_s)$ where $h_g$ is the gas-phase mass-transfer coefficient (how fast gas diffuses in).

Flux consumed by surface reaction (first-order in reactant): $F_2 = k_s\,C_s$ where $k_s$ is the surface reaction rate constant.

Steady state: nothing accumulates at the surface, so $F_1 = F_2 = F$

Why this step? Conservation of mass: whatever arrives must react.

Set them equal and solve for $C_s$ : $h_g(C_g - C_s) = k_s C_s \;\Rightarrow\; C_s = \frac{h_g}{h_g + k_s}\,C_g$

Substitute back: $\boxed{F = \frac{k_s h_g}{k_s + h_g}\,C_g}$

Why this form? It's literally $\dfrac{1}{1/k_s + 1/h_g}$ — the parallel-combination of conductances = series of resistances $R = 1/k_s + 1/h_g$ .

The two limits (the 80/20 insight)

Why does temperature pick the regime? $k_s$ rises exponentially with $T$ (Arrhenius), while $h_g$ barely changes with $T$ . So:

Low $T$ → $k_s$ tiny → reaction-limited.
High $T$ → $k_s$ huge → transport-limited.

WHY engineers care: In the reaction-limited regime, growth rate is uniform across the wafer even if gas flow is uneven — so we deposit there for thickness uniformity. That's why LPCVD runs at reduced pressure (raises $h_g$ , pushing us into reaction-limited control).

Common CVD variants

Type	Trick	Why use it
APCVD	atmospheric pressure	fast, cheap, but poor uniformity
LPCVD	low pressure (↑ $h_g$ )	reaction-limited → great uniformity, batch
PECVD	plasma supplies energy	low $T$ (< 400 °C), for metal-covered wafers
MOCVD	metal-organic precursors	III-V/LED epitaxy

Why does low pressure raise $h_g$ ? Gas diffusivity $D \propto 1/P$ , and $h_g \propto D$ . Lower $P$ → faster diffusion → we escape transport limitation.

Worked Examples

Worked example Example 2 — Activation energy from data

In reaction-limited regime, $v = A e^{-E_a/kT}$ . At $T_1=873$ K, $v_1=10$ nm/min; at $T_2=923$ K, $v_2=20$ nm/min. Find $E_a$ . Step 1: $\ln\frac{v_2}{v_1} = -\frac{E_a}{k}\left(\frac1{T_2}-\frac1{T_1}\right)$ . Why? take log ratio to cancel $A$ . Step 2: $\ln 2 = 0.693$ . $\frac1{T_2}-\frac1{T_1} = \frac1{923}-\frac1{873} = -6.2\times10^{-5}\,\text{K}^{-1}$ . Step 3: $E_a = \dfrac{0.693 \cdot k}{6.2\times10^{-5}}$ , with $k = 8.617\times10^{-5}$ eV/K → $E_a \approx 0.96$ eV. Why this matters: real poly-Si $E_a\approx 1.5$ –2 eV; our toy numbers show the method.

Common Mistakes (Steel-manned)

Flashcards

What chemical process defines CVD?

A chemical reaction/decomposition of gaseous precursors forms a solid film on the heated wafer surface.

CVD vs PVD in one word each

CVD = reaction (conformal); PVD = physical transport (line-of-sight).

The two series "resistances" governing CVD rate

Gas-phase mass transport (

1/h_g

) and surface reaction (

1/k_s

Combined flux formula

F = \dfrac{k_s h_g}{k_s+h_g}C_g

Reaction-limited condition and its signature

k_s \ll h_g

; strongly temperature dependent (Arrhenius).

Transport-limited condition and its signature

h_g \ll k_s

; depends on gas flow/pressure, weakly on

T

Why does low

T

give reaction-limited growth?

k_s = k_0 e^{-E_a/kT}

becomes tiny at low

T

, so surface reaction is the bottleneck.

Why does LPCVD give better uniformity?

Low pressure raises

h_g

(D∝1/P), pushing process into reaction-limited regime where flow non-uniformity doesn't affect thickness.

Why PECVD?

Plasma supplies reaction energy, enabling low-temperature (<400 °C) deposition over metal layers.

Why is CVD used for high-aspect-ratio contact fill?

Reactant gas reaches all surfaces → conformal fill without voids, unlike line-of-sight PVD.

Recall Feynman: explain to a 12-year-old (hidden)

Imagine spray-painting the inside of a deep narrow cup. If you spray from above (that's PVD), paint only hits the rim and never coats the bottom. Now instead fill the cup with a special gas that turns into solid paint wherever it touches — it seeps everywhere and coats every wall evenly. That gas-turns-to-solid trick is CVD. And whether it coats fast depends on either how quickly the gas gets there or how quickly it turns solid — whichever is slower wins.

Connections

Physical Vapor Deposition (PVD) — contrast: line-of-sight vs conformal
Thermal Oxidation — Deal–Grove model uses the same two-resistances-in-series math
Arrhenius Equation — source of $k_s = k_0 e^{-E_a/kT}$
Boundary Layer (Fluid Dynamics) — origin of $h_g$
Epitaxy — CVD used to grow single-crystal layers (MOCVD)
Step Coverage & Conformality
Thin Film Metrology — measuring the deposited thickness

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

CVD ka matlab hai Chemical Vapor Deposition. Idea simple hai: hum wafer ko garam karte hain aur uske upar reactive gases (precursors) bahate hain. Ye gases surface par pahunch kar chemically react karte hain, aur reaction ka product ek solid thin film ke roop mein wafer par jam jaata hai — jaise gas se paint ban rahi ho. PVD (sputtering/evaporation) se ye alag isliye hai kyunki wahan atoms sirf physically fenke jaate hain (line-of-sight), lekin CVD mein chemistry hoti hai, isliye deep trenches aur holes bhi evenly coat ho jaate hain — isko conformal coverage kehte hain.

Sabse important concept hai "do resistance series mein". Reactant ko pehle boundary layer (stagnant gas ki patli parat) cross karke surface tak aana padta hai — iska rate $h_g$ (gas transport) decide karta hai. Fir surface par react karna padta hai — iska rate $k_s$ decide karta hai. Jo bhi slow hoga, wahi overall speed control karega. Steady state mein dono flux barabar hote hain, isliye combined flux nikalta hai $F = \frac{k_s h_g}{k_s+h_g}C_g$ . Bilkul electrical resistors series mein jaise.

Ab yaad rakhne wali baat: "Cold = Chemistry, Hot = Highway." Thanda temperature par $k_s$ bahut chhota (Arrhenius $e^{-E_a/kT}$ ), toh reaction-limited — yahan growth uniform hoti hai isliye industry mein LPCVD isi regime mein chalate hain. Garam temperature par $k_s$ bada ho jaata hai, toh transport-limited — ab rate gas flow par depend karta hai aur uniformity kharab ho sakti hai. LPCVD low pressure par chalta hai kyunki low pressure se diffusion badhta hai ( $D\propto 1/P$ ), $h_g$ badhta hai, aur process reaction-limited regime mein chala jaata hai — best thickness uniformity milti hai. Isliye exam aur real fab dono mein ye samajhna 80/20 wala core hai.
