Physical vapor deposition (PVD - sputtering)
WHAT is PVD?
Contrast with CVD: In Chemical Vapor Deposition the film is built by a chemical reaction of gaseous precursors. In PVD the atoms of the film come directly and physically from a solid source — that's the defining difference.
WHY do we need it?
We need to lay down metals and barriers on chips: aluminum/copper interconnects, TiN/Ta barrier layers, W contacts, and even some dielectrics. Two reasons PVD dominates for metals:
- Metals are hard to deposit by CVD — you'd need volatile, safe metal precursors, which often don't exist or are toxic/expensive.
- PVD gives good adhesion and controllable stress because atoms arrive with kinetic energy and pack tightly.
HOW sputtering works — from first principles
Step 1: Create a plasma
Put the wafer and a target (cathode) in a chamber. Pump to high vacuum, then backfill with an inert gas — usually argon — to a few mTorr. Apply a large negative voltage to the target. Stray electrons accelerate, collide with Ar atoms and ionize them: This chain reaction creates a self-sustaining glow discharge (plasma).
Step 2: Ion bombardment → momentum transfer
The positive ions are accelerated toward the negative target and slam into it. If an incoming ion carries enough momentum, it can eject a surface target atom. This is a billiard-ball process.
Step 3: Deriving the sputter yield threshold
Define sputter yield = atoms ejected per incident ion.
Model the collision as a head-on elastic hit between ion (mass , energy ) and a surface atom (mass ). Maximum energy transferred in an elastic collision:
Derive : conserve momentum and kinetic energy for a 1-D elastic collision. For a projectile hitting stationary , the fraction of energy transferred is (standard result — maximized when ).
An atom escapes only if the energy it receives exceeds the surface binding energy . So there is a threshold energy:
Step 4: Transport and condensation
Ejected atoms travel across the chamber. At few-mTorr pressures the mean free path is short-ish, so atoms scatter — this gives conformal-ish but somewhat directional coverage. They land on the wafer and condense into a film.

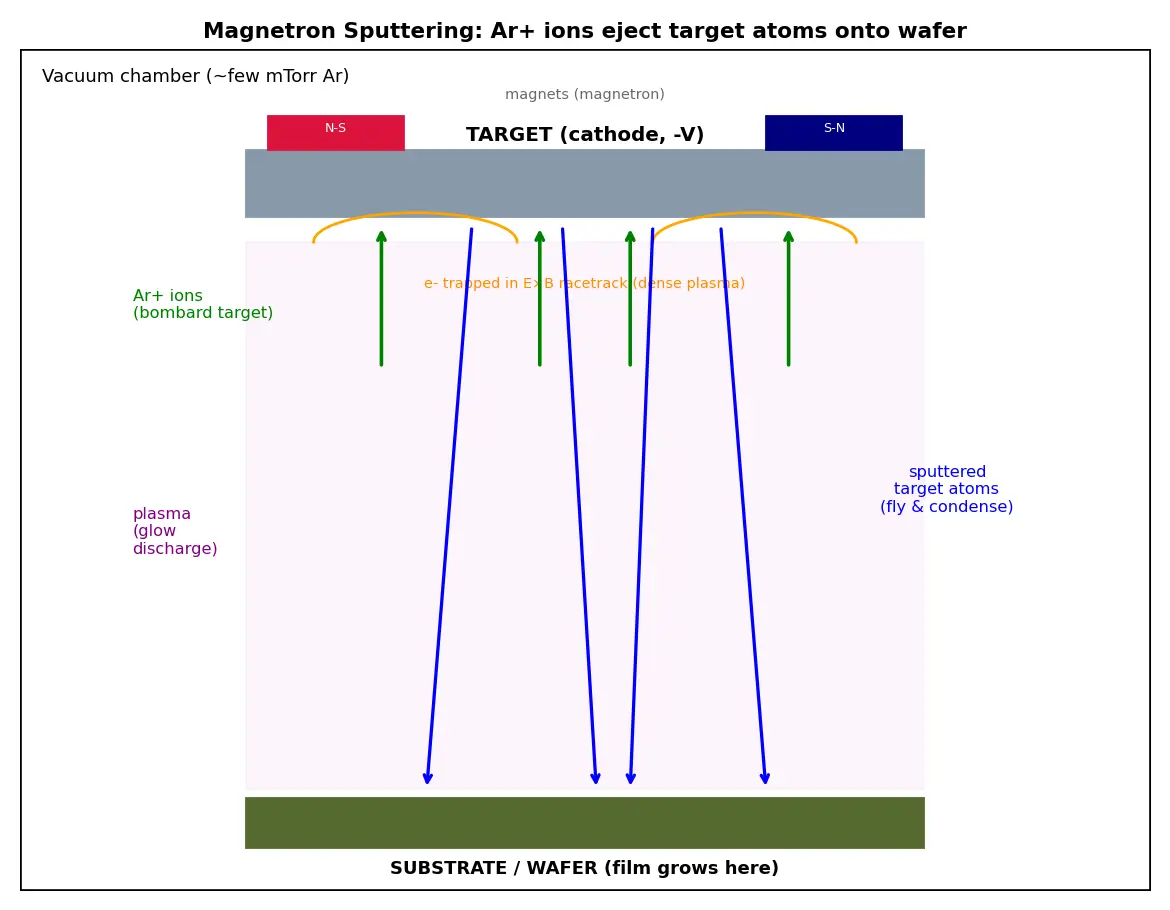

Magnetron sputtering (the practical upgrade)
DC vs RF sputtering
Worked examples
Common mistakes
Recall Feynman: explain to a 12-year-old
Imagine a wall made of tiny magnetic balls (that's the target). You shoot marbles (argon ions) at it really fast. Each marble knocks a ball loose, and the loose balls float across the room and gently stick to your toy (the wafer), coating it in a shiny layer. You didn't melt anything — you just knocked bits off by hitting them hard. Adding magnets behind the wall keeps the "gun" firing way faster, so the coating grows quicker.
Flashcards
What physical mechanism ejects atoms in sputtering?
Which gas is typically used and why?
Define sputter yield Y.
Formula for max energy-transfer fraction γ in an elastic collision?
Threshold energy for sputtering?
Why does a magnetron increase deposition rate?
Why must insulating targets be RF-sputtered, not DC?
Why is low chamber pressure preferred for film quality?
Key difference between PVD and CVD?
Why is PVD preferred for metal interconnects?
Connections
- Chemical Vapor Deposition — the chemical-reaction alternative for films.
- Thin Film Deposition — parent umbrella topic.
- Plasma Physics — glow discharge, ionization, sheath voltage.
- Mean Free Path — sets why pressure controls film quality.
- Interconnect Metallization — where Al/Cu/TiN barriers are used.
- Sputter Etching — same physics, reversed intent (removal not deposition).
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Socho tumhe wafer pe metal ki patli layer chadhani hai — jaise aluminium ya copper. Sputtering ka funda simple hai: ek chamber me argon gas daalte hain, high voltage lagate hain jisse plasma ban jaata hai (argon ke ions Ar+ ban jaate hain). Ye positive ions negative target (jis material ki film chahiye) ki taraf tez speed se jaakar takraate hain, aur momentum transfer se target ke atoms ko "sandblast" ki tarah bahar nikaal dete hain. Ye atoms udd kar wafer pe jaakar chipak jaate hain — bas ho gayi film! Yaad rakho, yahan garmi/melting nahi hoti, sirf takkar (momentum) kaam karti hai, isiliye tungsten jaisa high-melting metal bhi easily sputter ho jaata hai.
Kitne atoms nikalte hain, ye sputter yield batata hai. Ion ki energy target atom ki surface binding energy se zyada honi chahiye, warna atom nikalega hi nahi — isi ko threshold energy kehte hain. Yahan energy transfer ki efficiency hai, jo tab maximum hoti hai jab dono masses barabar hon.
Magnetron ek upgrade hai: target ke peeche magnet lagate hain, jisse electrons ek loop (racetrack) me phas jaate hain aur zyada argon ionize karte hain. Isse dense plasma banta hai — matlab low pressure aur low voltage pe bhi fast deposition. Low pressure isliye achha hai kyunki atoms scatter kam hote hain, film dense aur strong banti hai. Ek important baat: DC sputtering sirf conducting targets (metals) ke liye chalta hai; agar target insulator hai (jaise SiO₂), to charge build-up plasma ko bujha deta hai, isliye RF sputtering use karte hain. Ye sab industry me interconnects aur barrier layers banane ke liye rozana use hota hai.
