Intuition The one core ideaSputtering is knocking atoms off a solid slab by hitting it with fast, heavy gas ions — pure billiard-ball momentum, no melting. Everything on the parent page is just measuring how many atoms fly off (the yield Y whether an ion has enough punch to knock one loose (the threshold E t h how fast the film grows (rate R
This page assumes you know nothing . Before you touch a single formula on the parent note, you must own each symbol below. We build them in order — each one uses only the ones above it.

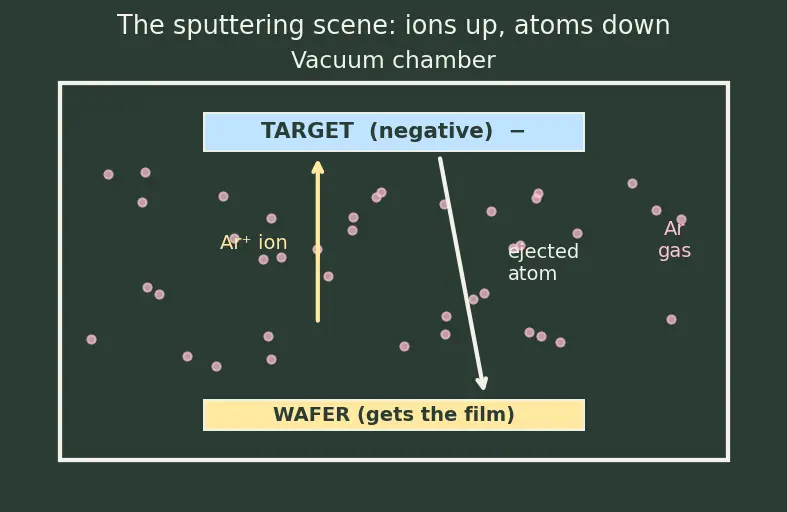

Everything happens inside a sealed metal box we pumped almost empty of air (a vacuum chamber ). Look at the picture: the slab we want to coat with is called the target (top, wired negative), the object we want the coating on is the wafer (bottom), and a thin haze of argon gas fills the gap.
Keep this picture in your head — every symbol below is a label somewhere on it.
The smallest normal piece of a material. A tiny ball with a heavy nucleus in the middle and light electrons buzzing around it. In our chamber, the target is a wall of tightly-packed atoms of the coating metal (aluminum, copper, tungsten…), and the argon gas is a scatter of free-floating single atoms.
e − e − pushed away from anything negative and pulled toward anything positive.
Ar + lost an electron, so it is left with one extra unit of positive charge. The + Ar + pull toward anything negative.
Why the topic needs this: the whole process is charged particles being pushed by voltage . Without the ideas "negative repels/attracts" you can't understand why ions fly at the target at all.
Intuition Reading the ionization lineThe parent writes Ar + e − → Ar + + 2 e − a fast electron hits a neutral argon atom hard enough to knock one of argon's own electrons loose. Now you have a positive ion and two loose electrons (the original plus the freed one). Those two go on to knock loose more — that doubling is the chain reaction that keeps the glow alive.
Definition Voltage (electric push)A measure of how hard charges get shoved. Make the target strongly negative and every positive Ar + yanked toward it, picking up speed the whole way.
Picture: a hill. The ion sits at the top; the negative target is the bottom. It rolls down, getting faster — the taller the hill (bigger voltage), the faster it arrives.
Why the topic needs it: this is the "gun" that gives ions their speed. No voltage → slow ions → nothing gets knocked off.
M M 1 = 40 M 2 = 27 M 1 incoming ion and M 2 target atom it hits. Subscripts 1 and 2 are just name-tags: 1 = attacker, 2 = victim.
Momentum = × shoves things aside far more. That shoving power is momentum.
Intuition Why momentum and not heat?Heat would mean warming the whole target until atoms boil off (that's evaporation, a different method). Sputtering instead delivers a single sharp mechanical kick — like a cue ball scattering a rack. The tool we need is therefore the physics of collisions , which is written in the language of momentum, not temperature. This is exactly why even tungsten (melts at 3400 °C) sputters easily: we never heat it, we hit it.
Definition Kinetic energy (E because it's moving . Faster + heavier = more E electron-volts (eV) — a tiny unit perfect for single atoms. One eV is the energy an electron gains sliding down a 1-volt hill. In practice we accelerate ions to hundreds of eV.
Picture: how big a dent the ion can make when it stops.

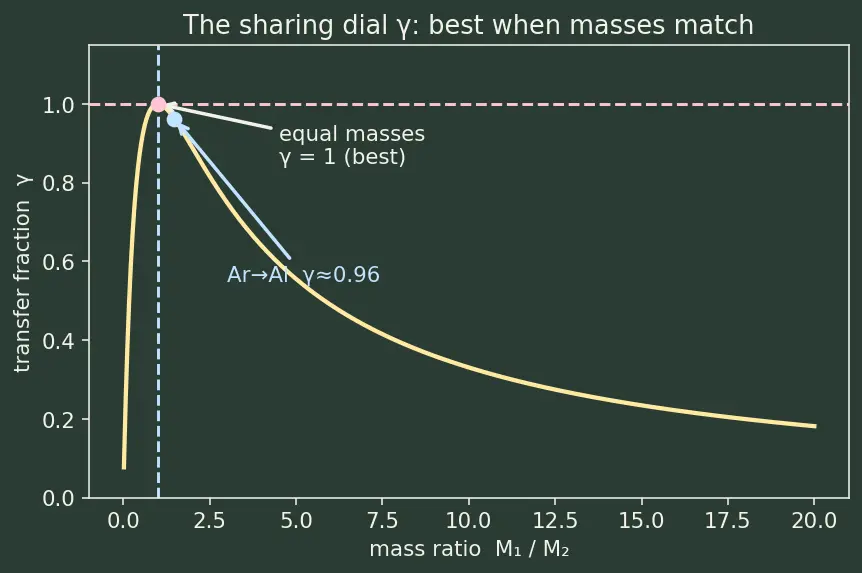

Definition The transfer fractionγ not get all of ball 1's energy — only a fraction. That fraction is the Greek letter γ γ = ( M 1 + M 2 ) 2 4 M 1 M 2 . sharing dial between 0 (nothing passed on) and 1 (everything passed on). It reads exactly 1 when the two masses are equal — a cue ball hitting an identical ball stops dead and hands over all its motion. When one is much heavier than the other, the dial drops toward 0 (think: a marble bouncing off a bowling ball barely moves it).
Why the topic needs γ how efficiently an argon ion's energy reaches a target atom. Argon (40) and aluminum (27) are close in mass, so γ ≈ 0.96
Recall Check: when isγ γ M 1 = M 2 γ = 1
Definition Surface binding energy (U s at least this much energy to it. For aluminum, U s ≈ 3.4 U s
Definition Threshold energy (E t h smallest ion energy that can eject any atom. Combine the two ideas above: the ion delivers only a fraction γ U s E t h = γ U s . E t h nothing sputters . Above it: atoms start flying.
Why the topic needs it: it explains the practical choice of "hundreds of eV" — you run well above threshold so the process is fast and reliable.
Definition Sputter yield (Y per incoming ion . If Y = 0.8
J rain rate of ions onto the target.
Picture: raindrops per second on one floor tile. Heavier rain = bigger J
Definition Deposition rate (R R ∝ Y ⋅ J . ∝ magnetron (magnets behind the target) leaves Y J R
Recall Check: what does a magnetron change?A magnetron raises the deposition rate by increasing which term, Y J J Y
Definition Mean free pathThe average distance a flying particle travels before smacking into a gas molecule. See Mean Free Path .
Picture: crossing a crowded room vs. an empty one. Empty room (low gas pressure) = you walk straight across; crowded room (high pressure) = you bump into people constantly and zig-zag.
Why the topic needs it: sputtered atoms must cross the chamber to reach the wafer. Low pressure → long mean free path → atoms arrive straight and energetic → dense film. High pressure → short path → atoms scatter, slow down, arrive tired → porous film. This is exactly why "more pressure = better" is a mistake on the parent page, and why magnetrons (which work at low pressure) win.
Read top-down: charge ideas build the ion, the ion plus mass gives momentum and energy, energy plus binding gives threshold and yield, yield plus flux gives rate — and mean free path controls film quality. Together they are the parent topic.
Test yourself — say each answer out loud before revealing.
What does the superscript + Ar + The argon atom has lost one electron, so it carries one unit of positive charge.
Why is the target made negative? To pull the positive Ar +
In one phrase, what is momentum? Mass times speed — the "oomph" a moving particle carries into a collision.
Why momentum and not heat? Sputtering is a mechanical kick (collision cascade), so no melting is needed — even tungsten sputters.
What does γ The fraction of the ion's energy passed to a target atom; biggest (= 1 M 1 = M 2
What is U s Surface binding energy — how much energy an atom needs to escape its "bowl" on the surface.
Write and explain E t h E t h = U s / γ γ U s
Define sputter yield Y Number of atoms ejected per incident ion.
What are J R J R ∝ Y ⋅ J
Why does low pressure give denser films? Long mean free path → sputtered atoms fly straight without scattering → they arrive energetic and pack tightly.
