Boundary layer — Prandtl's concept, growth along flat plate

WHY do we even need a boundary layer?

Intuition The paradox that forced the idea

Air and water have very small viscosity $\mu$ . So early physicists set $\mu = 0$ ("ideal fluid") and got beautiful equations — but the answer for drag on a body came out zero (d'Alembert's paradox). Yet a real plate clearly feels drag. Something is wrong with throwing away $\mu$ entirely.

The resolution: even a tiny $\mu$ matters where velocity gradients are huge. Right at the wall the fluid must satisfy the no-slip condition (fluid velocity = wall velocity = 0). Just a little away, velocity is the full free stream $U$ . Squeezing from $0$ to $U$ across a tiny distance $\delta$ creates an enormous gradient $\partial u/\partial y$ , so the viscous stress $\mu\,\partial u/\partial y$ is NOT negligible there — even if $\mu$ is small.

WHAT the picture looks like

Figure — Boundary layer — Prandtl's concept, growth along flat plate

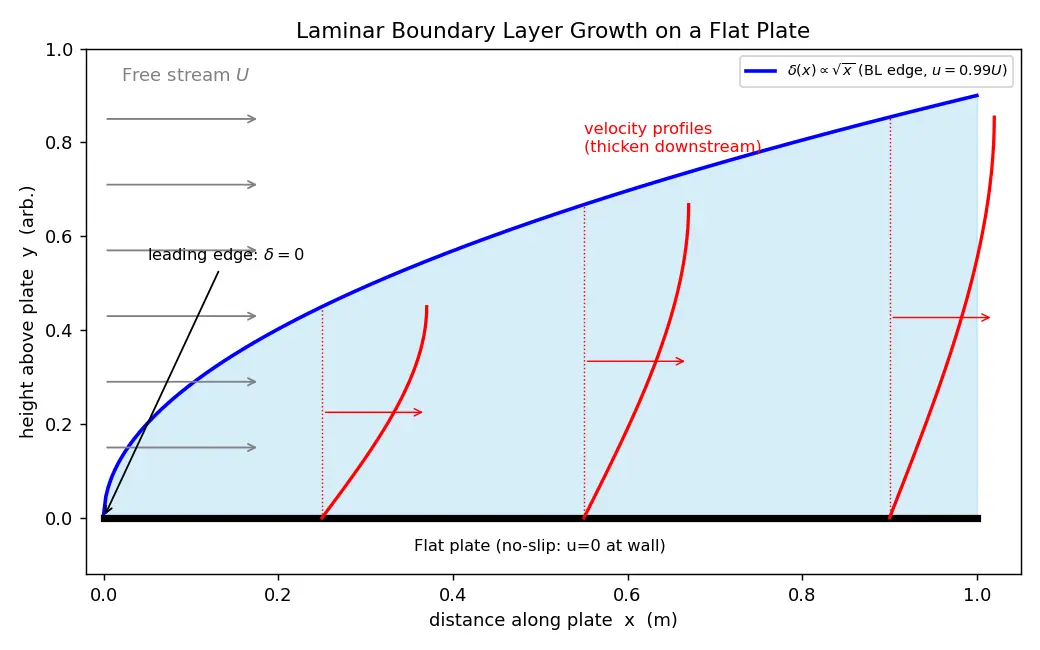

A flat plate sits in a uniform stream $U$ . At the leading edge $\delta = 0$ . As you move downstream (increasing $x$ ), more and more fluid layers get "dragged" by friction, so the layer grows: $\delta = \delta(x)$ , thickening like a sideways parabola/half-parabola.

HOW $\delta$ grows — derivation from scratch (order-of-magnitude)

We don't memorise $\delta \propto \sqrt{x}$ — we build it by balancing forces.

Step 1 — How long does fluid spend over length $x$ ? Travelling at ~ $U$ over distance $x$ : $t \sim \frac{x}{U}$ Why this step? Time available = distance ÷ speed; this is the "exposure time" to the wall's slowing influence.

Step 2 — How far does viscosity diffuse momentum in time $t$ ? Viscosity acts like diffusion of momentum, with kinematic viscosity $\nu = \mu/\rho$ playing the role of a diffusion coefficient (units $\text{m}^2/\text{s}$ ). A diffusion process spreads a distance: $\delta \sim \sqrt{\nu\, t}$ Why this step? Any diffusion law gives "spread $\sim \sqrt{D \times \text{time}}$ ." Here $D = \nu$ (it literally has units of m²/s).

Step 3 — Combine. $\delta \sim \sqrt{\nu \cdot \frac{x}{U}} = \sqrt{\frac{\nu x}{U}}$ Why this step? Substitute the exposure time from Step 1. Done — this is the whole result.

Wall shear stress and skin-friction drag (bonus from the same picture)

The wall shear stress is the velocity slope at the wall: $\tau_w = \mu \left.\frac{\partial u}{\partial y}\right|_{y=0} \sim \mu\,\frac{U}{\delta} \sim \mu\,\frac{U}{\sqrt{\nu x/U}} = \mu U \sqrt{\frac{U}{\nu x}}$ Why this step? The slope $\partial u/\partial y$ at the wall is ~ (full speed $U$ ) ÷ (layer thickness $\delta$ ). So $\tau_w \propto 1/\sqrt{x}$ : friction is largest at the leading edge and weakens downstream — because the layer is thinnest there, giving the steepest gradient.

Worked Examples

Worked example Example 1 — Thickness of the layer on a plate in water

Water ( $\nu = 1.0\times10^{-6}\,\text{m}^2/\text{s}$ ) flows at $U=2\,\text{m/s}$ over a plate. Find $\delta$ at $x = 0.5\,\text{m}$ .

Step 1. $Re_x = \dfrac{Ux}{\nu} = \dfrac{2\times 0.5}{10^{-6}} = 10^{6}$ . Why? Need $Re_x$ to use $\delta = 5x/\sqrt{Re_x}$ ; also $10^6$ < $5\times10^5$ ? No — it's above transition, but we'll use laminar formula illustratively (real flow may be turbulent here). Step 2. $\delta = \dfrac{5(0.5)}{\sqrt{10^{6}}} = \dfrac{2.5}{1000} = 2.5\times10^{-3}\,\text{m} = 2.5\,\text{mm}$ . Why? Direct substitution. A 50 cm plate → only ~2.5 mm thick layer: genuinely thin, validating Prandtl.

Common Mistakes (Steel-manned)

Active Recall

Recall Feynman: explain it to a 12-year-old

Imagine running your hand flat along a tabletop covered in honey. The honey right against the table doesn't move at all (it's stuck). The honey a little higher moves a bit, and far above your hand it flows freely. That stuck-and-slowed zone is the boundary layer. The further along the table you go, the more honey gets dragged, so this slow zone gets thicker — but it fattens slower and slower, like a stretched-out ramp. Stickier honey makes a fatter slow zone; pushing faster makes it thinner. Outside that zone, the honey just flows like there's no friction at all.

Connections

Reynolds number — sets laminar vs turbulent and controls $\delta \propto 1/\sqrt{Re_x}$ .
Viscosity and Newton's law of viscosity — source of $\tau_w = \mu\,\partial u/\partial y$ .
d'Alembert's paradox — the zero-drag puzzle that motivated Prandtl.
Laminar vs Turbulent flow — transition at $Re_x \approx 5\times10^5$ changes the growth law.
Skin friction drag — integral of $\tau_w$ along the plate.
Navier–Stokes equations — boundary-layer equations are their thin-layer reduction.

What problem did Prandtl's boundary-layer concept solve?

d'Alembert's paradox — ideal-fluid theory predicted zero drag; confining viscosity to a thin wall layer recovered real drag.

Define the boundary layer.

Thin region near a solid surface where velocity rises from 0 (no-slip) to ≈ U and viscous effects are significant.

How is boundary-layer thickness δ conventionally defined?

The distance from the wall where u = 0.99 U.

Why can't viscosity be ignored near the wall even when μ is tiny?

Because viscous stress is μ·(∂u/∂y), and the gradient ∂u/∂y ~ U/δ is enormous across the thin layer.

State the laminar growth law for δ on a flat plate.

δ ~ √(νx/U) = x/√(Re_x); exact Blasius δ ≈ 5x/√(Re_x).

Why does δ grow as √x and not linearly?

Because viscous momentum diffuses like √(time), and exposure time ∝ x.

How does δ depend on free-stream speed U?

δ ∝ 1/√U — faster flow gives a thinner layer (less diffusion time).

How does δ depend on Reynolds number?

δ ∝ 1/√(Re_x) — higher Re gives a thinner boundary layer.

Where on a flat plate is the wall shear stress largest?

At the leading edge, where δ is smallest so ∂u/∂y is steepest (τ_w ∝ 1/√x).

What plays the role of a diffusion coefficient for momentum?

Kinematic viscosity ν = μ/ρ, units m²/s.

If x quadruples, by what factor does δ change (laminar)?

By a factor of 2, since δ ∝ √x.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab koi real fluid (jaise paani ya hawa) kisi plate ke upar se bahta hai, toh uski viscosity bahut chhoti hoti hai. Pehle log sochte the ki "viscosity itni kam hai, ignore kar do" — lekin tab drag zero aata tha, jo galat hai (d'Alembert's paradox). Prandtl ne kamaal kiya: usne kaha flow ko do parts mein baant do. Plate ke ekdam paas ek patli si layer hoti hai jahan viscosity matter karti hai — yahi boundary layer hai. Iske bahar fluid almost ideal (bina friction) jaisa behave karta hai.

Boundary layer banne ka reason simple hai: wall par fluid chipak jaata hai (no-slip, velocity = 0), aur thodi door par velocity full $U$ ho jaati hai. Toh bahut chhoti distance $\delta$ mein velocity 0 se $U$ tak jump karti hai, matlab gradient $\partial u/\partial y$ bahut bada. Stress hota hai $\mu \times$ gradient — gradient itna bada ki chhoti $\mu$ ke saath bhi stress significant ho jaata hai. Isliye wall ke paas viscosity ko ignore nahi kar sakte.

Layer ki motai $\delta$ kaise badhti hai? Yaad rakho: viscosity momentum ko diffuse karti hai, aur diffusion hamesha $\sqrt{time}$ ke hisaab se failta hai. Fluid distance $x$ tay karne mein time leta hai $t \sim x/U$ , toh $\delta \sim \sqrt{\nu t} = \sqrt{\nu x/U}$ . Iska matlab $\delta \propto \sqrt{x}$ — layer aage jaake mota hota hai par dheere-dheere. Tez flow ( $U$ bada) ya high Reynolds number $\Rightarrow$ patli layer ( $\delta \propto 1/\sqrt{Re_x}$ ).

Yeh concept itna important kyun hai? Kyunki isi ki wajah se aerodynamics solve hua — drag, skin friction, aeroplane wings, pipes sab. "Fast aur smooth = thin layer" yaad rakho, aur formula "Delta sees nu-x-over-U" se kaam chal jayega. Exam mein bas $Re_x = Ux/\nu$ nikalo aur $\delta = 5x/\sqrt{Re_x}$ laga do.
