Chemical vapor deposition (CVD): Foundations — Hardware deep dive

This page assumes you know nothing. Every letter in the parent note's formulas is built here, one picture at a time, before it is ever used.

0. The scene we are describing

Before any symbol, look at the physical picture.

Figure — Chemical vapor deposition (CVD)

A flat wafer sits inside a hot chamber. Gas flows left-to-right above it. Right against the wafer surface the gas is nearly still — that stuck-still layer is important later. Somewhere in that gas are the useful molecules (the "reactant"). They must travel down to the surface, react into solid film, and the leftover gas must travel back up and leave.

Everything below is just naming the pieces of this picture.

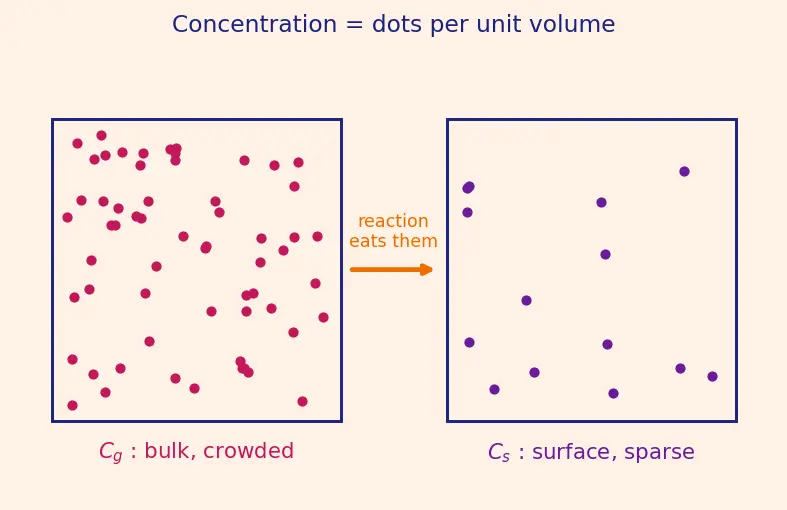

1. Concentration — "how crowded are the useful molecules?"

Why the topic needs it: the whole reaction is fed by reactant molecules. More crowding → more collisions with the surface → faster growth. So $C$ is the fuel gauge.
Two special values appear in the parent note:
- $C_{g}$ — concentration up in the bulk gas (the "g" is for gas/bulk), where flow keeps it well-stocked.
- $C_{s}$ — concentration right at the surface (the "s" is for surface), where reaction is eating molecules up, so it is usually lower.

2. Flux — "how many arrive per second per patch of area?"

Why the topic needs it: growth speed is flux. If more molecules land and react per second, the film thickens faster. Everything in the derivation is an equation for $F$ .
Units picture: molecules per (area × time), e.g. $molecules / (cm^{2} \cdot s)$ .

3. The boundary layer — "the stuck-still gas skin"

Because the boundary layer is nearly still, reactant cannot be carried through it by flow — it must diffuse (wander) across on its own. That crossing is slow, and it is one of the two bottlenecks.

Why the topic needs it: it is the "distance" molecules must struggle across to reach the surface. A thicker or slower-crossing boundary layer means fewer arrivals per second.

4. The mass-transfer coefficient $h_{g}$ — "how easily gas crosses the layer"

We need a number that says how quickly the concentration difference $C_{g} - C_{s}$ turns into arriving flux. That number is $h_{g}$ .

Why the tool: we chose a linear law (flux ∝ difference) because for small differences diffusion genuinely is proportional to the concentration gap — this is the simplest law that matches the physics, so we use no fancier tool than it needs.
$h_{g}$ shrinks at high pressure and grows at low pressure — the reason LPCVD works (diffusivity $\propto 1/ P$ ).

5. The surface reaction rate constant $k_{s}$ — "how eager the surface is to react"

Arriving is only half the job. Once at the surface, a molecule must actually react into solid. That eagerness is $k_{s}$ .

Notice it uses $C_{s}$ (surface value), not $C_{g}$ — the surface can only react with what has reached it.

This is called "first-order": flux is proportional to the first power of $C_{s}$ (not $C_{s}^{2}$ , etc.). We pick first-order because for many CVD reactions doubling the surface reactant doubles the rate — again the simplest matching law.

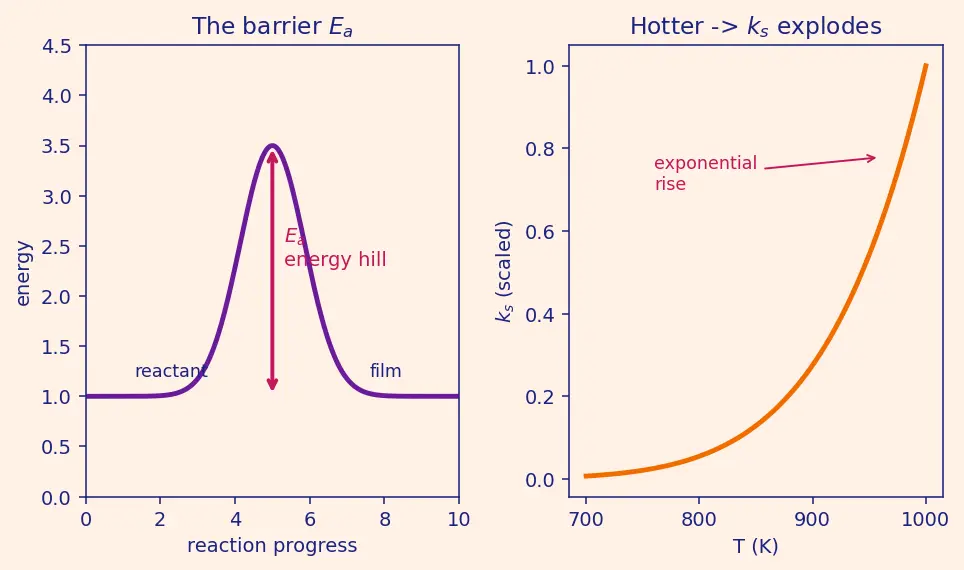

6. Why $k_{s}$ explodes with temperature — the Arrhenius idea

$k_{s}$ is not a fixed number; heat makes molecules react much more eagerly.

Let us earn every symbol in that formula:

$T$ = absolute temperature in kelvin (K). Picture: a thermometer starting from the coldest possible point, $0$ K. Hotter = molecules jiggle harder.
$E_{a}$ = activation energy = the energy "hill" a molecule must climb to react. Picture: a hump between "reactant" valley and "film" valley. High hill = hard to react.
$k$ = Boltzmann's constant = the exchange rate between temperature and energy, $k = 8.617 \times 1 0^{- 5} eV/K$ . It converts "how hot" into "how much jiggle-energy."
$k_{0}$ = a top-speed constant = how fast reaction would go if the hill were free (no barrier).
$e^{- E_{a} / (k T)}$ = the fraction of molecules with enough energy to clear the hill. It is a number between $0$ and $1$ .

7. Steady state — "nothing piles up"

The parent note sets $F_{1} = F_{2}$ . Here is why that is allowed.

Why the topic needs it: it lets us set arrivals = reactions ( $F_{1} = F_{2} = F$ ), which is the one equation that pins down the unknown $C_{s}$ and gives the boxed flux formula. Without it we would have two unknowns and no way to solve.

Solving $h_{g} (C_{g} - C_{s}) = k_{s} C_{s}$ gives the parent note's result $F = \frac{k _{s} h _{g}}{k _{s} + h _{g}} C_{g},$ which you now have every symbol to read.

C

mean and what is its picture?

Concentration — dots (molecules) per unit volume; the crowd size of reactant.

Difference between

C_{g}

and

C_{s}

C_{g}

is bulk-gas crowding (well stocked);

C_{s}

is at the surface (lower, because reaction eats molecules).

What does flux

F

count, and how does it differ from

C

F

= molecules crossing one area per second (arrows through a hoop);

C

is a standing crowd,

F

is a flow.

What is the boundary layer?

The thin, nearly-still gas skin on the wafer that reactant must slowly diffuse across.

In words, what is

h_{g}

How easily reactant crosses the boundary layer for a given concentration difference.

Write and read the transport flux law.

F_{1} = h_{g} (C_{g} - C_{s})

: arrivals = ease of crossing × the push.

In words, what is

k_{s}

How eagerly the surface reacts arrived reactant into solid film.

Write and read the reaction flux law.

F_{2} = k_{s} C_{s}

: reaction rate = eagerness × reactant actually at the surface.

Name every symbol in

k_{s} = k_{0} e^{- E_{a} / k T}

k_{0}

top-speed constant,

E_{a}

energy hill,

k

Boltzmann constant,

T

absolute temperature.

Why does hotter mean bigger

k_{s}

Higher

T

shrinks

E_{a} / (k T)

, so

e^{- E_{a} / k T}

grows toward 1 — more molecules clear the hill.

What does steady state let us write?

F_{1} = F_{2} = F

(nothing piles up), which pins down

C_{s}

What is

N

and why divide by it?

Atoms per unit volume of film;

v = F / N

because a denser film needs more atoms per unit thickness.

Conformal vs line-of-sight in one line each?

Conformal = even on all faces (gas reaches everywhere); line-of-sight = only where the source is visible.
