ISA (Instruction Set Architecture) — RISC vs CISC

Intuition The 80/20 core idea

The ISA is the contract between hardware and software. It says: "Here are the instructions I (the CPU) promise to understand, the registers you can use, and how memory looks to you." The compiler/assembler writes to this contract; the silicon implements it. RISC vs CISC is a design philosophy argument about how big and fancy each instruction should be.

CISC (Complex): few-instruction programs, each instruction does a LOT (even memory-to-memory math). Hardware is complicated.
RISC (Reduced): many simple instructions, each does ONE small thing fast. Hardware is simple, the compiler works harder.

80/20: if you remember only one line — CISC packs complexity into hardware; RISC pushes complexity into the compiler/software. Almost every other difference is a consequence of that one choice.

WHAT is an ISA?

WHY does RISC vs CISC exist? (the historical why)

The defining feature: the load/store rule

Worked example Same task:

mem[A] = mem[A] + mem[B] CISC (x86-style, conceptual):

ADD  A, B        ; one instruction: load A, load B, add, store to A

Why this works: the hardware's microcode internally does several memory accesses and an add — hidden from you.

RISC (ARM/RISC-V-style):

LW   r1, A       ; load word from A into r1
LW   r2, B       ; load word from B into r2
ADD  r1, r1, r2  ; register + register
SW   r1, A       ; store r1 back to A

Why this works: every instruction is one tiny well-defined step → easy to pipeline, decode, and time. Why this step (the LWs first)? Because in a load/store ISA an ADD is forbidden from touching memory; we must stage data into registers.

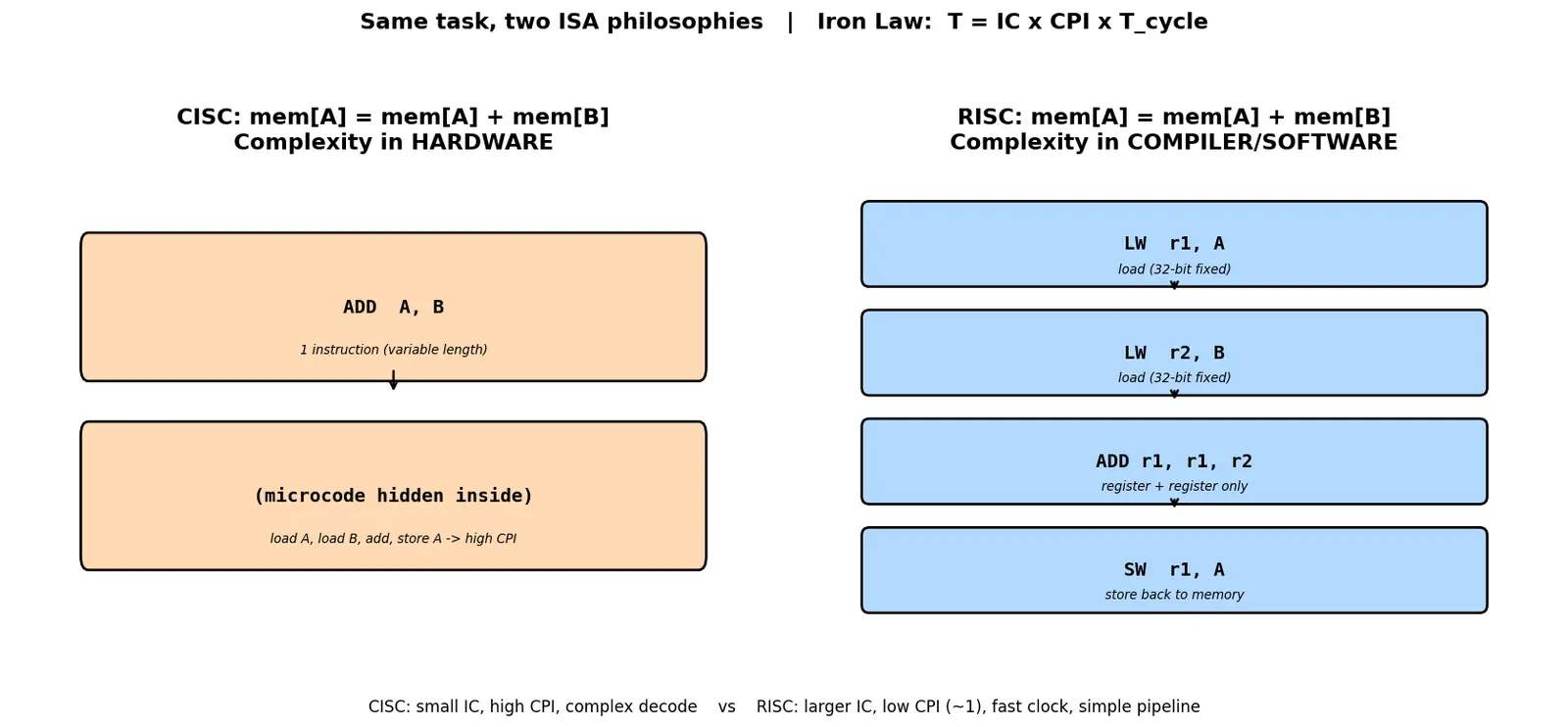

Figure — ISA (Instruction Set Architecture) — RISC vs CISC

The trade-off, made precise (derivation, not a dump)

Formula Iron Law of Performance — derived from first principles

Start from the definition of total CPU time for a program: $\text{Time} = \frac{\text{seconds}}{\text{program}}$ Multiply and divide by intermediate quantities (chain of units), which is always legal: $\text{Time} = \frac{\text{instructions}}{\text{program}} \times \frac{\text{cycles}}{\text{instruction}} \times \frac{\text{seconds}}{\text{cycle}}$ Name the three factors: $\boxed{\;T = IC \times CPI \times T_{cycle}\;}$ where $IC$ = instruction count, $CPI$ = average cycles per instruction, $T_{cycle}=1/f$ = clock period. Why each cancels: $\frac{\text{instr}}{\text{prog}}\cdot\frac{\text{cyc}}{\text{instr}}\cdot\frac{\text{s}}{\text{cyc}}$ — instr and cyc cancel, leaving $\frac{\text{s}}{\text{prog}}$ . ✔

Worked example Forecast-then-Verify with the Iron Law

A loop is compiled two ways. Forecast which is faster, then compute.

Design	$IC$	$CPI$	$T_{cycle}$
CISC	8 instr	5 cyc	0.5 ns
RISC	16 instr	1.2 cyc	0.4 ns

Forecast: RISC has 2× the instructions but tiny CPI and faster clock — guess RISC wins. Verify:

CISC: $T = 8 \times 5 \times 0.5 = 20$ ns.
RISC: $T = 16 \times 1.2 \times 0.4 = 7.68$ ns. Why: even though $IC$ doubled, $CPI$ dropped ~4× and clock got faster — the product is smaller. RISC wins here. ✔ (Steel-man: if CPI were equal, CISC's lower IC would win — so the result is workload/CPI dependent, not a law of nature.)

Side-by-side cheat table (active-recall friendly)

Definition RISC vs CISC at a glance

Aspect	RISC	CISC
Instruction length	Fixed (e.g. 32-bit)	Variable (1–15 bytes in x86)
Memory access	Only via load/store	Arithmetic can touch memory
Instruction count/program	Higher	Lower
CPI	Low (~1, pipelines well)	Higher (multi-cycle/microcoded)
Decode complexity	Simple, hardwired control	Complex, often microcoded
Registers	Many (e.g. 16–32)	Historically few
Where complexity lives	Compiler / software	Hardware
Examples	ARM, RISC-V, MIPS, SPARC	x86 / x86-64, VAX, System/360

Common mistakes (Steel-manned)

Flashcards

What is an ISA?

The abstract hardware–software contract: the instructions, registers, addressing modes, and data types a processor exposes to software (independent of how the chip is physically built).

ISA vs microarchitecture?

ISA = visible interface/"menu" (e.g. x86-64); microarchitecture = the internal implementation/"kitchen" (e.g. Intel's vs AMD's design of the same ISA).

The single deepest RISC vs CISC difference?

Where complexity lives — CISC pushes it into hardware (fat instructions); RISC pushes it into the compiler/software (simple instructions).

Define a load/store architecture.

Arithmetic/ALU instructions operate only on registers; memory is accessed solely via explicit LOAD and STORE instructions. (RISC hallmark.)

State the Iron Law of processor performance.

Time = IC × CPI × T_cycle (instruction count × cycles per instruction × clock period).

Derive why the Iron Law's units work out.

(instr/prog)·(cyc/instr)·(s/cyc): instr and cyc cancel → s/prog = total CPU time.

Which Iron-Law factor does CISC reduce, and what does it cost?

Reduces IC; costs higher CPI and harder-to-shrink clock period.

Which factors does RISC favor?

Low CPI (~1 via pipelining) and short T_cycle; accepts a higher IC.

Why does fixed-length encoding help RISC?

Uniform instructions decode and pipeline easily → low CPI and faster clock.

Common misread of "RISC"?

That it means fewer instructions in the ISA; really it means reduced complexity per instruction.

How do modern x86 CPUs blur the line?

They decode CISC instructions into RISC-like micro-ops (µops) and run those in a RISC-style pipeline — CISC outside, RISC inside.

Two RISC ISAs and two CISC ISAs?

RISC: ARM, RISC-V (also MIPS, SPARC). CISC: x86/x86-64, VAX (also System/360).

Recall Feynman: explain it to a 12-year-old (hidden — try first!)

Imagine giving instructions to a robot to make a sandwich.

CISC robot: you say "make a sandwich!" — one big command. The robot has tons of built-in machinery to figure out all the little steps. Short for you, complicated robot.
RISC robot: you must say "pick up bread… spread butter… add cheese… close bread." — many tiny commands. The robot is simple and does each tiny step super fast, but you (the compiler) have to think harder and talk more. Neither is "best" — it depends on whether you'd rather have a clever robot or a clever instructor. And the ISA is just the list of words the robot promises to understand.

Connections

Microarchitecture vs ISA — the implementation layer beneath the ISA.
Pipelining — why RISC craves fixed-length, single-cycle-shaped instructions.
CPI and the Iron Law of Performance — the equation that quantifies the trade-off.
Microcode — how CISC's complex instructions are internally broken into steps.
Compilers and Code Generation — where RISC dumps its complexity.
Addressing Modes — CISC's rich set vs RISC's minimal set.
Registers and the Register File — why load/store needs many registers.
Caches and Memory Hierarchy — load/store discipline interacts with memory speed.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ISA matlab Instruction Set Architecture — ye CPU aur software ke beech ka contract hai. ISA batata hai ki processor kaun-kaun se instructions samajhta hai, kitne registers hain, memory kaise access hoti hai. Yaad rakho: ISA = menu (kya order kar sakte ho), microarchitecture = kitchen (chef andar kaise banata hai). Ek hi ISA (jaise x86-64) ko Intel aur AMD alag-alag tarike se banate hain.

Ab RISC vs CISC ek design philosophy ki ladai hai. Ek hi line yaad kar lo: CISC complexity ko hardware me daalta hai, RISC complexity ko compiler/software me daalta hai. CISC me ek hi mota instruction (jaise ADD A,B) sidhe memory pe kaam kar leta hai — instruction count kam, par har instruction multi-cycle (CPI zyada). RISC me sirf load/store hi memory chhuते hain, baaki sab register-to-register; instructions chhote, fixed-length, isliye pipeline me fit ho jaate hain aur CPI ~1 ho jaata hai.

Performance samajhne ke liye Iron Law hai: $T = IC \times CPI \times T_{cycle}$ . CISC IC kam karta hai par CPI badha leta hai; RISC IC thoda badha leta hai par CPI aur clock period dono chhote kar leta hai. Koi "hamesha fast" nahi — workload pe depend karta hai. Aur ek important baat: aaj ke x86 chips andar se CISC instructions ko chhote micro-ops (µops) me todke RISC-style pipeline me chalate hain — yaani bahar CISC, andar RISC. Exam me ye line likh doge to professor khush.
