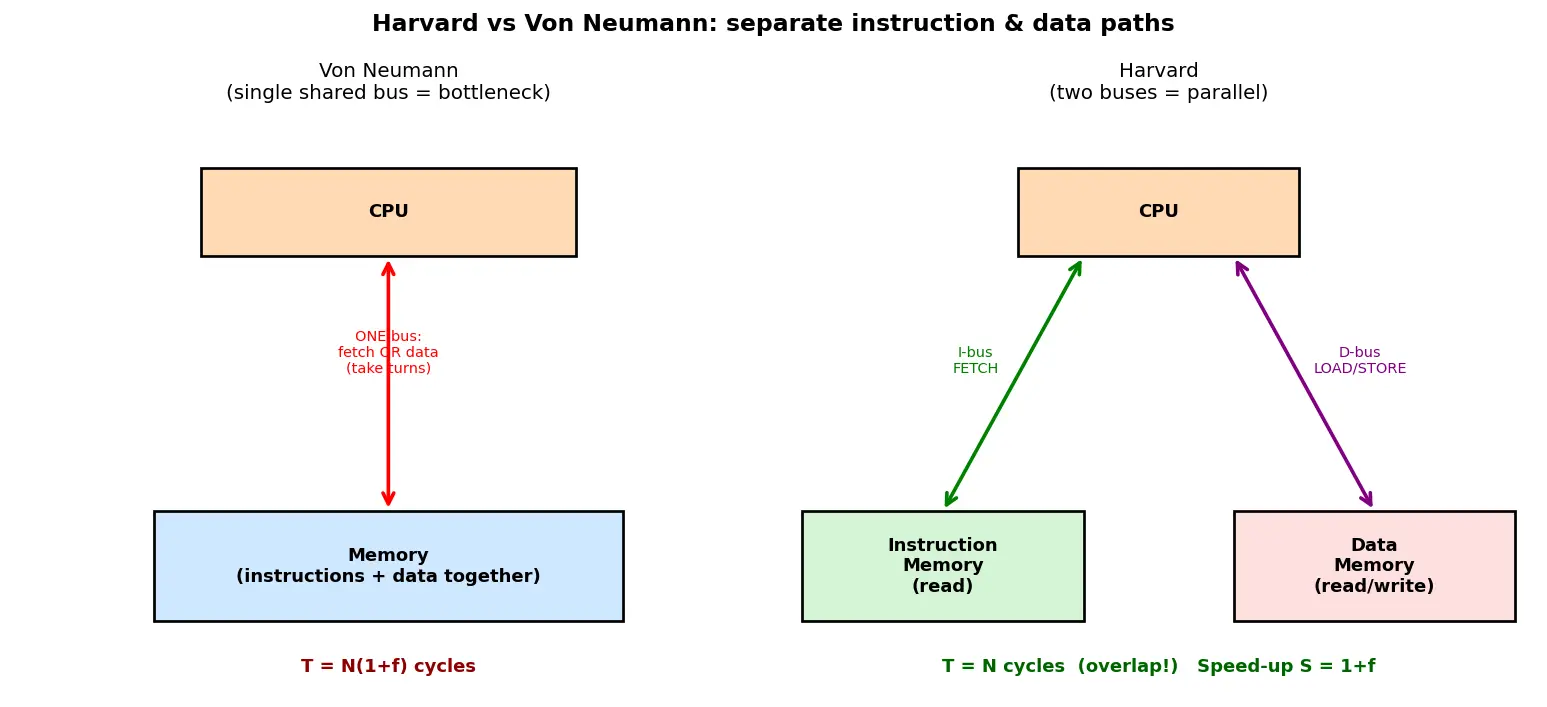

Intuition The one-sentence pictureA computer is just a CPU pulling instructions ("what to do") and data ("what to do it on") out of memory. If both live in the same pipe, the CPU can only grab one per trip. Harvard architecture gives the CPU two separate pipes — one for instructions, one for data — so it can fetch both simultaneously .
Intuition The bottleneck it killsThe CPU is fast; memory is slow. In a single-bus design (von Neumann), every clock the CPU must choose: fetch an instruction OR read/write data — never both. This forced serialization is the von Neumann bottleneck .
Harvard's bet: give each its own bus and own memory , so a fetch and a data access happen in the same cycle . WHY this works: two independent wires can carry two signals at once; one wire cannot.
Definition Harvard architectureA computer organization with physically separate memories and buses for instructions and data . The CPU has:
an instruction memory + instruction bus (fetched, usually read-only),
a data memory + data bus (read and write),
allowing one instruction fetch and one data access in parallel each cycle.
Definition Von Neumann (contrast)A single shared memory and bus holds both instructions and data. Simpler, more flexible, but instruction fetch and data access must take turns (the von Neumann bottleneck).
We model a memory access as taking 1 cycle. Consider executing N N N f f f
Von Neumann — each shared-bus cycle does either fetch or data:
Every instruction needs 1 fetch cycle: N N N
Each of the f N fN f N another cycle on the same bus: f N fN f N
T vN = N + f N = N ( 1 + f ) T_{\text{vN}} = N + fN = N(1+f) T vN = N + f N = N ( 1 + f )
Why this step? The single bus serializes fetch and data, so their cycle costs add .
Harvard — fetch (instruction bus) and data (data bus) run in parallel :
All N N N N N N
The f N fN f N inside those same cycles on the data bus → cost 0 extra (when they don't collide).
T H = N T_{\text{H}} = N T H = N
Why this step? Two buses → the data access is "hidden under" the fetch. Costs don't add, they overlap (max, not sum).
Speed-up:
S = T vN T H = N ( 1 + f ) N = 1 + f \boxed{S = \frac{T_{\text{vN}}}{T_{\text{H}}} = \frac{N(1+f)}{N} = 1+f} S = T H T vN = N N ( 1 + f ) = 1 + f
Intuition Why pure Harvard is rarePure Harvard can't easily load a program into instruction memory as data , or run self-modifying code — the buses are truly separate. So modern CPUs use Modified Harvard : a single main memory (von Neumann at the bottom), but split L1 caches — a separate I-cache and D-cache close to the CPU.
Result: programmer sees one flat memory (flexible, like von Neumann), but the hot path enjoys Harvard's parallel fetch/access (fast). Best of both.
Worked example Example 2 — Forecast-then-VerifyForecast: "If a workload is pure arithmetic on registers (f = 0 f=0 f = 0 Verify: S = 1 + 0 = 1 S = 1 + 0 = 1 S = 1 + 0 = 1 Confirmed — with no data traffic there's nothing to overlap, so Harvard's second bus sits idle. The benefit scales with memory pressure .
Worked example Example 3 — Width/address-space freedomAn 8-bit DSP stores 16-bit instructions but 8-bit data. Why Harvard helps: separate memories can have different word widths and address sizes — instruction memory 16-bit wide, data memory 8-bit wide. In von Neumann, one bus must pick a single width. Why this matters: tighter, cheaper embedded designs (this is why most microcontrollers — AVR/PIC/ARM Cortex-M — are Modified Harvard).
Common mistake "Harvard means two CPUs / two cores."Why it feels right: "Separate" + "parallel" sounds like multiprocessing. The truth: it's ONE CPU with TWO memory paths . Parallelism is in memory access , not in computation . Fix: picture one chef with two delivery doors, not two chefs.
Common mistake "Harvard is always faster than von Neumann."Why it feels right: more buses = more bandwidth = faster, surely? The truth: the speed-up is 1 + f 1+f 1 + f f = 0 f=0 f = 0 zero gain, and the extra hardware (two memory systems, pins, controllers) costs area and money. Fix: Harvard wins only when there's data traffic to overlap.
Common mistake "You can't run a normal OS / compiler on Harvard."Why it feels right: if instruction memory is read-only and separate, how do you load a program (which is data)? The truth: pure Harvard struggles, but Modified Harvard (split caches over unified memory) loads programs as data fine and runs everything. Fix: distinguish pure from modified Harvard.
Recall Feynman: explain to a 12-year-oldImagine a chef (the CPU). He needs recipes (instructions) and ingredients (data).
In one kitchen (von Neumann) there's a single door to the pantry, so he must walk out for a recipe, come back, then walk out again for ingredients — one thing per trip.
In the Harvard kitchen there are two doors : one always brings recipes, one always brings ingredients. Two helpers run at the same time, so the chef never waits. The catch: the recipe-door is usually one-way (you can't easily shove new recipes back in), which is why most real kitchens use a clever mix — separate doors near the chef, but one big shared storeroom in the back.
"H = Halves" : H arvard H alves the memory into two H ighways. And "two doors, one chef."
#flashcards/coding
What single problem does Harvard architecture attack? The von Neumann bottleneck — instruction fetch and data access competing for one shared bus.
In Harvard architecture, what is physically separate? Instruction memory + bus and data memory + bus (and often the caches).
What can a Harvard CPU do in one cycle that a von Neumann CPU cannot? Fetch an instruction AND access data simultaneously.
Idealized Harvard speed-up formula, with symbol meaning? S = 1 + f S = 1+f S = 1 + f , where
f f f is the fraction of instructions that access data memory.
If f = 0 f=0 f = 0 S = 1 S=1 S = 1 (none); with no data traffic there's nothing for the second bus to overlap.
What is Modified Harvard architecture? Unified main memory (von Neumann-like) but separate L1 instruction and data caches — flexible like vN, fast like Harvard near the CPU.
Why is pure Harvard awkward for loading programs / self-modifying code? Instruction memory is separate (often read-only), so you can't easily write a program as data into it.
Give one practical advantage of separate memories besides speed. Different word widths / address sizes for instructions vs data (cheaper, tighter embedded designs).
Name real chip families that use Modified Harvard. AVR, PIC, ARM Cortex-M microcontrollers.
Steel-man: why might someone think Harvard means two CPUs, and the fix? "Separate + parallel" sounds like multiprocessing; fix — it's ONE CPU with TWO memory paths.
Von Neumann architecture — the single-bus design Harvard contrasts with.Von Neumann bottleneck — the exact problem Harvard targets.CPU instruction cycle — fetch/decode/execute; Harvard parallelizes fetch with data access.Cache memory — split I-cache/D-cache = Modified Harvard in modern CPUs.Pipelining — overlapping stages; Harvard removes structural hazards on memory.Microcontrollers (AVR PIC ARM Cortex-M) — real-world Harvard/Modified-Harvard users.Memory bus and bandwidth — why two buses double effective memory throughput.
Fetch and data in parallel
Intuition Hinglish mein samjhoDekho, CPU ko do cheezein chahiye hoti hain: instructions (kya karna hai) aur data (kis par karna hai). Von Neumann design mein dono ek hi memory aur ek hi bus (taar) se aate hain. Problem yeh hai ki ek time pe bus se sirf ek hi cheez aa sakti hai — ya toh instruction fetch karo, ya data lao. Isi ko von Neumann bottleneck kehte hain, CPU bekar mein wait karta rehta hai.
Harvard architecture ka idea simple hai: do alag memory aur do alag bus banao — ek sirf instructions ke liye, ek sirf data ke liye. Ab CPU ek hi clock cycle mein dono kaam saath kar sakta hai: instruction bhi fetch, aur data bhi access. Ek chef ke do darwaaze samjho — ek se recipe aati hai, doosre se ingredients, dono ek saath. Isliye speed badh jaati hai.
Kitni badhti hai? Formula hai S = 1 + f S = 1+f S = 1 + f f f f f = 1 f=1 f = 1 2 × 2\times 2 × f ≈ 0.3 f \approx 0.3 f ≈ 0.3 0.4 0.4 0.4 1.3 1.3 1.3 1.4 × 1.4\times 1.4 × f = 0 f=0 f = 0
Real-world mein pure Harvard kam milta hai, kyunki program ko load karna mushkil ho jaata hai (instruction memory alag aur read-only). Isliye modern CPUs Modified Harvard use karte hain: neeche ek hi badi shared memory (von Neumann jaisa, flexible), lekin CPU ke paas alag I-cache aur D-cache . Best of both — AVR, PIC, ARM Cortex-M microcontrollers sab yahi use karte hain.
