Intuition The big idea (WHY this exists)Fast memory is expensive and tiny ; cheap memory is huge and slow . You can't have all three (fast + big + cheap) at once. So engineers stack different memory types into a pyramid: a little bit of blazing-fast memory close to the CPU, and a lot of slow memory far away. The trick that makes it work is locality — programs tend to reuse the same data and nearby data — so the small fast layer ends up holding exactly what you need most of the time .
Definition Memory hierarchyA layered arrangement of storage where each level closer to the CPU is faster, smaller, and more expensive per byte , and each level farther away is slower, larger, and cheaper per byte . Data is moved up the hierarchy on demand and cached in faster levels.

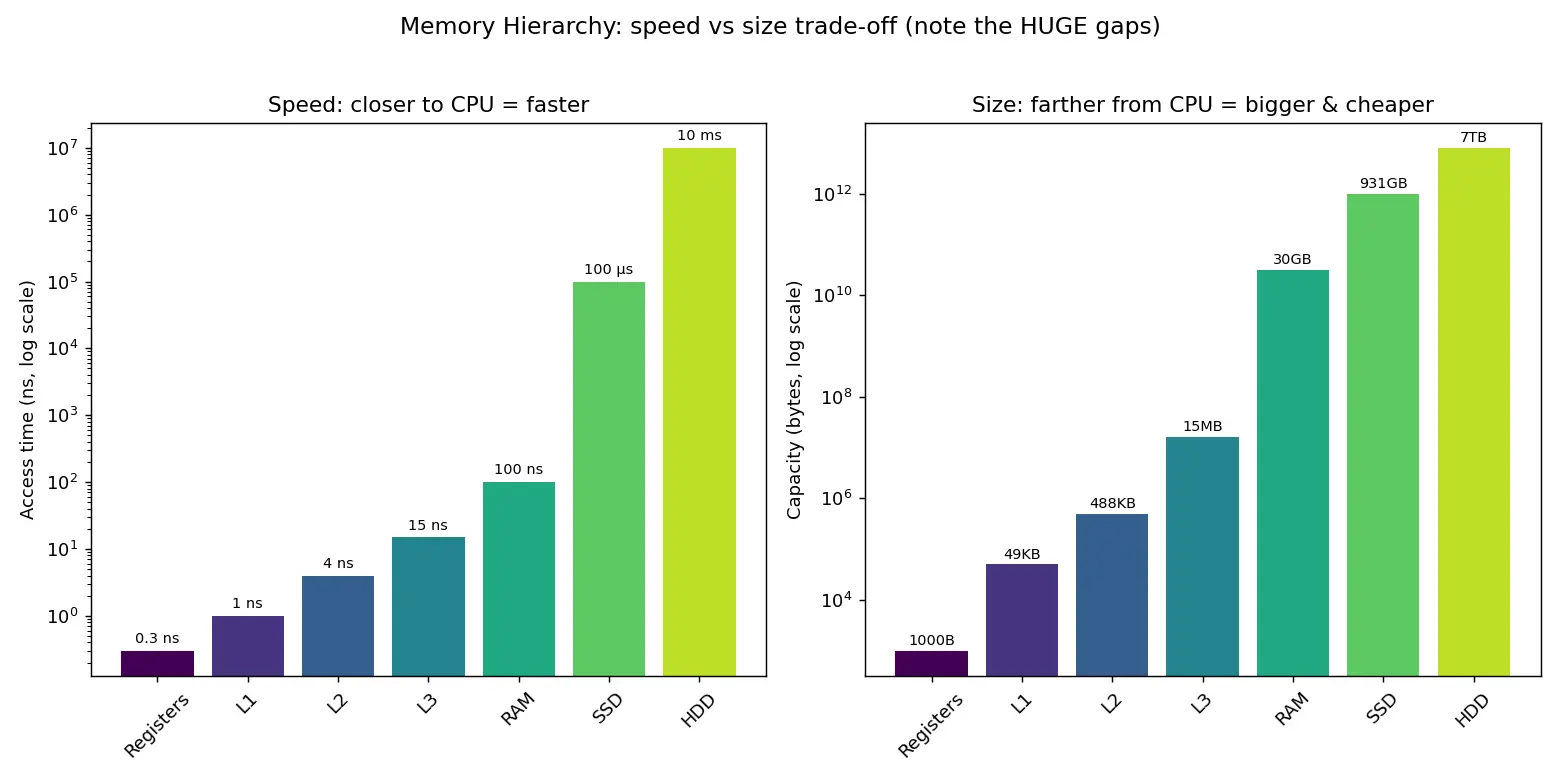

The levels, fastest → slowest:
Level
Typical size
Approx. access time
Volatile?
Registers ~1–2 KB (few dozen × 64-bit)
~0.3 ns (<1 cycle)
yes
L1 cache ~32–64 KB
~1 ns (~4 cycles)
yes
L2 cache ~256 KB–1 MB
~4 ns (~12 cycles)
yes
L3 cache ~8–32 MB (shared)
~10–20 ns (~40 cycles)
yes
RAM (DRAM)~8–64 GB
~100 ns
yes
SSD ~256 GB–4 TB
~100,000 ns (100 µs)
no
HDD ~1–16 TB
~10,000,000 ns (10 ms)
no
If a register access were 1 second , then RAM would be ~5 minutes , an SSD ~4 days , and an HDD ~1 year . The gaps are enormous — that's why caching matters so much.
Intuition Why fast = small = expensive
Physics of distance: signals travel near light speed. In 1 ns light goes only ~30 cm. To respond in <1 ns, memory must sit physically right next to the CPU core. There's only so much room there → small.Cell cost: the fastest cells (SRAM, used in registers/cache) need ~6 transistors per bit. DRAM (RAM) needs ~1 transistor + 1 capacitor → cheaper but needs refreshing (slower). Flash (SSD) and magnetic platters (HDD) pack bits densely → cheap & huge but mechanically/electrically slow.So speed costs transistors costs silicon area costs money. You budget the fast stuff.
Definition Locality of reference
Temporal locality: if you used data now, you'll likely use it again soon (loop counters, hot variables).Spatial locality: if you used address X X X X X X
Because of locality, the CPU brings data into cache in chunks called cache lines (typically 64 bytes), not single bytes. A request that's already in cache is a hit ; otherwise it's a miss and must be fetched from a slower level.
We want the expected time to access memory across a program. WHY derive it? Because it tells us exactly how much a low hit rate hurts.
Let:
h h h 0 ≤ h ≤ 1 0\le h\le 1 0 ≤ h ≤ 1 t hit t_{\text{hit}} t hit T lower T_{\text{lower}} T lower
By definition of expected value, with probability h h h t hit t_{\text{hit}} t hit ( 1 − h ) (1-h) ( 1 − h ) additionally pay to go down a level:
AMAT = h ⋅ t hit + ( 1 − h ) ( t hit + T lower ) \text{AMAT} = h\cdot t_{\text{hit}} + (1-h)\big(t_{\text{hit}} + T_{\text{lower}}\big) AMAT = h ⋅ t hit + ( 1 − h ) ( t hit + T lower )
Expand and simplify (the t hit t_{\text{hit}} t hit both cases):
AMAT = t hit + ( 1 − h ) ⋅ T lower \boxed{\text{AMAT} = t_{\text{hit}} + (1-h)\cdot T_{\text{lower}}} AMAT = t hit + ( 1 − h ) ⋅ T lower
Intuition Why the boxed form is cleanerYou always check the fast level (so you always pay t hit t_{\text{hit}} t hit missing fraction ( 1 − h ) (1-h) ( 1 − h ) T lower T_{\text{lower}} T lower
Worked example Example 1 — two-level (L1 + RAM)t L 1 = 1 t_{L1}=1 t L 1 = 1 h = 0.95 h=0.95 h = 0.95 = 100 =100 = 100 Why this step? Plug into the boxed formula; we always pay L1, and 5% of accesses also pay RAM.
AMAT = 1 + ( 1 − 0.95 ) ( 100 ) = 1 + 5 = 6 ns \text{AMAT}=1 + (1-0.95)(100) = 1 + 5 = 6\ \text{ns} AMAT = 1 + ( 1 − 0.95 ) ( 100 ) = 1 + 5 = 6 ns
Worked example Example 2 — why hit rate matters non-linearlySame as above but h = 0.90 h=0.90 h = 0.90 Why this step? Doubling the miss rate (5%→10%) should roughly double the penalty contribution.
AMAT = 1 + ( 0.10 ) ( 100 ) = 1 + 10 = 11 ns \text{AMAT}=1+(0.10)(100)=1+10=11\ \text{ns} AMAT = 1 + ( 0.10 ) ( 100 ) = 1 + 10 = 11 ns nearly doubled access time. Penalty is huge, so misses are expensive.
Worked example Example 3 — three-level recursion (L1 → L2 → RAM)t L 1 = 1 t_{L1}=1 t L 1 = 1 h L 1 = 0.90 h_{L1}=0.90 h L 1 = 0.90 t L 2 = 4 t_{L2}=4 t L 2 = 4 h L 2 = 0.95 h_{L2}=0.95 h L 2 = 0.95 = 100 =100 = 100 Why this step? First compute the cost of going to memory via L2 , then feed it as T lower T_{\text{lower}} T lower AMAT L 2 = 4 + ( 1 − 0.95 ) ( 100 ) = 4 + 5 = 9 ns \text{AMAT}_{L2}=4+(1-0.95)(100)=4+5=9\ \text{ns} AMAT L 2 = 4 + ( 1 − 0.95 ) ( 100 ) = 4 + 5 = 9 ns AMAT = 1 + ( 1 − 0.90 ) ( 9 ) = 1 + 0.9 = 1.9 ns \text{AMAT}=1+(1-0.90)(9)=1+0.9=1.9\ \text{ns} AMAT = 1 + ( 1 − 0.90 ) ( 9 ) = 1 + 0.9 = 1.9 ns
Worked example Example 4 — array traversal & spatial localityAn int[1024] (4 KB) scanned sequentially with 64-byte lines = 16 ints/line.
Why this step? Only the first int of each line misses; the other 15 are hits brought in for free.
Miss rate ≈ 1 / 16 = 6.25 % \approx 1/16 = 6.25\% ≈ 1/16 = 6.25% Why it matters: a random access pattern would miss far more often — same data, worse layout = slower program. This is why arrays beat linked lists for scanning.
Common mistake "More RAM makes my CPU run faster."Why it feels right: more RAM = fewer trips to the slow disk, and people feel speedups after upgrading.
The fix: RAM size doesn't change RAM speed or cache hit rates. It only helps when you were previously out of RAM and swapping to SSD/HDD. Within the hierarchy, CPU speed depends on cache hit rates , not RAM capacity.
Common mistake "Cache is something I store files in (like browser cache)."Why it feels right: the word "cache" is reused everywhere.
The fix: Here, cache (L1/L2/L3) is dedicated SRAM hardware the CPU manages automatically. You don't read/write it directly; it transparently mirrors hot RAM data.
Common mistake "SSD and RAM are the same kind of memory."Why it feels right: both are solid-state, no moving parts.
The fix: RAM is volatile (loses data on power-off) and ~1000× faster; SSD is non-volatile persistent storage. They sit at very different levels — RAM is working memory , SSD is storage .
Common mistake "AMAT = hit_rate × hit_time + miss_rate × miss_time."Why it feels right: looks like a clean weighted average.
The fix: On a miss you still checked the fast level first, so miss cost is t hit + T lower t_{\text{hit}}+T_{\text{lower}} t hit + T lower T lower T_{\text{lower}} T lower t hit + ( miss rate ) × ( penalty ) t_{\text{hit}}+(\text{miss rate})\times(\text{penalty}) t hit + ( miss rate ) × ( penalty )
Recall Feynman: explain to a 12-year-old (click to reveal)Imagine doing homework. Your hands hold the pencil you’re using right now (registers). Your desk has the books you need this hour (cache). Your bookshelf across the room has more books (RAM). The library downtown has every book but takes a trip (SSD/HDD). You keep the most-used stuff on the desk so you barely ever walk to the library. The computer does the same: it keeps the data it uses most in the closest, fastest spot, so it almost never has to make the slow trip.
Mnemonic Order fastest → slowest"Real Cooks Rarely Serve Hot" → R egisters, C ache, R AM, S SD, H DD.
And remember: closer = faster + smaller + costlier .
Why can't memory be fast, big, and cheap simultaneously?
Write AMAT from scratch and explain why t hit t_{\text{hit}} t hit
What is a cache line and why ~64 bytes instead of 1 byte?
Order the hierarchy fastest to slowest Registers → L1 → L2 → L3 cache → RAM → SSD → HDD
Why is fast memory always small and expensive? Fast cells (SRAM) use ~6 transistors/bit and must sit physically near the core (signal-distance limit), so cost and area limit capacity.
Derive AMAT With hit prob h pay t_hit; with miss prob (1−h) pay t_hit + T_lower. AMAT = h·t_hit + (1−h)(t_hit + T_lower) = t_hit + (1−h)·T_lower.
What is temporal locality? Recently used data is likely to be used again soon (e.g., loop variables).
What is spatial locality? Data near a recently accessed address is likely to be accessed soon (e.g., array elements).
What is a cache line? The fixed-size block (~64 bytes) the CPU transfers between memory levels, exploiting spatial locality.
Cache hit vs miss? Hit = data found in this fast level; miss = not found, must fetch from a slower level (paying the miss penalty).
Which levels are volatile? Registers, all cache levels, and RAM lose data on power-off; SSD and HDD are non-volatile.
Two-level AMAT with t_L1=1ns, h=0.95, RAM=100ns 1 + 0.05·100 = 6 ns.
Why does more RAM not directly speed up the CPU? CPU speed depends on cache hit rates; extra RAM only helps when you were swapping to disk.
RAM vs SSD key difference? RAM is volatile working memory (~100ns); SSD is non-volatile persistent storage (~100µs), ~1000× slower.
Why fetch 64 bytes instead of 1 byte on a miss? Spatial locality — nearby data will likely be needed, so amortize the slow fetch over many useful bytes.
CPU and instruction cycle — registers feed the ALU each cycleCache coherence and multicore — why L3 is sharedLocality of reference — the principle making the hierarchy workVirtual memory and paging — extending RAM onto SSD/HDDBig-O vs constant factors — cache-friendly code beats theoretically equal algorithmsVolatile vs non-volatile storage
Speed-Size-Cost trade-off
Cell cost SRAM DRAM Flash
Average Memory Access Time
Intuition Hinglish mein samjhoDekho, computer ko ek dard hai: jo memory fast hoti hai wo choti aur mehngi hoti hai, aur jo sasti aur badi hoti hai wo slow hoti hai. Teeno cheezein ek saath nahi mil sakti. Isliye engineers ek pyramid banate hain — CPU ke bilkul paas thodi si super-fast memory (registers, fir L1/L2/L3 cache), uske baad RAM, fir SSD, aur sabse door HDD. Jaise jaise CPU se door jaate ho, memory badi hoti jaati hai par slow hoti jaati hai.
Yeh kaam isliye chalta hai kyunki programs mein locality hoti hai — jo data abhi use kiya wahi thodi der baad phir chahiye hota hai (temporal), aur uske aas-paas ka data bhi chahiye hota hai (spatial). Isliye CPU 64 byte ki cache line ek saath utha leta hai, ek-ek byte nahi. Zyada tar baar data fast cache mein mil jaata hai (hit ), aur kabhi-kabhi slow level tak jaana padta hai (miss ).
Iska maths simple hai: AMAT = t h i t + ( 1 − h ) × T l o w e r \text{AMAT} = t_{hit} + (1-h)\times T_{lower} AMAT = t hi t + ( 1 − h ) × T l o w er ( 1 − h ) (1-h) ( 1 − h )
Yeh matter isliye karta hai kyunki fast code likhne ka raaz aksar cache-friendly hona hota hai. Do algorithm ka Big-O same ho sakta hai, par jo array sequentially access karta hai (spatial locality) wo linked-list wale se bahut tez chalega. Aur yaad rakho: zyada RAM lagane se CPU automatically tez nahi hota — wo tabhi help karta hai jab aap pehle disk pe swap kar rahe the.
