Intuition The big picture (WHY these exist)Imagine building a house. You could mould every brick, hinge, and window frame yourself from raw clay and metal — total control, but it would take a lifetime. Instead you buy pre-made, pre-tested standardized parts (bricks of fixed size, doors of fixed height) and just assemble them.
A standard cell library is exactly that for chip design: a catalogue of pre-designed, pre-characterized, pre-verified logic building blocks (INV, NAND, NOR, DFF...) that all share a fixed cell height so a tool can snap them into neat rows automatically.
WHY it matters: it turns "designing billions of transistors by hand" into "placing library cells from a menu," enabling automated synthesis and place-and-route .
Definition Standard cell libraryA collection of many such cells at a given technology node (e.g. 7 nm), each provided in several flavours — different drive strengths and threshold-voltage (==V t V_t V t
A single cell like NAND2_X2 is shipped as several coordinated views :
View
What it contains
Used by
Liberty (.lib)
timing, power, capacitance
synthesis, STA
LEF
abstract footprint: pins, blockages, size
place & route
GDSII
full mask-level layout (transistors, metal)
fabrication
Verilog
functional model (assign Y = ~(A&B))
simulation
SPICE netlist
transistor-level
characterization
Intuition WHY so many views?Each tool needs a different level of abstraction . The router does not care about transistor shapes — it only needs pin locations (LEF). The timing engine does not care about mask polygons — it needs delay tables (Liberty). Same cell, many "photographs" from different angles.

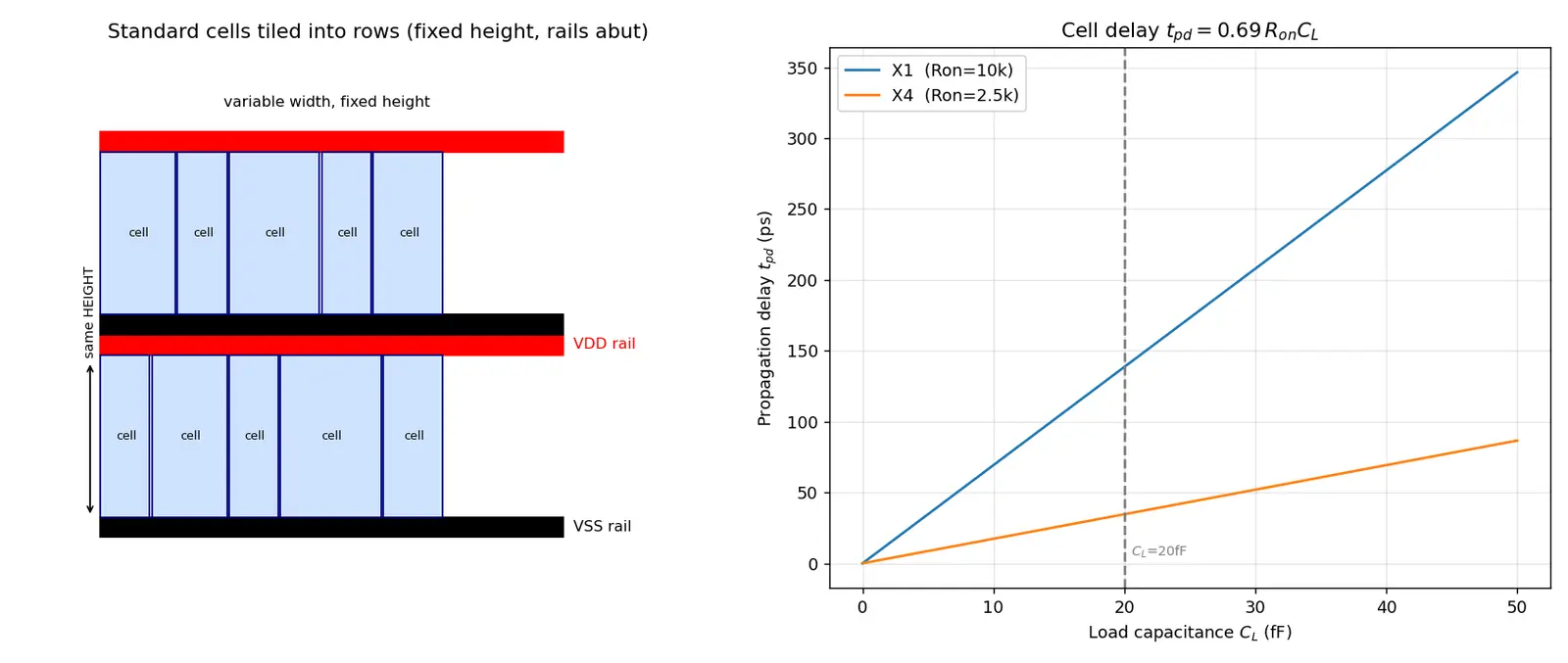

All cells share the same height and place their V D D V_{DD} V D D V S S V_{SS} V S S same vertical position . So when you push cells side-by-side into a row , their power rails abut and form one continuous rail — no manual wiring of power to each gate. Flip alternate rows and adjacent rows can even share a rail.
This constraint is what makes fully-automated row-based placement possible.
Height is measured in tracks — the number of horizontal routing tracks that fit. A "9-track" library is taller (faster, more area) than a "7-track" one (denser, lower power).
Definition CharacterizationRunning SPICE simulations on each cell across many operating conditions to build the timing/power tables stored in the .lib.
table , not a formula?
Transistors are nonlinear; a single equation can't capture the curve accurately across all slews and loads. So we sample the real SPICE behaviour on a grid and interpolate — dual coding: think "lookup table with a delay surface."
Characterization is repeated at combinations of P rocess (slow/typical/fast silicon), V oltage, and T emperature. Each combination is a corner . Slow-Slow / high-T / low-V is the worst-case speed corner; Fast-Fast / low-T / high-V is worst-case hold .
X1, X2, X4... = drive strength : wider transistors → smaller R o n R_{on} R o n t p d ≈ 0.69 R o n C L t_{pd}\approx0.69R_{on}C_L t p d ≈ 0.69 R o n C L R o n R_{on} R o n previous gate).
V t V_t V t low-V t V_t V t = fast but leaky (used on critical paths), high-V t V_t V t = slow but low-leakage (used everywhere else). The synthesis tool trades these to hit timing while minimizing power — that's the 80/20 lever.
Worked example 1. Choosing drive strengthA gate with R o n = 10 k Ω R_{on}=10\,\text{k}\Omega R o n = 10 k Ω C L = 20 fF C_L=20\,\text{fF} C L = 20 fF t p d = 0.69 × 10 4 × 20 × 10 − 15 = 0.138 ns = 138 ps t_{pd}=0.69\times10^4\times20\times10^{-15}=0.138\,\text{ns}=138\,\text{ps} t p d = 0.69 × 1 0 4 × 20 × 1 0 − 15 = 0.138 ns = 138 ps Why this step? We plug into 0.69 R o n C L 0.69R_{on}C_L 0.69 R o n C L Ω ⋅ F = s \Omega\cdot F = s Ω ⋅ F = s R o n = 2.5 k Ω R_{on}=2.5\,\text{k}\Omega R o n = 2.5 k Ω t p d = 0.69 × 2500 × 20 f = 34.5 ps t_{pd}=0.69\times2500\times20\text{f}=34.5\,\text{ps} t p d = 0.69 × 2500 × 20 f = 34.5 ps Why? 4× wider → R o n / 4 R_{on}/4 R o n /4 for the same load . But X4's input cap is ~4× bigger, loading its driver more — trade-off, not free lunch.
Worked example 2. Reading a Liberty timing tableSuppose .lib gives delay values: at slew=20 ps, C L C_L C L C L C_L C L C L C_L C L 45 + 20 − 10 30 − 10 ( 95 − 45 ) = 45 + 0.5 × 50 = 70 ps 45 + \frac{20-10}{30-10}(95-45)=45+0.5\times50=70\text{ ps} 45 + 30 − 10 20 − 10 ( 95 − 45 ) = 45 + 0.5 × 50 = 70 ps Why this step? NLDM stores a grid; the STA tool interpolates between the nearest sampled points.
Worked example 3. Power/ground abutmentTwo cells INV_X1 (width 0.5 µm) and NAND2_X1 (width 0.75 µm) both 1.2 µm tall with rails at top/bottom. Placed in a row, total width = 1.25 µm, rails continuous across the boundary.
Why? Fixed height + fixed rail position ⇒ automatic power distribution. This is the whole reason libraries insist on uniform height.
Common mistake "Bigger drive strength always makes the design faster."Why it feels right: larger transistors have lower R o n R_{on} R o n t p d ∝ R o n t_{pd}\propto R_{on} t p d ∝ R o n is faster.
The fix: a big cell presents a large input capacitance = extra load on the previous stage, slowing it. It also leaks more and eats area. Optimal sizing balances the two; blindly maxing drive strength can worsen total path delay and power.
.lib delay is a fixed constant per cell."
Why it feels right: we call it "the cell's delay."
The fix: delay is a function of input slew and output load and of the PVT corner . The same cell can be 2–3× slower at the slow corner. Always ask "delay under what conditions?"
Common mistake "GDSII and LEF are the same thing."Why it feels right: both are physical/layout-ish.
The fix: LEF is an abstract view (bounding box + pin locations + blockages) for routing; GDSII is the full mask layout for fabrication. The router uses LEF to stay fast.
Common mistake "Cells can have any height as long as function is correct."Why it feels right: logically true.
The fix: row-based placement and rail abutment require a uniform height. Non-uniform height breaks automated P&R — that's the point of "standard."
Recall Quick self-test (hide answers)
Why must all cells share a fixed height? → so rows tile & power rails abut, enabling automated P&R.
Two things drive strength X4 vs X1 changes? → lower R o n R_{on} R o n
What two variables index an NLDM delay table? → input slew and output load capacitance.
Derive t p d t_{pd} t p d 0.5 = 1 − e − t / R C ⇒ t = R C ln 2 ≈ 0.69 R C 0.5=1-e^{-t/RC}\Rightarrow t=RC\ln2\approx0.69RC 0.5 = 1 − e − t / R C ⇒ t = R C ln 2 ≈ 0.69 R C
Which view does the router use? → LEF. The fab? → GDSII.
Recall Feynman: explain to a 12-year-oldMaking a chip is like building with LEGO. Instead of carving every tiny piece yourself, LEGO gives you a box of standard bricks that all click together because they're the same height . A standard cell library is that LEGO box: little logic bricks (AND, NOT, memory bits) that all have the same height, so a robot can snap them into neat rows and the "electricity wires" automatically line up. Some bricks are the "strong, fast" kind (bigger, use more power) and some are "slow, energy-saving." Engineers keep a cheat sheet for each brick saying how fast it is and how much power it uses, so a computer can pick the best mix.
"Same Height, Snap & Abut." — cells share H eight so they S nap into rows and rails A but.
For flavours: "Low-Vt = Lightning (fast, leaky); High-Vt = Hibernate (slow, low-leak)."
Static Timing Analysis — consumes the .lib NLDM delay tables.Logic Synthesis — maps RTL onto library cells, choosing drive strength & V t V_t V t Place and Route — uses LEF footprints to tile cells into rows.CMOS Inverter — the t p d = 0.69 R o n C L t_{pd}=0.69R_{on}C_L t p d = 0.69 R o n C L Power Dissipation in CMOS — leakage vs speed trade-off behind V t V_t V t Technology Nodes — a library is tied to one node (7 nm, 28 nm...).
What is a standard cell? A pre-designed, pre-characterized logic/storage element with fixed height, fixed-position power rails, and known timing/power/area models.
Why do standard cells have a fixed height? So they tile into rows and their VDD/VSS rails abut, enabling automated row-based place-and-route.
Name four views shipped for one cell. Liberty (.lib) timing/power, LEF footprint, GDSII layout, Verilog/SPICE functional model.
Which view does the router use vs the fab? Router uses LEF (abstract); fab uses GDSII (full mask layout).
Derive the 0.69 factor in cell delay. From Vout=VDD(1-e^{-t/RC}), set to 50%: 0.5=1-e^{-t/RC} ⇒ t=RC·ln2 ≈ 0.69RC.
What two variables index an NLDM delay table? Input transition (slew) and output load capacitance.
What does drive strength X4 vs X1 change? ~4× wider transistors ⇒ ~1/4 Ron (faster) but ~4× input capacitance and higher leakage/area.
LVT vs HVT trade-off? Low-Vt = fast but leaky (critical paths); High-Vt = slow but low-leakage (everywhere else).
What is a PVT corner? A Process/Voltage/Temperature combination at which cells are characterized (e.g. slow-slow, high-T, low-V worst case).
Why is a delay table used instead of one formula? Transistor behaviour is nonlinear; sampling SPICE on a slew×load grid and interpolating is more accurate.
What defines a "track" library (7T vs 9T)? The cell height in routing tracks; more tracks = taller = faster but larger area.
Characterization via SPICE
Intuition Hinglish mein samjhoSocho tumhe ek pura chip banana hai jisme billions of transistors hain. Har transistor haath se design karna impossible hai. Isliye engineers ek ready-made "menu" use karte hain jise standard cell library kehte hain — isme pre-designed, pre-tested logic gates hote hain (INV, NAND, DFF wagairah). In sab cells ki height fixed hoti hai, sirf width alag hoti hai. Ye fixed height ka jugaad hi asli magic hai: jab cells ek row me side-by-side rakhe jaate hain, toh unke power rails (VDD upar, VSS neeche) automatically abut ho jaate hain — power ki wiring apne aap ho jaati hai. Isi wajah se automated place-and-route possible hota hai.
Har cell ke saath alag-alag "views" aati hain kyunki har tool ko alag detail chahiye: Liberty (.lib) me timing aur power tables, LEF me sirf pin locations aur size (router isko use karta hai), GDSII me full mask layout (fab isse chip banata hai). Delay ek constant number nahi hota — wo input slew aur output load ke upar depend karta hai, aur ek table (NLDM) me store hota hai jise tool interpolate karta hai. Basic formula yaad rakho: t p d ≈ 0.69 R o n C L t_{pd}\approx 0.69\,R_{on}C_L t p d ≈ 0.69 R o n C L
Do bade knobs hain jinse tuning hoti hai: drive strength (X1, X2, X4...) — zyada wide transistor matlab kam R o n R_{on} R o n Vt flavour — Low-Vt fast par leaky (critical path pe), High-Vt slow par power bachaata (baaki jagah). Ye sab PVT corners (slow/fast silicon, voltage, temperature) pe characterize hota hai taaki worst-case bhi safe rahe. Exam aur real design dono me yahi 80/20 concept baar-baar aata hai — samajh lo toh VLSI ka aadha timing aur power ka game clear ho jaata hai.
