Floating gate transistor operation

2,294 words10 min readdifficulty · medium1 backlinks

WHAT is it?

The stack, bottom-to-top:

  1. Channel / substrate (silicon, with source & drain).
  2. Tunnel oxide (thin, ~8–10 nm) — electrons cross this to reach the FG.
  3. Floating gate (poly-silicon, isolated) — the charge store.
  4. Inter-poly / control oxide (thicker) — blocks charge from escaping upward.
  5. Control gate (the terminal you actually drive).

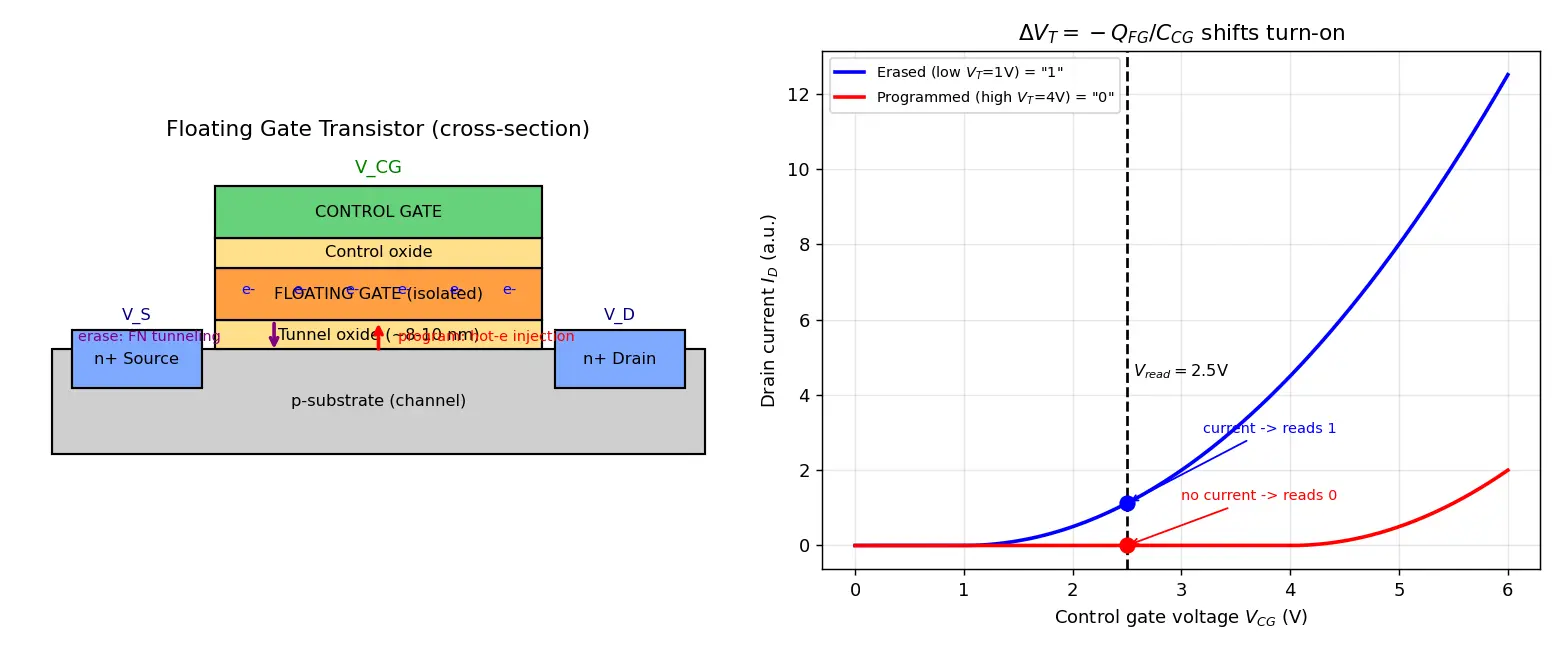

Figure — Floating gate transistor operation

WHY does stored charge encode a bit? (Derive the threshold shift)

WHY: In an ordinary MOSFET, the channel turns on when the control-gate voltage exceeds the threshold VTV_T. If we can change VTV_T at will and have it stay changed, we have a memory.

HOW — derive ΔVT\Delta V_T from charge conservation.

Treat the floating gate as the middle plate of two series capacitors:

  • CCGC_{CG} = capacitance between control gate and floating gate.
  • CFGC_{FG} = capacitance between floating gate and channel/substrate (and source/drain).

The floating-gate potential VFGV_{FG} is set by capacitive division of the control voltage VCGV_{CG} plus whatever charge QFGQ_{FG} sits on the gate. By charge on the FG node:

QFG=CCG(VFGVCG)+CFG(VFGVch)Q_{FG} = C_{CG}(V_{FG}-V_{CG}) + C_{FG}(V_{FG}-V_{ch})

Solve for VFGV_{FG} (take Vch=0V_{ch}=0 reference):

VFG=CCGCCG+CFGcoupling ratio αGVCG+QFGCCG+CFGV_{FG} = \underbrace{\frac{C_{CG}}{C_{CG}+C_{FG}}}_{\text{coupling ratio } \alpha_G}\,V_{CG} + \frac{Q_{FG}}{C_{CG}+C_{FG}}

Why this step? The FG is floating, so its voltage is not driven directly — it is whatever the capacitor network + trapped charge force it to be. That is exactly a capacitive divider with an extra charge term.

The device conducts when VFGV_{FG} reaches the intrinsic threshold VT0V_{T0}. Setting VFG=VT0V_{FG}=V_{T0} and solving for the control-gate voltage we must apply:

VT,observed=VT0αGQFGCCGV_{T,\text{observed}} = \frac{V_{T0}}{\alpha_G} - \frac{Q_{FG}}{C_{CG}}

Why the sign: electrons on the FG electrostatically oppose the control gate's field, so you need a bigger VCGV_{CG} to invert the channel.


HOW do electrons get on/off the isolated gate?

They can't flow through wires (it's isolated!), so we use quantum & high-field mechanisms across the thin tunnel oxide:

Reading the bit: apply a read voltage VreadV_{read} between the two thresholds. If the cell conducts → it's the erased/low-VTV_T state (1); if it stays off → programmed/high-VTV_T state (0).

VT(erased)<Vread<VT(programmed)V_{T}(\text{erased}) < V_{read} < V_{T}(\text{programmed})


Multi-Level Cells (the 80/20 payoff idea)

Because ΔVT\Delta V_T is continuous in QFGQ_{FG}, we can store more than one VTV_T level per cell. 4 distinct charge levels → 2 bits (MLC); 8 levels → 3 bits (TLC); 16 → 4 bits (QLC). Why the tradeoff: more levels = narrower voltage windows = less error margin = slower, less durable. This single idea explains most of modern SSD capacity/endurance tradeoffs.


Common mistakes


Forecast-then-Verify

Answer: smaller, because ΔVT=QFG/CCG\Delta V_T = -Q_{FG}/C_{CG} is inversely proportional to CCGC_{CG}. Bigger coupling capacitance "dilutes" the same trapped charge into a smaller voltage swing — a real design tension between good control-gate coupling (αG\alpha_G) and large sensing margin.


Flashcards

What physically distinguishes a floating gate transistor from an ordinary MOSFET?
An extra electrically-isolated conducting gate (the floating gate) buried in the oxide between the control gate and the channel.
Why is the floating gate transistor non-volatile?
The floating gate is surrounded by insulating oxide, so trapped charge has nowhere to leak and is retained without power.
State the threshold shift due to trapped charge.
ΔVT=QFG/CCG\Delta V_T = -Q_{FG}/C_{CG}.
Does adding electrons to the FG raise or lower the observed threshold?
Raises it (negative charge opposes the control gate, needing higher VCGV_{CG} to invert the channel).
Which state (programmed/erased) has the higher threshold?
Programmed (electrons stored) has the higher VTV_T; erased has the lower VTV_T.
In floating-gate NAND, which mechanism programs and which erases?
Program = channel hot-electron injection; Erase = Fowler–Nordheim tunneling.
Name the two charge-transfer mechanisms and their physics.
Fowler–Nordheim tunneling (electrons quantum-tunnel through the thinned oxide barrier under high field) and Channel Hot-Electron injection (accelerated channel electrons jump over the barrier).
How is a cell read without disturbing its data?
Apply a read voltage between the erased and programmed thresholds; sense current. It's too low to tunnel/inject charge, so it's non-destructive.
Define the gate coupling ratio αG\alpha_G.
αG=CCG/(CCG+CFG)\alpha_G = C_{CG}/(C_{CG}+C_{FG}); the fraction of control-gate voltage that appears on the floating gate.
Why do TLC/QLC cells store more bits but wear out faster?
More VTV_T levels packed into the same window → narrower margins → more errors and less endurance.

Recall Feynman: explain to a 12-year-old

Imagine a light switch that is sticky. Normally you push it and it turns the light on. But this switch has a tiny secret pocket inside where you can trap some invisible "grumpy dust" (electrons). When grumpy dust is in the pocket, the switch fights you — you have to push much harder to turn the light on. When the pocket is empty, the switch is easy. The trick: the pocket is sealed so tight that the dust stays for years, even if you unplug everything. So we look at "is this switch easy or hard to flip?" and that tells us whether we stored a 1 or a 0. That's a memory cell!

Connections

  • MOSFET operation — the FG cell is just a MOSFET with a modified gate; understand VTV_T first.
  • Fowler-Nordheim tunneling — the quantum mechanism that erases NAND cells.
  • Channel hot-electron injection — the mechanism that programs FG NAND (and NOR).
  • NAND vs NOR Flash architecture — how FG cells are wired into arrays.
  • Multi-level cell (MLC TLC QLC) — exploiting continuous ΔVT\Delta V_T.
  • Charge trap flash and 3D NAND — the successor that replaces the conductive FG with an insulating trap layer.
  • EEPROM and EPROM — earlier devices using the same principle.

Concept Map

add isolated gate

contains

surrounded by

charge cannot leak

enables

trapped charge Q_FG

sets

reaches V_T0

negative charge raises V_T

no charge lowers V_T

electrons cross by tunneling

Standard MOSFET

Floating Gate Transistor

Floating Gate poly-silicon

Insulating oxide

Non-volatile retention

Flash / EEPROM / EPROM

Threshold shift delta V_T

Capacitive divider C_CG and C_FG

Floating-gate potential V_FG

Programmed = stores 0

Erased = stores 1

Tunnel oxide ~8-10 nm
