Electric propulsion — thrust, power, Isp trade-off

1. WHAT is electric propulsion?

WHY it exists: Chemical rockets are limited by the chemical energy in their fuel, capping exhaust speed at $v_e \sim 4.5\ \text{km/s}$ . EP decouples the energy source (electricity) from the reaction mass (propellant), so we can reach $v_e \sim 20{-}50\ \text{km/s}$ . From the rocket equation $\Delta v = v_e \ln(m_0/m_f)$ , higher $v_e$ ⇒ enormously more $\Delta v$ per kg of propellant.

The catch: to give each ion that huge speed you must pump energy in, and power is limited. So EP produces tiny thrust (millinewtons) — great for deep-space cruising, useless for launch.

2. Deriving the core relations FROM SCRATCH

We track the exhaust beam. Let the thruster expel propellant at mass flow rate $\dot m$ (kg/s) with exhaust speed $v_e$ (m/s).

2.1 Thrust

In time $dt$ we eject mass $dm = \dot m\,dt$ at speed $v_e$ , carrying momentum $dp = v_e\,dm$ . Force = rate of momentum ejection:

F = \frac{dp}{dt} = v_e\,\dot m

2.2 Beam (jet) power

The kinetic energy given to mass $dm$ is $\tfrac12 dm\,v_e^2$ . Power = energy per second:

P_{jet} = \frac{d}{dt}\left(\tfrac12 m v_e^2\right) = \tfrac12 \dot m\, v_e^2

Real thrusters aren't perfect: electrical input $P_{in}$ is larger. Define efficiency $\eta = P_{jet}/P_{in}$ , so

P_{in} = \frac{\dot m\,v_e^2}{2\eta}.

2.3 The KEY relation — thrust per watt

Eliminate $\dot m$ using $F = \dot m v_e \Rightarrow \dot m = F/v_e$ :

P_{jet} = \tfrac12 \frac{F}{v_e} v_e^2 = \tfrac12 F v_e

2.4 Specific impulse

From $F=\dot m v_e$ :

I_{sp} = \frac{\dot m v_e}{\dot m g_0} = \frac{v_e}{g_0} \quad\Rightarrow\quad \boxed{v_e = g_0\, I_{sp}}

Why this step? $I_{sp}$ is just exhaust velocity rescaled — a fuel-economy score. High $I_{sp}$ = uses little propellant.

Substituting into the trade-off:

F = \frac{2\eta P_{in}}{g_0 I_{sp}}

So high $I_{sp}$ ⇒ low thrust for the same power. That's the trade-off, restated.

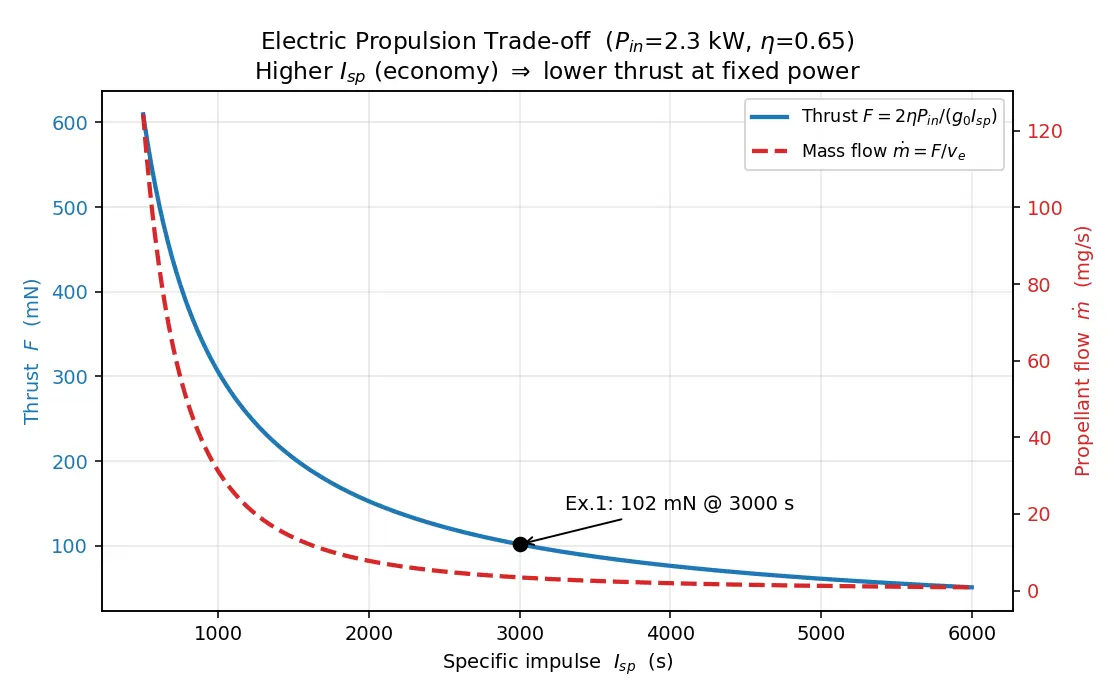

Figure — Electric propulsion — thrust, power, Isp trade-off

3. Worked examples

Worked example Example 1 — Thrust of an ion engine

A gridded ion thruster: $P_{in}=2.3\ \text{kW}$ , $\eta=0.65$ , $I_{sp}=3000\ \text{s}$ . Find $F$ and $\dot m$ .

Step 1: $v_e = g_0 I_{sp} = 9.81\times3000 = 2.94\times10^4\ \text{m/s}$ . Why? Convert the economy score to a real speed.

Step 2: $F = \dfrac{2\eta P_{in}}{v_e} = \dfrac{2(0.65)(2300)}{2.94\times10^4} = 0.102\ \text{N} \approx 102\ \text{mN}$ . Why? Trade-off equation directly.

Step 3: $\dot m = F/v_e = 0.102/2.94\times10^4 = 3.5\times10^{-6}\ \text{kg/s} = 3.5\ \text{mg/s}$ . Why? Tiny mass flow — that's why fuel lasts years.

4. Common mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine throwing tennis balls off a skateboard to push yourself forward. If you throw balls super fast, each ball shoves you hard — but making a ball go super fast takes a LOT of arm energy, so you can only throw a few. If you throw balls gently, you can throw tons of them, and lots of gentle throws add up to a steady push. An electric rocket uses electricity as the "arm." With a fixed-size arm (fixed power), you must choose: few fast balls (great mileage, weak push) or many slow balls (poor mileage, stronger push). You can't have strong push AND great mileage from the same little battery.

5. Active-recall flashcards

Thrust of a rocket in terms of

\dot m

and

v_e

F = \dot m\, v_e

(momentum ejected per second).

Jet (beam) power in terms of

\dot m,v_e

P_{jet}=\tfrac12 \dot m v_e^2

Relation between power, thrust, and exhaust speed?

P_{jet}=\tfrac12 F v_e

, so

F=2\eta P_{in}/v_e

Why can't you have high thrust AND high

I_{sp}

at fixed power?

Because

F\propto 1/v_e

at fixed power; raising

v_e

(hence

I_{sp}

) lowers thrust.

Convert

I_{sp}

to exhaust velocity?

v_e = g_0 I_{sp}

with

g_0=9.81\ \text{m/s}^2

Definition of thruster efficiency

\eta

\eta = P_{jet}/P_{in}

; input power supplies more than the beam power.

Units of

I_{sp}

and why?

Seconds; it's impulse per unit propellant weight (

F/\dot m g_0

Why is EP useless for launch but great for deep space?

Thrust is tiny (mN) — can't beat gravity fast — but huge

v_e

gives enormous

\Delta v

over long times.

Physical meaning of the wasted power

P_{in}-P_{jet}

Heat that must be radiated by the spacecraft.

6. Connections

Tsiolkovsky Rocket Equation — $\Delta v = v_e\ln(m_0/m_f)$ ; explains why high $v_e$ matters.
Specific Impulse — the fuel-economy metric $I_{sp}=v_e/g_0$ .
Chemical vs Electric Propulsion — energy-source vs reaction-mass decoupling.
Ion and Hall Thrusters — hardware achieving high $v_e$ .
Spacecraft Power Systems — solar arrays / RTGs set $P_{in}$ .
Thermal Control (radiators) — where the wasted $(1-\eta)P_{in}$ goes.
Newton's Third Law — root of $F=\dot m v_e$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Electric propulsion ka core idea simple hai: hum propellant ko electricity se bahut fast fenkte hain. Chemical rocket mein fuel ke andar hi energy hoti hai, isliye exhaust speed limited (~4.5 km/s). Electric mein energy solar panels/reactor se aati hai, aur reaction mass alag hota hai — isliye exhaust speed 20-50 km/s tak ja sakti hai. Rocket equation $\Delta v = v_e\ln(m_0/m_f)$ ke hisaab se zyada $v_e$ matlab bahut zyada mileage.

Lekin ek "catch" hai, aur yahi is note ka dil hai. Fixed power par thrust aur exhaust speed ek dusre ke ulte chalte hain: $P_{jet}=\tfrac12 F v_e$ , yaani $F = 2\eta P_{in}/v_e$ . Matlab agar aap $I_{sp}$ (economy) badhaoge, toh same power par thrust gir jaayega. Isiliye ion thrusters ka thrust sirf milli-newton mein hota hai — launch ke liye bekaar, par deep-space cruise ke liye lajawaab, kyunki mahino-saalon tak chalke bada $\Delta v$ de dete hain.

Ek tennis ball wala example yaad rakho: skateboard par khade hokar balls peeche fenko. Fast balls = strong dhakka par arm energy zyada lagti hai, isliye kam balls. Slow balls = kam dhakka par bahut saari, steady push. Fixed "arm" (power) ke saath tumhe choose karna padega. Bas yahi $I_{sp}$ -thrust trade-off hai.

Exam tip: $v_e = g_0 I_{sp}$ (yaad rakho $g_0=9.81$ , $I_{sp}$ seconds mein), aur hamesha poochho "yeh jet power hai ya input power?" — dono ke beech efficiency $\eta$ hoti hai, aur bacha hua power heat banke radiate karna padta hai.
