Typical Isp values — solid (~260s), LOX - RP1 (~311s), LOX - LH2 (~450s), ion engines (~3000s)

WHAT is $I_{sp}$ (so the numbers mean something)

WHY seconds? (deriving the unit from scratch)

Start with thrust for a rocket exhausting mass at effective exhaust velocity $v_e$ : $F = \dot m\, v_e$

Why this step? Newton's 2nd/3rd law: expelling mass at speed $v_e$ pushes you back — momentum flux $\dot m v_e$ is the force.

Now divide by weight flow rate $\dot m g_0$ instead of mass flow rate: $I_{sp} = \frac{F}{\dot m\, g_0} = \frac{\dot m v_e}{\dot m g_0} = \frac{v_e}{g_0}$

Why divide by weight? Historically engineers used weight (in units of force) so the result is the same number whether you work in metric or imperial — the units cancel to give plain seconds. That's the whole reason $I_{sp}$ is in seconds.

The benchmark table (the 80/20 you must memorize)

Engine type	Propellant	Typical $I_{sp}$	$v_e = I_{sp}g_0$ (m/s)
Solid motor	APCP (solid)	~260 s	~2550
Kerolox	LOX / RP-1	~311 s	~3050
Hydrolox	LOX / LH2	~450 s	~4410
Ion (electric)	Xe / Kr	~3000 s	~29 400

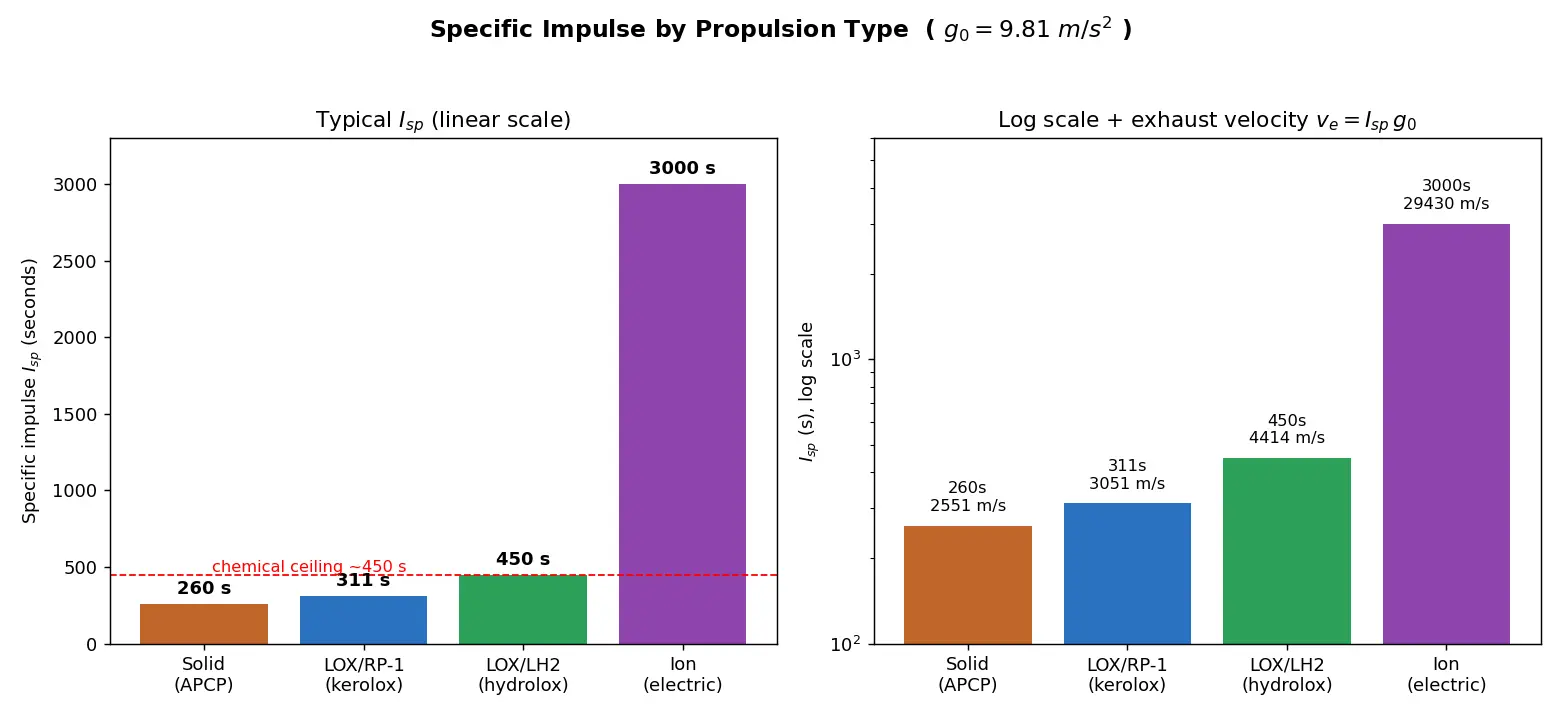

Figure — Typical Isp values — solid (~260s), LOX - RP1 (~311s), LOX - LH2 (~450s), ion engines (~3000s)

WHY chemical rockets are capped near ~450 s

$v_e \propto \sqrt{T_c/M}$ . You can only push chamber temperature $T_c$ so high before the engine melts, and $M$ can't go below hydrogen's exhaust. That combination caps chemical $I_{sp}$ around 450 s. Ion engines escape this because they use electrical energy, not the chemical energy locked in bonds.

WHY ion engines aren't used for launch (the trade-off)

Ion engines have huge $I_{sp}$ but tiny thrust (millinewtons). Thrust $F=\dot m v_e$ : they push out very little mass, so even at 29 km/s the force can't lift a rocket off the ground. High $I_{sp}$ ≠ high thrust. Chemical rockets: low $I_{sp}$ , enormous thrust → launch. Ion: high $I_{sp}$ , tiny thrust → deep-space cruising.

Why $I_{sp}$ matters: the Tsiolkovsky link

Worked examples

Forecast-then-Verify

Common mistakes (Steel-manned)

Flashcards

What are the units of specific impulse and why?

Seconds; because dividing thrust by weight flow rate (

\dot m g_0

) cancels all units except time — same number in metric or imperial.

Formula linking

I_{sp}

and exhaust velocity?

v_e = I_{sp}\,g_0

with

g_0=9.81\ \text{m/s}^2

Typical

I_{sp}

of a solid rocket motor?

~260 s.

Typical

I_{sp}

of LOX/RP-1 (kerolox)?

~311 s.

Typical

I_{sp}

of LOX/LH2 (hydrolox)?

~450 s (highest of chemical rockets).

Typical

I_{sp}

of an ion engine?

~3000 s.

Why does LOX/LH2 beat other chemical propellants?

v_e \propto \sqrt{T_c/M}

; H

_2

O/H

_2

exhaust has the lowest molar mass

M

→ highest exhaust velocity.

Why can't ion engines launch rockets despite high

I_{sp}

Their thrust

F=\dot m v_e

is tiny (mN) because

\dot m

is minuscule — can't overcome gravity.

I_{sp}

affected by planetary gravity?

No;

g_0

is a fixed constant used only for unit conversion.

I_{sp}

is an engine/propellant property.

How does

I_{sp}

enter Tsiolkovsky's equation?

\Delta v = I_{sp}g_0\ln(m_0/m_f)

—

\Delta v

scales linearly with

I_{sp}

Thrust in terms of

I_{sp}

and mass flow?

F = \dot m\, I_{sp}\, g_0

Recall Feynman: explain to a 12-year-old

Imagine two toy cars, each with a balloon. One balloon squirts air out slowly, the other blasts air out super fast. The fast one pushes the car much farther for the same puff of air — it's more efficient. Specific impulse is just a score for "how fast the engine spits stuff out." Solid firework-type rockets get a low score (~260), the hydrogen ones score higher (~450), and space "ion" engines that shoot tiny electric-charged bits score a giant ~3000. But here's the trick: the ion engine spits out so little stuff that it can barely push — it's efficient but weak, great for slow steady space cruising, useless for blasting off the ground.

Connections

Tsiolkovsky Rocket Equation — where $I_{sp}$ turns into $\Delta v$ .
Thrust and Mass Flow Rate — $F=\dot m v_e$ , the thrust vs efficiency trade-off.
Exhaust Velocity and Nozzle Design — how $v_e \propto \sqrt{T_c/M}$ arises.
Ion and Electric Propulsion — why $I_{sp}$ escapes the chemical ceiling.
Staging and Mass Ratio — using $I_{sp}$ to size stages.
Combustion Chamber Temperature — the melting-point limit capping chemical $I_{sp}$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, specific impulse (Isp) basically rocket engine ka "mileage" hai — jaise gaadi ka km-per-litre, waise hi rocket ka impulse-per-kg-fuel, lekin ye number seconds mein aata hai. Formula simple hai: $I_{sp} = v_e / g_0$ , yaani exhaust velocity ko 9.81 se divide kar do. Jitna zyada Isp, utna efficient engine — same fuel se zyada "dhakka".

Yaad rakhne wale numbers (ye 80/20 hai, exam mein pakka): solid rocket ~260 s, LOX/RP-1 (kerosene) ~311 s, LOX/LH2 (hydrogen) ~450 s, aur ion engine ~3000 s. Chemical rockets mein hydrogen wala sabse best hai kyunki uska exhaust (paani + hydrogen) sabse halka hota hai, aur $v_e \propto \sqrt{T_c/M}$ — halka molecule matlab tez exhaust. Lekin chemistry ki ek limit hai, isliye chemical Isp ~450 s pe ruk jaata hai. Ion engine electricity use karta hai, isliye wo ceiling tod deta hai aur 3000 s tak pahunch jaata hai.

Ek important trap: zyada Isp ka matlab zyada thrust nahi hota! Ion engine ka Isp bahut high hai par thrust bahut chhota (millinewton) — kyunki wo bahut kam mass throw karta hai ( $F = \dot m v_e$ ). Isliye ion engine se rocket launch nahi hota; wo sirf space mein slow-steady travel ke liye best hai. Launch ke liye chahiye solid ya kerolox — kam Isp par bhut zyada thrust.

Aur ek confusion: yahan $g_0 = 9.81$ koi "local gravity" nahi hai — ye sirf ek fixed unit-conversion constant hai taaki answer seconds mein aaye. Moon pe le jao ya Mars pe, engine ka Isp same rahega. Bas isko yaad rakho aur Tsiolkovsky equation ( $\Delta v = I_{sp} g_0 \ln(m_0/m_f)$ ) mein daalo — high Isp seedha zyada $\Delta v$ deta hai.
