Typical Isp values — solid (~260s), LOX - RP1 (~311s), LOX - LH2 (~450s), ion engines (~3000s): Question bank

This bank sharpens the ideas in the parent topic. Prerequisites worth re-reading if a line stings: Tsiolkovsky Rocket Equation, Thrust and Mass Flow Rate, Exhaust Velocity and Nozzle Design, Ion and Electric Propulsion, Combustion Chamber Temperature, and Staging and Mass Ratio.

Symbol kit — read this before the traps

The traps below reuse a small set of letters over and over. Here is every one, in plain words, so no line surprises you. Look at the figure: it is a cartoon of one rocket throwing gas out the back.

Figure — Typical Isp values — solid (~260s), LOX - RP1 (~311s), LOX - LH2 (~450s), ion engines (~3000s)

Definition The symbols, one by one

== $F$ (thrust)== — the forward push on the rocket, measured in newtons (N). In the figure it is the pale-yellow arrow pointing forward (up).
== $\overset{m}{˙}$ (mass flow rate)== — how many kilograms of propellant leave the nozzle each second, in kg/s. The little dot over $m$ just means "rate of, per second." It is the width of the chalk-blue gas stream in the figure.
== $v_{e}$ (exhaust velocity)== — how fast that gas leaves, in m/s. The pink arrow pointing backward (down).
== $g_{0}$ == — a fixed number, $9.81 m/s^{2}$ . It is NOT the gravity where you happen to be; treat it as a printed conversion factor, explained below.
== $I_{s p}$ (specific impulse)== — the engine's efficiency score, in seconds. Defined as $I_{s p} = v_{e} / g_{0}$ .
== $m_{0}$ == — the rocket's starting (wet) mass: structure + payload + all propellant, in kg.
== $m_{f}$ == — the rocket's final (dry) mass after the burn: everything left once the propellant is gone, in kg. So $m_{0} > m_{f}$ always, and $m_{0} - m_{f}$ is the propellant burned.
== $Δ v$ == — the total change in the rocket's speed the burn delivers, in m/s. The Greek $Δ$ ("delta") just means "change in."
== $T_{c}$ == — chamber temperature, in kelvin: how hot the burning gas is before it leaves.
== $M$ == — molar mass of the exhaust: the mass of one "mole" (a fixed count) of exhaust molecules, in kg/mol. Small $M$ = light molecules like H $_{2}$ ; large $M$ = heavy molecules.
== $γ$ (gamma) and $R$ == — a property of the gas ( $γ$ , how springy it is) and the universal gas constant ( $R$ ); both appear in the full $v_{e}$ formula below.

The three formulas, and WHY they look like that

You will use exactly three relations. Here is where each one comes from, in words a beginner can follow.

Formula 3. Exhaust velocity of a hot gas — the FULL version

The shortcut $v_{e} \propto T_{c} / M$ used in the traps is a simplification of the real nozzle result: $v_{e} = \frac{2 γ}{γ - 1} \frac{R T _{c}}{M} [1 - (\frac{p _{e}}{p _{c}})^{\frac{γ - 1}{γ}}]$ Reading it piece by piece: hotter gas ( $T_{c}$ up) and lighter molecules ( $M$ down) both raise $v_{e}$ — that is the $T_{c} / M$ core. The $γ$ terms describe how efficiently the gas's heat converts to motion as it expands. The bracket with $p_{e} / p_{c}$ (nozzle exit pressure over chamber pressure) says: the more you let the gas expand and drop in pressure, the more of its energy becomes speed. So nozzle expansion ratio matters too — a bigger bell squeezes out more $v_{e}$ . When we write $v_{e} \propto T_{c} / M$ we are freezing $γ$ , $R$ , and the pressure bracket and looking only at the two dials that differ most between propellants. (More at Exhaust Velocity and Nozzle Design.)

True or false — justify

A rocket flown to the Moon has a higher

I_{s p}

because Moon gravity is weaker.

False. The

g_{0}

I_{s p} = v_{e} / g_{0}

is a fixed defined constant (

9.81 m/s^{2}

), a unit-conversion factor — not the local gravitational field.

I_{s p}

is a property of the engine and propellant, so it is identical on the Moon.

Doubling an engine's

I_{s p}

(same mass ratio) doubles the achievable

Δ v

True. Since

Δ v = I_{s p} g_{0} ln (m_{0} / m_{f})

and the log term is fixed by the mass ratio,

Δ v

scales linearly with

I_{s p}

An engine with higher

I_{s p}

always produces more thrust.

False. Thrust is

F = \overset{m}{˙} v_{e}

; it depends on how much mass you throw. Ion engines have huge

v_{e}

but a tiny

\overset{m}{˙}

, so their thrust is only millinewtons.

A solid rocket motor is a poor engine because its

I_{s p}

is only ~260 s.

False. Low

I_{s p}

just means low efficiency-per-kilogram; solids deliver enormous thrust, are simple, storable and reliable — ideal boosters for liftoff where brute force matters.

I_{s p}

measured in seconds and

v_{e}

measured in m/s carry exactly the same physical information.

True. They are locked by

v_{e} = I_{s p} g_{0}

, so knowing one gives the other; seconds is just a units-cancelling rescaling of exhaust velocity.

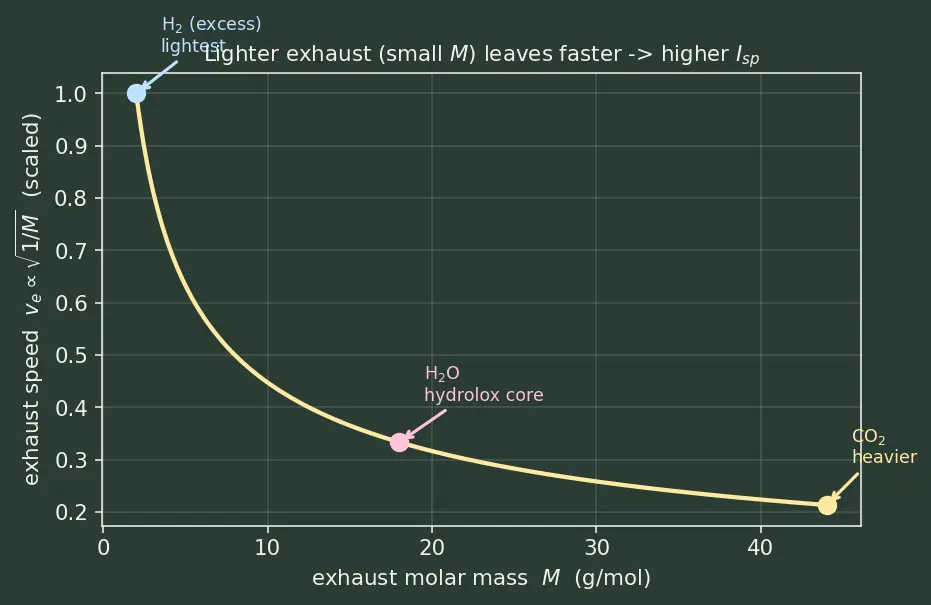

Hydrolox (LOX/LH2) beats kerolox mainly because it burns hotter.

False (mostly). Since

v_{e} \propto T_{c} / M

, hydrolox actually burns cooler than kerolox in many cases — it wins because its exhaust (H

_{2}

O plus excess H

_{2}

) has very low molar mass

M

, and small

M

raises

v_{e}

If you could keep raising chamber temperature forever, a chemical rocket's

I_{s p}

could exceed an ion engine's.

False in practice. Materials melt, so

T_{c}

is capped, and

M

cannot drop below hydrogen-rich exhaust — together these cap chemical

I_{s p}

near ~450 s, far below the ~3000 s of ion engines.

Two engines with the same

\overset{m}{˙}

but different

I_{s p}

produce the same thrust.

False.

F = \overset{m}{˙} I_{s p} g_{0}

, so at equal mass flow the higher-

I_{s p}

engine produces proportionally more thrust. (The reason ion engines are weak is their tiny

\overset{m}{˙}

, not their

I_{s p}

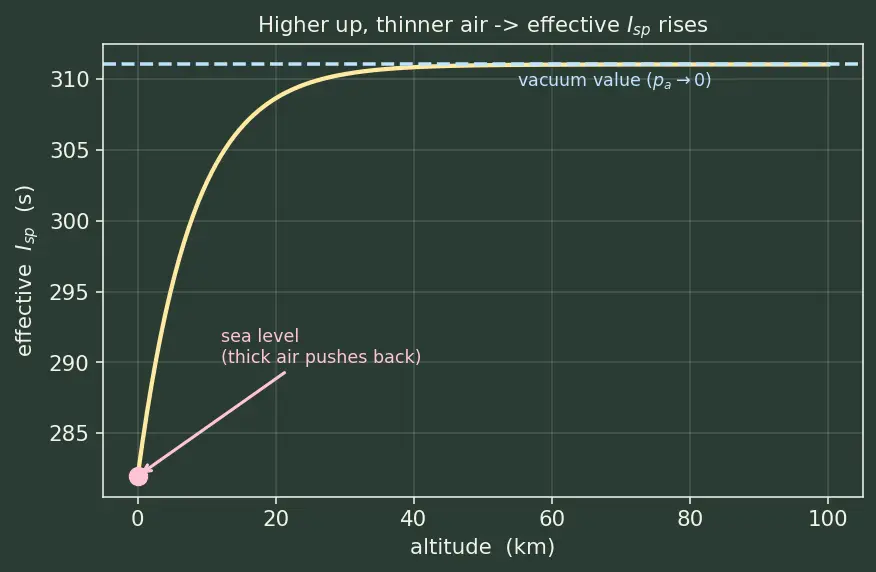

A rocket's

I_{s p}

is the same at sea level and in vacuum.

False. Because real thrust carries a pressure term

(p_{e} - p_{a}) A_{e}

, the ambient air pressure

p_{a}

at sea level reduces effective thrust and hence

I_{s p}

; in vacuum

p_{a} \to 0

and

I_{s p}

rises to its higher vacuum value.

Spot the error

"Since

I_{s p} = F / (\overset{m}{˙} g_{0})

and

g_{0}

is gravity, an engine tested in vacuum with no gravity has infinite

I_{s p}

Wrong:

g_{0}

is a defined constant

9.81 m/s^{2}

, always present in the formula regardless of the actual gravitational environment. Nothing goes to infinity.

v_{e} \propto T_{c} \cdot M

, so heavier exhaust molecules give faster exhaust."

The relation is

v_{e} \propto T_{c} / M

— molar mass

M

is in the denominator. Heavier exhaust means lower

v_{e}

, which is exactly why heavy solid-motor exhaust gives low

I_{s p}

"An ion engine's 29 km/s exhaust means it can lift heavy payloads off the launch pad."

High exhaust speed alone does not lift anything; thrust

F = \overset{m}{˙} v_{e}

is what fights weight, and the ion engine's

\overset{m}{˙}

is so small that

F

is a fraction of a newton — nowhere near liftoff thrust.

I_{s p}

of LOX/RP-1 is 311 s, so its exhaust velocity is 311 m/s."

You forgot to multiply by

g_{0}

. Exhaust velocity is

v_{e} = I_{s p} g_{0} = 311 \times 9.81 \approx 3050 m/s

, roughly 3 km/s.

"Because

Δ v = I_{s p} g_{0} ln (m_{0} / m_{f})

, an engine with double the thrust gives double the

Δ v

Thrust does not appear in the

Δ v

formula — only

I_{s p}

and the mass ratio do. Thrust sets how fast you gain

Δ v

, not the total achievable.

I_{s p}

is thrust divided by mass flow rate, so its units are already seconds."

Not quite —

F / \overset{m}{˙}

has units of m/s (that's

v_{e}

). You must divide by weight flow rate

\overset{m}{˙} g_{0}

; the extra

g_{0}

(m/s²) is what cancels down to plain seconds.

"We run LOX/LH2 fuel-rich purely by accident because mixing is imperfect."

Wrong — it is deliberate. Excess H

_{2}

lowers exhaust molar mass

M

(raising

v_{e}

) and absorbs heat to protect the engine; the fuel-rich mixture is an engineered

I_{s p}

optimization, not sloppiness.

Why questions

Why is

I_{s p}

deliberately defined using weight flow rate instead of mass flow rate?

Dividing by

\overset{m}{˙} g_{0}

cancels every unit except time, giving the same number in metric or imperial systems — a historical convenience so engineers on both systems could compare engines directly.

Why does dividing thrust by weight flow rate produce seconds and not, say, meters?

F

is in N = kg·m/s², and

\overset{m}{˙} g_{0}

is (kg/s)(m/s²) = kg·m/s³; the ratio leaves

1/ (1/ s) = s

, so mass, length and one time factor all cancel.

Why does the rocket equation contain a logarithm rather than a simple product?

Because the rocket loses mass as it burns, so each later kilogram of exhaust accelerates an ever-lighter vehicle; summing those shrinking contributions as mass falls from

m_{0}

m_{f}

yields

ln (m_{0} / m_{f})

Why do ion engines escape the ~450 s ceiling that traps all chemical rockets?

Chemical engines are limited by the fixed energy in molecular bonds (setting

T_{c}

) and by achievable exhaust

M

. Ion engines add electrical energy from an external source to accelerate ions, so they are not bound by combustion chemistry at all.

Why is high

I_{s p}

prized for deep-space cruising but not for launch?

In space you have time, so a weak but efficient thrust slowly builds large

Δ v

with little propellant. At launch you must beat gravity immediately, which demands large thrust — favouring low-

I_{s p}

, high-

\overset{m}{˙}

chemical engines.

Why does the same

Δ v

maneuver need far less propellant with an ion engine?

Mass ratio is

m_{0} / m_{f} = e^{Δ v / (I_{s p} g_{0})}

; a large

I_{s p}

shrinks the exponent, so the exponential mass ratio drops close to 1, meaning only a small propellant fraction is spent.

Why does a longer, wider nozzle bell raise

v_{e}

even with the same propellant?

The full formula's pressure bracket

[1 - (p_{e} / p_{c})^{(γ - 1) / γ}]

grows as the gas expands to lower exit pressure

p_{e}

; a bigger bell allows more expansion, converting more thermal energy into exhaust speed.

Why is the

I_{s p}

ordering solid < kerolox < hydrolox physically expected?

All obey

v_{e} \propto T_{c} / M

: solids have heavy metal-oxide exhaust (large

M

), kerolox has moderate-

M

_{2}

_{2}

O, and hydrolox has the lightest exhaust (H

_{2}

O + excess H

_{2}

), so

v_{e}

and hence

I_{s p}

climb in that order.

Edge cases

\overset{m}{˙} \to 0

(engine barely trickling propellant), what happens to thrust and to

I_{s p}

Thrust

F = \overset{m}{˙} v_{e} \to 0

(it vanishes), but

I_{s p} = v_{e} / g_{0}

is unchanged because it does not depend on how much mass flows — only on exhaust speed. This is the ion-engine limit: near-zero thrust, high

I_{s p}

If an engine's exhaust velocity were exactly

g_{0} \times 1 s

, what would its

I_{s p}

be?

Exactly 1 second, since

I_{s p} = v_{e} / g_{0}

; this shows

I_{s p}

in seconds is literally "how many multiples of

g_{0}

your exhaust speed is."

Suppose a chemical engine could somehow exhaust pure atomic hydrogen at the same

T_{c}

— what happens to

I_{s p}

M

drops to its lowest possible value, so

v_{e} \propto T_{c} / M

rises, pushing

I_{s p}

toward the extreme upper edge of the chemical range — this is why hydrogen-rich exhaust is chased so hard.

Two maneuvers need the same

Δ v

, one done with a solid stage and one with hydrolox. If both start with identical dry mass, which needs more propellant, and why?

The solid stage (lower

I_{s p}

) needs a larger mass ratio

e^{Δ v / (I_{s p} g_{0})}

, so it burns substantially more propellant to reach the same

Δ v

What is the limiting behaviour of the mass ratio

m_{0} / m_{f}

I_{s p} \to \infty

for a fixed

Δ v

The exponent

Δ v / (I_{s p} g_{0}) \to 0

, so

m_{0} / m_{f} \to e^{0} = 1

— an infinitely efficient engine would need essentially no propellant to gain that

Δ v

Can thrust ever go negative (backflow), and what would that mean physically?

Yes in the pressure sense: if a nozzle is over-expanded at sea level, the exit pressure

p_{e}

falls below ambient

p_{a}

, making the

(p_{e} - p_{a}) A_{e}

term negative and reducing net thrust; in severe cases the flow separates from the nozzle wall, which is why sea-level nozzles are kept shorter than vacuum ones.

A booster is fired on Earth and an identical unit on Mars. Does its

I_{s p}

(as printed on the spec sheet) differ?

The

g_{0}

-based spec value is the same, but the effective

I_{s p}

differs slightly because Mars's thin atmosphere (

p_{a}

low) fights the exhaust less than Earth's — a pressure effect, not a gravity effect.

What happens to

v_{e}

if chamber temperature

T_{c}

drops toward zero (a cold, barely-reacting mix)?

Since

v_{e} \propto T_{c} / M

v_{e} \to 0

T_{c} \to 0

; with no thermal energy to expand, the gas leaves slowly and

I_{s p}

collapses — this is why sustaining a hot chamber is essential.

Recall One-line summary of every trap

Efficiency ( $I_{s p}$ ) is not force ( $F = \overset{m}{˙} v_{e}$ ); $g_{0}$ is a constant not local gravity; exhaust speed follows the full nozzle formula but is dominated by light exhaust ( $M$ down) and hot chamber ( $T_{c}$ up); and ambient air pressure — not gravity — is what shifts $I_{s p}$ with altitude.
