Foundations — Typical Isp values — solid (~260s), LOX - RP1 (~311s), LOX - LH2 (~450s), ion engines (~3000s)

Before you can trust the parent note's table and formulas, you need to own every symbol it uses. This page builds each one from nothing — plain words, a picture, and the reason the topic needs it.

1. Mass $m$ and the "stuff" a rocket throws

The picture: think of a bucket of sand. The sand is the propellant — the stuff the rocket will hurl out the back. The bucket getting lighter as sand pours out is the whole story of a rocket flight.

Why the topic needs it: a rocket works by losing mass out its nozzle. We will constantly track two masses — the full rocket ($m_0$) and the empty rocket ($m_f$) — so we must first agree what "mass" means.

2. Rate of change and the dot: $\dot{m}$ (mass flow rate)

Here a new piece of notation enters: a dot over a letter. We must earn it before using it.

Why a dot and not just a letter? The dot is shorthand for "rate of change per second." Plain $m$ is how much sand is in the bucket; $\dot{m}$ is how fast the sand is pouring out right now. They are different questions, so they get different symbols.

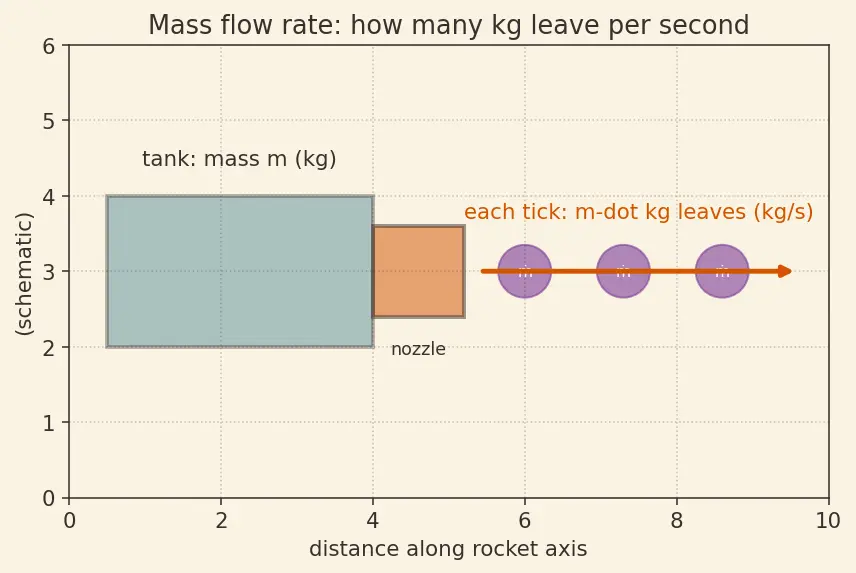

Look at the figure: the tank on the left holds mass $m$. Each tick of the clock, a fixed lump of gas of size $\dot{m}$ (one second's worth) shoots out the nozzle on the right. If $\dot{m}=500\text{kg/s}$, then every single second the rocket is $500$ kg lighter.

Why the topic needs it: thrust and $I_{sp}$ both depend on how fast you throw mass, not just how much you have. Without $\dot{m}$ you cannot write $F=\dot{m}{v}_e$.

3. Velocity, and specifically exhaust velocity $v_e$

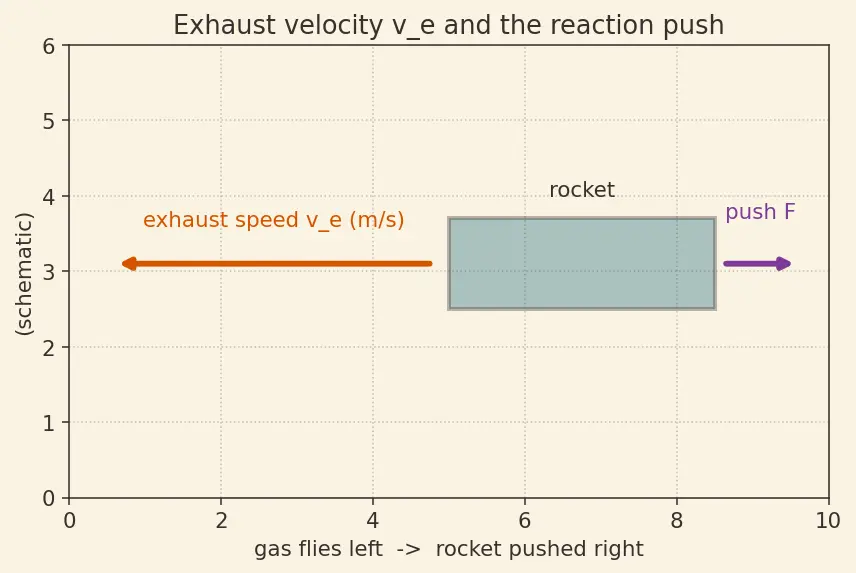

The picture: the same nozzle, now with a red arrow showing how fast each puff of gas flies out the back. A slow leak = small $v_e$; a screaming jet = large $v_e$.

Why the topic needs it: exhaust velocity is the physical thing $I_{sp}$ secretly measures — the master relation is $v_e=I_{sp}{g}_0$. Everything about "which engine is better" comes down to how fast it flings its exhaust.

4. Momentum, force, and thrust $F$

To understand why throwing gas pushes the rocket, we need momentum.

Because the rocket flings mass $\dot{m}$ (per second) at speed $v_e$, the backward momentum thrown per second — which is the force — is:

$F=\dot{m}{v}_e$

Why multiply these two? Momentum thrown per second $=$ (mass per second) $\times$ (speed of that mass) $=\dot{m}\times v_e$. That per-second momentum is exactly what "force" means.

Why the topic needs it: thrust is the quantity you feel at launch, and it appears in the very definition of $I_{sp}=F/(\dot{m}{g}_0)$.

5. The constant $g_0$ — a ruler, not a place

Weight vs mass: weight is a force $=m\times g_0$ (units: newtons). Dividing the mass flow $\dot{m}$ by $g_0$... no — we multiply: $\dot{m}{g}_0$ is the weight flow rate (newtons per second). This is the trick that gives $I_{sp}$ its unit of seconds.

6. Putting it together: what $I_{sp}$ literally is

The figure shows the unit cancellation as a picture: the $\dot{m}$ in top and bottom crosses out, leaving $v_e/g_0$, whose units are $\frac{\text{m/s}}{{\text{m/s}}^2}=\text{s}$. That is why the answer is in seconds.

7. The logarithm $\ln$ and the mass ratio $m_0/m_f$

The parent note's payoff uses two more pieces: a ratio and a logarithm.

Why a logarithm appears at all: as the rocket burns fuel it gets lighter, so the same thrust accelerates it more and more. Adding up that ever-increasing acceleration over the whole burn gives a logarithm — this is the Tsiolkovsky result:

$\Delta v=I_{sp}{g}_0\ln \frac{m_0}{m_f}$

You will meet the full derivation in Tsiolkovsky Rocket Equation.

How these feed the topic

Each foundation on the left is something you can now define in plain words. Together they let the parent topic write $F=\dot{m}{v}_e$, $I_{sp}=v_e/g_0$, and $\Delta v=I_{sp}{g}_0\ln (m_0/m_f)$ without any unexplained symbol.

Related builds you may want next: Thrust and Mass Flow Rate, Exhaust Velocity and Nozzle Design, Staging and Mass Ratio, Ion and Electric Propulsion, and Combustion Chamber Temperature.

A quick sanity check with the parts

Equipment checklist

Test yourself — say the answer out loud before revealing.
