Visual walkthrough — Typical Isp values — solid (~260s), LOX - RP1 (~311s), LOX - LH2 (~450s), ion engines (~3000s)

This is the parent: (topic). We lean on Thrust and Mass Flow Rate, Exhaust Velocity and Nozzle Design, Tsiolkovsky Rocket Equation, and Combustion Chamber Temperature along the way.

---

Step 1 — The single event: one puff of gas leaves the rocket

WHAT. Picture a rocket floating in empty space. In one tiny slice of time it flings a small blob of exhaust gas out the back. Nothing else happens — no gravity, no air.

WHY start here. Every rocket formula, no matter how fancy, is just this one event repeated millions of times. If we understand one puff completely, we understand the whole engine. Nothing is allowed in yet except two ideas: mass (how much stuff, in kilograms) and velocity (how fast it moves, in metres per second).

PICTURE. The rocket (blue) sits still. A grey blob of gas is about to shoot left at speed $v_e$ (orange arrow). The rocket will recoil right.

---

Step 2 — Newton hands us the thrust

WHAT. We turn "gas thrown back" into a number for the forward push, called thrust $F$.

WHY this tool — momentum. We need a quantity that says "throwing mass fast pushes hard." That quantity is momentum = mass $\times$ velocity. Newton's third law says: the momentum you give the gas per second is exactly the force the gas gives back to you. So we ask how much momentum leaves per second? — and that per-second momentum is the force.

Momentum leaving per second $=$ (kg leaving per second) $\times$ (speed each kg has):

$F=\underset{\text{kg/s of gas}}{\underbrace{\dot{m}}}\times \underset{\text{m/s of gas}}{\underbrace{v_e}}$

Multiply the units: $\frac{\text{kg}}{\text{s}}\cdot \frac{\text{m}}{\text{s}}=\frac{\text{kg}\cdot \text{m}}{{\text{s}}^2}=\text{newtons}$. Good — that's a force.

PICTURE. Two engines side by side. The left throws a little gas fast; the right throws a lot of gas fast. The right one gets a fatter red push-arrow — more $\dot{m}$ or more $v_e$ both grow $F$.

---

Step 3 — The efficiency question: "how much punch per kilo of fuel?"

WHAT. Thrust alone doesn't tell you if an engine is thrifty. A brute that burns a tanker of fuel a second can out-push a thrifty engine yet waste everything. We want a fairness score: how much push over time do we buy with each unit of propellant?

WHY divide. To compare "output" against "cost", you divide output by cost. Output over a time slice $\Delta t$ is impulse = force $\times$ time $=F\Delta t$. Cost is the propellant used in that slice. So:

$\text{score}=\frac{\text{impulse}}{\text{propellant used}}=\frac{F\Delta t}{(\dot{m}\Delta t)}$

PICTURE. A balance scale: on the left pan the impulse block $F\Delta t$; on the right pan the propellant block. The score is how high the impulse pan floats per kilo on the other side.

---

Step 4 — The choice that makes the unit seconds

WHAT. In Step 3 the "propellant used" was a mass ($\dot{m}\Delta t$, in kg). Engineers instead divide by the propellant's weight — that is, mass times a fixed gravity constant $g_0$.

WHY weight and not mass? This is the crucial trick, so slow down. If you divide impulse by mass, the score has units $\frac{\text{N}\cdot \text{s}}{\text{kg}}=\text{m/s}$ — which is just $v_e$ back again. Fine, but it differs between metric and imperial. If instead you divide by weight (a force), the newtons on top cancel the newtons on the bottom, and you are left with pure seconds — the same number on every planet, in every unit system.

$I_{sp}=\frac{F\Delta t}{\underset{\text{mass (kg)}}{\underbrace{\dot{m}\Delta t}}\cdot \underset{9.81{\text{m/s}}^2}{\underbrace{g_0}}}=\frac{F}{\dot{m}{g}_0}$

Watch the $\Delta t$ cancel (top and bottom) and watch the units: $\frac{\text{N}}{(\text{kg/s})\cdot ({\text{m/s}}^2)}=\frac{\text{kg}{\text{m/s}}^2}{\text{kg}{\text{m/s}}^3}=\text{s}.✓$

PICTURE. A number line of units: start at $\text{N}\cdot \text{s}$, divide by kg → land on m/s; divide by kg·(m/s²) → land on s. The "÷ by weight" arrow is the one that reaches seconds.

---

Step 5 — Collapsing to the master relation

WHAT. Now substitute the thrust from Step 2 ($F=\dot{m}{v}_e$) into the $I_{sp}$ formula from Step 4 and watch almost everything cancel.

WHY. We want $I_{sp}$ expressed in terms of something physical we can picture — the exhaust speed — with no reference to how much or how long.

$I_{sp}=\frac{F}{\dot{m}{g}_0}=\frac{\cancel{\dot{m}}{v}_e}{\cancel{\dot{m}}{g}_0}=\frac{v_e}{g_0}$

The $\dot{m}$ divides out entirely: $I_{sp}$ does not care how much gas you throw, only how fast. Rearranged:

$\boxed{v_e=I_{sp}{g}_0}$

Reading it: $I_{sp}$ in seconds is just exhaust speed $v_e$ shrunk by $9.81$. Multiply back by $9.81$ to recover the physical speed. Every row of the parent table is this one multiplication.

PICTURE. A two-scale ruler: top ruler in seconds ($I_{sp}$), bottom ruler in m/s ($v_e$), locked together by the factor $g_0=9.81$. Slide to $260$ s → $2550$ m/s; slide to $3000$ s → $29,400$ m/s.

Recall

Why does $\dot{m}$ disappear from $I_{sp}$? ::: It cancels between thrust ($F=\dot{m}{v}_e$) and weight-flow ($\dot{m}{g}_0$). $I_{sp}$ measures speed-per-fuel, not amount, so "how much" must drop out.

---

Step 6 — WHY the numbers order the way they do

WHAT. We plug in where $v_e$ comes from physically to explain the table. From gas thermodynamics (Exhaust Velocity and Nozzle Design):

$v_e\propto \sqrt{\frac{T_c}{M}}$

$T_c$ = combustion chamber temperature (K), $M$ = molar mass of the exhaust (kg/mol — how heavy each gas particle is).

WHY this shape — a square root of a ratio. Hotter gas ($T_c$ up) means faster-jiggling molecules → faster exhaust. Lighter molecules ($M$ down) means the same thermal energy gives them more speed (light things move faster for the same push). The square root appears because kinetic energy goes as speed squared, so speed goes as square-root of energy.

Since $v_e=I_{sp}{g}_0$, higher $v_e$ is higher $I_{sp}$:

• Solid — heavy metal-oxide smoke, big $M$ → low $v_e$ → ~260 s.
• LOX/RP-1 — CO₂/H₂O exhaust, medium $M$ → ~311 s.
• LOX/LH₂ — mostly water + leftover H₂, smallest $M$ → highest chemical $v_e$ → ~450 s.
• Ion — no $T_c$ limit at all; an electric field flings ions to enormous speed → ~3000 s.

WHY chemistry caps near 450 s. You can only raise $T_c$ so far before the engine melts (Combustion Chamber Temperature), and $M$ can't drop below hydrogen's exhaust. Ion engines dodge both because they use electrical energy, not chemical bonds.

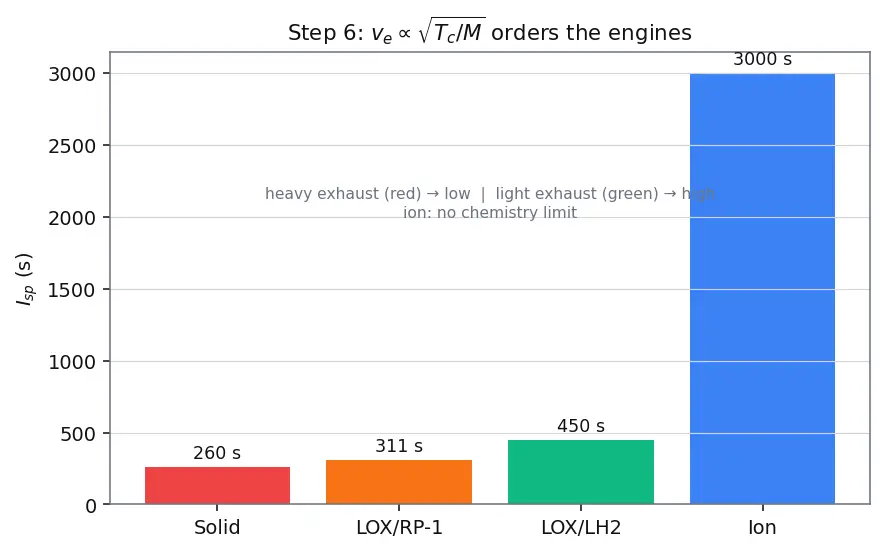

PICTURE. Bars for the four engines. Colour = molar mass (light = green, heavy = red). Height = $I_{sp}$. See the ion bar tower over the rest, and the light-exhaust hydrolox beat its chemical siblings.

---

Step 7 — The degenerate case: high $I_{sp}$ but no liftoff

WHAT. An edge case that trips everyone. Ion: $I_{sp}=3000$ s (huge!) but $\dot{m}$ only a few milligrams per second. What thrust?

WHY include it. The whole point of separating $\dot{m}$ from $v_e$ pays off here. $I_{sp}$ (efficiency) says nothing about $F$ (push) — you must put $\dot{m}$ back to get force:

$F=\dot{m}{v}_e=\dot{m}(I_{sp}{g}_0)=(5\times 10^{-6})\times 3000\times 9.81\approx 0.15\text{N}$

That's the weight of a couple of coins. It cannot lift a rocket. Degenerate limit: as $\dot{m}\to 0$, $F\to 0$ no matter how large $I_{sp}$ is. High score, feeble shove.

Contrast a solid booster: modest $I_{sp}=260$ s but $\dot{m}$ of tonnes per second → millions of newtons → liftoff.

PICTURE. Two arrows to scale: a gigantic solid-booster thrust arrow next to a nearly invisible ion thrust dot — but the ion carries a huge "efficiency" ribbon. Push and thrift are independent axes.

---

The one-picture summary

Everything on this page, from one puff of gas to the four benchmark numbers, collapses into a single flow: throw gas → get thrust → score it by weight → the mass cancels → $v_e=I_{sp}{g}_0$ → thermodynamics orders the engines → but thrust still needs $\dot{m}$.

Recall Feynman: the whole walkthrough in plain words

A rocket is a thing that throws stuff out the back to shove itself forward. If you count how much stuff leaves each second ($\dot{m}$) times how fast it goes ($v_e$), you get the push (thrust). Now you want a fairness score — punch per kilo of fuel — so you divide the push-over-time by the fuel's weight. When you do the division, all the "how much" and "how long" pieces cancel out, and you're left with just a plain number of seconds: that's specific impulse, and it's literally the exhaust speed divided by 9.81. Because it only depends on speed, the score is high whenever the gas comes out fast — and gas comes out fast when it's hot and light. Hydrogen exhaust is the lightest, so hydrogen rockets win among the chemical ones (~450 s). Ion engines cheat the temperature limit with electric fields and hit ~3000 s. But here's the twist the picture makes obvious: efficiency isn't force. The ion engine spits out almost nothing per second, so even at insane speed its push is a whisper — great for a patient cruise across the solar system, useless for blasting off a launch pad, where the humble solid booster with its thousands of kilos a second still rules.

Recall

State the master relation and where every step of its derivation came from. ::: $v_e=I_{sp}{g}_0$. From $F=\dot{m}{v}_e$ (Newton) divided by weight-flow $\dot{m}{g}_0$; the $\dot{m}$ cancels leaving $I_{sp}=v_e/g_0$.

See also: Ion and Electric Propulsion, Staging and Mass Ratio.
