3.3.4Rocket Propulsion

Specific impulse Isp = v_e - g₀ — definition, physical meaning, units

1,814 words8 min readdifficulty · medium6 backlinks

WHAT is specific impulse?

WHY define it this way? Engineers wanted one number to compare a tiny model rocket to a giant Saturn V, independent of how big the engine is. Impulse alone (Fdt\int F\,dt) rewards big engines. Dividing by propellant weight consumed removes size and measures pure efficiency.


HOW to derive Isp=ve/g0I_{sp} = v_e/g_0 from scratch

Start from the definition of impulse for a rocket exhausting mass.

Step 1 — Thrust from momentum. In time dtdt the engine ejects mass dm=m˙dtdm = \dot m\,dt at effective exhaust speed vev_e (relative to rocket). The momentum given to that gas per second is the thrust: F=m˙veF = \dot m\, v_e Why this step? Newton's 3rd law: pushing gas backward at vev_e pushes the rocket forward; force = rate of momentum ejection.

Step 2 — Total impulse over a burn. Assume vev_e constant: J=0tbFdt=0tbm˙vedt=ve0tbm˙dt=mp=vempJ = \int_0^{t_b} F\,dt = \int_0^{t_b}\dot m\,v_e\,dt = v_e \underbrace{\int_0^{t_b}\dot m\,dt}_{= m_p} = v_e\, m_p where mpm_p is total propellant mass burned. Why this step? vev_e pulls out of the integral; the remaining integral of mass-flow is just the mass used.

Step 3 — Divide by propellant weight. The weight of that propellant is Wp=mpg0W_p = m_p g_0. By definition: Isp=JWp=vempmpg0=veg0I_{sp} = \frac{J}{W_p} = \frac{v_e\, m_p}{m_p\, g_0} = \boxed{\dfrac{v_e}{g_0}} Why this step? The propellant mass mpm_p cancels — that's exactly why IspI_{sp} is size-independent. What survives is the ratio of exhaust speed to a fixed constant.


Units — WHY seconds?

Do the dimensional check on Isp=impulseweightI_{sp} = \dfrac{\text{impulse}}{\text{weight}}: [Isp]=N⋅sN=s[I_{sp}] = \frac{\text{N·s}}{\text{N}} = \text{s} The newtons cancel and you are left with seconds.

Note: because g0g_0 is a fixed constant, IspI_{sp} in seconds is the same number anywhere — on Earth, Mars, or in deep space. Sometimes engineers skip g0g_0 and quote vev_e directly in m/s (called specific impulse by mass, units m/s or N·s/kg). Both describe the same engine.

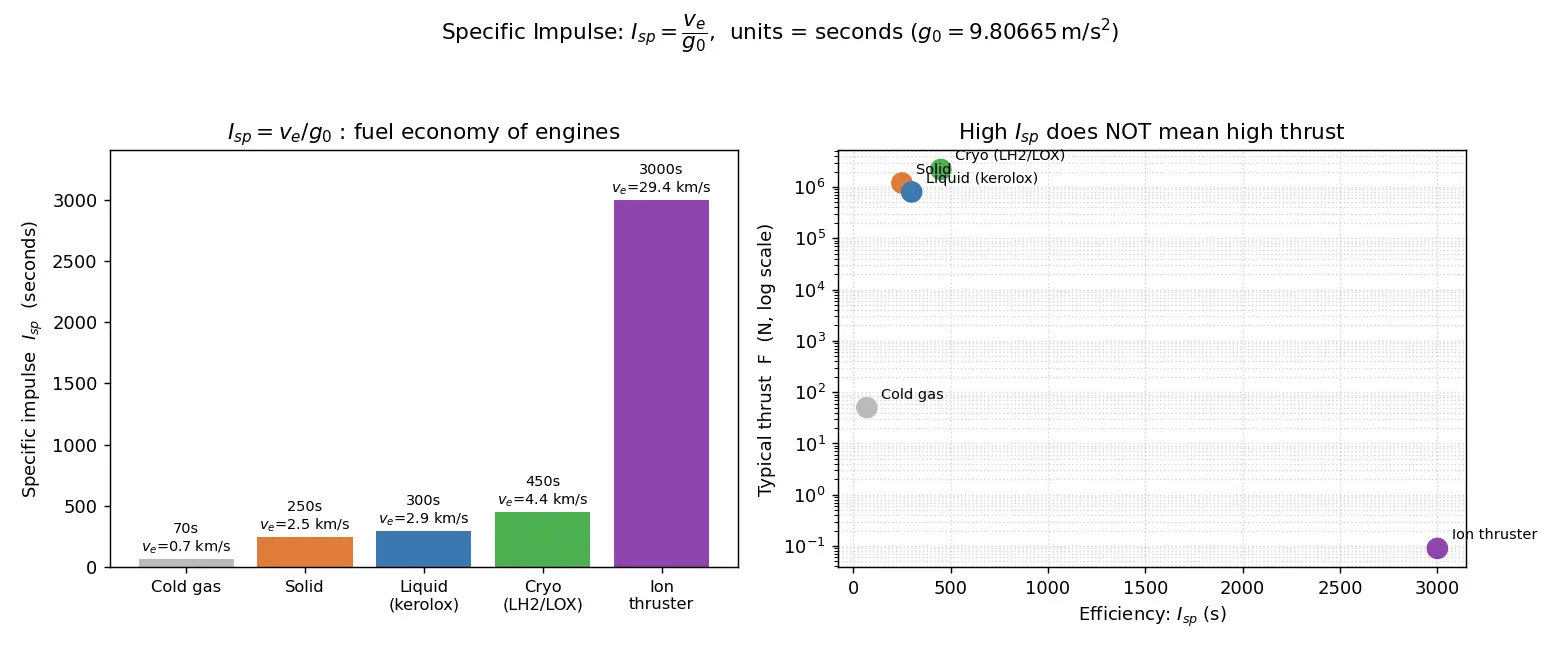

Figure — Specific impulse Isp = v_e - g₀ — definition, physical meaning, units

Worked examples


Forecast-then-Verify

Recall Forecast before reading the answer

Q: Chemical rockets max out around Isp450 sI_{sp}\approx 450\ \text{s}; ion thrusters reach Isp3000 sI_{sp}\approx 3000\ \text{s}. Which gives more thrust, and which is more fuel-efficient? Write your guess, then open.

Verify: Ion thrusters have far higher IspI_{sp} ⇒ far more efficient (huge vev_e, tiny propellant use). But their m˙\dot m is minuscule, so F=m˙veF=\dot m v_e is tiny (millinewtons). Chemical rockets: low IspI_{sp}, but enormous m˙\dot m ⇒ meganewtons of thrust for liftoff. High IspI_{sp} ≠ high thrust.


Common mistakes


Feynman

Recall Explain to a 12-year-old

Imagine every kilogram of rocket fuel is a coin. When you spend one coin, the rocket gives you a certain push for a little while. Specific impulse is just the number telling you how good each coin is — how long and hard one coin can push. A fancy engine gives a long, strong push per coin (high number); a weak engine gives a short push per coin. It doesn't tell you how many coins you have or how fast you spend them — only how good each coin is.


Active recall

What is specific impulse in words?
Total impulse delivered per unit weight of propellant consumed. :::
Formula for IspI_{sp} for constant exhaust velocity?
Isp=ve/g0I_{sp} = v_e/g_0. :::
What are the SI units of IspI_{sp} and why?
Seconds; because impulse (N·s) ÷ weight (N) = s. :::
Value and meaning of g0g_0 in the IspI_{sp} formula?
9.80665 m/s29.80665\ \text{m/s}^2, a fixed standard-gravity constant used to convert weight↔mass, NOT local gravity. :::
Does IspI_{sp} change if the rocket is on Mars?
No — g0g_0 is a constant, so IspI_{sp} is a fixed engine property. :::
Recover vev_e from IspI_{sp}?
ve=Ispg0v_e = I_{sp}\,g_0. :::
Express thrust using IspI_{sp}?
F=m˙ve=m˙g0IspF = \dot m\, v_e = \dot m\, g_0\, I_{sp}. :::
Does higher IspI_{sp} guarantee higher thrust?
No; thrust also needs mass-flow m˙\dot m. High-IspI_{sp} ion drives have tiny thrust. :::
Total impulse from propellant mass?
J=Ispg0mpJ = I_{sp}\,g_0\,m_p. :::
Why does propellant mass cancel in the derivation?
Impulse =vemp=v_e m_p, weight =g0mp=g_0 m_p; dividing cancels mpm_p, making IspI_{sp} size-independent. :::

Connections

Concept Map

gives

integrated over burn

divided by

defines

simplifies to v_e / g0

reference constant in

cancels so

is a measure of

N s over N

N s over N

gives units of

Impulse integral F dt

Weight of propellant consumed

Specific impulse Isp

Thrust F = m_dot v_e

Newton 3rd law

Effective exhaust velocity v_e

Standard gravity g0 = 9.80665

Propellant mass m_p cancels

Units = seconds

Size-independent efficiency

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, specific impulse IspI_{sp} ka matlab hai rocket engine ka "mileage". Jaise gaadi ka average bolte hain — kitne kilometre per litre — waise hi IspI_{sp} batata hai ki propellant ke har unit weight se kitna impulse (push) milta hai. Formula simple hai: Isp=ve/g0I_{sp}=v_e/g_0, jahan vev_e hai exhaust gases ki effective speed aur g0=9.80665 m/s2g_0=9.80665\ \text{m/s}^2 ek fixed constant hai. Yaad rakho, yeh g0g_0 local gravity nahi hai — chahe Earth ho ya Mars, IspI_{sp} engine ka fixed property hai.

Units seconds kyun aate hain? Kyunki impulse ka unit N·s hai aur weight ka unit N hai, dono divide karo to bas seconds bachta hai. Physically Isp=300I_{sp}=300 s ka matlab: engine ek unit weight ke propellant se 300 second tak wo hi thrust de sakta hai jo us propellant ke weight ke barabar ho. Jitna zyada IspI_{sp}, utna efficient engine — kam fuel me zyada kaam.

Ek bada trap: log sochte hain zyada IspI_{sp} matlab zyada thrust. Galat! Thrust hota hai F=m˙veF=\dot m\, v_e — usme mass-flow rate m˙\dot m bhi chahiye. Ion thruster ka IspI_{sp} 3000 s hota hai (super efficient) lekin thrust milli-newton me — itna kam ki liftoff impossible. Chemical rocket ka IspI_{sp} kam (300–450 s) par m˙\dot m huge, isliye meganewton thrust milta hai jo rocket ko upar uthata hai.

Derivation samajh lo ek baar: thrust F=m˙veF=\dot m v_e, total impulse =vemp=v_e m_p, aur propellant weight =g0mp=g_0 m_p. Divide karo to mpm_p cancel — isiliye IspI_{sp} engine size pe depend nahi karta, sirf efficiency batata hai. Yehi cheez Tsiolkovsky equation me kaam aati hai kyunki ve=Ispg0v_e = I_{sp} g_0 hi tumhara Δv\Delta v decide karta hai.
