Foundations — Specific impulse Isp = v_e - g₀ — definition, physical meaning, units

This page assumes you have seen none of the notation in the parent note. We will earn every symbol one at a time. By the end, the formula $I_{sp}=v_e/g_0$ should read like a plain English sentence.

0 — What a rocket actually does (the picture everything hangs on)

A rocket carries fuel, sets it on fire, and throws the burnt gas out the back very fast. Throwing mass one way pushes you the other way — that is the whole game.

Look at the figure: the red blob of gas is thrown backward; the black rocket body moves forward. Every symbol below is just a precise way of measuring one part of this picture: how much gas, how fast, how hard the push, for how long.

1 — Mass $m$ and the "amount of stuff" idea

Picture a bucket of fuel. The mass is how many kilograms are in the bucket — nothing about gravity yet, just "how much matter."

Why the topic needs it: a rocket's whole job is to use up fuel-mass. We must count kilograms of propellant to talk about efficiency "per kilogram."

2 — Velocity $v$ and exhaust speed $v_e$

In the figure the red arrow is $v_e$: it starts at the nozzle and points backward, and its length is how fast the gas leaves. "Relative to the rocket" means we sit on the rocket and clock the gas going past us — we ignore how fast the rocket itself is moving.

Why "effective"? Real nozzles also get a little extra push from gas pressure, not just from throwing mass. Engineers lump both effects into ONE clean number $v_e$ so the formulas stay simple. That is all "effective" means here — see Effective Exhaust Velocity.

Why the topic needs it: $v_e$ is the quality of the throw. A bigger $v_e$ means each kilogram of gas leaves faster, so it pushes harder. It is the heart of specific impulse.

3 — Force $F$ and thrust

The specific force that a rocket engine produces on itself by throwing gas is called thrust. It is still just a force, measured in newtons.

Why the topic needs it: thrust is the "hard" part of "how hard for how long." Without a symbol for the push, we cannot measure the push.

4 — Rate of change and the dot: $\dot{m}$ (mass flow rate)

Here comes the first piece of "grown-up" notation. We need to say how fast fuel is being used up, not just how much.

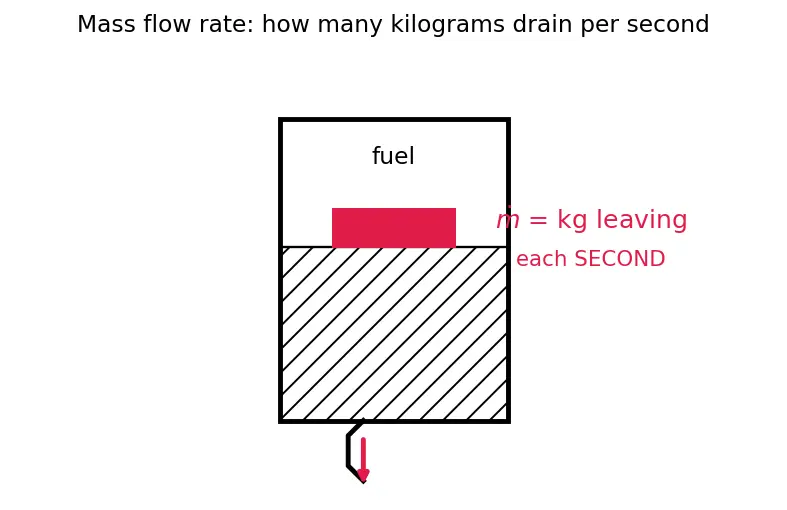

The figure shows a tank draining: in each one-second slice the red chunk of mass leaving is $\dot{m}$. If $\dot{m}=500\text{kg/s}$, then every second, 500 kg of gas is fired out the back.

Why a rate (why the dot) and not just mass? Two engines can burn the same total fuel, but one drains it in a blink and one over an hour. Thrust depends on how fast you throw mass, so we need the per-second rate. That is exactly the question the dot answers: "how much per second?"

5 — Weight $W$, and why weight ≠ mass

Why the topic needs it: specific impulse is defined "per unit weight of propellant" — so we must convert our kilograms of fuel into a force (newtons) using gravity. That conversion is the next symbol.

6 — Standard gravity $g_0$ (the fixed reference constant)

The key idea: $g_0$ is not the real local gravity $g$ where the rocket flies. It is a number everyone agreed to use purely to turn a mass (kg) into a weight (N): $W_p=m_p{g}_0(\text{weight of propellant}=\text{propellant mass}\times g_0)$

Why a frozen constant and not real gravity? So that a given engine gets the same score everywhere — on Earth, on Mars, in deep space. If we used local $g$, the "efficiency" of an engine would mysteriously change just by moving it. Using a constant makes $I_{sp}$ a pure engine property. See Standard Gravity g0.

7 — Impulse $J$ and the integral sign $\int$

Now the last and biggest piece: "push × time." A steady push for a long time does more than a brief push.

But rocket thrust is not perfectly steady, so we need to add up the push over many tiny time-slices. That "add up over slices" operation has a symbol: the integral.

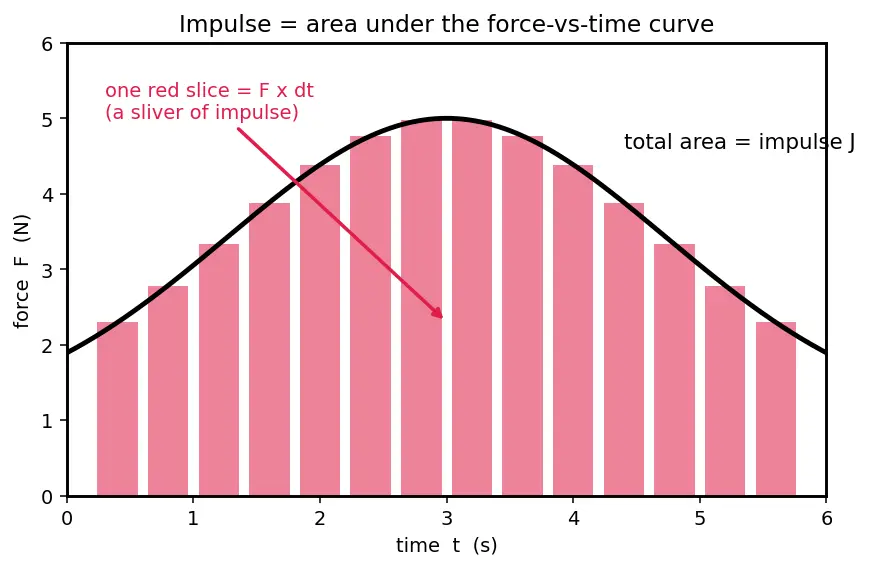

In the figure, force is plotted against time. Each thin red rectangle is one slice: its area is (force) × (tiny time) = a sliver of impulse. The total shaded area under the curve is the total impulse $J$. That is all the integral sign is doing — measuring the area, i.e. the total push accumulated over time.

Why the topic needs it: specific impulse's numerator is exactly this total push, $J=\int Fdt$. The whole definition is "total push $÷$ propellant weight."

8 — Putting the symbols together (preview of the topic)

Now every symbol in the parent formula is defined. Read it as a sentence: $I_{sp}=\frac{J}{W_p}=\frac{\text{total push over the burn}}{\text{weight of the fuel you burned}}$ and for a steady exhaust speed this collapses to $I_{sp}=\frac{v_e}{g_0}.$

Notice the units now make sense with the symbols we built: $[I_{sp}]=\frac{\text{N⋅s}}{\text{N}}=\text{s}\text{and}\frac{[v_e]}{[g_0]}=\frac{\text{m/s}}{{\text{m/s}}^2}=\text{s}.$ Both routes give seconds — the newtons cancel in one, the metres and one power of seconds cancel in the other.

The full derivation of why those two forms are equal lives in the parent note: the parent topic and Rocket Propulsion. It also feeds Tsiolkovsky Rocket Equation, where $v_e$ drives the rocket's change in speed.

Prerequisite map

Equipment checklist

Self-test: cover the right side and try to state each before revealing.
