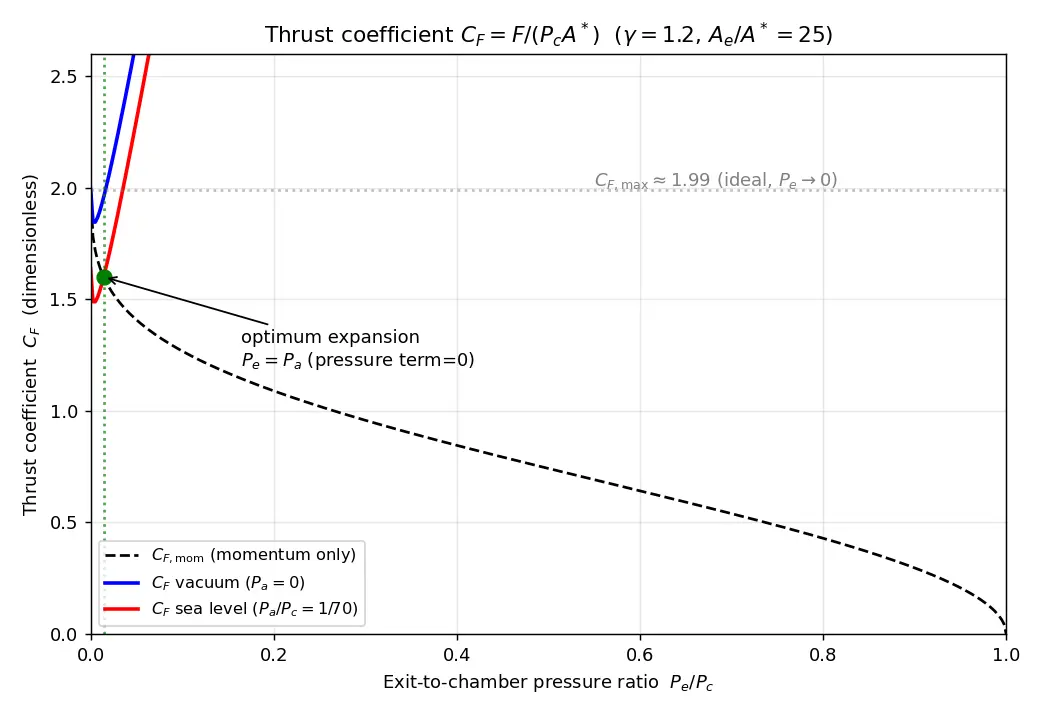

Thrust coefficient C_F = F - (P_c A - ) — derivation

WHAT is $C_F$?

WHY split thrust this way? Thrust depends on both the propellant chemistry (hot, high-molecular-energy gas) and the nozzle shape. Rocket engineers separate these: $F = \underbrace{C_F}_{\text{nozzle}} \times \underbrace{P_c A^*}_{\text{chamber+throat}} \qquad\text{and}\qquad c^* = \frac{P_c A^*}{\dot m}\ (\text{characteristic velocity, propellant quality})$ So $F = C_F \cdot c^* \cdot \dot m$. $C_F$ = nozzle report card; $c^*$ = combustion report card.

HOW to derive it from first principles

We start from the fundamental thrust equation and the isentropic nozzle relations, then divide by $P_c A^*$.

Step 1 — The thrust equation

Thrust = momentum thrust + pressure thrust: $F = \dot m\, u_e + (P_e - P_a)A_e$ Why this step? Newton's 2nd/3rd law: the rocket pushes mass $\dot m$ out at exit speed $u_e$ (momentum term), and if exit pressure $P_e$ differs from ambient $P_a$, that unbalanced pressure over the exit area $A_e$ adds (or subtracts) force.

Step 2 — Mass flow through the choked throat

For a choked (Mach 1) throat, one-dimensional isentropic flow gives: $\dot m = \frac{P_c A^*\,\gamma}{\sqrt{\gamma R T_c}}\left(\frac{2}{\gamma+1}\right)^{\frac{\gamma+1}{2(\gamma-1)}}$ Why this step? The mass flow is set entirely at the throat once flow is choked — that's why $A^*$ appears. Here $\gamma$ is the specific heat ratio, $R$ the specific gas constant, $T_c$ the chamber temperature. Define the compact group: $\Gamma \equiv \sqrt{\gamma}\left(\frac{2}{\gamma+1}\right)^{\frac{\gamma+1}{2(\gamma-1)}} \;\Rightarrow\; \dot m = \frac{\Gamma\, P_c A^*}{\sqrt{R T_c}}$

Step 3 — Exit velocity from energy conservation

Isentropic expansion converts enthalpy to kinetic energy. Starting from $h_c = h_e + \tfrac12 u_e^2$ (chamber gas at rest, $h=c_pT$): $u_e = \sqrt{2c_p(T_c - T_e)} = \sqrt{2c_pT_c\left(1-\frac{T_e}{T_c}\right)}$ Using $c_p = \frac{\gamma R}{\gamma-1}$ and the isentropic relation $\frac{T_e}{T_c}=\left(\frac{P_e}{P_c}\right)^{\frac{\gamma-1}{\gamma}}$: $\boxed{u_e = \sqrt{\frac{2\gamma R T_c}{\gamma-1}\left[1-\left(\frac{P_e}{P_c}\right)^{\frac{\gamma-1}{\gamma}}\right]}}$ Why this step? Energy is conserved: the "heat energy" of hot chamber gas becomes directed kinetic energy. The pressure ratio $P_e/P_c$ controls how much expansion (and thus speed) the nozzle achieves.

Step 4 — Assemble the momentum term $\dot m\,u_e / (P_c A^*)$

$\frac{\dot m\, u_e}{P_c A^*} = \frac{\Gamma}{\sqrt{RT_c}}\sqrt{\frac{2\gamma R T_c}{\gamma-1}\left[1-\left(\tfrac{P_e}{P_c}\right)^{\frac{\gamma-1}{\gamma}}\right]}$ The $\sqrt{RT_c}$ cancels (this is why $C_F$ is independent of $T_c$!). Substituting $\Gamma$ and simplifying the constants: $\frac{\dot m\, u_e}{P_c A^*} = \sqrt{\frac{2\gamma^2}{\gamma-1}\left(\frac{2}{\gamma+1}\right)^{\frac{\gamma+1}{\gamma-1}}\left[1-\left(\frac{P_e}{P_c}\right)^{\frac{\gamma-1}{\gamma}}\right]}$

Step 5 — Add the pressure term

Divide the pressure thrust by $P_c A^*$: $\frac{(P_e-P_a)A_e}{P_c A^*} = \frac{P_e-P_a}{P_c}\cdot\frac{A_e}{A^*}$

Special cases (the 80/20)

Worked examples

Common mistakes

Flashcards

Connections

• Thrust Equation — the $F=\dot m u_e+(P_e-P_a)A_e$ starting point.
• Characteristic Velocity c-star — the combustion-quality partner of $C_F$.
• Specific Impulse Isp — related via $I_{sp}g_0=c^*C_F$.
• Choked Flow and the Throat — source of the $\dot m$ relation.
• Isentropic Nozzle Flow — Step 3 energy/pressure relations.
• Nozzle Expansion Ratio Ae-over-Astar — controls $P_e/P_c$ and pressure term.
• Over- and Under-Expanded Nozzles — sign of the pressure term.
