Foundations — Thrust coefficient C_F = F - (P_c A - ) — derivation

This page builds every symbol, ratio, and picture the derivation leans on, starting from "what is force" and ending with "how it all assembles". Read it once and the main derivation will feel like arithmetic.

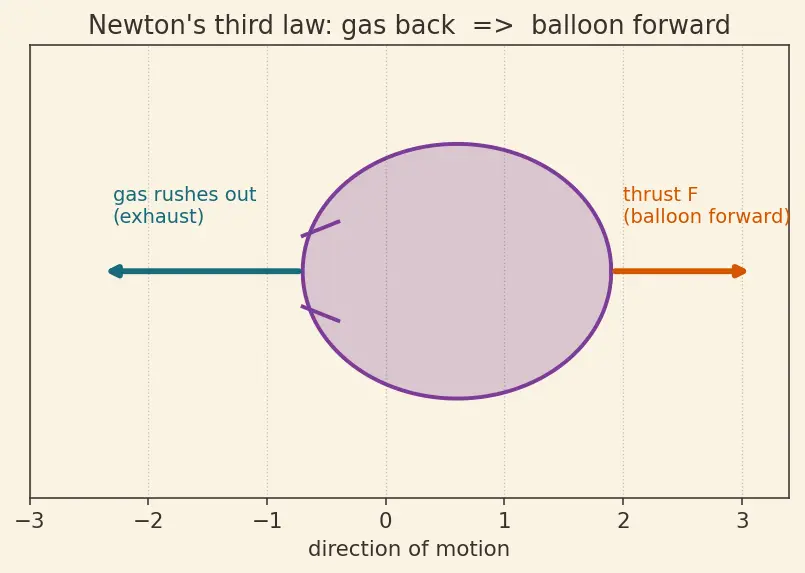

1. Force and thrust — the push itself

Why the topic needs it: $C_F$ is defined as thrust divided by something. Everything on the page is a ratio built on top of $F$.

2. Pressure $P$ — force spread over area

We meet three different pressures. Keep them straight — mixing them is the classic beginner error:

Why the topic needs it: $P_c$ is the chamber pressure that appears in the reference force of $C_F$ (built once we add the throat area in §3), and the pressure-thrust term is built from the difference $(P_e-P_a)$.

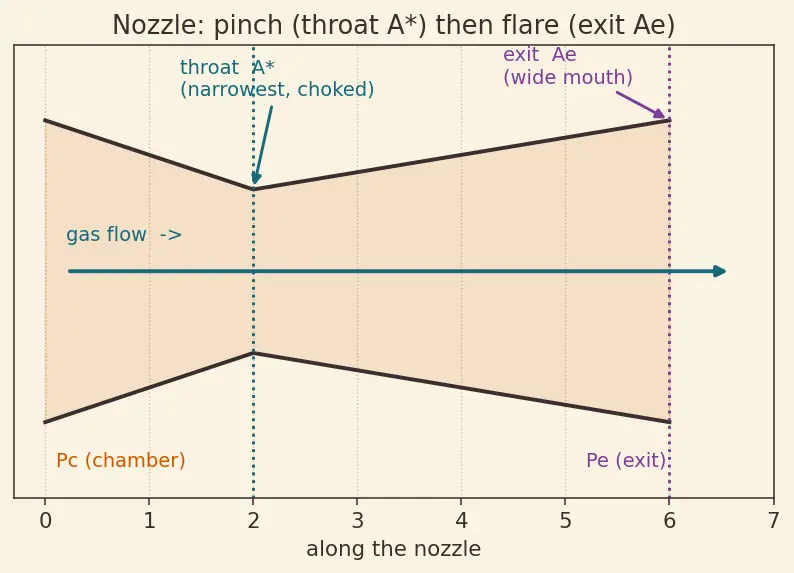

3. Area $A$ and the throat $A^{\ast }$ — the pinch point

The star superscript ${}^{\ast }$ is a convention: it always marks the special place where the flow reaches the speed of sound (the choked condition, explained in §8). See Nozzle Expansion Ratio Ae-over-Astar for what the ratio $A_e/A^{\ast }$ does downstream.

Why the topic needs it: $A^{\ast }$ sets the mass flow and forms the reference force $P_c{A}^{\ast }$; $A_e$ scales the pressure-thrust term.

4. Mass flow rate $\dot{m}$ — how fast propellant leaves

Why the topic needs it: thrust is momentum thrown per second, and momentum-per-second uses $\dot{m}$. It appears in the very first term of the thrust equation, $\dot{m}{u}_e$.

5. Velocity $u_e$ — how fast the jet flies

Why the topic needs it: $\dot{m}{u}_e$ is the whole first (momentum) term of thrust. The derivation spends a full step finding $u_e$ from energy conservation.

6. Temperature $T$ and enthalpy — where the speed comes from

The energy bookkeeping uses enthalpy $h=c_{p}T$: total heat-energy content per kilogram. Conservation reads $h_c=h_e+\frac{1}{2}{u}_e^2$ — "chamber heat = leftover exit heat + kinetic energy of the jet." (Once we meet $\gamma$ in §7, $c_p$ will also be writable as $c_p=\frac{\gamma R}{\gamma -1}$ — but hold that thought until $\gamma$ is defined.)

Why the topic needs it: this is exactly Step 3 of the derivation. The why is energy conservation, and the beautiful result is that $\sqrt{R{T}_c}$ later cancels, so $T_c$ never enters $C_F$.

7. The specific heat ratio $\gamma$ — the gas's personality number

Now that $\gamma$ exists, the bridge promised in §6 is legal: $c_p=\frac{\gamma R}{\gamma -1}$, which lets the energy equation be written using only $\gamma$, $R$ and temperatures.

Why the topic needs it: the entire momentum term of $C_F$ depends on nothing but $\gamma$ and the pressure ratio. $\gamma$ sets the hard ceiling $C_{F,\max }$.

8. Choked flow — why the throat is special

Deep dive lives in Choked Flow and the Throat; the isentropic (no-heat-loss) machinery is in Isentropic Nozzle Flow.

Why the topic needs it: Step 2 uses the choked-throat mass-flow formula, and this is why $A^{\ast }$ (not $A_e$) sets $\dot{m}$.

9. The ratios and the lumped constant $\Gamma$ — reading the scary formula

The final formula is stuffed with three ratios. Each is just a fraction; name them and it stops being scary:

The bundle $\Gamma =\sqrt{\gamma }{\left(\frac{2}{\gamma +1}\right)}^{\frac{\gamma +1}{2(\gamma -1)}}$ (capital Greek "Gamma") is just shorthand — a lump of $\gamma$'s that appears in the mass flow, given its own name so equations fit on a line. Wherever you see $\Gamma$, read "that fixed clump of gammas".

10. How it all assembles

The reference force $P_c{A}^{\ast }$ and the two thrust pieces divide cleanly:

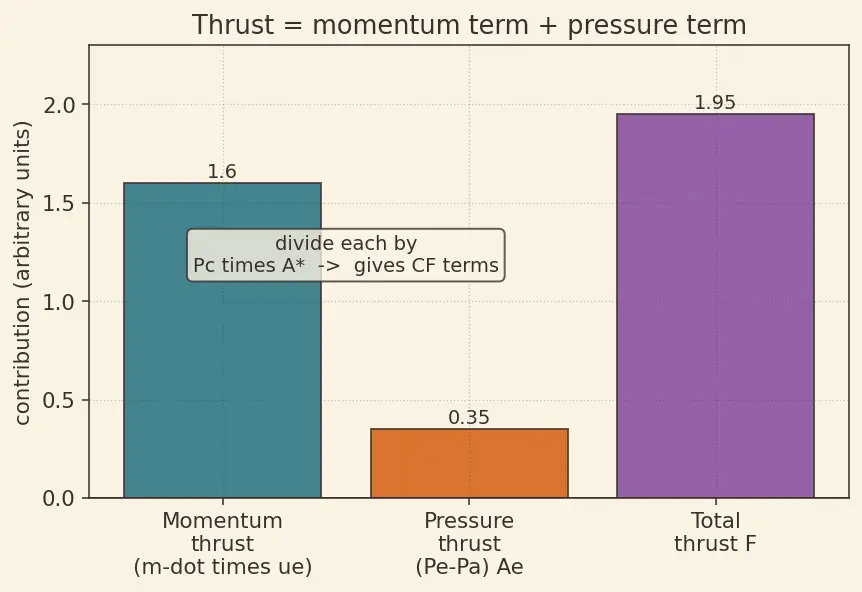

The figure shows thrust splitting into momentum thrust ($\dot{m}{u}_e$, teal) and pressure thrust ($(P_e-P_a)A_e$, orange). Dividing each by the reference force $P_c{A}^{\ast }$ turns them into the two terms of $C_F$. The pressure term flips sign: it adds when $P_e>P_a$ and subtracts when $P_e<P_a$ (over-expanded).

Prerequisite map

Related destinations once you have $C_F$: Thrust Equation, Characteristic Velocity c-star, Specific Impulse Isp, Over- and Under-Expanded Nozzles.
