Solid propellants — AP - HTPB - Al composition; burn rate dependence on pressure (Vieille's law)

1. What is a composite solid propellant?

WHY each component?

WHY an oxidiser in the solid? No air inside a rocket. The propellant must carry its own oxygen → AP decomposes to release $O_2$ , $Cl$ , $H_2O$ , $N_2$ .
WHY HTPB (a rubber)? It is both the fuel (C, H burn) and the glue that makes a castable, flexible grain that won't crack under acceleration.
WHY aluminium? $Al + \tfrac34 O_2 \to \tfrac12 Al_2O_3$ is enormously exothermic. It raises flame temperature (~3500 K) and adds mass to the exhaust, increasing thrust. The $Al_2O_3$ smoke is why such motors leave a thick white trail.

2. Burn rate and the burning surface

WHY does pressure matter? Higher chamber pressure $P$ → flame zone is pushed closer to the surface and reaction rates rise → more heat flux back to surface → faster regression. So $r$ increases with $P$ .

3. Vieille's Law (Saint Robert's law) — derived

Derivation from first principles (heat-flux balance):

The solid is consumed when the flame delivers enough heat to raise the surface from $T_0$ to ignition $T_s$ . Energy balance per unit area: $\rho_p\, r\, c\,(T_s - T_0) = q'' \quad(\text{conductive flux from flame})$ Why this step? Mass flux per area is $\rho_p r$ ; each kg needs $c(T_s-T_0)$ joules to heat up.
The conductive flux is $q'' = \dfrac{\lambda (T_f - T_s)}{\delta}$ , where $\delta$ is the flame stand-off distance. Why? Fourier's law across the gas gap of thickness $\delta$ .
The flame thickness scales with reaction rate. For an overall reaction order related to pressure, the reaction rate per volume $\propto P^{\,m}$ , and gas density $\propto P$ , so $\delta \propto P^{-k}$ (the flame sits closer at high $P$ ). Why? Faster chemistry + denser gas = thinner, closer flame.
Substitute: $\rho_p\, r\, c\,(T_s-T_0) = \frac{\lambda(T_f-T_s)}{\delta} \propto P^{\,k}$ $\Rightarrow r \propto P^{\,k} \equiv a\,P^{\,n}$ with $n=k$ and $a$ bundling the thermal/chemical constants (which depend on initial temperature $T_0$ ).

4. Equilibrium chamber pressure — why $n<1$ is mandatory

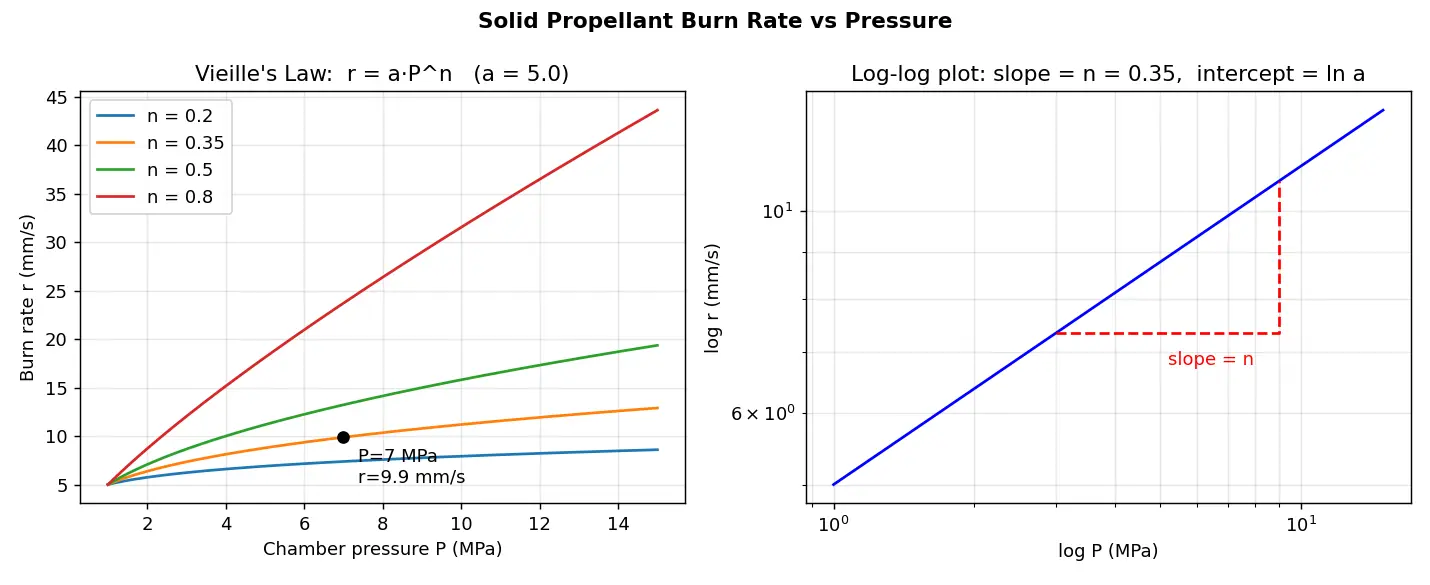

Figure — Solid propellants — AP - HTPB - Al composition; burn rate dependence on pressure (Vieille's law)

5. Worked examples

Recall Feynman: explain to a 12-year-old

A solid rocket is a giant firework stick. We mix the "stuff that burns" (rubber + shiny aluminium dust) with the "stuff that gives oxygen" (a white salt) and bake it into a hard rubbery candle. When we light it, the surface burns away inch by inch. Push harder on the gas inside (more pressure) and it burns faster — but if it burns too much faster every time pressure rises, it goes BANG. So engineers pick a recipe where speeding up is gentle and controllable. The rule "burn speed = $a$ times pressure-to-the-power- $n$ " is just the dial that tells you how fast the candle eats itself.

Active Recall Flashcards

What does AP stand for and what is its role in a composite propellant?

Ammonium perchlorate

NH_4ClO_4

; it is the oxidiser, supplying oxygen for combustion.

What does HTPB do?

Hydroxyl-terminated polybutadiene — the rubbery fuel-binder that holds the grain together AND burns as fuel.

Why is aluminium added to AP/HTPB propellants?

It is a high-energy metal fuel;

Al\to Al_2O_3

is strongly exothermic, raising flame temperature and specific impulse.

State Vieille's (Saint Robert's) law.

r = aP^n

— burn rate equals a constant times chamber pressure to the power n.

What does the exponent

n

physically represent?

The sensitivity of burn rate to pressure.

Why must

n < 1

for a stable motor?

Equilibrium pressure

\propto (A_b/A_t)^{1/(1-n)}

; if

n\ge1

the exponent diverges → runaway pressure → explosion.

How do you extract

n

from two (P, r) data points?

n = \ln(r_2/r_1)/\ln(P_2/P_1)

— ratio cancels

a

, logs give slope.

Write the mass generation rate of a burning grain.

\dot m = \rho_p A_b r

Why does higher pressure increase burn rate (physical mechanism)?

Higher P pushes the flame closer to the surface and speeds chemistry → more heat flux conducts back → faster surface regression.

Typical n range for AP/HTPB propellants?

About 0.2 to 0.5.

Connections

Vieille's Law — the burn-rate power law in detail
Specific Impulse — why Al raises $I_{sp}$
Characteristic Velocity c-star — appears in the equilibrium pressure derivation
Combustion Thermodynamics — flame temperature & adiabatic flame T
Liquid Propellants — contrast: throttleable vs non-throttleable
Heat Conduction (Fourier's Law) — basis of the burn-rate derivation
Ammonium Perchlorate Decomposition — oxidiser chemistry

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Solid rocket motor ek "controlled aag in a steel can" hai. Ismein fuel aur oxidiser pehle se hi solid mein mix karke daal dete hain — yahi composite propellant kehlata hai. Sabse classic recipe hai AP/HTPB/Al: AP (ammonium perchlorate) oxidiser hai jo oxygen deta hai, HTPB ek rubber jaisa binder hai jo fuel bhi hai aur sabko jodke rakhta hai, aur aluminium powder high-energy metal fuel hai jo flame temperature ko zabardast badha deta hai (~3500 K) — isi wajah se motzilla jaisi safed dhuaan (Al2O3) nikalta hai.

Ab asli khel hai burn rate — yaani surface kitni tezi se andar ki taraf jal raha hai. Iska formula simple lagta hai: $r = aP^n$ (Vieille's law). Matlab burn rate, chamber pressure $P$ ke power $n$ ke proportional hai. Pressure badhao toh flame surface ke aur paas aa jaata hai, zyada heat wapas surface pe pahunchti hai, isliye jalna tez ho jaata hai.

Sabse important baat: $n$ ka 1 se chhota hona zaroori hai. Kyun? Equilibrium chamber pressure $P_{eq} \propto (A_b/A_t)^{1/(1-n)}$ hota hai. Agar $n \ge 1$ ho jaaye toh ye exponent infinity ki taraf bhag jaata hai — chhota sa pressure ka jump, burn rate ko aur badha dega, jo pressure ko aur badha dega... aur motor phat jaayega. Isliye real propellants mein $n$ ko 0.2 se 0.5 ke beech rakhte hain — stable aur controllable.

Yaad rakhne ka tarika: log-log plot banao, $\ln r$ vs $\ln P$ , slope se $n$ mil jaata hai aur intercept se $a$ . Exam mein do data points dekar $n$ nikalne ko aata hai — bas $n = \ln(r_2/r_1)/\ln(P_2/P_1)$ laga do.
