Intuition The one-line pictureA hypergolic propellant pair ignites spontaneously on contact , with no spark, no igniter . You squirt the fuel and oxidiser together and they catch fire by themselves. The tiny lag between "they touch" and "flame appears" is the ignition delay . For rockets that must restart in space, this self-ignition is a feature you'd pay almost anything for — there is nothing to fail.
Oxidiser: N 2 O 4 \text{N}_2\text{O}_4 N 2 O 4 NO 2 \text{NO}_2 NO 2 N 2 O 4 ⇌ 2 NO 2 \;\text{N}_2\text{O}_4 \rightleftharpoons 2\,\text{NO}_2 N 2 O 4 ⇌ 2 NO 2 oxygen-carrier (electron acceptor).Fuels:
UDMH = Unsymmetrical Dimethylhydrazine, ( CH 3 ) 2 N–NH 2 (\text{CH}_3)_2\text{N–NH}_2 ( CH 3 ) 2 N–NH 2 C 2 H 8 N 2 \text{C}_2\text{H}_8\text{N}_2 C 2 H 8 N 2 MMH = Monomethylhydrazine, CH 3 –NH–NH 2 \text{CH}_3\text{–NH–NH}_2 CH 3 –NH–NH 2 CH 6 N 2 \text{CH}_6\text{N}_2 CH 6 N 2 Both are hydrazine derivatives — fuel = electron donor, easily oxidised because of the weak, energy-rich N–N bond .
Intuition Why hydrazines arehungry to burn
The N–N single bond is weak (~160 kJ/mol) and the product N 2 \text{N}_2 N 2
Hypergolic ignition is chemistry-driven, not spark-driven . Build it up in stages:

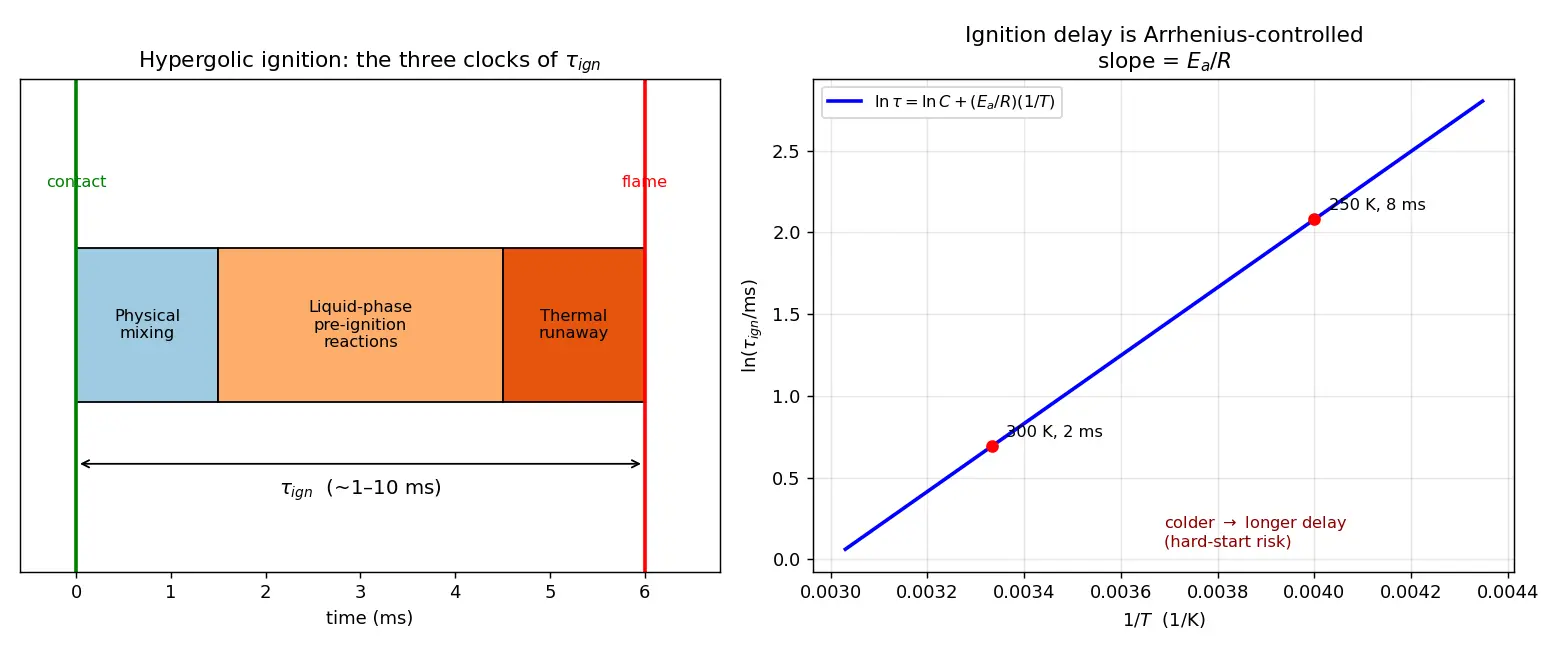

Intuition Three nested clocksWhen two streams hit, three things must happen in sequence, each taking time:
Physical mixing — droplets atomise, fuel & oxidiser interfaces touch (liquid-phase).Liquid-phase pre-ignition reactions — NTO is an aggressive nitrating/oxidising agent; it attacks the amine, forming nitrosamine/nitrate salts and releasing heat.Thermal runaway → gas-phase flame — the heat raises temperature, accelerating the Arrhenius-fast reactions until the mixture flashes.
The ignition delay τ i g n \tau_{ign} τ i g n is the sum of all three clocks.
We balance UDMH + N₂O₄ to fully oxidised products (CO 2 \text{CO}_2 CO 2 H 2 O \text{H}_2\text{O} H 2 O N 2 \text{N}_2 N 2
UDMH: C 2 H 8 N 2 \text{C}_2\text{H}_8\text{N}_2 C 2 H 8 N 2
C 2 H 8 N 2 + a N 2 O 4 → 2 CO 2 + 4 H 2 O + b N 2 \text{C}_2\text{H}_8\text{N}_2 + a\,\text{N}_2\text{O}_4 \;\rightarrow\; 2\,\text{CO}_2 + 4\,\text{H}_2\text{O} + b\,\text{N}_2 C 2 H 8 N 2 + a N 2 O 4 → 2 CO 2 + 4 H 2 O + b N 2
Why this step? Carbon and hydrogen products are fixed by the fuel (2 C → 2 CO₂; 8 H → 4 H₂O). Now conserve O and N.
Oxygen: left = 4 a = 4a = 4 a = 2 ( 2 ) + 4 ( 1 ) = 8 ⇒ a = 2 = 2(2) + 4(1) = 8 \Rightarrow a = 2 = 2 ( 2 ) + 4 ( 1 ) = 8 ⇒ a = 2
Nitrogen: left = 2 + 2 a = 2 + 4 = 6 ⇒ = 2 + 2a = 2 + 4 = 6 \Rightarrow = 2 + 2 a = 2 + 4 = 6 ⇒ = 6 ⇒ b = 3 =6 \Rightarrow b = 3 = 6 ⇒ b = 3
C 2 H 8 N 2 + 2 N 2 O 4 → 2 CO 2 + 4 H 2 O + 3 N 2 \boxed{\;\text{C}_2\text{H}_8\text{N}_2 + 2\,\text{N}_2\text{O}_4 \rightarrow 2\,\text{CO}_2 + 4\,\text{H}_2\text{O} + 3\,\text{N}_2\;} C 2 H 8 N 2 + 2 N 2 O 4 → 2 CO 2 + 4 H 2 O + 3 N 2
For MMH (CH 6 N 2 \text{CH}_6\text{N}_2 CH 6 N 2
CH 6 N 2 + a N 2 O 4 → CO 2 + 3 H 2 O + b N 2 \text{CH}_6\text{N}_2 + a\,\text{N}_2\text{O}_4 \rightarrow \text{CO}_2 + 3\,\text{H}_2\text{O} + b\,\text{N}_2 CH 6 N 2 + a N 2 O 4 → CO 2 + 3 H 2 O + b N 2
O: 4 a = 2 + 3 = 5 ⇒ a = 5 / 4 4a = 2 + 3 = 5 \Rightarrow a = 5/4 4 a = 2 + 3 = 5 ⇒ a = 5/4
4 CH 6 N 2 + 5 N 2 O 4 → 4 CO 2 + 12 H 2 O + 9 N 2 \boxed{\;4\,\text{CH}_6\text{N}_2 + 5\,\text{N}_2\text{O}_4 \rightarrow 4\,\text{CO}_2 + 12\,\text{H}_2\text{O} + 9\,\text{N}_2\;} 4 CH 6 N 2 + 5 N 2 O 4 → 4 CO 2 + 12 H 2 O + 9 N 2
Common mistake Steel-man: "Surely nitrogen ends up as NO or NO₂ in the products."Why it feels right: the reactants are loaded with N–O bonds, so you expect nitrogen oxides out. The fix: at the high adiabatic flame temperature and fuel-rich/stoichiometric conditions, the thermodynamically favoured nitrogen product is N 2 \text{N}_2 N 2 minor high-temperature trace (Zeldovich). For stoichiometry and energy estimates, take products as CO 2 , H 2 O , N 2 \text{CO}_2,\text{H}_2\text{O},\text{N}_2 CO 2 , H 2 O , N 2
Definition Ignition delayτ i g n \tau_{ign} τ i g n 1–10 ms .
The rate-limiting step is an Arrhenius-controlled chemical reaction. From the Arrhenius rate law, the time to reach runaway is inversely proportional to the rate constant:
k = A e − E a / R T ⇒ τ i g n ∝ 1 k = 1 A e + E a / R T k = A\,e^{-E_a/RT} \quad\Rightarrow\quad \tau_{ign} \propto \frac{1}{k} = \frac{1}{A}\,e^{+E_a/RT} k = A e − E a / R T ⇒ τ i g n ∝ k 1 = A 1 e + E a / R T
So, taking logs:
ln τ i g n = ln C + E a R ⋅ 1 T \boxed{\;\ln \tau_{ign} = \ln C + \frac{E_a}{R}\cdot\frac{1}{T}\;} ln τ i g n = ln C + R E a ⋅ T 1
Worked example Worked — extractingE a E_a E a τ = 8 ms \tau = 8\text{ ms} τ = 8 ms T 1 = 250 K T_1 = 250\text{ K} T 1 = 250 K τ = 2 ms \tau = 2\text{ ms} τ = 2 ms T 2 = 300 K T_2 = 300\text{ K} T 2 = 300 K ln τ 1 τ 2 = E a R ( 1 T 1 − 1 T 2 ) \ln\frac{\tau_1}{\tau_2} = \frac{E_a}{R}\left(\frac{1}{T_1}-\frac{1}{T_2}\right) ln τ 2 τ 1 = R E a ( T 1 1 − T 2 1 ) Why this step? Subtracting the two log-equations cancels ln C \ln C ln C E a E_a E a ln 4 = E a 8.314 ( 1 250 − 1 300 ) = E a 8.314 ( 6.667 × 10 − 4 ) \ln 4 = \frac{E_a}{8.314}\left(\frac{1}{250}-\frac{1}{300}\right) = \frac{E_a}{8.314}(6.667\times10^{-4}) ln 4 = 8.314 E a ( 250 1 − 300 1 ) = 8.314 E a ( 6.667 × 1 0 − 4 ) E a = 1.386 × 8.314 6.667 × 10 − 4 ≈ 1.73 × 10 4 J/mol ≈ 17.3 kJ/mol . E_a = \frac{1.386 \times 8.314}{6.667\times10^{-4}} \approx 1.73\times10^4 \text{ J/mol} \approx 17.3\text{ kJ/mol}. E a = 6.667 × 1 0 − 4 1.386 × 8.314 ≈ 1.73 × 1 0 4 J/mol ≈ 17.3 kJ/mol . E a E_a E a why hypergolics ignite even in the cold of space.
Worked example Worked — oxidiser mass for 1 kg MMHUsing 4 CH 6 N 2 + 5 N 2 O 4 4\,\text{CH}_6\text{N}_2 + 5\,\text{N}_2\text{O}_4 4 CH 6 N 2 + 5 N 2 O 4
M ( MMH ) = 12 + 6 + 28 = 46 M(\text{MMH}) = 12+6+28 = 46 M ( MMH ) = 12 + 6 + 28 = 46 M ( N 2 O 4 ) = 92 M(\text{N}_2\text{O}_4)=92 M ( N 2 O 4 ) = 92 Mass ratio (O/F) = 5 × 92 4 × 46 = 460 184 = 2.5 = \dfrac{5\times 92}{4\times 46} = \dfrac{460}{184} = 2.5 = 4 × 46 5 × 92 = 184 460 = 2.5 Why this step? Stoichiometric coefficients give moles ; multiply by molar mass for mass . So 1 kg MMH needs 2.5 kg NTO at stoichiometry. (Real engines run slightly fuel-rich, O/F ≈ 1.6–2.0, for cooler walls and better I s p I_{sp} I s p
Intuition The propulsion bridge
Restartable, reliable: no igniter to fail → used in upper stages, RCS thrusters, lunar/Mars landers (e.g. Apollo descent engine, many satellite thrusters).Storable: both are liquid at room temperature (unlike cryogenic LOX/LH₂) → can sit in tanks for years.The fear: hard start. If τ i g n \tau_{ign} τ i g n safety-critical number, not a curiosity.
Common mistake Steel-man: "Shorter ignition delay always means a hotter/better flame temperature."Why it feels right: fast reaction sounds energetic. The fix: τ i g n \tau_{ign} τ i g n kinetics (how quickly it starts), while flame temperature is thermodynamics (how much energy total). A fuel can have a short delay but modest energy. They are independent axes — don't conflate rate with release .
Recall Active recall (cover the answers)
What does "hypergolic" mean? ::: Ignites spontaneously on contact, no external igniter.
The three contributions to ignition delay? ::: Physical mixing, liquid-phase pre-ignition reactions, thermal runaway to flame.
Why does τ \tau τ e + E a / R T e^{+E_a/RT} e + E a / R T e − E a / R T e^{-E_a/RT} e − E a / R T τ ∝ 1 / k \tau \propto 1/k τ ∝ 1/ k k ∝ e − E a / R T k \propto e^{-E_a/RT} k ∝ e − E a / R T
Recall Feynman: explain to a 12-year-oldImagine two liquids that, the instant they touch, burst into flame all by themselves — no match, no lighter. That's what powers some spacecraft. The little wait between "they touch" and "whoosh" is called the ignition delay. We want that wait to be very, very short and very reliable, because if the engine waits too long, fuel piles up and then goes BANG too hard and breaks the engine. Warm stuff catches faster than cold stuff — same as it's easier to light dry warm paper than cold damp paper.
"Hypergolics Need No Spark" → H ydrazine fuel, N TO oxidiser, N o igniter, S hort delay. And remember oxidiser is heavier: MMH 46, NTO 92 → "N TO is N inety-two."
What is a hypergolic propellant? A fuel/oxidiser pair that ignites spontaneously on contact without any external ignition source.
Give the two common hypergolic fuels and their formulas. UDMH (CH₃)₂N–NH₂ = C₂H₈N₂; MMH CH₃NHNH₂ = CH₆N₂.
What is the standard hypergolic oxidiser? N₂O₄ (dinitrogen tetroxide, "NTO"), in equilibrium with NO₂.
Balanced UDMH combustion with N₂O₄? C₂H₈N₂ + 2 N₂O₄ → 2 CO₂ + 4 H₂O + 3 N₂.
Balanced MMH combustion with N₂O₄? 4 CH₆N₂ + 5 N₂O₄ → 4 CO₂ + 12 H₂O + 9 N₂.
Define ignition delay τ_ign. Time from first propellant contact to sustained combustion (flame/pressure rise); typically 1–10 ms.
Functional form of ignition delay with temperature? τ = C·e^{+Ea/RT}; ln τ vs 1/T is linear with slope Ea/R.
Why does τ have +Ea/RT while k has −Ea/RT? Because τ ∝ 1/k and the Arrhenius k ∝ e^{−Ea/RT}.
Why is N₂ (not NOx) the main nitrogen product? N₂'s triple bond is very stable; it's thermodynamically favoured at flame temperatures.
Stoichiometric O/F mass ratio for MMH/N₂O₄? 2.5 (= 5·92 / 4·46).
What is a "hard start" and why dangerous? Excessive ignition delay lets propellant pool, then ignites with a destructive pressure spike.
Why are hypergolics chosen for spacecraft RCS/upper stages? Storable liquids, restartable, no igniter to fail → high reliability.
Arrhenius equation — source of the e E a / R T e^{E_a/RT} e E a / R T Bond enthalpy and reaction energetics — weak N–N → strong N≡N drives the energy release.Stoichiometry and limiting reagent — used for O/F ratio.Adiabatic flame temperature — the thermodynamic counterpart to kinetics.Specific impulse and rocket performance — why O/F is tuned fuel-rich.Redox in combustion — fuel = reducer, NTO = oxidiser.
Liquid pre-ignition reactions
Intuition Hinglish mein samjhoDekho, hypergolic propellants ka matlab hai woh fuel–oxidiser jodi jo contact hote hi khud-ba-khud aag pakad leti hai — koi spark plug ya igniter ki zaroorat hi nahi. Yahan oxidiser hota hai N₂O₄ (NTO) aur fuel hote hain UDMH ya MMH (dono hydrazine family ke). Inme N–N bond kamzor hota hai aur jab jalte hain to bahut stable N₂ (triple bond) banta hai — yahi weak-se-strong bond ka trade itni energy release karta hai. Spacecraft me yeh isliye favourite hain kyunki yeh room temperature pe store ho jaate hain, baar-baar restart ho sakte hain, aur igniter fail hone ka tension hi nahi.
Ignition delay (τ i g n \tau_{ign} τ i g n Arrhenius kinetics se chalta hai, isliye τ = C e E a / R T \tau = C\,e^{E_a/RT} τ = C e E a / R T τ ∝ 1 / k \tau \propto 1/k τ ∝ 1/ k k ∝ e − E a / R T k \propto e^{-E_a/RT} k ∝ e − E a / R T τ \tau τ
Ek important danger hai hard start : agar delay zyada ho gaya, propellant chamber me jama ho jaata hai, aur jab finally jalta hai to pressure ka jhatka itna bada hota hai ki engine fat sakta hai. Isliye ignition delay sirf ek number nahi, safety ka matter hai. Balancing aur O/F ratio bhi important: MMH ke liye stoichiometric O/F = 2.5 nikalta hai (5×92 / 4×46). Exam aur real propulsion dono me yeh concepts kaam aate hain — kinetics (kitni jaldi shuru) aur thermodynamics (kitni energy) ko alag-alag samajhna.
