5.3.7 · D1Combustion Chemistry (Propulsion Bridge)

Foundations — Combustion of hypergolics — N₂O₄ + UDMH - MMH; ignition delay

2,338 words11 min readBack to topic

This page assumes you know nothing and builds every letter, arrow, and word the topic leans on. Read it top to bottom; each block only uses symbols already defined above it.

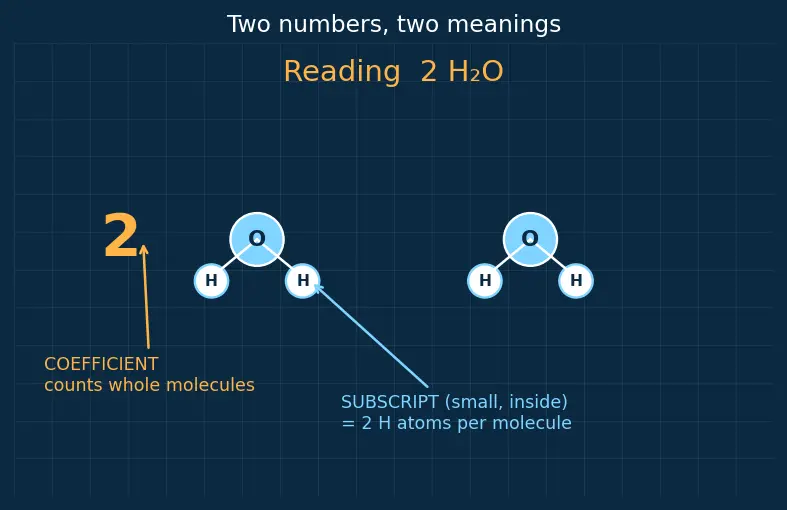

0. What a chemical formula even says

Before any reaction, we must read the "words" of chemistry: formulas.

Figure — Combustion of hypergolics — N₂O₄ + UDMH - MMH; ignition delay

Why the topic needs this: the parent's boxed equations () are entirely subscripts and coefficients. If you can't read them, nothing else lands.

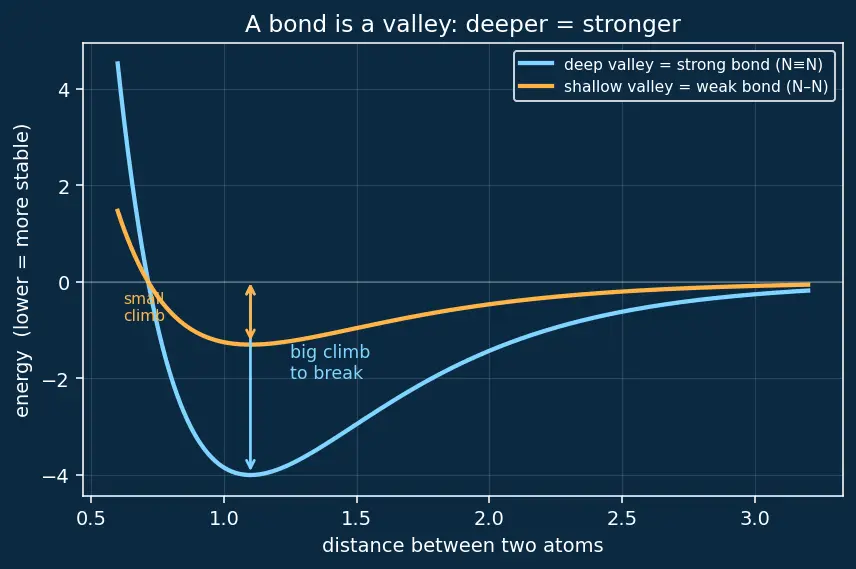

1. Atoms, bonds, and why bonds store energy

Figure — Combustion of hypergolics — N₂O₄ + UDMH - MMH; ignition delay

Why the topic needs this: the parent's whole "hydrazines are hungry to burn" argument is break a shallow N–N valley, fall into a deep N≡N valley, and pocket the height difference as heat. That height difference is the released energy.


2. Oxidation, reduction, and "electron donor / acceptor"

Burning is a special kind of electron trade. Let's define the trade.

Why the topic needs this: the parent labels NTO "electron acceptor" and hydrazines "electron donor" without defining the words. Now you own them.


3. The unit "mol" and molar mass (the bridge to grams)

Reactions are counted in molecules, but we weigh things in grams. The mole bridges the two.

Why the topic needs this: the parent's "1 kg MMH needs 2.5 kg NTO" jumps from coefficients (moles) to kilograms. That jump is molar mass. See Stoichiometry and limiting reagent.

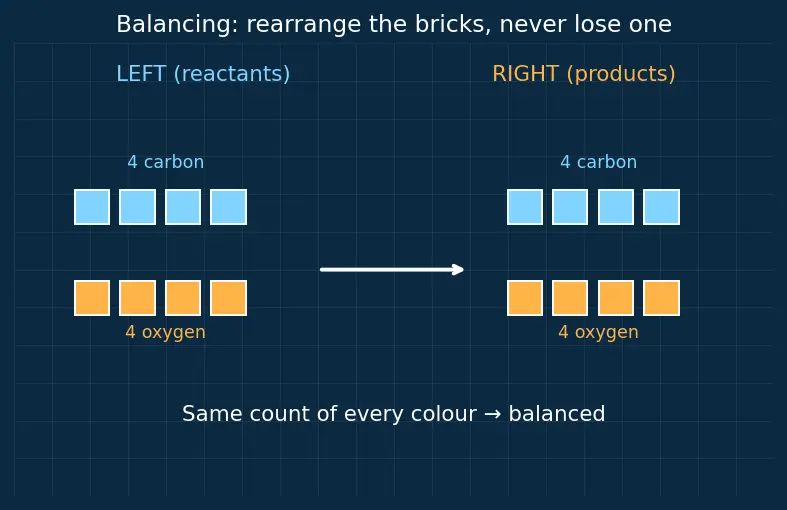

4. Balancing an equation — conservation of atoms

Figure — Combustion of hypergolics — N₂O₄ + UDMH - MMH; ignition delay

Look at the figure: each element is a separate colour, and the tray on the left must have the same number of each colour as the tray on the right. That is exactly the parent's "Oxygen: left , right " bookkeeping — one colour at a time.

Why the topic needs this: every boxed reaction on the parent page was found by this counting. The parent solved for and by demanding equal atom counts; you now see why that is the only rule.

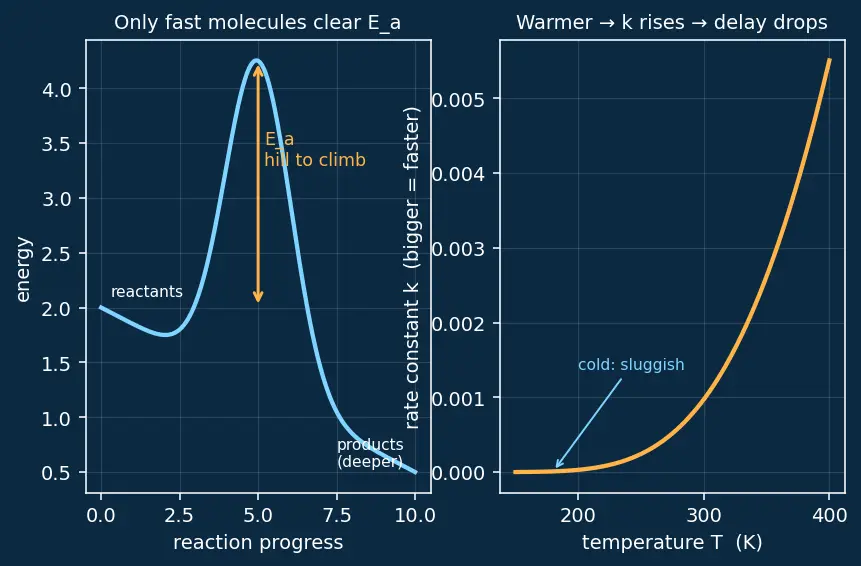

5. Reaction rate, , and the Arrhenius idea

Now for the speed of the fire — the heart of "ignition delay".

Figure — Combustion of hypergolics — N₂O₄ + UDMH - MMH; ignition delay

6. The exponential and the logarithm

The scariest-looking symbol is the little with stuff upstairs. Tame it.


7. Two more words the parent drops


The prerequisite map

Chemical formula, subscripts, coefficients

Atoms and bonds

Bond enthalpy, deep vs shallow valley

Redox, electron donor and acceptor

Mole and molar mass

Balancing, conserve every atom

Energy released by combustion

Rate constant k

Arrhenius k equals A exp minus Ea over RT

Exponential and natural log

Ignition delay tau proportional to one over k

Straight line ln tau vs one over T gives Ea

Adiabatic flame temperature

O over F ratio and specific impulse

Hypergolic combustion, the parent topic

Read it as: the top-left chain (formulas → atoms → bonds/redox → energy) explains what burns and why it releases heat; the middle chain (rate → Arrhenius → exponential/log) explains how fast it starts; both pour into the parent topic.


Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, re-read that section before the parent page.

Subscript vs. coefficient — which changes the molecule?
The subscript (inside); coefficients only count whole molecules.
What does molar mass convert between?
Moles (a count of molecules) and grams (a mass).
Molar mass of ?
g/mol.
The one rule of balancing?
Every element must have equal atom count on both sides — conserve atoms.
Oxidiser means, in electron terms?
Electron acceptor (grabs electrons); fuel is the electron donor.
Why is a weak bond "energy-rich" for burning?
Shallow valley → easy to break, then it falls into a much deeper valley (strong product bond), releasing the height difference as heat.
In , what is ?
Activation energy — the energy hill molecules must climb before reacting.
Why does higher speed a reaction?
A bigger makes the exponent less negative, so (and thus ) grows.
Why does carry ?
Because , and taking the reciprocal of flips the sign to .
What does taking do to ?
Turns the curve into a straight line , whose slope gives .
Recall Ready-check summary

If you can read a formula, weigh a mole, balance by counting atoms, explain a bond as a valley, and say why grows with — you have every symbol the parent topic uses. Go back to the parent and it will read like plain English.
