Pollutants — NOₓ, soot, unburned hydrocarbons
1. NOₓ — nitrogen oxides
WHAT are the routes?
There are three mechanisms (you must know all three for the 80/20):
| Route | WHAT triggers it | WHERE it matters |
|---|---|---|
| Thermal (Zeldovich) | High temperature ( K) | Hot lean flames, gas turbines |
| Prompt (Fenimore) | Fuel radicals (CH) attacking N₂ | Rich flame fronts |
| Fuel NOₓ | Nitrogen bound in the fuel | Coal, heavy oils |
HOW thermal NOₓ forms — the Zeldovich derivation
The extended Zeldovich chain:
Derivation of the NO production rate from first principles.
WHY start with (1)? Reaction (1) is the rate-limiting step — it has the huge activation energy (must break N≡N). Reactions (2),(3) are fast.
Step 1 — write the rate of (1): Why this step? Law of mass action: rate ∝ product of reactant concentrations.
Step 2 — invoke the quasi-steady-state for the N atom. N is consumed as fast as made: Why? N atoms are extremely reactive — their concentration is tiny and constant. This lets us eliminate the unknown [N].
Step 3 — combine. Both (1) and (2) make one NO, so accounting for the steady N: Why the factor 2? One NO from (1), then the N atom immediately makes a second NO via (2).
Step 4 — the temperature law. obeys Arrhenius: Why this matters: that giant is why NOₓ roughly doubles for every ~ K rise near K. Temperature, not residence time, dominates.
2. Soot — particulate carbon
HOW soot forms (the pathway you must recall)
- Pyrolysis: fuel cracks (no O₂) into small radicals, esp. C₂H₂ (acetylene).
- Aromatic ring formation: first benzene ring builds (the rate-controlling step).
- PAH growth by the HACA mechanism (H-Abstraction C₂H₂-Addition): a ring loses an H, then adds an acetylene unit, repeating to grow.
- Nucleation → tiny particles; surface growth + coagulation → visible soot.
- Oxidation: if soot then meets O₂/OH at high T, it can burn off. Net soot = formation − oxidation.
3. Unburned hydrocarbons (UHC) and CO
WHY does fuel escape unburned?
- Wall quenching: cold walls extract heat; reactions freeze in a thin quench layer.
- Crevices: fuel hides in gaps (e.g. piston ring crevice) too narrow for the flame.
- Over-lean (flame-out) or over-rich local mixtures: outside the flammability limits.
- Low temperature: needs OH and time; if gases cool fast, CO is frozen in.
4. The master trade-off (THE 80/20 idea)
Common mistakes (Steel-man + fix)
Flashcards
What two species make up NOₓ?
Where does the nitrogen in thermal NOₓ come from?
Name the three NOₓ formation routes.
What is the rate-limiting step of thermal NOₓ?
Why is NOₓ exponentially sensitive to temperature?
Roughly how much T rise doubles thermal NOₓ near 2000 K?
What factor of 2 appears in d[NO]/dt and why?
Under what conditions does soot form?
What is the key soot precursor molecule?
What does HACA stand for?
Net soot = ?
Two main causes of unburned hydrocarbons?
What single reaction dominates CO burnout?
Why does lowering peak temperature raise CO and UHC?
Where on the φ axis does NOₓ peak?
Where does soot appear on the φ axis?
The central pollutant trade-off in one line?
Recall Feynman: explain to a 12-year-old
Imagine a campfire. If the fire is super hot, even the air (which usually doesn't burn) gets cooked and makes a smelly gas — that's NOₓ. If you pile on too much wood and not enough air, black smoke comes off — that's soot, carbon clumping up because it can't find air. If part of the fire is too cold (like near a cold pot), some wood smoke escapes without burning — that's unburned fuel and CO. So: too hot → NOₓ, too much fuel → soot, too cold → smoke. The trick is finding the "just right" middle.
Connections
- Adiabatic Flame Temperature — sets peak T that drives thermal NOₓ.
- Equivalence Ratio and Flammability Limits — the φ axis underlying all three pollutants.
- Arrhenius Equation and Activation Energy — why NOₓ is exp-sensitive to T.
- Lean Premixed Combustion & Staging — engineering fix for NOₓ.
- Diffusion vs Premixed Flames — diffusion flames sit at φ≈1 internally → more soot.
- CO Oxidation and Chemical Kinetics — CO+OH burnout.
- Quenching and Wall Heat Transfer — origin of UHC.
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, combustor ka kaam hai fuel + air ko CO₂ + H₂O + heat me badalna. Pollutants asal me side-reactions hain jo isliye hoti hain kyunki real combustion uneven hota hai — kahi bahut garam, kahi bahut rich (fuel zyada), kahi bahut thanda. Teen main villains: NOₓ (jab flame bahut HOT ho, to air ka N₂ tak oxidise ho jata hai), soot (jab zone bahut RICH ho, carbon ko oxygen nahi milta to wo clump ban jata hai), aur UHC + CO (jab zone bahut COLD ho ya quench ho jaye, fuel poora jal hi nahi pata).
NOₓ ka asli funda: N≡N bond bahut strong hai (945 kJ/mol), isliye sirf bahut energetic, garam collision hi use todta hai — Zeldovich mechanism. Rate me aata hai, matlab temperature thoda badao to NOₓ exponentially badh jata hai (roughly har ~70 K rise pe double, 2000 K ke aas-paas). Isliye sabse important cheez hai peak temperature ko control karna, residence time secondary hai. Yahi reason hai ki lean-premixed aur staged combustion use karte hain — taaki flame ka peak T neeche rahe. Ek chhota example: 2200 K se 2000 K pe le jao to NOₓ rate ka factor ban jata hai — yani lagbhag 5 guna kam, sirf 200 K cut se.
Soot ka funda ulta hai: ye RICH, oxygen-starved aur hot zone me banta hai. Fuel crack hoke acetylene (C₂H₂) banata hai, fir HACA mechanism se PAH rings badhti hain, fir solid particle. Lekin agar baad me O₂/OH mile to soot jal bhi sakta hai — isliye net soot = formation minus oxidation.

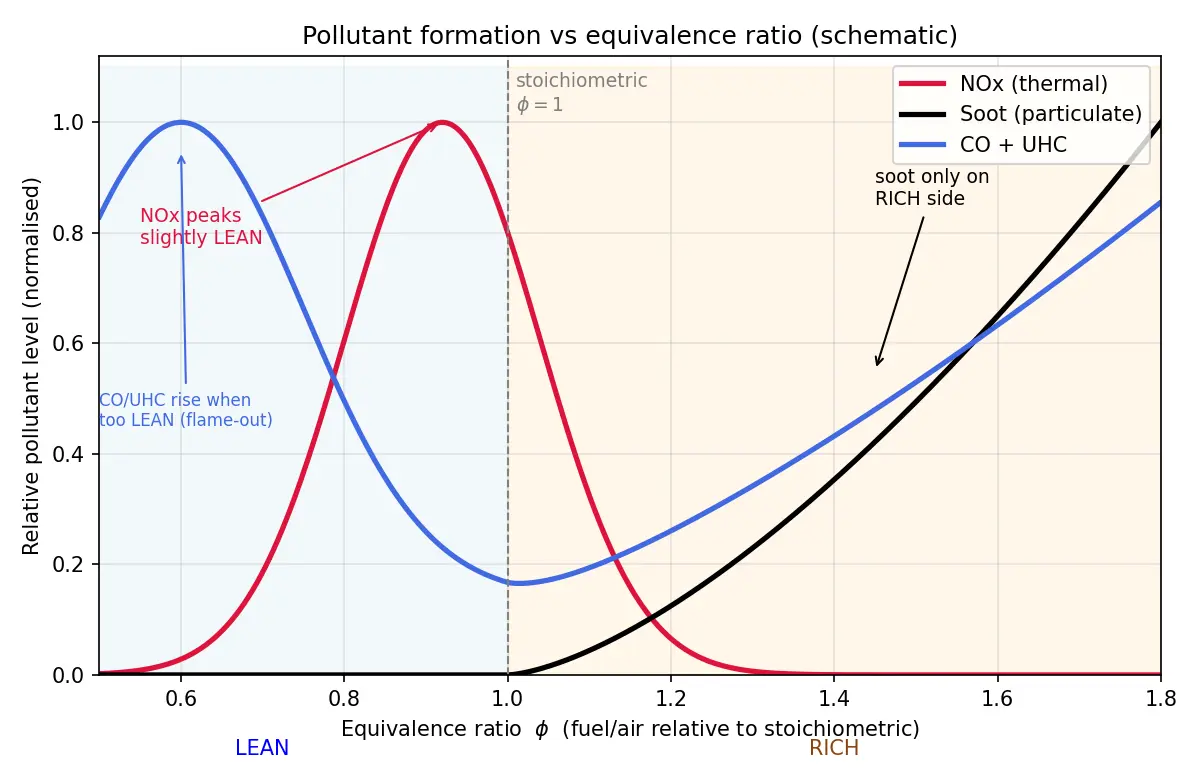

Sabse important exam point: ek trade-off hota hai. Temperature kam karoge to NOₓ girega par CO/UHC badhega (incomplete burn). Dono ko ek saath minimum nahi kar sakte. Diagram me dekho — φ (equivalence ratio) ke against NOₓ slightly lean pe peak karta hai, soot sirf rich side pe, aur CO/UHC dono extremes pe high. Yahi ek graph poora chapter samjha deta hai.
