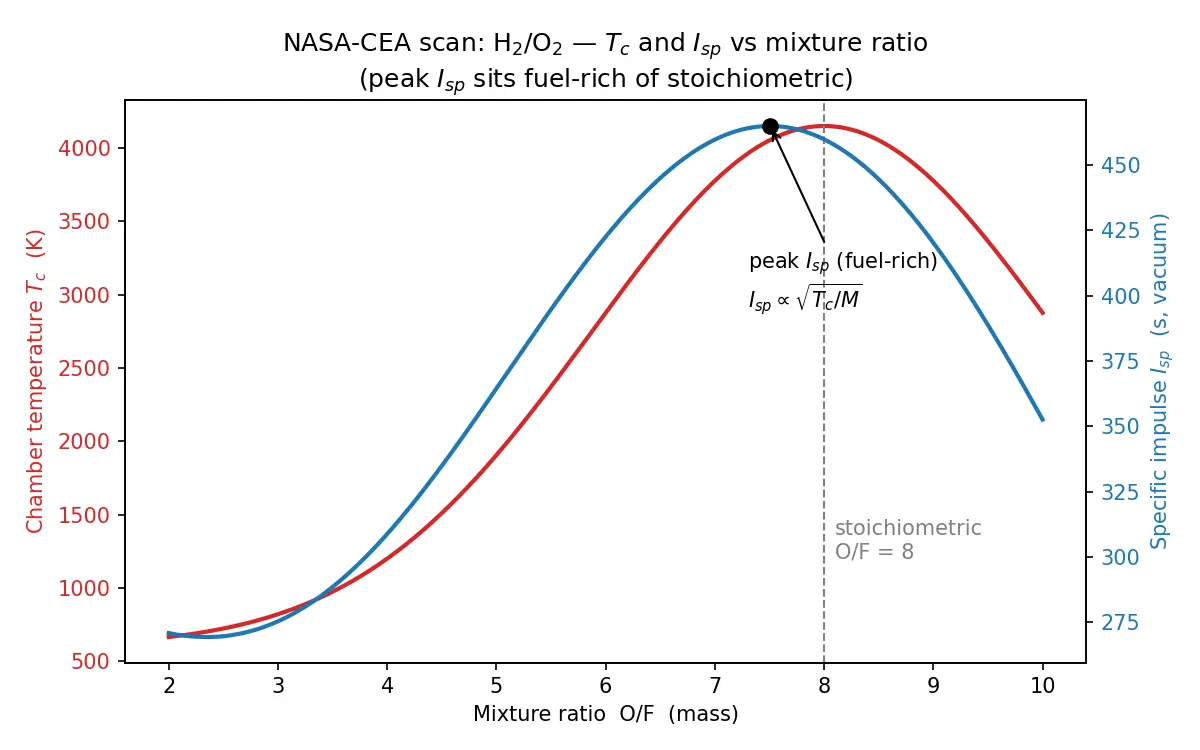

CEA (Chemical Equilibrium with Applications) — using NASA-CEA tool to compute Isp, Tc, products

WHAT CEA actually computes

The three headline outputs:

HOW CEA finds the products: Gibbs free energy minimization

Derivation from first principles

Step 1 — Write total Gibbs energy. For a mix of $N$ species with mole numbers $n_i$: $G = \sum_{i=1}^{N} n_i \, \mu_i$ Why this step? $G$ is extensive; each species contributes its chemical potential $\mu_i$ times how much of it there is.

Step 2 — Chemical potential of a gas. For an ideal gas at partial pressure $p_i$: $\mu_i = \mu_i^\circ(T) + RT \ln\!\frac{p_i}{p^\circ}, \qquad p_i = \frac{n_i}{n_{\text{tot}}}\,p$ Why this step? $\mu_i^\circ$ is the standard chemical potential (from JANNAF/CEA thermo tables, fitted as polynomials in $T$). The log term encodes how being dilute lowers a species' "escaping tendency" — this is what drives mixing and dissociation.

Step 3 — Constraints: conserve atoms. For each element $j$ (C, H, O, N…), with $a_{ij}$ = number of atoms of element $j$ in species $i$, and $b_j$ = total moles of element $j$ supplied by the propellant: $\sum_{i} a_{ij}\, n_i = b_j \quad \text{for every element } j$ Why this step? Reactions rearrange atoms; they never create or destroy them. These are the only things held fixed.

Step 4 — Lagrange multipliers. Minimize $G$ subject to the constraints. Form $\mathcal{L} = \sum_i n_i \mu_i - \sum_j \lambda_j\Big(\sum_i a_{ij} n_i - b_j\Big)$ Set $\partial \mathcal{L}/\partial n_i = 0$: $\boxed{\;\mu_i = \sum_j \lambda_j\, a_{ij}\;}$ Why this step? This is the master equilibrium condition: at equilibrium every species' chemical potential equals a weighted sum of "elemental potentials" $\lambda_j$. Equivalently, for any reaction $\sum \nu_i \text{(species)}=0$, this forces $\sum_i \nu_i \mu_i = 0$ — exactly the law of mass action ($K_p$ relations) for every reaction at once. CEA solves these coupled equations numerically (Newton iteration on the $\lambda_j$ and $n_i$).

HOW $I_{sp}$ comes out (nozzle expansion)

Step 1 — Energy → velocity. Steady adiabatic flow conserves stagnation enthalpy: $h_c = h_e + \tfrac{1}{2}v_e^2 \;\Rightarrow\; v_e = \sqrt{2(h_c - h_e)}$ Why this step? Enthalpy "stored" in the hot chamber gas becomes exhaust kinetic energy.

Step 2 — Define specific impulse. With mass flow $\dot m$ and (matched-pressure) thrust $F=\dot m\,v_e$: $\boxed{\,I_{sp} = \frac{v_e}{g_0}\,}\quad\text{(seconds)},\qquad g_0 = 9.81\ \text{m/s}^2$ Why this step? $I_{sp}$ is thrust per unit weight flow rate. Units of seconds make it independent of the engine size — a clean efficiency figure.

Worked examples

Common mistakes (Steel-man → fix)

Active recall

Flashcards

Connections

• Adiabatic Flame Temperature — the $T_c$ CEA computes is the equilibrium adiabatic flame temperature.
• Gibbs Free Energy and Equilibrium — the minimization principle underpinning CEA.
• Chemical Equilibrium and Kp — $\mu_i=\sum\lambda_j a_{ij}$ is mass action for all reactions at once.
• Hess's Law and Enthalpy of Formation — supplies the $\Delta_f h^\circ$ used in the enthalpy balance.
• Rocket Nozzle and Thrust Equation — where $v_e$ and $I_{sp}$ are physically realized.
• Dissociation at High Temperature — why products are a "soup", not just CO₂+H₂O.
• Tsiolkovsky Rocket Equation — uses $I_{sp}$ to get $\Delta v$.

Concept Map
