Pollutants — NOₓ, soot, unburned hydrocarbons: Visual walkthrough

Prerequisites we will lean on (each linked where it enters): Arrhenius Equation and Activation Energy, Adiabatic Flame Temperature, Lean Premixed Combustion & Staging, CO Oxidation and Chemical Kinetics.

Step 0 — What is a "rate" and what do the square brackets mean?

WHY we need this idea first. The whole result is a statement about a speed. Before we can say what makes NO appear fast or slow, we must agree that "fast" = a big $d [NO] / d t$ .

PICTURE. Two boxes: a sparse box (few molecules, rare collisions) and a crowded box (many, frequent collisions). The crowded box makes product faster — that is the whole meaning of "rate depends on concentration".

Figure — Pollutants — NOₓ, soot, unburned hydrocarbons

Step 1 — Why nitrogen refuses to react: the N≡N wall

WHAT we did. We identified the obstacle: to make NO from air, something must first crack open that triple bond.

WHY it matters. A tall energy wall means only a violently energetic collision can do the job. That single fact — a tall wall — is the seed of the temperature explosion we find later.

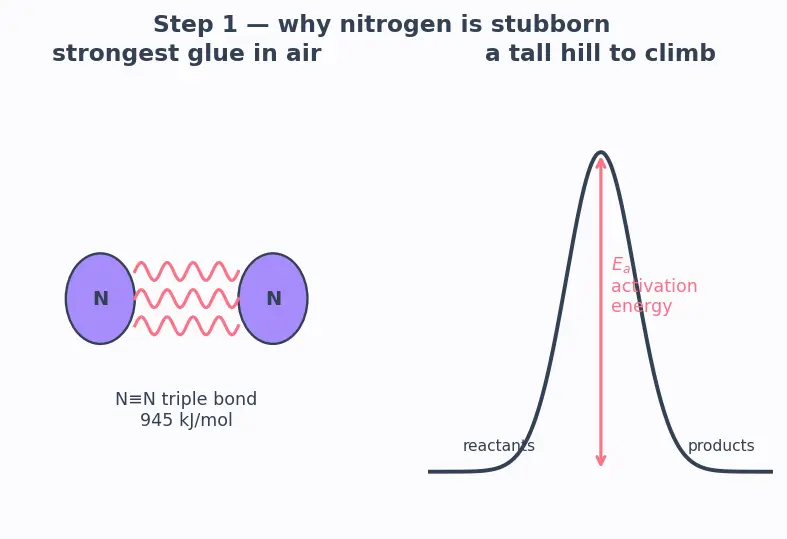

PICTURE. The triple bond drawn as three tight springs, next to an energy "hill" the reaction must climb. The height of the hill is the activation energy $E_{a}$ .

Step 2 — The chain: three reactions, one bottleneck

Reading each symbol: $O$ is a lone oxygen atom (a fragment, very reactive — not $O_{2}$ ); $N$ is a lone nitrogen atom; $OH$ is the hydroxyl radical; the $⇌$ means the step can run both ways but we track the forward (NO-making) direction.

WHAT we did. We listed the only three steps that turn air-nitrogen into NO.

WHY three, and why (1) is special. Step (1) must break $N \equiv N$ — it is slow and hard (the tall hill from Step 1). Steps (2) and (3) only shuffle a lone $N$ atom, which is already reactive — they are lightning-fast. So step (1) is the rate-limiting step: the whole chain moves only as fast as its slowest link.

PICTURE. A pipe with a narrow neck (step 1) feeding two wide-open pipes (steps 2, 3). The narrow neck sets the flow.

Step 3 — Writing the rate of the bottleneck (law of mass action)

For step (1), reactants are $O$ and $N_{2}$ : $\frac{d [ NO ]}{d t}_{(1)} = k_{1} [O] [N_{2}]$

Term-by-term:

$[O]$ — crowding of lone oxygen atoms. More O ⇒ more collisions.
$[N_{2}]$ — crowding of nitrogen molecules. In air this is huge and roughly fixed.
$k_{1}$ — the rate constant: the "how eager per collision" factor. This is where temperature will hide (Step 5).

WHY this step. It converts the idea "collisions make NO" into an equation we can manipulate.

PICTURE. Two clouds — O atoms (coral) and $N_{2}$ (lavender) — overlapping; the overlap area (∝ product of the two crowdings) is where NO is born.

Step 4 — The clever trick: the N atom never piles up

WHAT this buys us. Every $N$ made in step (1) is spent in step (2) (or 3), each of which makes one more NO. So one trip through step (1) yields two NO molecules: one directly, one from the leftover N.

WHY the factor 2. Not decoration — it is bookkeeping of atoms: $1st NO O + N_{2} \to NO + 2nd NO, from the leftover N N + O_{2} \to NO$

PICTURE. A "conveyor": step (1) drops one NO and one N atom; the N atom slides straight into step (2) and drops a second NO. Two NO per cycle.

Putting Steps 3 and 4 together: $\frac{d [ NO ]}{d t} = 2 k_{1} [O] [N_{2}]$

Step 5 — Where temperature hides: the Arrhenius factor

Now we open up $k_{1}$ . From the Arrhenius Equation and Activation Energy: $k_{1} = A exp (- \frac{E _{a}}{R T}), E_{a} \approx 319 kJ/mol$

Term-by-term:

$A$ — the pre-exponential factor: how often O and $N_{2}$ attempt the reaction (collision frequency & geometry). Roughly temperature-flat.
$E_{a}$ — the activation energy: the height of the hill from Step 1. Because we must crack $N \equiv N$ , this is enormous.
$R$ — the gas constant, $8.314 J/(mol\cdotK)$ — a unit-bridge turning energy into "per kelvin".
$T$ — absolute temperature in kelvin (the flame's Adiabatic Flame Temperature feeds this in).
$exp (- E_{a} / R T)$ — the fraction of collisions violent enough to clear the hill. Tiny when $T$ is small, and it climbs steeply as $T$ rises.

WHY exponential, not linear. The share of molecules with enough energy to clear a tall hill grows exponentially with temperature — that is the physics baked into $exp (- E_{a} / R T)$ . A big $E_{a}$ makes the curve almost switch-like.

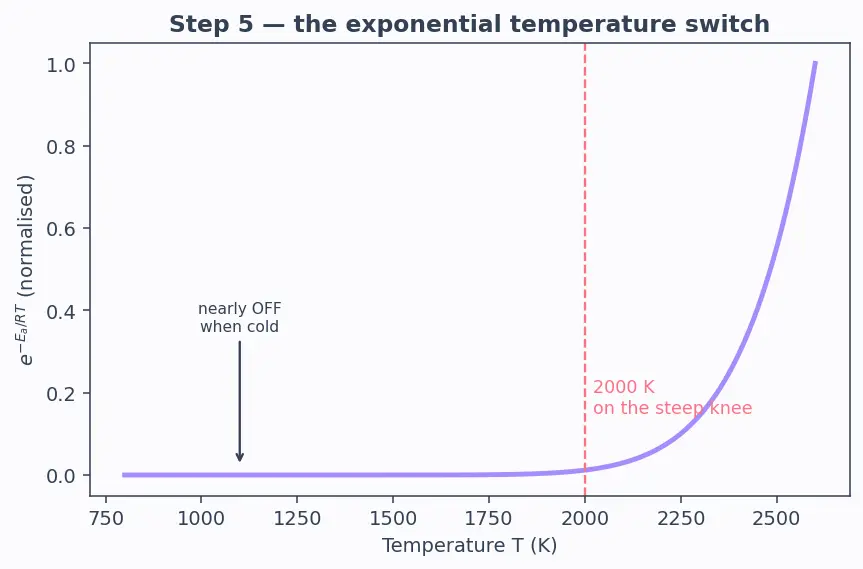

PICTURE. A curve of $exp (- E_{a} / R T)$ versus $T$ : near-flat and near-zero at low $T$ , then a sharp knee upward near flame temperatures. Mark $2000$ K on the steep part.

Step 6 — Feeling the exponent: the "70 K doubling"

WHAT we check. Why does NOₓ roughly double for a ~70 K rise near $2000$ K?

Compare two temperatures $T_{1}, T_{2}$ . The rate ratio (holding $A, [O], [N_{2}]$ fixed) is: $\frac{rate ( T _{2} )}{rate ( T _{1} )} = exp [- \frac{E _{a}}{R} (\frac{1}{T _{2}} - \frac{1}{T _{1}})]$

WHY this shape. The $A$ , $[O]$ , $[N_{2}]$ cancel — only the exponential differs. So temperature's grip is pure exponential.

Plug in $E_{a} / R = 319000/8.314 = 38370 K$ , with $T_{1} = 2000, T_{2} = 2070$ : $\frac{1}{2000} - \frac{1}{2070} = 1.69 \times 1 0^{- 5} K^{- 1}, 38370 \times 1.69 \times 1 0^{- 5} = 0.649$ $ratio = e^{0.649} \approx 1.91 \approx 2.$

A mere 70 K hotter ⇒ almost double the NOₓ. That is the whole reason engineers chase lower peak temperatures via Lean Premixed Combustion & Staging.

PICTURE. Two bars at $2000$ K and $2070$ K; the second is ~2× tall, annotated "+70 K → ×2".

Step 7 — Degenerate & limiting cases (never leave the reader stranded)

$T \to$ low (cold, e.g. quench layer): $exp (- E_{a} / R T) \to 0$ . Rate → 0. No thermal NOₓ in cold gas — consistent with CO Oxidation and Chemical Kinetics and quench-layer chemistry (cold = frozen). Thermal NOₓ effectively "switches off" below ~ $1800$ K.
$[O] \to 0$ (no free O atoms): rate $\to 0$ regardless of $T$ . You need dissociated oxygen atoms, which themselves require heat — a second reason cool flames make little NOₓ.
$T$ very high, very lean: both $[O]$ and $exp (- E_{a} / R T)$ are large → worst-case NOₓ. This is why NOₓ peaks slightly lean of stoichiometric (hot and oxygen-rich), matching the trade-off curve in the parent note.
Very rich ( $ϕ > 1$ ): little free O and lower temperature ⇒ thermal NOₓ falls (but soot rises — the trade-off).
Short residence time: the rate is finite, so total NO $\approx rate \times time$ . Cutting time helps linearly; cutting temperature helps exponentially. Temperature wins — which is exactly the "residence time is secondary" caution.

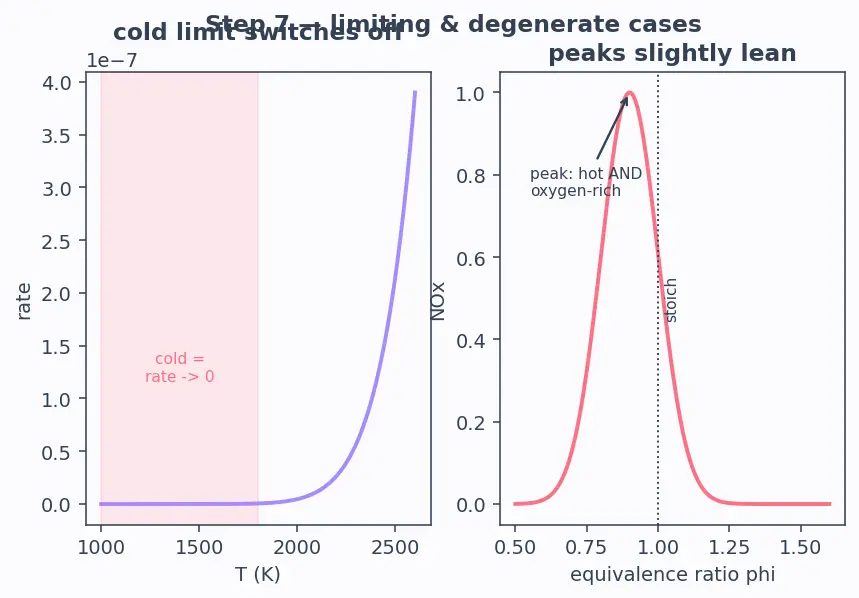

PICTURE. A 2-panel map: (left) rate vs $T$ going to zero on the cold end; (right) rate vs equivalence ratio $ϕ$ peaking just lean of $ϕ = 1$ .

The one-picture summary

This single figure chains it all: stubborn N≡N (tall hill) → bottleneck step (1) → mass-action rate $k_{1} [O] [N_{2}]$ → QSSA gives factor 2 → Arrhenius injects the explosive $e^{- E_{a} / R T}$ , ending at the boxed master result.

Recall Feynman retelling — say it back in plain words

Air is mostly nitrogen, glued together so tightly it usually does nothing. To make the pollutant NO you first have to snap that glue, and only a super-hot collision can. That snapping step is slow — it is the traffic jam that sets the whole speed. Its speed is "how crowded the oxygen atoms and nitrogen molecules are" (that's mass action) times a factor $k_{1}$ that measures how eager the reaction is. Each snap actually makes two NO — one right away and one from the loose nitrogen atom that instantly grabs oxygen (that's the factor 2, and it works because the loose N never piles up). Finally, that eagerness $k_{1}$ hides a temperature switch, $e^{- E_{a} / R T}$ : nearly off when cold, and rising so steeply that just $70$ extra kelvin almost doubles the NO. So the clean-combustion moral is: don't fight the clock, cool the flame — temperature, not time, rules NOₓ.

Recall

What sets the overall speed of the Zeldovich chain, and why? ::: Step (1) O+N₂→NO+N, because it must break the very strong N≡N bond (huge Eₐ) while steps (2),(3) are fast. Why does d[NO]/dt carry a factor of 2? ::: Each pass through step (1) makes one NO directly and leaves a lone N atom that immediately makes a second NO via step (2). Which term makes NOₓ explode with temperature, and what does it physically mean? ::: e^(−Eₐ/RT) — the fraction of collisions violent enough to clear the activation-energy hill; it climbs steeply with T. Why does thermal NOₓ vanish in a cold quench layer? ::: e^(−Eₐ/RT) → 0 as T falls, so the rate → 0 regardless of concentrations.
