Thrust equation F = ṁv_e + (P_e − P_a)A_e — derivation

WHY do we even need this equation?

WHAT we want: the net forward force $F$ (thrust) that a rocket engine produces.

WHY it's not just $\dot m v_e$: A rocket nozzle rarely expands the gas perfectly down to ambient pressure. At the exit plane the gas may still be at pressure $P_e \ne P_a$. That leftover pressure acts on the exit area and contributes real force. Ignoring it would give the wrong answer for real engines.

HOW — derivation from first principles (control-volume / momentum)

We use Newton's 2nd law in momentum form applied to a moving control volume around the rocket, then bookkeep the forces on its surface.

Step 1 — Conservation of momentum for a variable-mass system

Consider the rocket + its instantaneous fuel as our system at time $t$.

Why this step? Rocket mass changes, so we cannot naively use $F=ma$; we track total momentum of a fixed chunk of matter over $dt$.

• At time $t$: mass $m$, velocity $v$. Momentum $p_1 = mv$.
• In time $dt$ it ejects mass $dm_{ex} = \dot m\,dt$ at exhaust velocity (relative to rocket) $v_e$ backward.
• At $t+dt$: rocket mass $m - dm_{ex}$, velocity $v+dv$.

$p_2 = (m-dm_{ex})(v+dv) + dm_{ex}(v - v_e)$

Why this step? The exhaust's velocity in the ground frame is (rocket velocity) minus (exhaust speed relative to rocket) $= v - v_e$.

Step 2 — Change in momentum

$dp = p_2 - p_1 = m\,dv - v_e\,dm_{ex} + (\text{2nd-order terms})$

Why this step? Expand and cancel $mv$; drop $dm_{ex}\,dv$ (product of two tiny quantities).

So $\frac{dp}{dt} = m\frac{dv}{dt} - v_e\,\dot m$

Step 3 — What external force causes this $dp/dt$?

By Newton's 2nd law, $\dfrac{dp}{dt} = \sum F_{ext}$. The external forces on the control volume surface are the pressure forces. Let's isolate the engine.

Why this step? We want the force the engine delivers, so equate internal momentum change to external surface pressure forces.

If we work in the rocket's frame and define thrust $F$ as the net force the engine exerts to accelerate the rocket: $F = \dot m\,v_e + \underbrace{\text{(pressure force term)}}_{\text{from Step 4}}$

Step 4 — The pressure term (the "bonus")

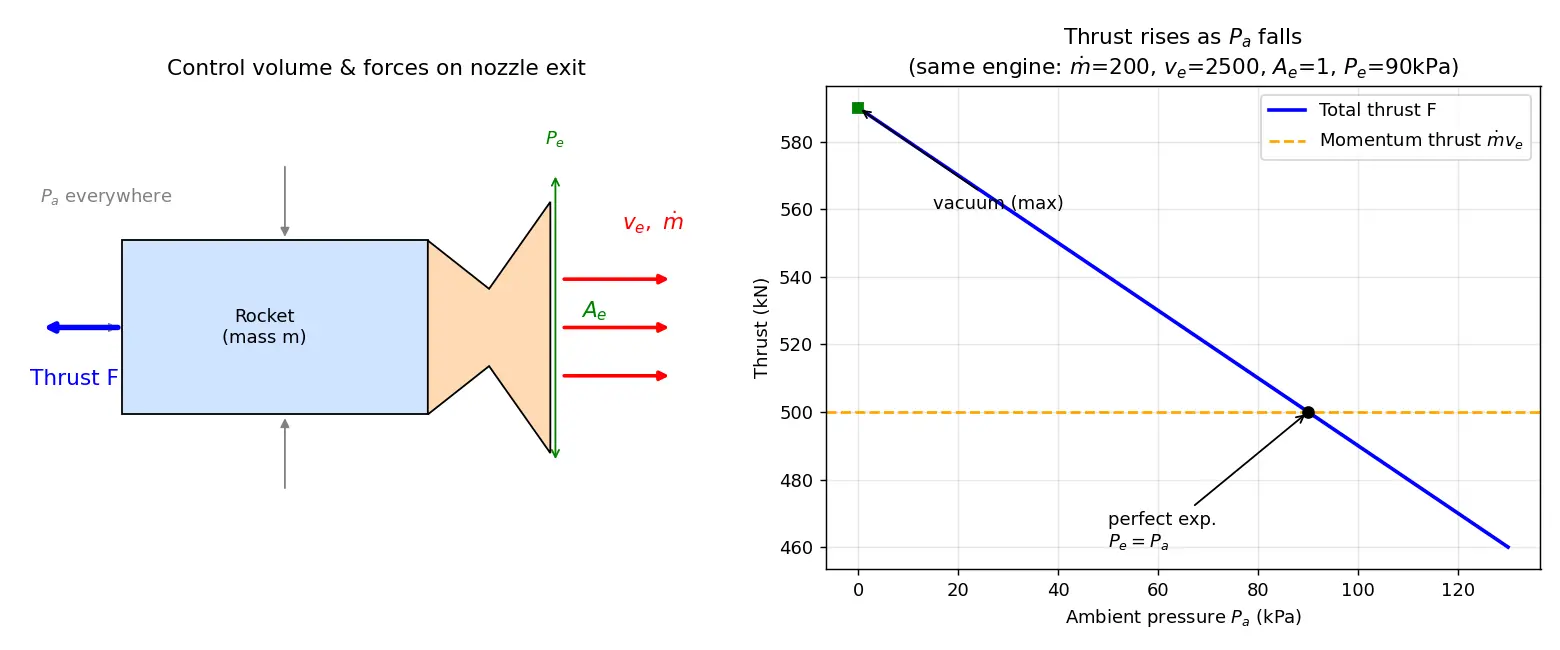

Wrap the control surface tightly around the rocket. Ambient pressure $P_a$ presses on the entire outer surface. These forces cancel everywhere except over the nozzle exit area $A_e$, because there is no rocket skin there — instead there is exhaust gas at pressure $P_e$.

• The exhaust gas pushes forward on the engine with force $P_e A_e$.
• The ambient air would have pushed back with $P_a A_e$ if the hole were sealed; that back-push is missing/replaced.

Net forward pressure force at the exit plane: $F_{pressure} = (P_e - P_a)A_e$

Why this step? All ambient pressure on a closed surface integrates to zero (equilibrium of a closed body). The only place the surface is "open" is the exit, so only there does a net pressure force survive.

Key consequences (WHY they matter)

Worked examples

Common mistakes (Steel-manned)

Flashcards

Connections

• Newton's Third Law — momentum thrust is action–reaction.
• Conservation of Momentum — variable-mass systems.
• Tsiolkovsky Rocket Equation — integrates thrust to get $\Delta v$.
• Specific Impulse — $I_{sp}=v_{eff}/g_0$, uses effective exhaust velocity.
• De Laval Nozzle — sets $P_e$, $v_e$, $A_e$ via expansion.
• Bernoulli & Compressible Flow — relates chamber to exit conditions.
