Overview

Spacecraft power systems convert energy (solar, nuclear, chemical) into electrical power for all spacecraft subsystems. The three primary architectures are: solar photovoltaic arrays (most common for LEO/GEO), rechargeable batteries (for eclipse periods), and radioisotope thermoelectric generators (RTG, for deep-space missions). Understanding the I-V curves of solar cells, maximum power point tracking (MPPT), depth-of-discharge (DoD) constraints, and RTG decay kinetics is critical for mission power budget design.

Solar Photovoltaic Arrays

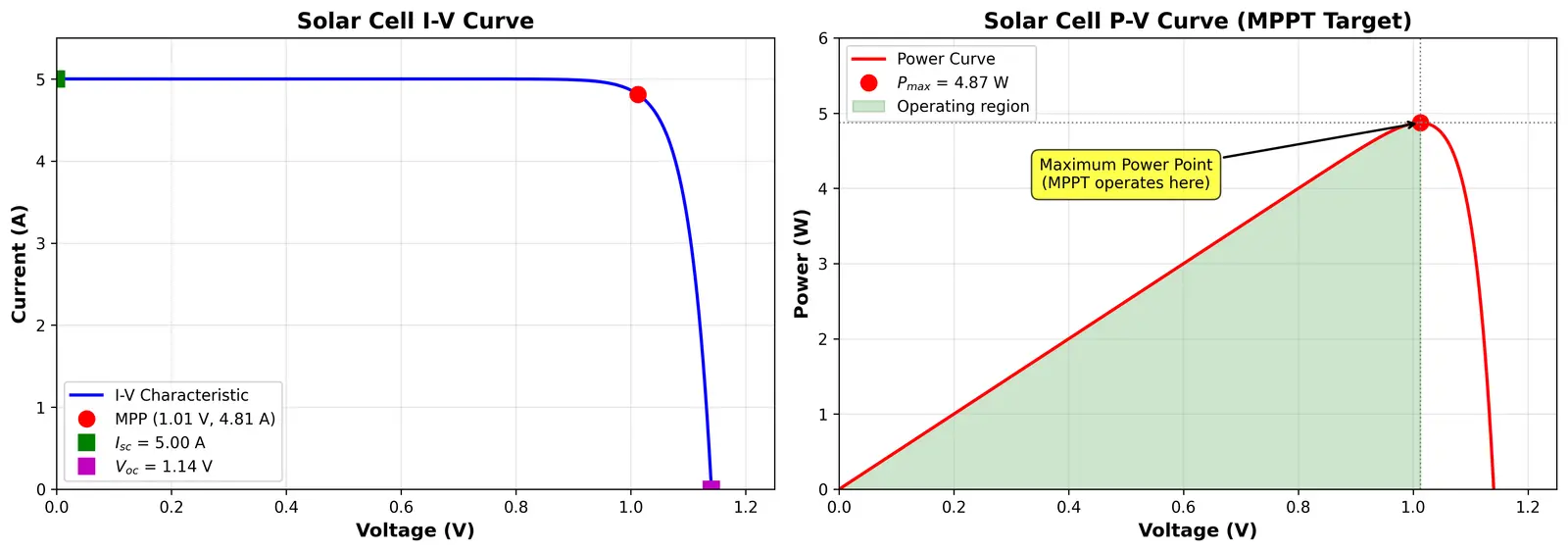

The I-V Characteristic Curve

WHY this shape? A solar cell is a diode plus a current source. The photocurrent $I_L$ (light-generated) is constant, but the diode has an exponential I-V relation. Combining:

Derivation from first principles:

1. Photon absorption → carrier generation: Photons with $E > E_g$ (bandgap) create electron-hole pairs. The flux of absorbed photons givesocurrent $I_L \propto$ light intensity.
2. P-N junction diode behavior: Without light, a diode conducts $I = I_0 (e^{V/nV_T} - 1)$. This is the Shockley equation from minority carrier diffusion across the depletion region.
3. Superposition: The solar cell is a current source $I_L$ in parallel with a diode. Using Kirchoff: $I_{out} = I_L - I_{diode}$.
4. Non-idealities: Real cells have series resistance $R_s$ (wire/contact resistance) and shunt resistance $R_{sh}$ (edge defects). For simplicity above, $R_s \approx 0$ and $R_{sh} \to \infty$ in the ideal case.

Power output:

At short circuit ($V=0$): $I = I_L = I_{sc}$.
At open circuit ($I=0$): $V = V_{oc} \approx nV_T \ln\left(\frac{I_L}{I_0} + 1\right)$.

The fill factor $FF$ quantifies how "square" the curve is:

Typical silicon cells: $FF \approx 0.7–0.85$. Triple-junction GaAs cells (used in space): $FF \approx 0.85–0.88$.

Given: $I_L = 5 \text{ A}$, $I_0 = 10^{-12} \text{ A}$, $n=1.5$, $T=300 \text{ K}$ (so $V_T = 0.026 \text{ V}$), ideal cell ($R_s=0, R_{sh}=\infty$).

Find: $V_{mp}$, $I_{mp}$, $P_{max}$.

Solution:

1. Power is $P = V I = V [I_L - I_0(e^{V/nV_T}-1)]$.
2. To maximize, set $\frac{dP}{dV} = 0$:

3. Compute $\frac{dI}{dV} = -\frac{I_0}{nV_T} e^{V/nV_T}$.
4. Substitute:

5. This is transcendental; solve numerically or approximate. For this example, $V_{oc} \approx 1.5 \times 0.026 \ln(5 \times 10^{12}) \approx 1.15 \text{ V}$.
6. Numerical solution gives $V_{mp} \approx 1.0 \text{ V}$, $I_{mp} \approx 4.9 \text{ A}$, $P_{max} \approx 4.9 \text{ W}$.
7. $FF = \frac{4.9}{1.15 \times 5} \approx 0.85$.

Why this step? The derivative condition $dP/dV = 0$ finds the voltage where incremental voltage increase trades off current decrease optimally for power.

Maximum Power Point Tracking (MPPT)

WHY needed? The MPP shifts with:

• Temperature: Higher $T$ lowers $V_{oc}$ (because $V_{oc} \propto \ln(\text{intensity}/I_0(T))$ and $I_0$ increases exponentially with $T$). Typical coefficient: $-2.2 \text{ mV/°C}$ per cell.
• Illumination: Lower intensity reduces $I_{sc}$ proportionally but $V_{oc}$ logarithmically.
• Degradation: Radiation damage in space reduces $I_L$ and increases $I_0$ over years.

HOW MPPT works (Perturb-and-Observe algorithm):

1. Measure current $P_k = V_k I_k$.
2. Perturb voltage: $V_{k+1} = V_k + \Delta V$ (small step, e.g., 0.5 V).
3. Measure new power $P_{k+1}$.
4. If $P_{k+1} > P_k$, keep moving in same direction ($\Delta V$ same sign).
5. If $P_{k+1} < P_k$, reverse direction ($\Delta V \to -\Delta V$).
6. Repeat at ~10–100 Hz.

Alternative: Incremental conductance ($\frac{dI}{dV} = -\frac{I}{V}$ at MPP). More efficient but more complex.

Effect on I-V:

• $I_{sc}$ drops to $I_{sc,0} \times 0.866$.
• $V_{oc}$ drops by $nV_T \ln(0.866) \approx -1.5 \times 26 \times 0.144 \approx -5.6 \text{ mV}$ (small).
• $P_{max}$ drops by $\approx 13\%$.

MPPT response: Algorithm detects power drop, searches for new $V_{mp}$ (slightly lower voltage, much lower current), locks on.

Why it feels right: Batteries are ~constant voltage loads (e.g., Li-ion ~3.7 V/cell). If battery voltage happens to match $V_{mp}$, you'd get max power.

The fix: In reality, $V_{mp}$ drifts with temperature/angle/age, and battery voltage changes with state-of-charge (3.0–4.2 V for Li-ion). A DC-DC converter (buck-boost) with MPPT sits between array and battery, forcing the array to operate at $V_{mp}$ while supplying whatever voltage the battery needs.

Batteries for Eclipse Power

Depth of Discharge (DoD)

WHY it matters: Higher DoD → fewer lifetime cycles. The relationship is empirical (from accelerated life testing):

Derivation logic: Each charge/discharge cycle causes:

1. Solid-electrolyte interphase (SEI) growth on the anode (irreversible Li consumption).
2. Cathode structure degradation (transition metal dissolution).
3. Electrolyte decomposition (especially at high voltages, i.e., near full charge).

Deeper discharge → more voltage swing → more side reactions → faster capacity fade.

If we allow 80% DoD:

• Usable energy: $560 \times 0.8 = 448 \text{ Wh}$ (plenty).
• Cycle life: ~2500 cycles.
• Mission duration: $2500 / (365.25 \times 365.25/90\,\text{min} \times 1440/90) \approx 2500 / 5840 \approx 0.43$ years (6 months).

If we limit to 30% DoD:

• Usable: $560 \times 0.3 = 168 \text{ Wh}$ (not enough!).
• Need bigger battery: $290 / 0.3 = 967 \text{ Wh}$, or 34.5 Ah at 28 V.
• Cycle life: ~15,000 cycles → ~2.6 years.

Why this step? We trade battery mass vs. lifetime For a 5-year mission, you'd design for 30–40% DoD (and size battery accordingly), accepting the mass penalty.

Battery Technologies in Space

Thermal management: Li-ion operates 0–40°C. Space is extreme (±150°C swing). Heaters + radiators maintain 15–25°C.

Radioisotope Thermoelectric Generators (RTG)

Power Output Over Time

Electrical power:

where $\eta$ is thermoelectric conversion efficiency (typically 6–7% at beginning-of-life).

WHY efficiency drops: Thermoelectric materials degrade (sublimation of Te, radiation damage). Empirical model:

with $\tau \approx 15–20$ years. Combined:

Why this step? Two decay processes compound: isotope half-life (slow) and TE degradation (faster). Mission design must ensure minimum power at end-of-life exceds load.

Sebeck Effect (Thermoelectric Conversion)

Derivation from carrier statistics:

1. Hot side has higher carrier energy → more diffusion to cold side.
2. Charge imbalance creates electric field.
3. At equilibrium, $eV = \Delta \mu$ (electrochemical potential difference).
4. For metals/semiconductors, $\mu \propto k_B T \ln(n)$, so $V \propto T$ (simplified).

Efficiency (Carnot-limited):

where $ZT$ is the thermoelectric figure of merit (dimensionless):

• $\sigma$ = electrical conductivity.
• $\kappa$ = thermal conductivity.

WHY low efficiency? Need high $\sigma$ (good electrical conductor) but low $\kappa$ (poor thermal conductor)—contradictory. Best materials (Bi₂Te₃, SiGe, skuterudites): $ZT \approx 1–1.5$ → $\eta \approx 6–10\%$.

Why it feels right: 87.7-year half-life is longer than most missions. No degradation from cycles like batteries.

The fix:

1. Cost: $^{238}\text{Pu}$ is scarce (produced in reactors, $\sim$10 kg/yr globally). One MMRTG costs ~$100M. Only for missions where solar is impossible.
2. Mass: 45 kg for 110 W (0.4 kg/W). Solar arrays: ~0.02 kg/W (20× lighter per watt at 1 AU).
3. Safety: Launch approval requires extensive containment analysis (though $^{238}\text{Pu}$ is alpha-only, not gamma, so shielding is manageable).

Power Budget and System Design

Sunlight charge balance:

Sizing example (GEO satellite, 5-year mission):

• Eclipse: 72 min, twice per year (equinox).
• Load: 3 kW average.
• Battery: Li-ion, 30% DoD target.
• Energy per eclipse: $3 \times 1.2 = 3.6 \text{ kWh}$.
• Battery size: $3.6 / 0.3 = 12\text{ kWh}$ (430 Ah at 28 V).
• Solar array (at end-of-life, with 20% degradation): $(3 + 3.6/(23.8/60)) \times 1.2 / 0.8 \approx 16.4 \text{ kW}$ BOL.
• Array area (30% efficiency, 1367 W/m²): $16.4 / (0.3 \times 1.367) \approx 40 \text{ m}^2$.

Connections

• Spacecraft Thermal Control — batteries and power electronics generate heat; solar arrays need radiators on back side.
• Orbital Mechanics (Keplerian) — eclipse duration depends on orbit altitude and inclination; $\beta$-angle determines seasonal solar flux.
• Semiconductor Physics — p-n junctions, Fermi levels, carrier diffusion underpin solar cells.
• Thermodynamics & Heat Transfer — Carnot efficiency, Sebeck effect, blackbody radiation (RTG radiator sizing).
• Radiation Effects on Materials — displacement damage in solar cells (coverglass thickness vs. mass trade), TE material degradation.
• Power Electronics — DC-DC converters, MPPT algorithms, battery charge controllers.
