Nuclear thermal propulsion — NTR Isp ~900 s concept

WHY does this idea even exist?

WHAT is $I_{sp}$ really measuring?

So the entire game is: maximize exhaust velocity $v_e$ .

HOW: deriving $v_e$ from first principles

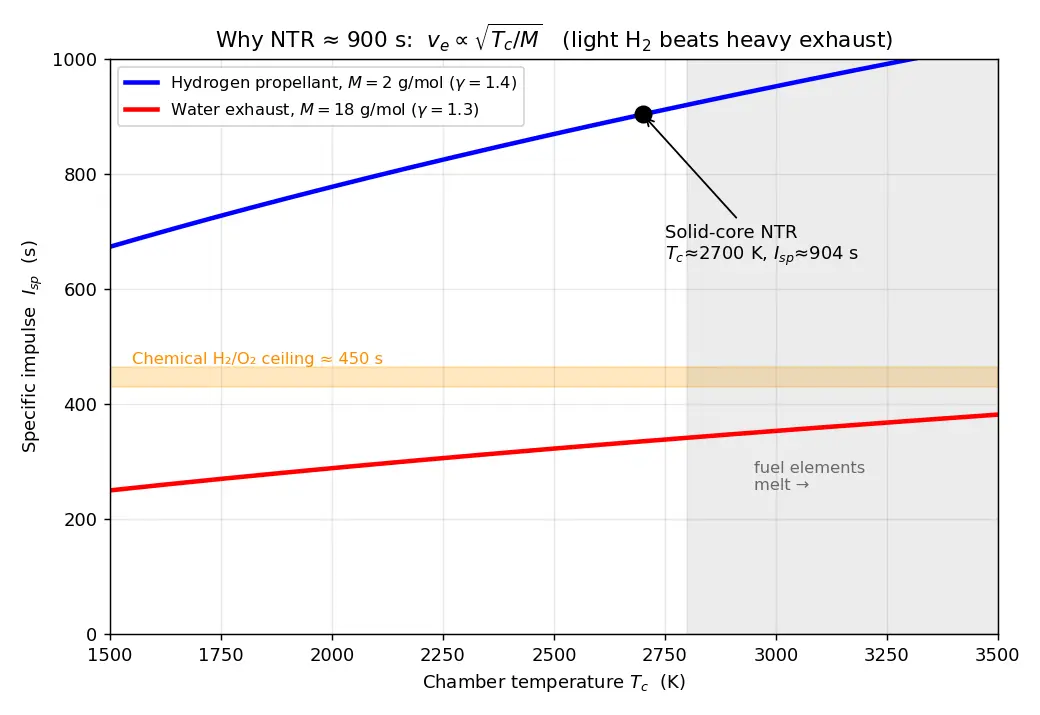

Figure — Nuclear thermal propulsion — NTR Isp ~900 s concept

Worked Example 1 — Getting the ~900 s number

Worked Example 2 — Why not use water?

Worked example Same reactor, wrong propellant

Suppose you ran the same 2700 K reactor but pushed steam ( $M=18\times10^{-3}$ ) through it, $\gamma\approx1.3$ . $\dfrac{2\gamma}{\gamma-1}=\dfrac{2.6}{0.3}=8.67$ . $v_e = \sqrt{8.67\times\frac{8.314\times2700}{18\times10^{-3}}} = \sqrt{8.67\times1.247\times10^{6}} \approx 3290\ \text{m/s}$ $I_{sp} = 3290/9.81 \approx 335\ \text{s}$ . Why so bad? The $1/M$ punished you: 9× heavier molecule → $\sqrt{9}=3\times$ slower. Lesson: the propellant choice, not the heat source alone, sets $I_{sp}$ .

Worked Example 3 — The material-limit trade-off

Common mistake Steel-man: "Nuclear rockets must be super hot, so they must have huge

$I_{sp}$ ." Why it feels right: we associate "nuclear" with enormous energy, and $v_e$ grows with temperature, so surely temperature is everything. The fix: $v_e\propto\sqrt{T/M}$ — temperature is under a square root and competes with a hard melting limit (~2700–3000 K for solid cores). The real reason NTR beats chemical is the tiny $M$ of pure hydrogen, not extreme temperature. In fact NTRs run cooler than chemical flames.

Common mistake Steel-man: "More thrust means more

$I_{sp}$ ." Why it feels right: big rockets feel more powerful. The fix: $I_{sp}$ is efficiency (m/s of exhaust), not force. Thrust $F=\dot m\,v_e$ depends on mass flow $\dot m$ too. NTRs actually have modest thrust-to-weight (heavy reactor!) but excellent $I_{sp}$ — great for long trips, not for lifting off Earth.

Common mistake Steel-man: "Just use the internal energy

$\tfrac12 v_e^2=c_vT$ ." Why it feels right: kinetic energy = thermal energy seems natural. The fix: a flowing gas also does pressure-work, so the correct conserved quantity is enthalpy $c_pT$ , not $c_vT$ . Using $c_v$ underestimates $v_e$ by a factor $\sqrt{\gamma}$ .

Feynman check

Recall Explain it to a 12-year-old

A normal rocket burns fuel to make hot gas and shoots it out the back. But the gas it makes (steam) is kind of heavy and hard to throw fast. A nuclear rocket is like a giant hot stove that doesn't burn anything — it just gets very hot from tiny atoms splitting. You blow the lightest gas there is (hydrogen) past this stove. Because hydrogen is so light and feathery, it shoots out super fast — about twice as fast as the steam a normal rocket makes. Faster exhaust = you can go much farther on the same tank of gas.

Active-recall flashcards

What quantity does

I_{sp}

measure, physically?

Exhaust velocity ÷

g_0

; effective seconds of thrust per unit weight of propellant. It's efficiency, not force.

What is the scaling of exhaust velocity with chamber temperature and molar mass?

v_e \propto \sqrt{T_c/M}

Why does an NTR beat a chemical rocket even though it's cooler?

It uses pure hydrogen (

M\approx2

) vs water (

M\approx18

); the

1/M

factor dominates the lower

T

Why use enthalpy

c_pT

(not

c_vT

) in the energy balance?

A flowing gas also does flow-work; enthalpy is the correct energy currency for steady flow.

Full-expansion formula for exhaust velocity?

v_e=\sqrt{\dfrac{2\gamma}{\gamma-1}\dfrac{RT_c}{M}}

Typical NTR (solid-core)

I_{sp}

and what limits it?

~900 s, limited by reactor fuel-element melting temperature (~2700–3000 K), not by physics.

Chemical rocket

I_{sp}

for comparison?

~450 s (H₂/O₂), because exhaust is heavy water molecules.

Why do NTRs have poor thrust-to-weight despite high

I_{sp}

The reactor is heavy and mass flow is modest;

I_{sp}

(efficiency) and thrust (

\dot m v_e

) are different things.

Connections

Specific Impulse — the efficiency metric this whole note optimizes.
Tsiolkovsky Rocket Equation — where high $I_{sp}$ pays off exponentially in $\Delta v$ .
De Laval Nozzle — the device converting enthalpy into $v_e$ .
Nuclear Fission — the energy source replacing combustion.
Chemical Rocket Propulsion — the ~450 s baseline we beat.
Adiabatic Flow & Enthalpy — justifies $\tfrac12 v_e^2=c_p\Delta T$ .
Nuclear Electric Propulsion — trades thrust for even higher $I_{sp}$ (thousands of s).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, chemical rocket ka fundamental problem yeh hai ki jab tum H₂ aur O₂ jalate ho toh jo exhaust banta hai woh paani (steam) hota hai — molar mass $M\approx18$ , kaafi bhaari molecule. Aur exhaust speed ka formula $v_e\propto\sqrt{T_c/M}$ kehta hai ki bhaari molecule dheere nikalta hai. Isliye chemical rocket ka $I_{sp}$ around 450 s pe atak jaata hai.

Ab Nuclear Thermal Rocket (NTR) ka jugaad samajho: hum kuch jalate hi nahi. Ek nuclear reactor se fission ki garmi lete hai — yeh energy chemical bonds se laakhon guna zyada dense hoti hai. Iska matlab hum apna propellant azaadi se choose kar sakte hai, aur hum sabse halka gas lete hai — pure hydrogen, $M\approx2$ . Reactor us hydrogen ko heat karta hai, aur kyunki hydrogen 9 guna halka hai, woh $\sqrt{9}=3$ guna tezi se nikalne ki koshish karta hai. Mazedaar baat: NTR actually chemical flame se thanda chalta hai (~2700 K), phir bhi light molecule ki wajah se $I_{sp}$ almost double ho jaata hai — around 900 s.

Formula ki derivation simple hai: flowing gas ki enthalpy $c_pT$ kinetic energy $\tfrac12 v_e^2$ mein badalti hai (yaad rakhna — $c_p$ , not $c_v$ , kyunki gas flow-work bhi karta hai). Isse nikalta hai $v_e=\sqrt{\frac{2\gamma}{\gamma-1}\frac{RT_c}{M}}$ . 2700 K aur hydrogen daalo toh $v_e\approx8860$ m/s, aur $g_0$ se divide karo toh $I_{sp}\approx903$ s.

Yeh important kyun hai? Kyunki Tsiolkovsky equation ( $\Delta v = v_e\ln(m_0/m_f)$ ) mein $v_e$ exponentially madad karta hai. Double $I_{sp}$ ka matlab Mars jaise long missions ke liye bahut kam fuel. Lekin ek catch: NTR ka thrust-to-weight kam hota hai (reactor bhaari hai), toh Earth se launch ke liye nahi, balki space mein long journeys ke liye best hai.
