Foundations — Nuclear thermal propulsion — NTR Isp ~900 s concept

This page assumes you have seen nothing. Before you can read the parent page's boxed speed formula and feel calm, every letter in it must mean something you can picture. We build them in order — each one uses only the ones before it, and we will not write the full formula until we have earned every symbol in it (that happens in §9).

0. The picture the whole topic lives in

Imagine a bottle of hot gas with a hole in one end. The gas rushes out the hole; the bottle recoils the other way. That recoil is thrust. The faster the gas exits, the harder the kick per kilogram of gas spent.

Look at the red arrow — that is the exhaust velocity, the single quantity this whole topic tries to maximize. Everything below is built to explain and predict that red arrow.

1. Mass, and the idea of "how much stuff"

Picture: a pile on a weighing scale. The bigger the pile, the bigger the number.

Why the topic needs it: thrust and efficiency both compare energy against mass. We are always asking "how much punch per kg?"

2. Energy, the joule, and kinetic energy $\frac{1}{2}{v}^2$

Picture: a thrown ball. A ball going twice as fast doesn't sting your hand twice as hard — it stings four times as hard.

Why the topic needs it: the exit speed we want is made from energy. Every formula for $v_e$ will end in a square root, because we must "undo" this $v^2$ to get speed back out of energy.

3. Temperature $T$ and the chamber/exit split

Picture: a swarm of dots bouncing in a box. Hot box = blurry, fast dots. Cold box = slow, lazy dots.

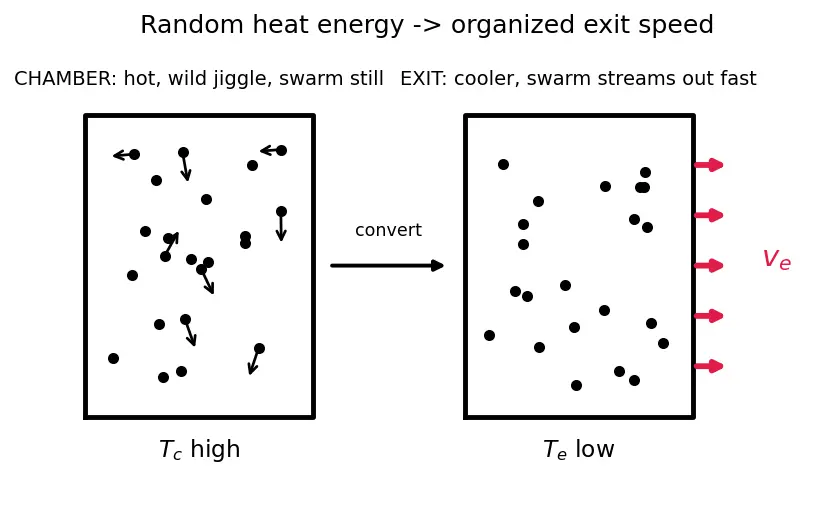

Look at the two boxes: on the left (chamber) the dots jiggle wildly but the box is still; on the right (exit) the dots jiggle less but the whole swarm streams right in red. That swap — random heat energy → organized exit speed — is the heart of the topic.

Why the topic needs it: $v_e$ is powered by the temperature drop $T_c-T_e$. Big drop, big exit speed.

4. Molecules, molar mass $M$, and the ideal-gas law

Picture: two identical bags each holding the same number of balls. The hydrogen bag holds tiny ping-pong balls; the water bag holds golf balls. Same count, very different weight.

Why the topic needs it: for a fixed amount of energy per kilogram, lighter molecules must move faster to carry that energy (see §7). $M$ is the lever that makes hydrogen win — the whole reason NTR beats chemical is this $1/M$.

5. Heat capacity: $c_v$, $c_p$, and $\gamma$

Now the trickiest trio. Take these one at a time.

Picture: two thermometers on two identical gas samples getting the same joules of heat — the trapped one climbs higher (all energy → temperature), the free-to-expand one climbs less (some energy → pushing). The gap between them is what $\gamma$ measures.

6. The core energy balance: why $\frac{1}{2}{v}_e^2=c_p(T_c-T_e)$

This is the equation the parent page leans on. Let us earn it.

Why the topic needs it: this single line is the machine that converts a temperature drop into an exit speed. Everything after is bookkeeping to express $c_p$ in useful variables.

7. The gas constant $R$ and the bridge $c_p=\frac{\gamma }{\gamma -1}\frac{R}{M}$

Why the topic needs it: it's the hinge that inserts molar mass $M$ into the speed formula, giving the famous $v_e\propto \sqrt{T/M}$.

8. Dropping $T_e$: what "full expansion" really assumes

9. Assembling the master formula

Every symbol is now earned. Combine §6's balance with §7's $c_p$:

$\underset{\text{§2}}{\underbrace{\frac{1}{2}{v}_e^2}}=\underset{\text{§5}}{\underbrace{c_p}}\underset{\text{§3}}{\underbrace{(T_c-T_e)}},\underset{\text{§5}}{\underbrace{c_p}}=\underset{\text{§7}}{\underbrace{\frac{\gamma }{\gamma -1}}}\underset{\text{§7}}{\underbrace{\frac{R}{M}}}$

Take the full-expansion limit ($T_e\to 0$, §8) and solve for $v_e$ by multiplying by 2 and taking the square root (to undo the $v_e^2$ from §2):

$\boxed{v_e=\sqrt{\frac{2\gamma }{\gamma -1}\frac{R{T}_c}{M}}}$

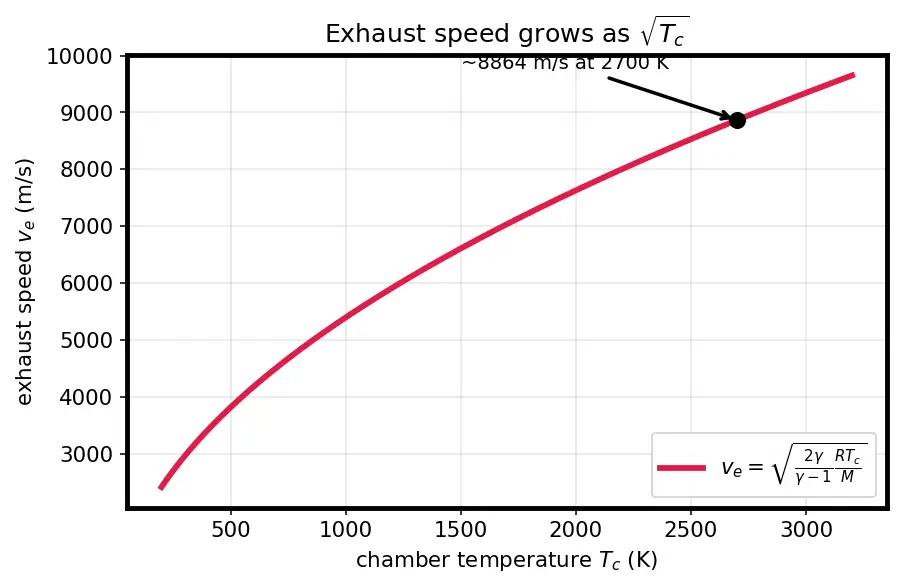

The red curve shows the whole punchline: for fixed molar mass, $v_e$ grows like $\sqrt{T_c}$ — a square-root, so it flattens (doubling temperature only gives $\sqrt{2}\approx 1.41$× the speed). That flattening is why the parent page says temperature alone can't save you and molar mass is the real lever.

10. From speed to seconds: $g_0$ and $I_{sp}$

Why the topic needs it: "seconds" is the universal scoreboard. Chemical ≈ 450 s, NTR ≈ 900 s — and now you can see all $I_{sp}$ really is: $v_e$ in disguise.

Prerequisite map

Equipment checklist

Cover the right-hand side and test yourself. If you can answer each, you're ready for the parent page.
