Hybrid engines — advantages, disadvantages

WHAT is a hybrid engine?

WHY two phases? Because if both propellants are solid and pre-mixed (like a solid motor), you cannot separate them again to control the burn. By keeping one as a valved fluid, you get a flow control knob the solid motor never had.

HOW it burns — the diffusion-flame picture

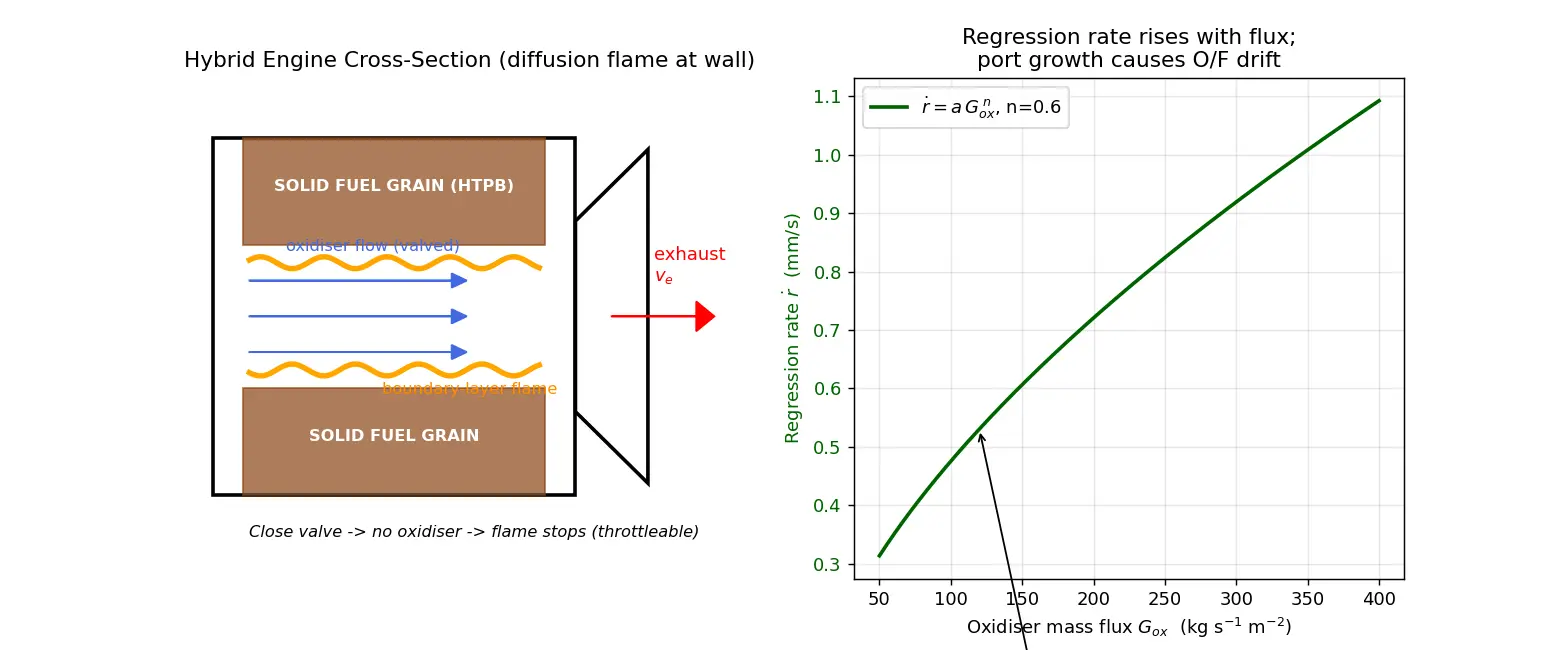

Figure — Hybrid engines — advantages, disadvantages

Consequence: thrust is governed by how fast fuel leaves the wall — the regression rate $\dot r$ (how quickly the wall "recedes"). Because burning is limited to the surface, hybrids naturally burn slower and steadier.

Deriving thrust control from mass flow

For a hybrid the total propellant mass flow is $\dot m = \dot m_{ox} + \dot m_{fuel}$

HOW you get control: $\dot m_{ox}$ is set by a valve you command directly. The fuel flow follows the regression law $\dot m_{fuel} = \rho_f \, A_b \, \dot r,\qquad \dot r = a\,G_{ox}^{\,n}$

WHY this form? Fuel comes off the burning wall of area $A_b$ at speed $\dot r$ ; multiply by fuel density $\rho_f$ → mass per second.
$G_{ox} = \dot m_{ox}/A_{port}$ is the oxidiser mass flux (kg s⁻¹ m⁻²). More oxidiser flow ⇒ hotter, thinner boundary layer ⇒ faster wall regression, so $\dot r$ grows with $G_{ox}$ . The exponent $n\approx 0.5$ – $0.8$ .

Punchline: close the valve ( $\dot m_{ox}\to 0$ ) and $\dot m \to 0$ → thrust dies → you can throttle, stop, and restart. A solid motor physically cannot do this.

The O/F ratio "shift" — why hybrids are quirky

The oxidiser-to-fuel ratio $\text{O/F} = \frac{\dot m_{ox}}{\dot m_{fuel}} = \frac{\dot m_{ox}}{\rho_f A_b\, a\,G_{ox}^{\,n}}$ therefore drifts (usually richer in oxidiser) during the burn, pushing you away from the optimal O/F and slightly lowering efficiency ( $I_{sp}$ ). This "O/F shift" is a signature disadvantage.

Advantages & Disadvantages (the 80/20 core)

✅ Advantage	WHY it follows	❌ Disadvantage	WHY it follows
Throttleable, stoppable, restartable	valve controls $\dot m_{ox}$	Low regression rate → low thrust	surface-limited diffusion flame
Safe — components inert alone; can't detonate	fuel & oxidiser never pre-mixed	O/F ratio shifts during burn	port area grows, $G_{ox}$ falls
Cheap & simple vs liquids (one tank, one valve)	half the plumbing	Incomplete combustion / sliver waste	fuel left near case, low $c^*$ efficiency
Green oxidisers possible (e.g. N₂O, LOX)	fuel choice decoupled	Lower average $I_{sp}$ than best liquids	O/F drift + mixing losses
Can carry inert, storable fuel grain	grain is just rubber/plastic (HTPB)	Scaling to high thrust needs complex multi-port grains	one port can't give enough $A_b$

Worked example Worked example 1 — throttling ratio

A hybrid burns with $\dot m_{ox}=2.0$ kg/s and $\dot m_{fuel}=1.0$ kg/s at exhaust speed $v_e=2400$ m/s (assume perfectly expanded, pressure term ≈ 0). The pilot halves the oxidiser flow to 1.0 kg/s. With $n=0.6$ , port area momentarily fixed, estimate the new thrust.

Step 1 — old thrust. $F_0=\dot m v_e=(2.0+1.0)(2400)=7200$ N. Why: thrust = total mass flow × exhaust speed.

Step 2 — new fuel flow. $\dot r\propto G_{ox}^{0.6}\propto \dot m_{ox}^{0.6}$ at fixed port. Halving $\dot m_{ox}$ : factor $=0.5^{0.6}=0.66$ . So $\dot m_{fuel}=1.0\times0.66=0.66$ kg/s. Why: fuel production tracks oxidiser flux via the regression law — this is exactly the coupling a solid motor lacks.

Step 3 — new thrust. $F=(1.0+0.66)(2400)=3984$ N. Why: both terms dropped, but fuel dropped less steeply (exponent < 1). Thrust roughly halved — demonstrating real throttling.

Worked example Worked example 2 — why it's safe (Feynman check)

Store 20 kg of HTPB rubber grain and a separate tank of liquid nitrous oxide. A stray spark hits the grain. Result: nothing explodes. Why? With no oxidiser flowing over it, the rubber is just... rubber. It has no internal oxidiser to sustain a runaway reaction. In a solid motor the oxidiser is baked into the same grain, so a crack + spark can ignite the whole mass. The phase/physical separation is the safety mechanism.

Recall Explain it to a 12-year-old (Feynman)

Imagine a campfire log (that's the solid fuel). A log alone won't blaze — but if you point a hair-dryer full of air at it, the flames roar. Turn the hair-dryer off, and the fire calms right down. A hybrid rocket is exactly this: the "log" is the solid fuel, and the "hair-dryer" is the oxidiser you can turn up, down, or off with a switch. That's why it's safe (a log won't explode in storage) and controllable (just work the switch) — but also a bit weak, because the fire only burns on the surface of the log, not all through it.

Active-Recall Flashcards

#flashcards/physics

What defines a hybrid rocket engine?

Fuel and oxidiser stored in different phases — solid fuel grain + liquid/gaseous oxidiser injected through a central port.

Where does combustion occur in a hybrid?

In the boundary-layer diffusion flame at the solid–gas interface along the port wall.

Which reactant controls the throttle, and why?

The oxidiser — it is valved; cutting

\dot m_{ox}

stops fuel vaporisation, so thrust dies (unlike a solid motor).

Write the fuel mass-flow / regression relation.

\dot m_{fuel}=\rho_f A_b \dot r

with

\dot r = a G_{ox}^{\,n}

G_{ox}=\dot m_{ox}/A_{port}

Why does the O/F ratio shift during a hybrid burn?

The port widens →

A_{port}\uparrow

→

G_{ox}\downarrow

→

\dot r\downarrow

→ less fuel, while

\dot m_{ox}

stays fixed, so O/F drifts.

Give two safety reasons hybrids beat solids.

(1) Fuel and oxidiser never pre-mixed, so no detonation in storage; (2) burn can be stopped by closing the valve.

State two main disadvantages of hybrids.

Low regression rate (low thrust) and O/F shift causing sub-optimal

I_{sp}

; also sliver/incomplete-combustion losses.

Why is hybrid

I_{sp}

usually below top liquid engines?

Diffusion-limited mixing + drifting O/F prevent complete, optimally-mixed combustion.

Typical regression-rate exponent

n

About 0.5–0.8.

Connections

Solid Rocket Motors — no throttling; oxidiser baked into grain
Liquid Propellant Engines — two fluids, full control, complex plumbing
Thrust Equation and Momentum Theorem — source of $F=\dot m v_e+(p_e-p_a)A_e$
Specific Impulse (Isp) — the efficiency metric O/F shift degrades
Regression Rate and Boundary Layer Combustion
Green Propellants — N₂O / LOX oxidisers with inert HTPB fuel

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, hybrid engine ka basic funda simple hai: fuel ko solid rakho (jaise rubber-type HTPB grain) aur oxidiser ko liquid ya gas rakho, jise ek valve se control karte ho. Solid rocket mein fuel aur oxidiser dono mila-jula ek grain mein hote hain — isliye ek baar start ho gaya to band nahi kar sakte. Liquid rocket mein dono alag liquids, full control, lekin bohot saara plumbing aur cost. Hybrid dono ke beech ka rasta hai: half solid, half fluid.

Ab magic yeh hai — combustion sirf surface pe hota hai, jahan behta hua oxidiser solid ki wall ko chhoo raha hai (boundary-layer flame). Iska matlab: valve band karo, oxidiser rukega, aag ko "saans" nahi milegi, aur thrust ruk jayega. Isliye hybrid ko throttle, stop, aur restart kar sakte ho — solid motor yeh kabhi nahi kar sakta. Aur safety? Storage mein rubber alone kuch nahi karega, oxidiser alag tank mein — koi detonation risk nahi. Yeh cheap bhi hai kyunki ek hi tank, ek hi valve.

Lekin har cheez free nahi hoti. Kyunki aag sirf surface pe hai, regression rate kam hota hai — matlab thrust thoda weak. Aur jaise-jaise fuel jalta hai, central port chaura hota jaata hai, to $G_{ox}$ (oxidiser flux) gir jaata hai, fuel kam banta hai, aur O/F ratio shift ho jaata hai — efficiency ( $I_{sp}$ ) thodi kam. Yaad rakhne ka mantra: "Safe & Steerable, par Slow & Shifty." Yani control aur safety milti hai, par top-class liquid engine jitni performance nahi. Exam mein yeh trade-off table hi sabse zyada important hai — 80/20 wala core.
