The one core idea: a hybrid rocket keeps the fuel as a solid block and the oxidiser as a flowing fluid , so fire only exists where the flow touches the surface — and a valve on that flow becomes an on/off/throttle knob.
Everything in the parent note (throttling, safety, the "O/F shift", lower I s p
Before you can understand why a hybrid throttles or drifts, you must be fluent in the alphabet the parent note quietly assumes. Below, every symbol gets three things: plain words , the picture , and why the topic needs it . Read top to bottom — each one leans on the one above.

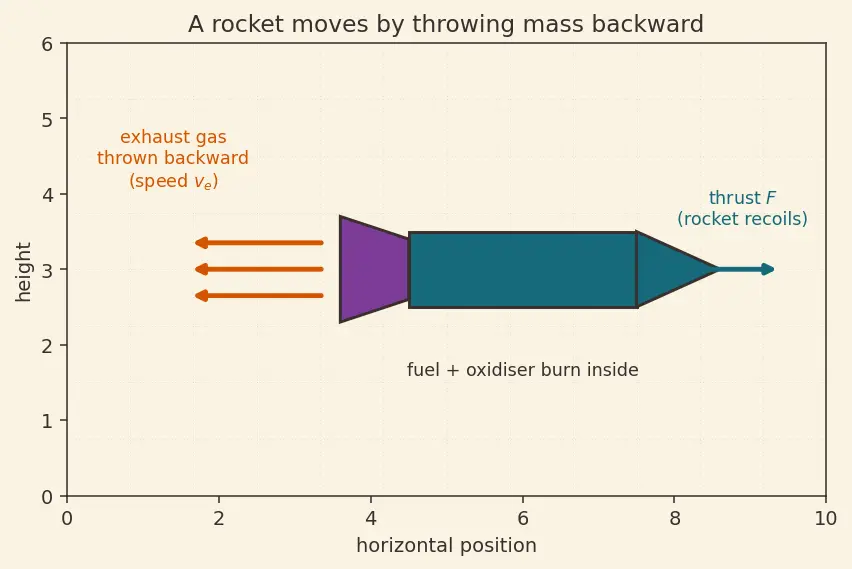

A rocket is a tube that throws mass backwards to move forwards. The stuff it throws is called propellant . Look at the figure: gas leaves the back of the nozzle at high speed (the orange arrows), and the rocket recoils forwards (the teal arrow).
Why the topic needs it: every advantage/disadvantage of a hybrid is ultimately "does it throw mass well, safely, and controllably?" So we must name the pieces that throw mass.
The two ingredients a rocket burns are:
Fuel — the thing that wants to burn (e.g. rubber, HTPB plastic). Picture the campfire log.Oxidiser — the thing that lets it burn by supplying oxygen (e.g. liquid oxygen "LOX", nitrous oxide N₂O). Picture the air a hair-dryer blows on the log.
Fire = fuel + oxidiser + heat. On Earth the oxidiser is free air; a rocket flies where there is no air, so it must carry its own oxidiser .
Question — In one word, what does the oxidiser supply that lets fuel burn in space? Oxygen.
Phase = the physical state of matter: solid , liquid , or gas .
A solid motor pre-mixes fuel+oxidiser into ONE solid grain.
A liquid engine keeps fuel and oxidiser as TWO liquids.
A hybrid mixes phases: solid fuel + fluid oxidiser .
Why the topic needs it: the entire chapter title is "hybrid," and hybrid means different phases . If you don't know what "phase" means, the word is empty.
Think of the phase as how gripped-together the particles are. Solid = locked in place (a rubber block). Liquid/gas = free to flow (pours or sprays through a pipe). A hybrid uses the locked one for fuel (safe to store) and the flowing one for oxidiser (easy to valve).
This is the single most important piece of notation in the parent note, and it is never explained there. We fix that now.

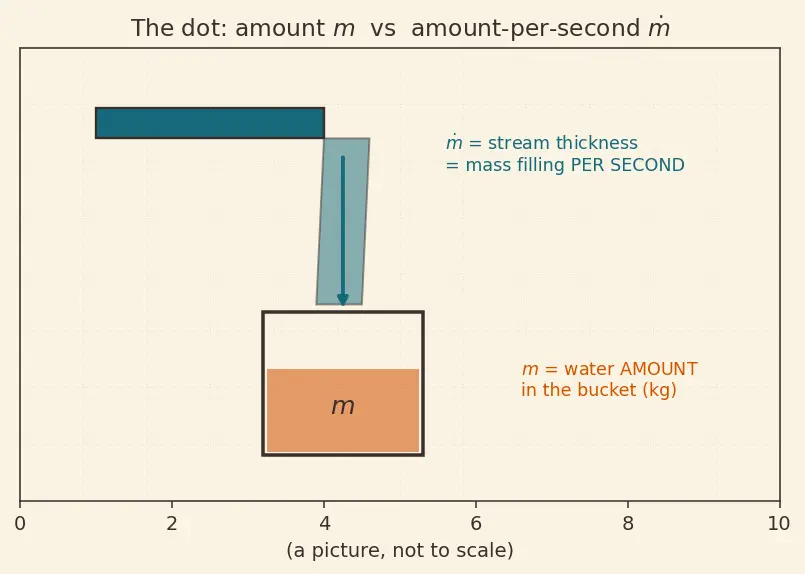

Picture a hose filling a bucket. m how much water is in the bucket . m ˙ how fast the bucket is filling — the thickness of the stream. Two different ideas! One is an amount; one is a speed-of-change. The dot converts "amount" into "amount per second".
Why the topic needs it: a rocket's push depends not on how much fuel you have , but on how fast you throw it. So every thrust formula is written in dots.
Question — What does the dot over m A rate: mass per second (kg/s).
v e exhaust velocity = the speed of the gas as it leaves the nozzle exit (metres per second, m/s). Picture the length of the orange arrows in Figure 1: longer arrow = faster exhaust = more push.
Why the topic needs it: push comes from mass × speed thrown . You need both the "how much per second" (m ˙ v e
The momentum term is the whole story: every second you fling mass m ˙ v e F = m ˙ v e
Question — Why does thrust use m ˙ m Because force comes from mass thrown each second , not the total mass you happen to carry.
ρ f fuel density = how many kilograms packed into each cubic metre of fuel (kg/m³). Picture how heavy a fist-sized lump of the rubber grain is.A b burning surface area = the area of solid wall that is actively on fire (m²). Picture the inner surface of the hollow tube where flame licks the wall.
Why the topic needs it: to know how much fuel comes off the wall per second, you multiply three things: how deep the wall recedes each second, over how much area, at what density.
r ˙ regression rate = how fast the burning wall retreats into the fuel, in metres per second (m/s). Notice the dot again: it's a rate. The wall "regresses" (moves back) as fuel vaporises off it. See Regression Rate and Boundary Layer Combustion .
Think of a bar of soap under a running tap: the surface slowly wears away, moving inward. The speed of that inward retreat is r ˙
Question — What picture matches "regression rate"? A bar of soap wearing inward under a tap — the speed of the surface retreating.
A p or t port area = the area of the hollow central hole the oxidiser flows down (m²). As fuel burns, this hole grows wider .G o x oxidiser mass flux = oxidiser flow crammed through each square metre of the port:
G o x = A p or t m ˙ o x (kg s − 1 m − 2 )
Flux = "how crowded is the flow?" Same m ˙ o x narrow hole = high flux (crowded, fast, hot). Push it through a wide hole = low flux (spread out, slow, cool). This is exactly why the O/F shifts: as the port widens, A p or t G o x m ˙ o x
Question — When the port widens with m ˙ o x G o x It falls — the same flow is spread over a bigger area, so it's less crowded.
O/F = oxidiser-to-fuel ratio = m ˙ f u e l m ˙ o x ideal O/F for hottest, most complete burning. Straying from it wastes propellant.I s p specific impulse = a rocket's "fuel economy" — how much push you get per unit of propellant used. Higher I s p Specific Impulse (Isp) .
Because A p or t m ˙ f u e l drops while m ˙ o x drifts away from ideal. Drifting O/F is why a hybrid's average I s p below the best liquid engines , even though both keep the oxidiser separate. This "O/F shift" is the signature hybrid disadvantage.
A green propellant is one that is non-toxic and environmentally gentle (e.g. nitrous oxide, liquid oxygen) — unlike the corrosive, poisonous liquids many rockets use. Because a hybrid's oxidiser is chosen independently of the fuel, it's easy to pick a green one. See Green Propellants .
Phases of matter: solid vs fluid
Hybrid = solid fuel + fluid oxidiser
Dot means per second: m-dot
Mass flow split: ox plus fuel
Thrust equals m-dot times v-e
Oxidiser is valved so it is throttleable
Fuel flow equals density times area times r-dot
Regression law r-dot equals a times G-ox to the n
Port widens so G-ox falls so O over F shifts
Hybrid advantages and disadvantages
Can I say in words what "phase of matter" means and why a hybrid is called hybrid? Solid/liquid/gas state; hybrid = solid fuel + fluid oxidiser (mixed phases).
Do I know what a dot over a letter means? A rate — "how much per second". m ˙
Can I write and read the thrust equation? F = m ˙ v e + ( p e − p a ) A e F = m ˙ v e
Do I know what v e Exhaust velocity — the speed the gas leaves the nozzle (m/s).
Can I explain m ˙ f u e l = ρ f A b r ˙ Density × burning area × wall-recede speed = fuel mass per second.
Do I know what r ˙ The burning wall retreating inward — soap under a tap.
Can I define oxidiser flux G o x m ˙ o x / A p or t
Do I know the regression law and why n < 1 r ˙ = a G o x n n < 1
Can I define O/F and I s p O/F = m ˙ o x / m ˙ f u e l I s p I s p
